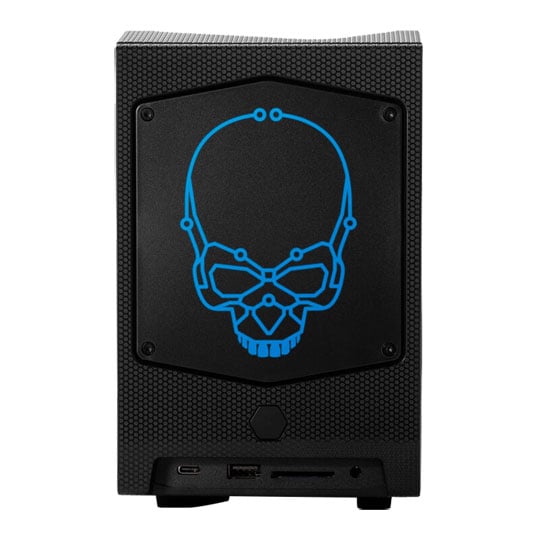

Intel NUC 12 Extreme Kit Core i9-12900 Mini PC Barebone System

Intel NUC 12 Extreme Kit, NUC12DCMi9, Dragon Canyon, Core i9-12900, DDR4 SO-DIMM, M.2 SSD, Wi-Fi 6E/BT5.3, Barebone

Free Free UK AC06C13UK Power Cable - LN 111230
Thumbnail 1 : Intel NUC 12 Extreme Kit Core i9-12900 Mini PC Barebone System Thumbnail 2 : Intel NUC 12 Extreme Kit Core i9-12900 Mini PC Barebone System
Scan code: LN127414 Manufacturer code: RNUC12DCMI90000
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
Product Overview
Please note: Images used for illustration purposes. Barebone system only. Storage, RAM and OS sold separately.

Intel® Optane™ Memory Supported

Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.


Intel® Virtualization Technology for Directed I/O (VT-d)

Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.


Intel® Rapid Storage Technology

Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.


Intel® Virtualization Technology (VT-x)

Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.


Intel® Platform Trust Technology (Intel® PTT)

Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.


Intel® AES New Instructions

Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Features
• CPU: Intel® Core™ i9-12900 Processor (30M Cache, up to 5.10 GHz).
• RAM: Supports up to 64GB DDR4 SO-DIMM RAM.
• Storage: Supports M.2 SSD Storage.
• Front IO: USB 3.2 Gen 2.
• Rear IO: 6x rear USB 3.2 gen 2, 2x Thunderbolt 4, 1x HDMI 2.0b.
• Intel® Wi-Fi 6E AX211.
• LAN: 10GbE (AQC113) + Intel® i225-LM.
• Internal Headers: 2x USB 2.0, FRONT_PANEL.
Specifications
Edition NUC 12 Extreme Kit - NUC12DCMi9
Form Factor Intel NUC
CPU Included Yes
CPU Type Intel Core i9
CPU Model i9-12900
Architecture Alder Lake
Manufacturing Process
Unlocked CPU No
Core 16 Core
No. of Threads 24
Clock Speed 2.40 GHz
Burst Frequency 5.10 GHz
CPU Cache 30MB
CPU Cooler
Max. TDP 65 W
CPU Socket 1700
Chipset Intel Z690
Motherboard Form Factor
Motherboard Model NUC12EDBi9
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel UHD Graphics 770
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed 300 MHz
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O
  • 1 x Front Panel Connector
  • 2 x USB 2.0 Header
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x Aquantia GbE LAN (10Gb/5Gb/2.5Gb/1000Mb/100Mb)
  • 1 x Intel (2.5GbE LAN)
Front Panel
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Back Panel
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x 10GbE RJ45
  • 1 x HDMI 2.0b
  • 2 x Thunderbolt 4
  • 6 x USB 3.2 Gen2 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System Not Included
Colour Black
Dimensions 120 x 189 x 357 (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN127414
Model Number RNUC12DCMI90000
