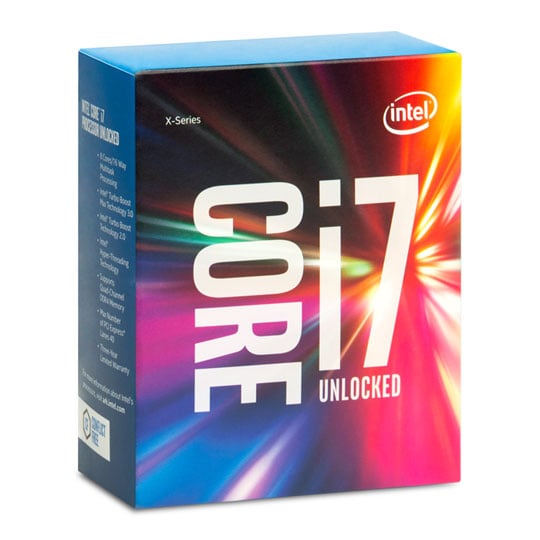

Intel i7 6800K Broadwell Extreme Unlocked CPU/Processor

Intel Core i7 6800K, S 2011-3, Broadwell-E, Six Core, 12 Thread, 3.4GHz Clock, 3.8GHz Turbo, 15MB, 28 Lane, 140W, Retail

FREE Intel Software Starter Pack with i7 6800K & 6850K
Intel
Scan code: LN72342 Manufacturer code: BX80671I76800K Request call
£298.99
In stock
Pay on Scan Finance with a 10% deposit from just £7.47 / month (APR 15.9%)
High End
Free Delivery Delivery options Free By DPD On 31st Jul 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

Intel - i7 - Broadwell Extreme - Unlocked - 6800K

Intel Core i7 CPU | Broadwell-Extreme

This 6800K is the cheapest CPU in the Broadwell-E chipset family. Despite this it still packs a punch of power; it boasts six cores, twelve threads and excellent technologies both embedded and supported. This version comes boxed and with written instructions. Capable of being overclocked and supporting quad channel memory the 6800K CPU is sure to push your gaming experience further – even if that’s virtual reality gaming.

Six
Cores

12
Threads

15MB
Cache

28
Lanes

3.4GHz
Clock

3.8GHz
Boost

OVERALL ENHANCED CPU PERFORMANCE

Broadwell-E Advanced Performance

The Broadwell-E family of processors enable simultaneous, compute intensive, multi-threaded workloads powered by up to 10 cores and 20 threads - this particular CPU boasts six cores and twelve threads. The Broadwell-E 6800K delivers platform scalability to meet exacting demands with 28 PCIe 3.0 lanes and support for high speed storage. It is capable of supporting up to 4 discrete graphics cards and Thunderbolt 3 technology.

The chip also supports quad channel DDR4 memory and is equipped with up to 25MB of Intel Smart Cache (the 6800k has 15MB) - it is even fully unlocked for unleashing extra gaming potential! Finally, the Broadwell-E family is the first to feature Intels new Turbo Boost Max Technology 3.0 - delivering more than 15% better single-thread performance.

THE 6800K CPU ENHANCED EXPERIENCE

Core i7 6800K Amazing Gaming Performance

Are you a multi-tasking addict? Regularly play next-gen games, record live, stream media and have multiple chat windows open, all at the same time? Look no further than the Intel Core i7 processor family. Give your PC the ability to smoothly record live whilst you game at a competitive level without compromising either. When run with the 3D Mark Fire Strike Physics it scores with an improvement of 30%, allowing you to play games with confidence.

No need to be worried about demanding requirements of a unique nature. With the Core i7 6800K processor family you can leverage the Intel Extreme Tuning Utility (Intel XTU) to build a custom overclocking solution to meet those demanding needs - it can also utilize Intel Turbo Boost Max Technology 3.0 to prioritize the workloads that matter most.

VIRTUAL REALITY READY

6800K CPU is VR Future Proof

The Virtual Reality generation is here and is advancing fast. In order to run the brand leading VR headsets you will require a powerful PC, and with VR tech only being pushed further those requirements are sure to increase. A great way to make sure your PC is future proofed for this VR entertainment is by investing in an Intel Core i7 processor that support the X99 platform. These Processors are delivering up to 20% faster performance. Whether you are utilizing 360 degree 4k video trekking through the Himalayas or diving to the great depths of a foreign worlds ocean, know that your PC has the flexibility and performance headroom to scale with your VR appetite.

LESS WAITING AND MORE CREATING WITH 6800K

A CPU For Pushing Your Creative Boundaries

Whether you’re a professional artist, hobbyist or simply creating high quality personal memories the Core i7 6800K processor will release your PC boundaries allowing you to reach new creative heights. With up to 10 cores will dramatically improve your content creation workflow with 25% faster 4k video editing and 20% faster video trans-coding. The memory that is quad channel improves responsiveness and decreases start up times when working with large files and applications. The 6800k CPU also supports Thunderbolt 3 add-in cards which delivers 40Gbps bidirectional bandwidth - 8x faster than USB 3.0 and 4x faster than Firewire5.

The Core i7 6800K CPUs from Intel are designed to handle heavy workloads and the most popular content creation apps with that trusted Intel stability. Finally for the creator on the go this CPU family will create 360 degree video 25% faster, for an immersive experience worth sharing.

BROADWELL-E CPU CHIPSET

New Improved i7 CPU Tech | Same Chipset

The brand new and performance enhanced Core i7 CPUs, belonging to the Broadwell-E family, bring new and enhanced technologies whilst running on existing chipsets. These new chips are supported by Intels X99 chipset, meaning it will fit into the corresponding motherboards.

*Particular aspects may vary depedning on the chip, be sure to check individual specs

TURBO BOOST TECHNOLOGY 3.0

Do More with your CPUs Fastest Core

This great technology is a combination of software and hardware that delivers more than 15% better single-threaded performance. The single-thread performacne is optimized by identifying your processor’s fastest core and directing your most critical workloads to it. Turbo Boost Tech 3.0 doesn’t replace version 2.0 but instead enhances it. It grants a massive frequency boost on your fastest core for even more flexability to get the best from your processor.

OVERCLOCKING YOUR BROADWELL-E PROCESSOR

Three New Overclocking Features

These new Broadwell-E chips from Intel support overclocking and are fully unlocked. There have been 3 new features added to the CPU overclocking; per core overclocking, AVX ratio offset and VccU voltage control. Possibly the most eagerly awaited aspect by overclockers is the per core overclocking. This genius technology allows you to set independent clock speeds on a single chip, so you can set individual frequencies per core.

INTEL CORE FEATURES

Intel® AES
A fast, secure AES engine for a variety of encrption apps, including whole disk encryption, file storage encryption, conditional access of HD content, internet scurity and VOIP. Consumers benefit from protected internet and email content

Intel® Turbo Boost 3.0
Identifies the fastest core on the processor die to provide improved single threaded performance on X-Series processors. The driver along with the feature allows end users to direct workflows to the fastest core by setting priority to preferred applications.

Intel® Virtualization Technology
Allows one hardware platform to function as multiple "virtual" platforms. Offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Smart Cache
Up to 25MB of shared cached allows faster access to your data by enabling dynamic and efficent allocation of the cache to match the needs of each core significantly reducing latency to frequently used data and improving perforamance.

Intel® Hyper-Threading Technology
Delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Conflict Free
Does not contain conflict minerals that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.

Overclocking Enabled
Fully unlocked core multipliers, power, base clock and DDR4 memory ratios for amazing flexability with overclocking.

Green Technology
Manufactured with lead-free and halogen-free component packages.

Specifications
CPU Type Intel Core i7
CPU Model 6800K
Socket 2011-3
Architecture Broadwell-E
Manufacturing Process 14 nm
No. of Cores Six Core
No. of Threads 12
Core Ratio 34 x
Clock Speed 3.4 GHz
Turbo Speed 3.8 GHz
Max. Turbo Speed (On 2 Cores Only) N/A
Intel Turbo Boost Max Technology 3.0 No
FSB Speed N/A
QPI Speed N/A
UPI Links/Speed N/A
DMI Speed N/A
Unlocked Core Multiplier Yes
Unlocked Full Range Base Clock (B-Clock) No
Max. Memory Size 128 GB
Max. Memory Speed DDR4 - 2400
Max. Memory Channels 4 (Quad Channel)
ECC Memory Support Not Supported
Intel Optane Memory Support No
Max. PCIe Lanes Supported 28
Processor Graphics N/A
Base GPU Speed N/A
Max. GPU Speed N/A
Max. GPU Resolution N/A
L1 Cache 6x 32 KB instruction caches, 6x 32 KB data cache
L2 Cache 6x 256KB
L3 Cache 15MB
Intel® Smart Cache N/A
Voltage
Max. TDP 140W
Thermal Specification
Heatsink Not Included, Sold Separately
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
intel
Telephone:
0870 607 2439
Customers also bought
TekSpek Guides
Intel Core i7-6950X and Broadwell-E
Intel Core i7-6950X and Broadwell-E
Date Issued: 31st May 2016

The Intel Core i7-6700K has sated the appetite of enthusiast gamers since August 2015, but if a quad-core chip just doesn't tickle your fancy, you might have been twiddling your thumbs in anticipation of a new HEDT (High End Desktop) part.

Read More

Intel 4th Generation Extreme CPUs
Intel 4th Generation Extreme CPUs
Date Issued: 29th Aug 2014

New processors usually grab all the release limelight, relegating the supporting core logic and memory to mere footnotes. This time, a brand-new chipset and DDR4 memory are equal partners in the platform.

Read More

Intel X99 Chipset
Intel X99 Chipset
Date Issued: 29th Aug 2014

Intel's X99 is a long-overdue platform upgrade for the high-end consumer market. Despite delivering an incremental CPU upgrade from Sandy Bridge-E to Ivy Bridge-E, Intel determined the supporting X79 motherboard needed no such upgrade.

Read More

Reviews
Intel Core i7 6800K, S 2011-3, Broadwell-E, Six Core, 12 Thread, 3.4GHz Clock, 3.8GHz Turbo, 15MB, 28 Lane, 140W, Retail is rated 5.0 out of 5 by 7.
Rated 5 out of 5 by from Great CPU I bought this i7 5 months ago and this is my first CPU on socket 2011-3. For me it is good enough. Currently is overclock to 4.2GHz which give me excellent performance !
Date published: 2017-03-03
Rated 5 out of 5 by from Best value Broadwell-E CPU If you're thinking of getting into the X99 platform, go with this CPU over the 6850K, 6900K and 6950X. The price/performance on this chip is the best by far.
Date published: 2016-12-30
Rated 5 out of 5 by from Value for money I couldnt find best value for money, works well at normal settings with low temps ( Noctua 90mm heat sink).
Date published: 2016-11-29
Rated 5 out of 5 by from As epected For the money 12 threads, 6 cores.. overclocks well.. but the temp do jump up once hitting 4.2ghz plus even though running custom 360 water loop. Think once the novelty has warn of it will require de-lidding and applying some proper compound. Otherwise it is very fast and does everything i need it to on stop settings.. very happy
Date published: 2016-10-08
Rated 5 out of 5 by from Fast CPU Bought this for my recent upgrade from an AMD to Intel for a change. Intel chips are bit more expensive than AMD but worth the performance increase. Have notice improvement in games & can now run higher settings with same GPU.
Date published: 2016-08-27
Rated 5 out of 5 by from No problems so far! Works brilliantly. haven't had any problems with it so far. was after a higher spec processor without built in graphics. this fit the bill.
Date published: 2016-08-07
Rated 5 out of 5 by from Great product Whilst not being able to handle single core tasks as well as my previous i5 could this new cpu is able to run a great multitude of tasks at once as well as running editing software to its fullest potential.
Date published: 2016-07-28
  • y_2017, m_7, d_27, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_GB, sid_72342, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Does this come with a heatsink/fan?

Asked by: dspc7
No, only the CPU.
Answered by: aLeX49
Date published: 2017-03-05
