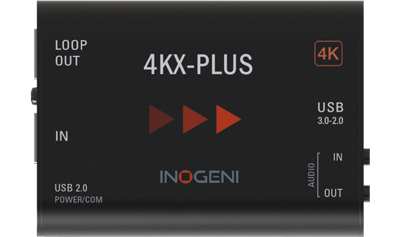

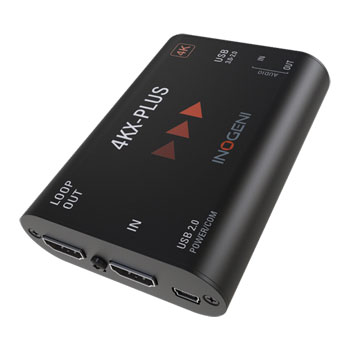

INOGENI - '4KX-Plus HDMI to USB Converter'

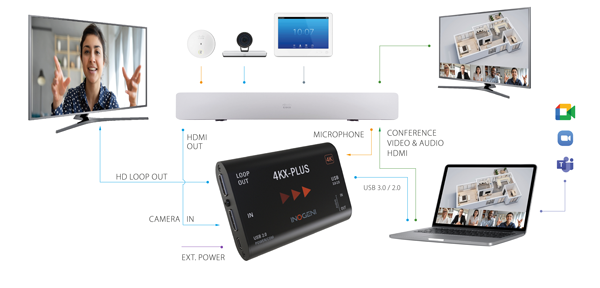

Convert Ultra HD to USB 3.0Convert Ultra HD video to USB 3.0 with the INOGENI 4KX-Plus. With a built-in HDMI loop out and external power for BYOM applications, connect your HDMI Camera, video sources or CODEC’s and analogue audio to your laptop or computer so you can view and capture your meetings in 4K30.
Section Title
Compatible with Cisco Webex Room SeriesConfigure your Cisco conferencing software to use USB cameras and microphones.
• Activate ‘Enable USB mode’ on the Touch 10.
• It works with any virtual meeting room software that enables USB cameras and microphones, such as Microsoft Teams, Zoom, Google Meet or BlueJeans.
• Compatible with USB 2.0 (high quality MJPEG)
• The 4KX-PLUS with Cisco Devices enable multiple displays. The 4K2USB3 works only for one display.
• The external power supply maintains the connection between the Cisco Webex CODEC and the 2nd display, even if the laptop is not connected to the 4KX-PLUS.
The Tech Spec

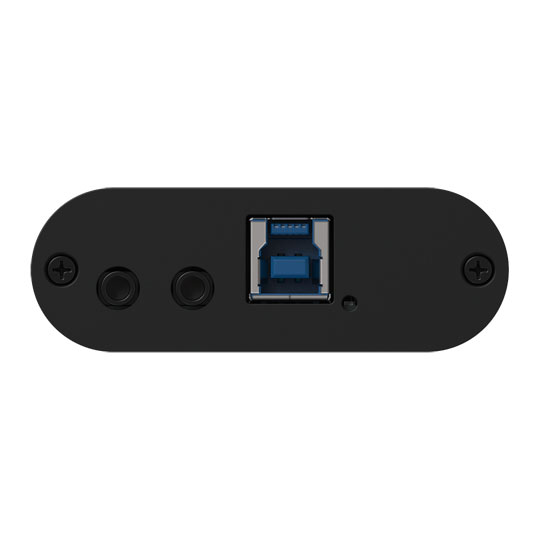

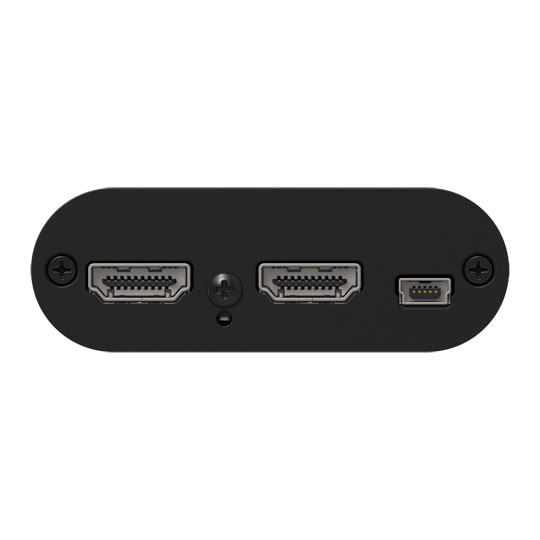

| Features | Specification | Connectors | 1x HDMI 1.4a 1x HDMI 1.4a (loop-out) 1x USB Type-B 3.0 1x 3.5mm Analog audio input 1x 3.5mm Analog audio output 1x MiniUSB 2.0 (Power) |
|---|---|
| Video Resolution | 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480 |
| Frame Rates | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max. |
| Colour Space | RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB) |
| Sampling Rate | 297 MHz |
| Embedded Audio | Ch 1&2 48kHz LPCM |
| HDCP Copy Protection | INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
| Codec | YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0 MJPEG for USB 2.0 |
| Audio | 2-channel LPCM audio from HDMI and/or from Audio Jack |
| Mixing functionality | HDMI audio and analog audio inputs are mixed over the USB input interface. USB audio output and HDMI audio input are mixed over the analog audio output. Use Control App in order to manage audio layout. |
| Cisco Webex Compatible | Easily programed macros in your Webex Room Device. Native Webex implementation available in Q2 CY2022. Intuitive interface on Webex Touch 10 or Webex Navigator. The 4KX-PLUS is compatible with Webex Devices for multiple Displays Macro and native Webex Room Kit Webex Room Kit Plus Webex Room Kit Pro Webex Room 55 Webex Room 70 Webex Room Panorama Macro only Cisco MX700 Cisco MX800 Cisco SX80 |
| Operating System | NO driver installation necessary Windows 7 and above (32/64-bit) Mac OSX 10.10 and above Linux (kernel v2.6.38) and above |
| Host Requirements | Recommended USB 3.0 (uncompressed video) or USB 2.0 (high quality MJPEG) |
| Cameras Supported | Cameras (or video source) with an HDMI output |
| Software Compatibility | UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation. |
| Dimensions | 3.9” x 2.9” x 0.75” |
| Weight | 140g |
