In-Win IW-R300-01N 3U Server Chassis for CCTV Applications
In-Win IW-R300-01N 3U Rackmount Chassis, 4x 5.25" Bays, 2x 2.5" Bays, 1x 80mm Fan, ATX, SSI-CEB
Email me when the availability or price changes
Finance this product
- From £16.31 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Built for CCTV and Surveillance
The In-Win IW-R300-01N is a durable and highly configurable 3U rackmount chassis engineered for continuous operation in security, surveillance, and storage deployments. Designed to fit standard EIA-RS310D 19" rack cabinets, it combines versatile component support, scalable storage options, and strong physical security features — making it an ideal foundation for DVR and NVR systems.
Flexible Storage and Expansion
With four external 5.25" drive bays, the IW-R300-01N is ready for optical drives, recording modules, or hot-swap cages. Optional support for two 2.5" hot-swap bays enables quick access to SSD storage, while additional expansion is possible through the InWin storage kit for larger capacity needs. A total of seven full-height PCI slots provides plenty of room for capture cards, GPUs, RAID controllers, or network interfaces.
Power Options and Cooling Capability

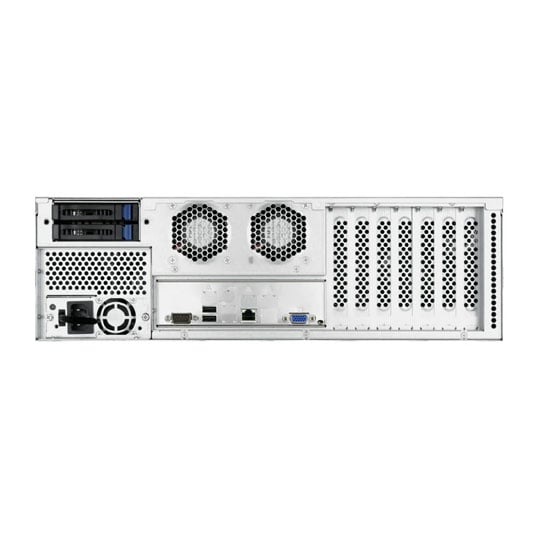

The chassis supports both 2U single 500 W and 2U 1+1 redundant 550 W power supplies, allowing integrators to balance efficiency with redundancy requirements. Cooling is managed by a front-mounted 80 mm PWM fan, with space for two optional 60 mm PWM exhaust fans at the rear — ensuring stable airflow and consistent thermal performance for 24/7 operation.
Security and Serviceability
Hardware protection is built into the design, with a lockable front door to prevent unauthorised access and an optional intrusion switch for enhanced security monitoring. Front panel controls include a power switch, reset button, and two USB 2.0 ports, while LED indicators display power status, HDD activity, and LAN connectivity at a glance.
Features
Form Factor: 3U Rackmount
Motherboard Support: ATX (12" x 9.6"), CEB (12" x 10.5")
Drive Bays: 4 × external 5.25", optional 2 × 2.5" hot-swap
Cooling: 1 × 80 mm PWM front fan, optional 2 × 60 mm PWM rear fans
Power Support: 2U single (500 W) or 2U 1+1 redundant (550 W)
Security: Lockable front door, optional intrusion switch
Front I/O: 2 × USB 2.0, power/reset switches, power/HDD/LAN LEDs
Rail Support: Compatible with 28" ball-bearing rail kit
