In Win D Frame 2 Premium Open Air PC Gaming Case + 1065W Power Supply
The design concept for D-Frame 2.0 originates from the freedom, individuality and impulsive nature of off-road motorcycles. The combination of steel tubing, anti-flip foot pads with deep tire treads, a power supply in the shape of an air-cooled engine and tempered glass is perfect fusion of art and technology.

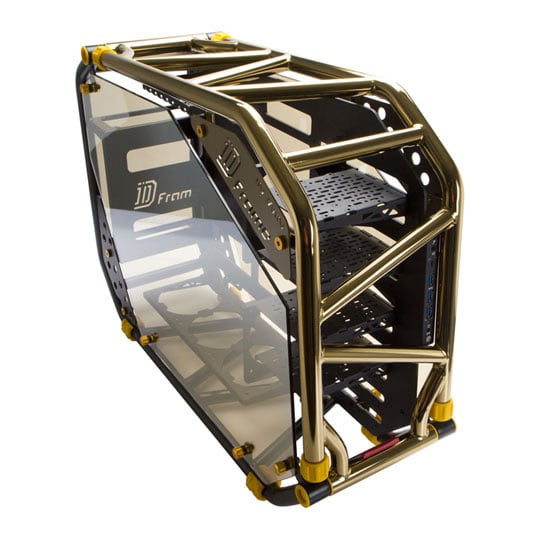

Handcrafted Metallic Tubing Structure
Expertly bent tubing is entirely crafted by human hands. TIG (Tungsten Inert Gas) welding is used to reinforced stability, and unique electrode position, which creates an ultra-smooth finish! The motherboard mounting tray is sandblasted to achieve a refined metallic texture.
Innovative Two-Way Open Design with Quick-Release Fasteners
The outer frame features a unique two-way open design. With its quick-release fasteners, D-Frame 2.0 allows for easier assembling and custom display platforms.
Open-Frame Structure with Excellent Thermal Solutions
Open-frame structure improves heat dissipation and airflow is effectively channeled, ensuring excellent ventilated performance.
Customized, Flexible, Versatile Thermal and Hard Drive Modules
Flexible and versatile build options give gamers the freedom to customize their gaming rigs. The HDD and cooling fan can be installed at the front or bottom positions.
Hard Drive Module
Four 2.5”/3.5” multifunctional brackets allows gamers to freely adjust quantity and position.
• 2.5”/3.5” multifunctional brackets positions may be moved forward and backward.
• Multifunctional Bracket x 4: Supports 2.5"/3.5" HDD x 4.
• Holes are present on the multifunctional bracket, which can conveniently connect water cooling pumps or other modding purposes.
Thermal Conduction Module
Supports up to five 120mm fans, ventilation for the CPU and hard drive may be freely adjusted.
• 120mm Fan Bracket x 2: Supports 120mm Fan x 2.
• 3-in-1 Fan Bracket x 1: Supports 120mm Fan x 3, Supports 360mm Liquid Cooling Radiator x 1.
Highly Expandable for Superb Performance
Supports the latest high-end graphics cards, CPU heatsink and motherboards E-ATX (12”x13”).
USB 3.1 Type-C Ultra-High-Speed Transmission
Advanced USB 3.1 Type-C interface provides up to 10Gbps transmission speed*, greatly reducing data transmission time. Dual-side slot also increases convenience.
2.0: Whole New Generation
Every detail reflects the aesthetics of craftsmanship.

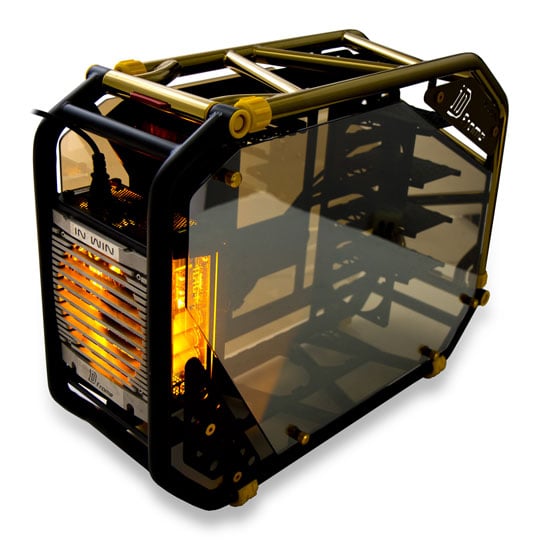

SIII-1065W Transparent Power Supply
Each D-Frame 2.0 includes a SIII-1065W power supply, which is exclusively designed for D-Frame 2.0.
The Vanguard Aesthetics
Vivid and attention-grabbing color scheme reflects your strong and unique personality. Features • Unique Steel Tube Design with Tempered Glass Side Panels.
• Innovative design with Quick-Release System.
• Open-Frame provides excellent airflow potential.
• Modular Bays provide a range of options to tailor to storage or cooling.
• Full Tower form factor supports the largest graphics cards, heatsinks & motherboards up to E-ATX.
• Front Panel USB 3.1 Type-C offers faster speeds & reversible connector design.
• Includes the SIII-1065W 1065 Watt Transparent LED Power Supply.
• Case & PSU bundle are limited edition & individually numbered.
|Case Edition||D-Frame 2.0|
|Case Form Factor||Open-Air Chassis|
|Motherboard Form Factor||
|Material||Steel Tube/ Aluminium/ Tempered Glass|
|Front/ Side/ Top Panel||
|Drive Bays||4 x 2.5"/ 3.5" Internal|
|Fan Bays||5 x 120mm|
|Front Radiator Compatibility||1 x 360mm|
|Top Radiator Compatibility|
|Bottom Radiator Compatibility|
|Rear Radiator Compatibility|
|Side Radiator Compatibility|
|Power Supply Form Factor||ATX|
|Max PSU Length||210 mm|
|Max CPU Cooler Height||165 mm|
|Max VGA Card Length||350/415 mm|
|Dimensions||291 x 548 x 726 (WxHxD mm)|
|Weight||22.5 kg (Approx)|
