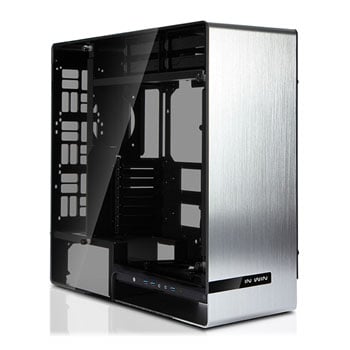

In Win 909 Full Tower Chassis - Silver (USB 3.1 Type C)

In Win 909 Silver Aluminum & Tempered Glass E-ATX Case, USB 3.1 Type C, White LED Strip, E-ATX/ATX/Micro ATX/Mini ITX

In Win
Scan code: LN66926 Manufacturer code: 1ACFAD--000020 Request call
£394.99Item currently awaiting an ETA
Pre order
Pay on Scan Finance with a 10% deposit from just £9.86 / month (APR 15.9%)
From £18.96 / month (APR 14.9%)
Monthly Payment: £68.54
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £394.99
Total inc. interest: £411.24
Monthly Payment: £35.46
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £394.99
Total inc. interest: £425.52
Monthly Payment: £24.45
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £394.99
Total inc. interest: £440.10
Monthly Payment: £18.96
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £394.99
Total inc. interest: £455.05
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
3xs Approved High End
Delivery options £11.50 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £9.58 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Precision Craftsmanship with No Compromise
Building on the success of its 904 ATX and 901 mini-ITX PC chassis, the 9-series new full tower chassis, 909, continues the legacy of precision craftsmanship, commitment to simplicity and elegance design with a unique interior layout. 909 features a refined exterior with cutting edge style in tune with the true spirit of a premium chassis.

Impressively Detailed Craftsmanship
Quality is not just about how well something is made! It is also embodied by attention to detail. 909 is constructed with solid materials, and its chamfered edge design and sleek anodized aluminium are beautifully crafted to masterfully create a streamlined and smooth enclosure inside/out.

Simplicity in Design
909 features a single piece 4mm brushed aluminium shell and an elegant back panel that hides unnecessary rear I/O cables. Not only is it clutter-free, but this design also demonstrates the elegant aesthetics of simplicity.

Tempered Glass Side Panels
The side panels are finished entirely out of 5mm tinted tempered glass which reveals the internal LED light, and overall enhances the 909 into a truly modern and dynamic appearance.

1 x USB 3.1 TYPE-C
909 is equipped with one all-new reversible USB 3.I TYPE-C port for ultimate speed transfers up to 10 Gb/s which is twice as fast USB 3.O.

Magnetic Aluminium Dust Filter
The front intake fan dust filter has an embedded magnet design for easy removal creating a convenient installation and more importantly excellent dust reduction.

Elegant Lighting Effects
A high-quality chassis should look beautiful when powered on and with the 909 it has a white LED strip creating various lighting effects to illuminate the PC interior beautifully highlighting the interior components.

Supports up to 8 Fans
To balance the minimalist exterior design with optimized cooling performance, the airflow is meticulously designed to achieve maximum heat dissipation.

Versatile Liquid Cooling Options
909 has four liquid cooling radiator mounting areas which will allow you to cool specific system components to an even greater degree and provides the best thermal performance.

Supports up to E-ATX Motherboard
909 full tower spacious interior supports E-ATX, Micro-ATX and Mini-ITX motherboards allowing users to have versatile options to build advanced high-end system.

Unique HDD & PSU Chamber Design
The separate HDD and PSU chambers provide an ideal thermal environment by allowing heat airflow to dissipate directly to the back venting holes without interfering with the motherboard and graphic card area, and significantly improving the ventilation. Features • Super Speed Reversible USB 3.1 Type C
• Silver Chassis with White LED Strip
• Aluminium Chassis with 5mm Tempered Glass
• Liquid Cooling
- Rear 360mm Radiator Support (Height up to 60mm)
- Top 120mm Radiator Support (Height up to 35mm)
- Front 280mm Radiator Support (Height up to 35mm)
- Bottom 240mm Radiator Support (Height up to 35mm)
Case Edition 909
Case Form Factor Full Tower
Motherboard Form Factor
  • ATX
  • E-ATX
  • MicroATX
  • Mini-ITX
Material Aluminium / Glass
Front/ Side/ Top Panel
  • 1 x Headphone
  • 1 x Mic In
  • 3 x USB 3.0
  • 1 x USB 3.1 Type-C
Drive Bays
  • 6 x 2.5" Internal
  • 4 x 2.5"/ 3.5" Internal
Expansion Slots 8
Fan Bays
  • 6 x 120/140mm
  • 2 x 120mm
Fans Included None
Front Radiator Compatibility
Top Radiator Compatibility
Bottom Radiator Compatibility
Rear Radiator Compatibility
Side Radiator Compatibility
Window Yes
Power Supply Form Factor ATX
Max PSU Length
Max CPU Cooler Height 175 mm
Max VGA Card Length 320 mm
Colour Silver
Dimensions 231 x 540 x 575 (WxHxD mm)
Weight 17 kg (Approx)
