IFI Zen Can + Balanced Cable for Audeze & HEDDphones + XLR Input
IFI - Zen Can, 2m Balanced Headphone Cable for Audeze & HEDDphones + XLR Input Cable
- By DPD On 27th Oct to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Greater Headroom For Your Headphones!
iFi Audio - Zen Can
& Pentaconn To Dual Mini XLR/Dual XLR Female Cables
available for a limited time only!

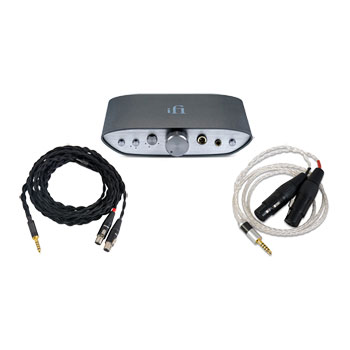

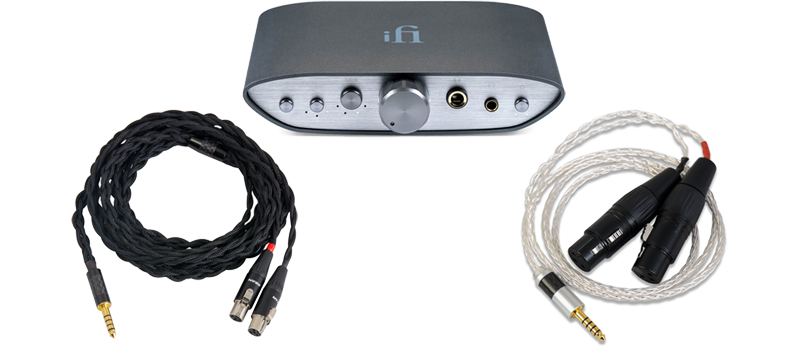

This is an all in one pairing for all Audeze over-ear LCD models and HEDDphones.
It comprises of iFi Audio's Zen Can, plus the XLR input cable for the lowest noise levels.
Using the Pentaconn 4.4mm output on Zen Can not only gives more headroom for the headphones, it also doubles the slew rate of the op amps, so you get improved transient repsonse and dynamics compared to the 1/4" jack output.
Boasting a number of features usually reserved only for high-end headphone amps with a price tag far higher, the ‘Zen Can’ from iFi has the power to drive huge headphone loads. The balanced circuit design, the astonishingly low levels of distortion and flexible sonic tweaking options to boost performance, are all highly almost never found on such an affordable headphone amp! By placing all this in one sleek package, iFi has once again pushed the envelope of affordable desktop audio!
As a fully analogue headphone amp, iFi’s ‘Zen Can’ has no digital input at all, USB or otherwise. It effortlessly connects to any audio source via an analogue output, such as the headphone out from a Digital Audio Player, laptop, tablet or smartphone, or even the RCA outputs from a CD player or phono stage.
what's included?
• iFi Audio - 'Zen Can'
• Scan Pro Audio - 4.4mm Pentaconn To Dual Mini XLR
• Scan Pro Audio - 4.4mm Pentaconn to DUAL XLR Female
Nitro for your Headphones!
iFi Audio - 'Zen Can'
Fully-balanced 1,600mW
Battleship headphone amplifier
Boasting a number of features usually reserved only for high-end headphone amps with a price tag far higher, the ‘Zen Can’ from iFi has the power to drive huge headphone loads. The balanced circuit design, the astonishingly low levels of distortion and flexible sonic tweaking options to boost performance, are all highly almost never found on such an affordable headphone amp! By placing all this in one sleek package, iFi has once again pushed the envelope of affordable desktop audio!
As a fully analogue headphone amp, iFi’s ‘Zen Can’ has no digital input at all, USB or otherwise. It effortlessly connects to any audio source via an analogue output, such as the headphone out from a Digital Audio Player, laptop, tablet or smartphone, or even the RCA outputs from a CD player or phono stage.
1.5WPower Consumption
20Hz - 20kHzFreq Response
< 0.0007%THD & N
'Balanced to thrill!'
• Class A discrete output buffer from the flagship Pro iCAN using Op-Amp (OV2637A)
• FET input avoids loading volume control – low distortion/noise
• SE inputs (1M Ohm) ensures loading of the source so always in Class A operation
• Output amplifier gain of four steps in +6dB perfect for headphone matching
52x More Power. Pump up the Volume.
get the best from setup!Laptops and smartphones typically have a much lower output of <1.0v. When using a good set of headphones, you’re not getting the best out of them.
Use your laptop, device or DAC to feed your audio in to the Zen Can, and connect your headphones to pump out 52x more power, now, you can hear and FEEL everything you’ve been missing out on.
'Ace of XBass'
active EQ circuitryBehind ‘XBass’ is iFi’s active EQ circuitry which meets an often-common gripe with headphones head-on, the lack of bass.
Open-back headphones in particular, often allow all frequencies (especially those precious bass frequencies which the drives generate so little of) to leak freely from the back, rather than trapping and redirecting them back to your ears.
‘Xbass’ equalisation is a much greater solution to bass correction than seen anywhere else. It’s made up of active and passive components and its brilliant frequency response curve corrects their low-end response problems with unparalleled accuracy.
'Puts You At The Venue. Not The Other Way Around!'
3D special sound circuitAudio recordings are made for speakers and when played back on headphones, the sound is always driving you nuts by being only in your head. iFI's 3D special sound circuit solves this with ease.
'zen can' satisfies all listeners!
• Stereo image that is truly out of your head, in front with height, width & depth
• Without colouration or loss of resolution
• All analogue circuitry (i.e. without costly and complex digital signal manipulation)
Additional Features
BalancedA fully discrete and balanced amplifier audio circuit. The full symmetric dual-mono headphone amplifier with gold-plated 4.4mm balanced connection. This exquisitely engineered design is worth the investment and lowers noise to 120dB.
Class A Discrete Class A Discrete is a circuit that has come straight out of the iFi’s flagship headphone amplifier, the Pro iCAN, which at £1,699 is 11 times the price of the ZEN CAN.
OV AmpThis OV series operational amplifier is another example of a top-notch component used to get extremely low noise, low distortion (0.0001%) and wide bandwidth.
TDK C0GTDK C0G (Class 1 ceramic) capacitors offer high stability and low losses for resonant circuit applications. They are a perfect addition to the ZEN CAN.
XBassThe XBass® analogue bass correction system corrects for the missing headphone/speaker bass response. Sonically superior – richer, deeper.
3D HolographicAn ‘Out of Head’ listening experience. Our 3D Holographic® dual-analogue matrices place the artist with you in the room, not inside your head.
Zen Can: Analogue Headphone Amplifier
ifi audioMeet the ZEN CAN.
As an all-analogue headphone amp, the ZEN CAN has no digital input of any kind,
USB or otherwise. It connects to any audio source with analogue output, such as
the headphone output from a DAP (Digital Audio Player), a laptop, a tablet or a smartphone, or the RCA outputs from, say, a CD player or phono stage.
It could be paired with the ZEN Blue to add Bluetooth reception, or combined with the ZEN DAC to upgrade the DAC’s headphone amp stage. As well as a headphone amp, it can double as a preamp to feed a power amp and speakers or a pair of active speakers.

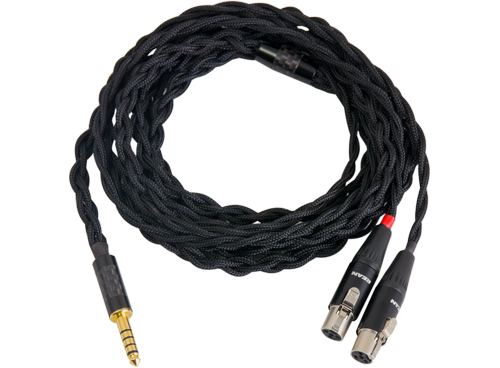

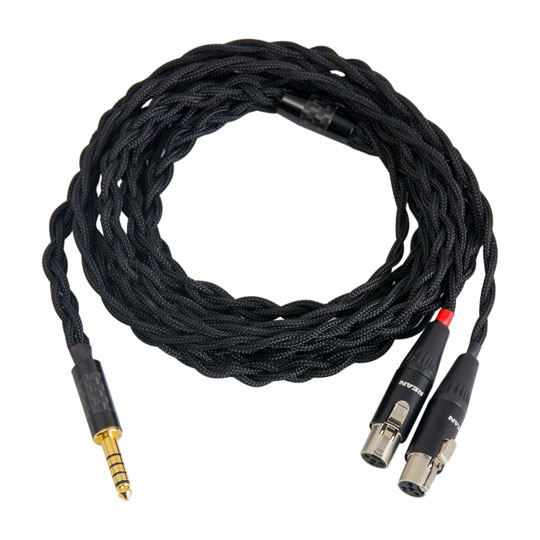

Scan - 4.4mm Pentaconn To Dual Mini XLR
for Audeze LCD & HEDDphones
2 Metre Black Braided Balanced Cable
for AUDEZE LCD & HeddphonesThis cable has been commisioned by Scan Pro Audio to connect balanced output headphone amplifiers and DAC's such as the ifi Zen Can and Zen DAC to HEDD Heddphones and Audeze LCD series headphones that use dual 4pin switchcraft mini XLR connectors. It is 2M long and features a lightweight braided design using silver plated OCC copper wire.
Please note this is not compatible with LCD-1 and the in-ear LCD-i3 and LCD-i4.
Scan Pro Audio - 4.4mm Pentaconn to DUAL XLR Female
(1 Metre)
4.4mm Pentaconn to 2x XLR FemaleComissioned for Scan Pro Audio, this adapter cable enables balanced input for 4.4mm pentaconn equipment, such as ifi Audio's Zen Can headphone amplifier, for lower signal to noise levels than unbalanced phono or minijack connnections.
To connect up 6.35mm balanced jacks, this cable should be used in conjuction with a pair of 6.35mm to XLR Male cables, such as the 1m Adam Hall XLR (M) - Stereo Jack 3 Star Series Audio Cable.
iFi Audio - 'Zen Can'
The Tech Spec
| Features | Specification | Inputs | 4.4mm Pentacon BAL RCA L/R Socket SE 3.5mm Jack SE 4.0V nominal @ 0dBFS, 24 kOhm Zin / 2.0V nominal @ 0dBFS, 1 MegOhm Zin / 1.0V nominal @ 0dBFS, 1 MegOhm Zin |
|---|---|
| Max Output | Balanced / >15.1V/385 mW (@ 600 Ohm) >11.0V/1890 mW (@ 64 Ohm) |
| THD & N | Balanced S-E < 0.0007% (4V out, 600 Ohm, 1kHz) / <0.006% (@ 100 mW/1.27V 16 Ohm) |
| Gain | 0dB, 6dB, 12dB and 18dB |
| Frequency Response | 20Hz - 20kHz (+0dB / -0.03dB) |
| Input voltage | DC 5V/2.5A AC 100 -240V 50/60Hz |
| Dimensions | 158 x117 x35 mm 6.2" x 4.6" x 1.4" |
| Net weight | 515g (1.14 Ibs) |
| Warranty period | 12 months |
