IFI Audio ZEN CAN (+ iPower PSU)
iFi Audio ZEN CAN - Headphone Amplifier+ iPower PSU - 6.35 & 4.4mm Balanced Output - Up To 1600mw Power
- By DPD On 17th Aug to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info

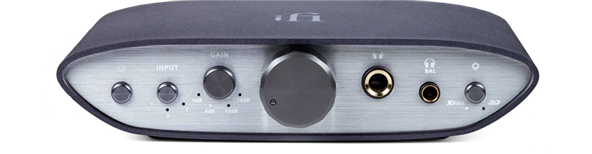

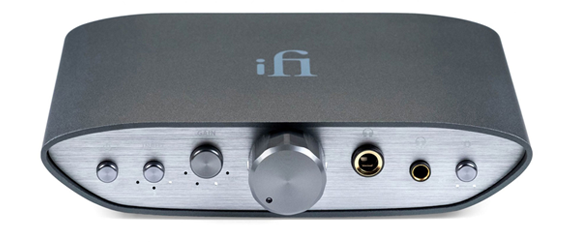

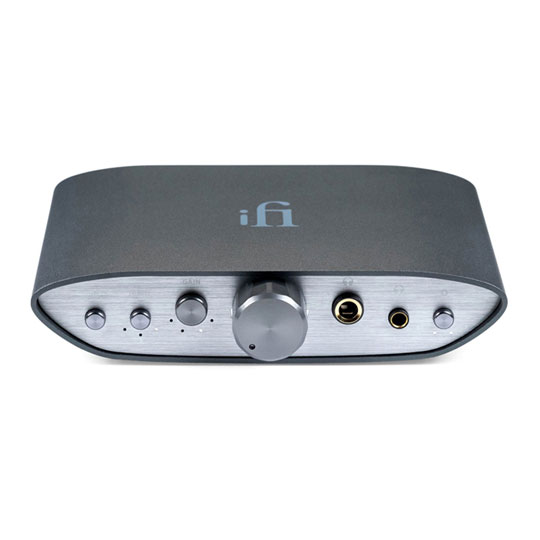

iFi Audio - 'ZEN CAN'
Analogue Headphone Amplifier

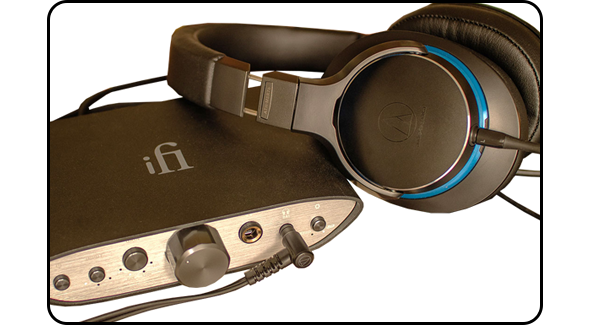

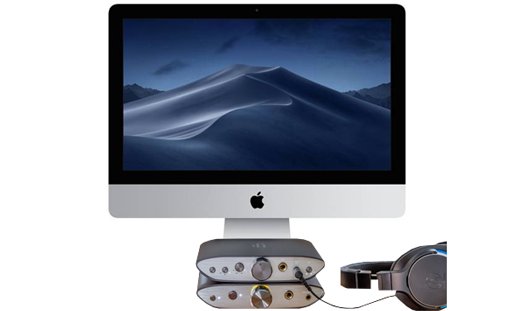

Fully-balanced. 1,600mW. Headphone AmplifierLaptops and smartphones only have a very low power output of 1.0v. On a great pair of headphones you’re not getting full power. You never get to really hear what they’re capable of. Use a laptop, phone or DAC to run your music to the ZEN CAN and plug in your headphones. Now with 52x more power you can hear the full potential of your headphones and notice where you’ve been missing out.
20Hz - 20kHzFrequency Response
1.5WPower Consumption
-240V, 50/60HzInput Voltage
Amazing Features
• Panasonic ECPU capacitors
• TDK C0G (Class 1) ceramic capacitors
• iFi/AMR ‘OV’ ‘Operationsverstärker’ series op-amps
• MELF resistors
• Texas Instruments low-noise ICs
• muRata capacitors
• Multi-track potentiometer, with exceptional channel matching even at low volume
Balanced To Thrill
Class A CircuitryThe ZEN CAN has trickle-down Class A discrete balanced circuitry from iFi audio’s US$1,699 flagship Pro iCAN. With 15.1v @300 Ohms on tap, it has a huge amount of power that will make even weaker headphones beat along.
The iFi ZEN CAN includes Class A discrete output buffer from the flagship Pro iCAN using Op-Amp (OV2637A), FET input which leaves out loading volume control – low distortion/noise.
Low impedance feedback circuit is built in to enhance circuit performance with no resistor noise and output amplifier gain of four steps in +6dB, ideal for headphone matching.
All Analogue CircuitrySound recordings are made for speakers, when played back on headphones, the sound is always driving you crazy by only being in your head.
The 3D special sound circuit solves this by creating a stereo image that is truly out of your head, in front with height, width & depth, without colouration or loss of resolution and complete analogue circuitry.

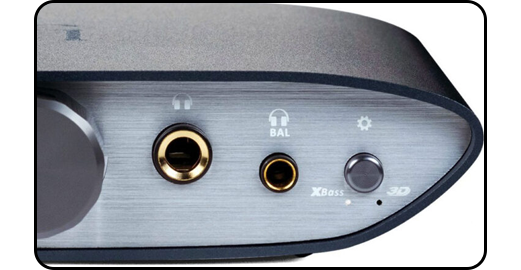

XBass Performance
Enhanced Bass ResponseBehind XBass is the active EQ circuit which solves an issue commonly found in headphones – not enough bass.
For example open-back headphones often let all frequencies including the satisfying bass frequencies escape out of the back instead of directing them to your ears.
XBass equalisation is a much easier solution to bass adjustment than seen elsewhere. Its made of active and passive components and its frequency response curve carefully puts the low-end response issues right.
.
Additional Features

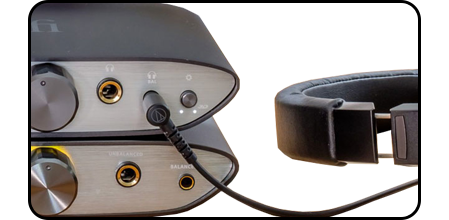

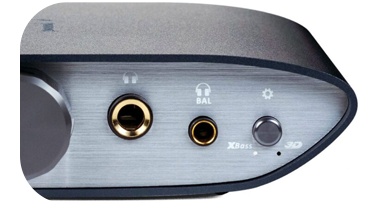

BalancedA fully discrete and balanced amplifier audio circuit. The full symmetric dual-mono headphone amplifier with gold-plated 4.4mm balanced connection. This exquisitely engineered design is worth the investment and lowers noise to 120dB.
Class A Discrete Class A Discrete is a circuit that has come straight out of the iFi’s flagship headphone amplifier, the Pro iCAN, which at £1,699 is 11 times the price of the ZEN CAN.
OV AmpThis OV series operational amplifier is another example of a top-notch component used to get extremely low noise, low distortion (0.0001%) and wide bandwidth.
TDK C0GTDK C0G (Class 1 ceramic) capacitors offer high stability and low losses for resonant circuit applications. They are a perfect addition to the ZEN CAN.
XBassThe XBass® analogue bass correction system corrects for the missing headphone/speaker bass response. Sonically superior – richer, deeper.
3D HolographicAn ‘Out of Head’ listening experience. Our 3D Holographic® dual-analogue matrices place the artist with you in the room, not inside your head.
ZEN CAN: Analogue Headphone Amplifier
The Tech Spec
| Features | Specification |
|---|---|

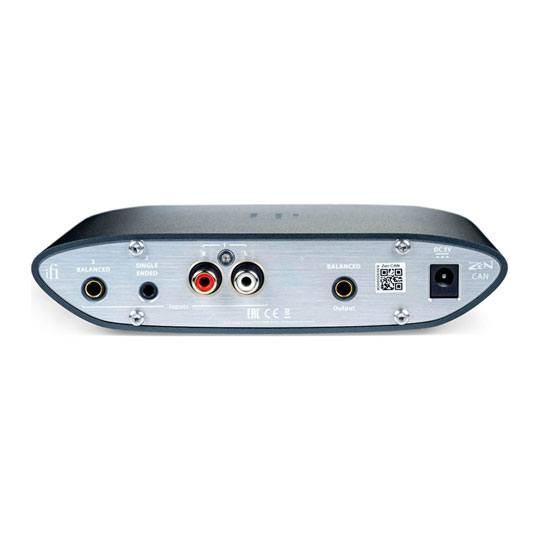

| Input Voltage | DC 5V/2.5A AC 100 -240V, 50/60Hz (iFi iPower included) |
| Max Output | Balanced: 15.1V/385 mW (@ 600 Ohm) 6.0V/1150 mW (@ 32 Ohm) S-E: 7.6V/98 mW (@ 600 Ohm) >7.2V/1600 mW (@ 32 Ohm) |
THD & N | Balanced: 0.006% (@ 360 mW/2.4V 16 Ohm) S-E: 0.005% (@ 100 mW/1.27V 16 Ohm) |
| SNR | Balanced: 120dBA (@ 15.2V) S-E: 118dBA (@ 7.6V) |
| Max. Input | Balanced: 7.4V RMS RCA: 3.8V RMS 3.5mm: 1.92V RMS |
| Gain | 0dB, 6dB, 12dB and 18dB |
| Frequency Response | 20Hz - 20kHz (-3dB) |
| Power consumption | No Signal: ~5W Max Signal ~13W |
| Power consumption | 1.5W via USB power OR 5v DC (power supply not included) |
| Dimensions | 158 x117 x35 mm 6.2" x 4.6" x 1.4" |
| Net weight | 515g (1.14 Ibs) |
| Power Delivery - 6.3mm single-ended headphone output | 1000mW (4.0V) @ 16Ω 1600mW (7.2V) @ 32Ω 196mW (7.6V) @ 300Ω |
| Power Delivery - 4.4mm balanced headphone output | 1890mW (11.0V) @ 64Ω 756mW (15.1V) @ 300Ω 385mW (15.2V) @ 600Ω |
