Scan code: LN64470 Manufacturer code: MB998SP-B

ICY DOCK ToughArmor HDD/SSD Backplane Cage

ICY DOCK ToughArmor MB998SP-B, 8 Bay 2.5" SATA HDD/SSD Backplane Cage for External 5.25" Bay, Rugged Full Metal

Thumbnail 1 : ICY DOCK ToughArmor HDD/SSD Backplane Cage Thumbnail 2 : ICY DOCK ToughArmor HDD/SSD Backplane Cage Thumbnail 3 : ICY DOCK ToughArmor HDD/SSD Backplane Cage Thumbnail 4 : ICY DOCK ToughArmor HDD/SSD Backplane Cage
Scan code: LN64470 Manufacturer code: MB998SP-B
£183.98Item currently awaiting an ETA
Pre order
From £16.52 / month (APR 14.9%)
Monthly Payment: £16.52
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £183.98
Total inc. interest: £198.20
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview


The Ultimate Solution for Storage Dense Application

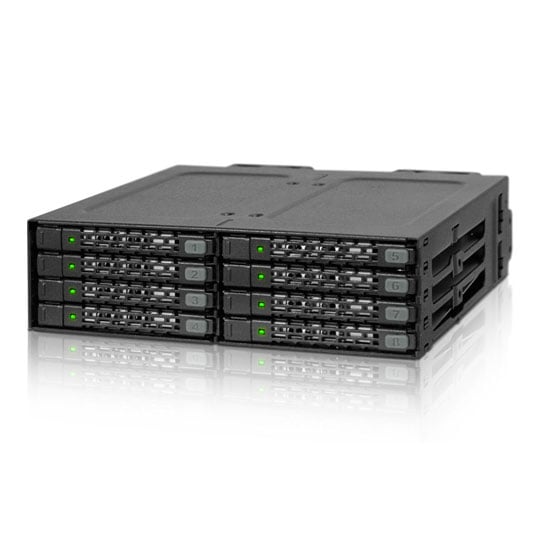

Not all devices are created equal, and this can be seen with the ToughArmor MB998SP-B which skews the realm of possibilities. It boasts the ability to house an unprecedented 8 x 2.5” SATA drives with 5mm to 7mm height into a single external 5.25” bay, making it the ultimate solution for storage dense applications. Our unique hot-swappable 2.5” EZ Slide Nano trays let you painlessly and quickly swap out drives. Dual 40mm fans keep your drives nice and cool while ventilated openings located on the front and sides maximize airflow. The MB998SP-B features a rugged heavy duty full metal housing which is commercially designed for Medical & Military systems, IPC, enterprise, and industrial settings.


Countless Options in a Single Bay

Utilizing the standard external 5.25” bay form factor, the compact design allows the cage to be used in various applications such as advanced RAID. With the MB998SP-B it’s possible to build dual RAID 5 or RAID 10 arrays or use 4 drives in a high performance RAID 0 array plus two RAID 1 arrays for backups. The MB998SP-B is extremely useful for workstations, compact servers, gaming rigs, home servers or HTPC’s due to its high capacity and space saving design. It is also perfect for users that need non-RAID JBOD storage to save different content in different drive locations. It supports a wide-range of applications which makes the MB998SP-B invaluable.


Easy to Maintain

Using the EZ Slide Nano trays makes drive interchangeability and maintenance completely hassle free. For drive security, the Eagle-hook lock system on the tray makes sure your hard drives will not eject when not needed. The trays are designed to accommodate 5mm to 7mm height hard drive and SSD, creating a 2.5" hot swap bay for any standard SATA hard drives and SSDs.


Heavy-duty

Ensuring the safety of your valuable data is the foundation to any good system build or design. The MB998SP-B is capable of holding up to the most demanding environments with its rugged heavy duty full metal construction in the entirety of the body and its smaller components. The ToughArmor's rugged full metal design is also perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to be already compliant with flammability requirements. An all metal design also dissipates heat from the hard drives to the backplane cage resulting in cooler drives. Lastly, Anti-Vibration Technology (AVT) and EMI grounding are used to ensure a stable environment for the hard drives or SSD’s used, dramatically improving reliability.


Packed with Features

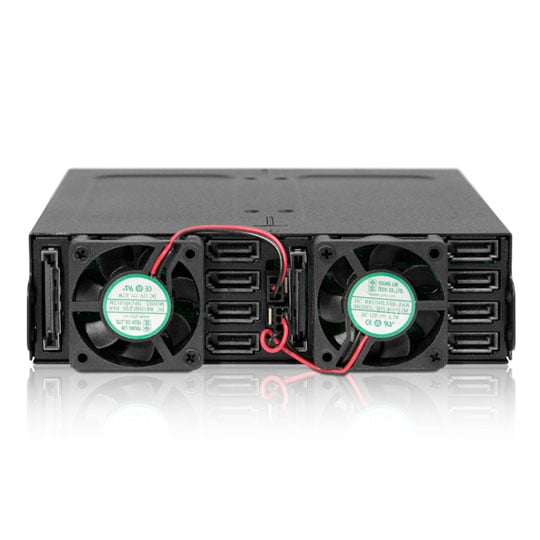

Bringing more utility your hard drives or SSDs, LED’s are installed into the front of the mobile rack to provide individual drive status information at all times. Active Power Technology (APT) allows each LED and the cooling fan to be active only when a hard drive is inserted into the enclosure. When the unit does power up, two 40mm cooling fan placed strategically behind the rear panel provide airflow throughout the entire cage cooling all 8 bays effectively and efficiently.


RAID

Never forget which drives belong in what bays. With our individual drive ID labels you’ll always know which drive tray belongs in your RAID array or which drive contains certain files. Freely unplug and rearrange them to better suit your configuration or simply remove them for a more simplified look.


Locking Latches

The ToughArmor MB998SP-B supports both 7pin SATA and 15pin SATA power cables with locking latches so you’ll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they’ll lock into place and stay that way.


Fan Support

In order to lower the fan noise, installing the cable allows you to reduce 40% of the original fan's speed for a quieter operation of the unit. To install, unplug the 3-Pin fan connector from the port, then connect it to the fan speed reduction cable.




Features
• Heavy duty full metal construction with commercially designed for: Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies
• Perfect for rugged applications and complies to flammability requirements
• Fits 8 x 7mm 2.5” SATA hard drives or SSD’s in a single 5.25” bay for high performance RAID applications
• Dual 40mm fans keep your drives from overheating
• Requires only 2 x 15pin power connectors to power all 8 bays
• Drive label plugs to keep track of your RAID drives
• Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
• Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay
• Eagle-hook lock system keeps drives secured within the enclosure
• Removable tray system for easy maintenance
• Supports SATA 6Gbps and hot swap
• Supports SATA and SATA power cables with locking latch design
• Industry leading 3 year warranty with exceptional customer support
Specifications
External Interface
HDD
Power Connectors
Space Requirement
Fan(s) No
Colour
Additional Information
Scan Code LN64470
Model Number MB998SP-B
GTIN 4711132869590
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871-472-4747
