Scan code: LN109589 Manufacturer code: MB994IKO-3SB

ICY DOCK MB994IKO-3SB 2.5" and Slim ODD Bay

ICY DOCK ToughArmor MB994IKO-3SB Rugged Full Metal 2 Bay 2.5" SAS/SATA HDD & SSD Backplane Cage with Slim ODD Tray

Thumbnail 1 : ICY DOCK MB994IKO-3SB 2.5" and Slim ODD Bay Thumbnail 2 : ICY DOCK MB994IKO-3SB 2.5" and Slim ODD Bay Thumbnail 3 : ICY DOCK MB994IKO-3SB 2.5" and Slim ODD Bay Thumbnail 4 : ICY DOCK MB994IKO-3SB 2.5" and Slim ODD Bay
Scan code: LN109589 Manufacturer code: MB994IKO-3SB
£119.99
Order now and get it tomorrow, Mon 21st Sep
From £10.78 / month (APR 14.9%)
Monthly Payment: £10.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.99
Total inc. interest: £129.28
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

ICY DOCK MB994IKO-3SB 2 x 2.5" & Slim ODD Cage Bay

Introducing the MB994IKO-B, a rugged full metal dual bay 2.5" SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single external 5.25" bay. It is a device designed with a rugged full metal build commercially designed for: Medical & Military systems, Media servers, IPCs, HTPC, and All-In-One computers, approved & used by Tier 1 companies.
Dual 4-pin power connectors are used to ensure secured and consistent power supply to both drives and ODD, whether they are low power consumption 2.5" SATA SSD’s or power hungry 15000 RPM 2.5" SAS drives. The trays feature an individual metal locking mechanism for each tray, ensuring drives are not accidentally ejected or tampered with.
Also included is a single 40mm cooling fan with on & off switch to assist the drives running ttheir optimal temperatures, in even the most intense applications.


Maximize Space-Efficiency

The high-density design of ToughArmor MB994IKO-3SB packs two full-height 2.5" SSD/HDD hot-swap bays and one Slim/CD/DVD/Blu-ray ROM optical disk drive into a single 5.25" drive bay, perfect for space-sensitive applications such as powerhouse PC, portable military workstation, and rackmount industrial PC.


Versatility is the Key

The MB994IKO-3SB separates itself from the rest of the MB994 series by the unique Slim Optical Disk Drive slot that is available. The Slim ODD slot uses our EZ-ODD Tray made of rugged full metal, and is easily removable by use of the provided key or via a side latch. This allows system integrators more freedom to better meet their potential client’s needs. The EZ-ODD Tray is compatible with any standard Slim Optical Disk Drive with 12.7mm height.
The MB994IKO-3SB utilizes our EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using rugged full metal so that they are durable for many lifetimes, while will not weigh you down when transporting your data from system to system. Also featuring a full cage design, the added top drive cover provides added layer of protection while moving the drive. The 2.5" HDD trays are designed to accommodate 5mm, 7mm, 9.5mm, 12.5mm & 15mm 2.5" SAS/ SATA SSD/HDD drives, giving you excellent control of your 2.5" hot swap backplane.
Fan control further allows the potential system to be accommodated properly depending on the hard drives used. If a SSD is used, fan can be left off and shut off the noise completely from the MB994IKO-3SB. Otherwise, the fan is a great asset to assist in cooling mission critical hard drives.


Excellent Build Quality

The MB994IKO-3SB body is built with aluminium to be able to hold up in the toughest of conditions, provide excellent heat dissipation, and shave as much weight as possible. Included ventilation slots on the front and back for maximum airflow to keep your drives running cool, and an LED is placed on the front of each drive tray to give the user drive status at all times. With the Rugged Full Metal design, the ToughArmor is perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to already compliant with flammability requirements.


Built for Security

The ToughArmor MB994IKO-B tray systems uses an individual key lock mechanism for each tray, locking it in place and protecting against accidental ejection or malicious activity. This is useful in high-security zones where additional physical security is required, or in on-the-go environments such as in-vehicle PCs and mobile workstations.


In the Smallest Package Possible

Utilizing its small form factor, the MB994IKO-3SB is perfect for use in gaming PCs, HTPC, small form factor cases with limited external 5.25” expansion bays, or a Slim ODD and hard drives are needed. SMB’s, SI and power users all benefit from the most features, in the smallest form factor possible.


Features

• Rugged Heavy duty full metal construction with commercially designed for Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies.
• Perfect for rugged applications and complies with flammability requirements.
• Perfect for SFF (small form factor) case, IPC, HTPC, NAS, Home Server and All-In-One computers.
• Fits 2 x 2.5" SATA/SAS hard drive or SSD & 1 x slim optical disk drive (ODD).
• Accommodates hard drives or SSD with 5mm, 7mm, 9.5mm, 12.5mm & 15mm Height.
• Accommodates Slim Optical Disk Drive with 12.7mm Height.
• Supports SATA 6Gbps or SAS 12Gbps (dual channel)
• Dual channel SAS ports for 2.5" SSD/HDD bays allow the support of clustering.
• Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs.
• Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay.
• Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure.

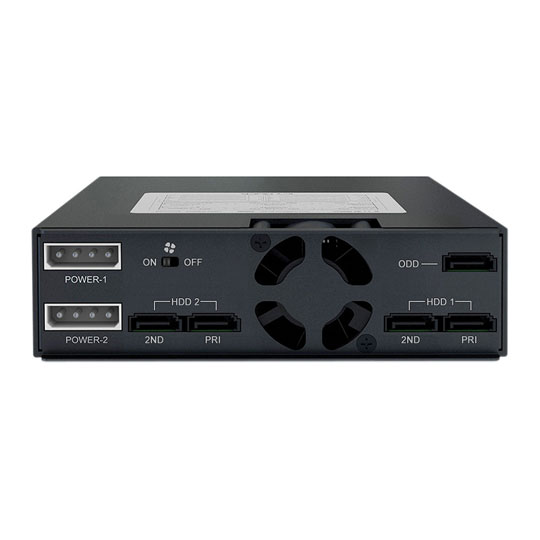

• 2 x 4 pin power connector to properly power all components.
• 40mm cooling fan with On & off switch, reduce the power usage and fan noise when using SSD.

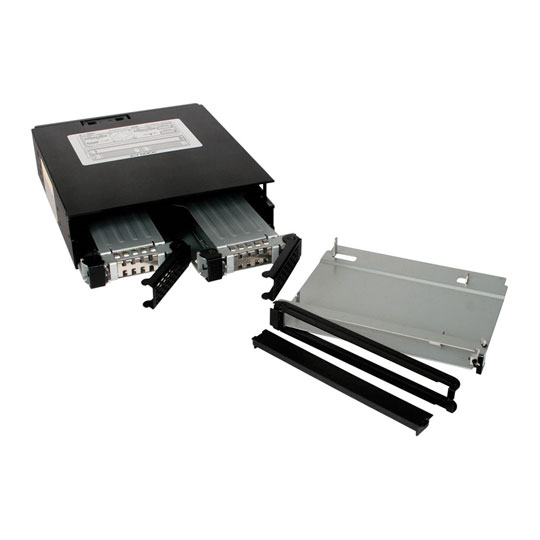

• Full Metal EZ Slide Mini Tray & EZ-ODD Tray system with Full Cage Design.
• Top cover for the tray adds extra drive/ODD protection.
• Status LED on Front for each drive.
• Full aluminium body construction.
Specifications
External Interface 5 x SATA
HDD
  • 4 x 2.5" SAS/SATA
  • 1 x 2.5" SATA
  • 3 x SAS 3 (12Gbps) / SATA 3 (6Gbps)
Power Connectors 2 x Molex
Space Requirement 1 x 5.25"
Fan(s) Yes
Colour Black
Additional Information
Scan Code LN109589
Model Number MB994IKO-3SB
GTIN 4713227445047
