Front bay 4 Port 2.5 inch SAS HDD Docking Backplane from Icybox MB994SP-4S

Icy Dock MB994SP-4S 4in1 SAS/SATA Hot Swap Backplane 5.25" RAID cage

Icy Dock
Scan code: LN36066 Manufacturer code: MB994SP-4S Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 26th Apr 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Introducing the Icy Dock MB994SP-4S Quad Bay 2.5" SATA/SAS Mobile Rack for use in a single 5.25" device bay. This product is constructed of heavy duty metal to hold up in the toughest of conditions. It includes ventilation slots on the front, back, top and bottom for maximum airflow to keep both SATA and SAS drives running cool, and an LED is placed on the front of each drive tray to give the user drive status at all times. Dual 4-pin power connectors are used to ensure a consistent power supply to all 4 drives, whether they are low power SSD’s or power hungry 15000 RPM SAS drives. Also included are dual 40mm cooling fans to keep the drives running in at optimal temperatures in even the most intense applications. The fans utilize Active Power Technology, so that the fans only power up if there are drives installed. If no drives are inserted, neither fan will power up. If drives are only inserted on the right side, only the right-side fan will power up, and vice versa.

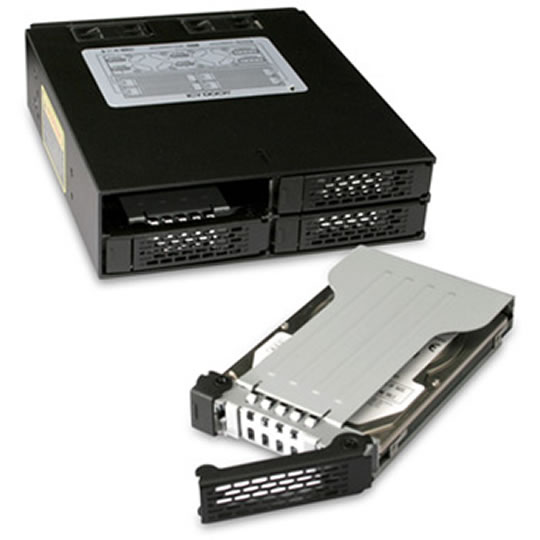

The MB994SP-4S utilizes our brand new EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using full metal so that they are durable for many lifetimes, but will not weigh you down when transporting your data from system to system. And featuring a full cage design, the added top drive cover provides added protection while moving the drive. The trays are also designed to accommodate 9.5mm, 12.5mm, and 15mm drives giving you the ultimate universal 2.5" hot swap bay.

Utilizing its small form factor, The MB994SP-4S is perfect for use in industrial PCs, servers, or any small form factor case where 5.25” bays are limited and large drive capacity is needed, especially compact RAID 5 systems. It is built to function in the most demanding environments including military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. The heavy metal design makes it ideal for placement in rugged environments. Features • Fits 4 x 2.5" SATA I / II / III and SAS HDD/SSD.
• Accommodates Drives with up to 15mm Height.
• Fits 4 Drives into a Single 5.25" Device Bay.

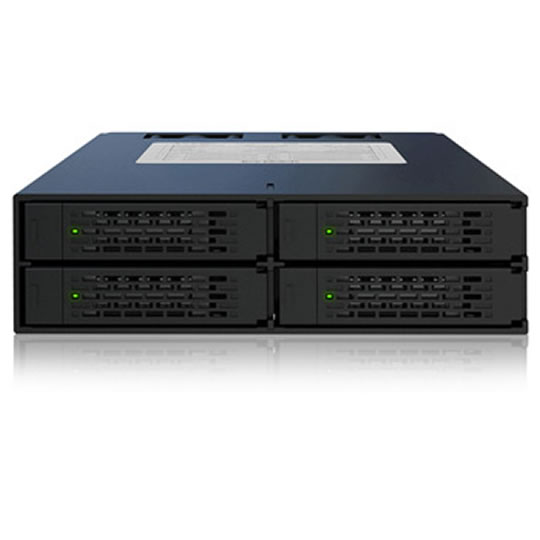

• Status LED on Front for Each Drive.
• Full Metal EZ Slide Mini Tray System with Full Cage Design.
• Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.
• Front, Rear, Top, and Bottom Ventilation Slots.
• Dual 40mm Fans with Active Power Technology.
• Heavy Duty Full Metal Construction.
• Support SATA 6Gbps.
• Top Cover for the Tray Adds Extra Drive Protection.
External Interface 4 x SATA III - 6Gb/s
HDD 4 x SATA III - 6Gb/s

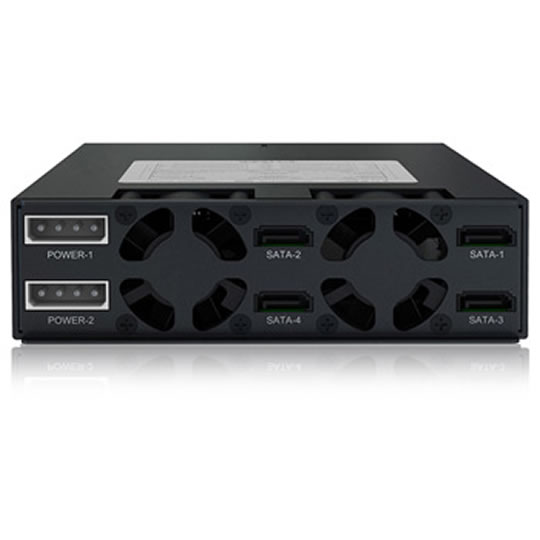

Power Connectors 2 x Molex
Space Requirement
Fan(s) Yes
Colour Black

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

12 months
Return to base
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details

Additional Notes:
"Please be aware any warranty offered in excess of 12 months is at the manufacturer's discretion and may be subject to change without notice."

We recommend that you retain your retail packaging within the first 28 days of purchase.

1 year warranty only, return to Scan subject to manufacturer's warranty.

This Warranty does not cover any damage due to abnormal use or conditions, misuse, neglect, abuse, accident, improper handling or storage, exposure to moisture, unauthorized modifications, alterations, or repairs, improper installation, improper use of any electrical source, undue physical or electrical stress, operator error, non-compliance with instructions.

Customers also bought
Icy Dock MB994SP-4S 4in1 SAS/SATA Hot Swap Backplane 5.25" RAID cage is rated 4.7 out of 5 by 3.
Rated 5 out of 5 by from Excellent, great quality, sturdy, reliable product I started with one of these units in my home server, I now have 3, the oldest being 3 years old now and none of them have missed a beat. They are solid, rugged devices, it's nice to find an item these days that you can't really find any quality faults with. I guess if i had one minor complaint, it would be that the fans can become slightly noisier over time. I have mine in my front room so have upgraded the fans to some 40mm Noctua, which I should point out was an easy job. I wouldn't have done this either if my server would have been somewhere else in the house, but the 10 fans in the server could be heard over the TV - not anymore! The ability to serve content from 4 drives in a single 5.25" bay is great. After all - who uses CD's anymore? It makes drive swap- outs easier and this particular model also supports 2.5" drives up to 15mm so useful for the higher capacity 2.5" drives out there. The only reason I have given this 4 stars for value is, whilst it's a great product it is also a little on the pricey side, now I have 3 units that's £220 just in these alone! Still, they have proved their worth and say with confidence they will continue to do so for years.
Date published: 2017-01-06
Rated 5 out of 5 by from If you are after a high-quality 4-bay storage cage, this is it. I bought this with the Icy Dock MB994IPO-3SB (Two-drive + Slim-ODD bay) and as I mentioned on my review of that product, the price is a little on the high side, but you do get a high-quality product if space-optimization is your thing. Similarly, this is the SATA/SAS unit, and if like me you only want to use SATA drives with this, just plug the SATA cables in to the "PRI" socket, leaving the "2ND" socket empty. If you later have a need for SAS, provided you have the SAS drives and a SAS controller, there is nothing stopping you from swapping SATA drives for SAS drives, and connecting up your SAS controller. It comes with 16 screws for the drives, and screws for mounting in your case. I should note that my Corsair Carbide Air 540 has a screw-less quick-release mechanism, and can confirm that the 540's quick-release does not cause any problems with the insertion or removal of the drive trays. I can't say the same for any other type of case mind. If you don't have quick-release (or your quick release causes problems with drive-tray removal or insertion) only use the screws that come with the cage: using others might be too long and stop you from easily removing the drive trays. It is a little on the expensive side, but you are paying for a high quality cage that will function well in to the future for you.
Date published: 2014-10-26
Rated 4 out of 5 by from build quality good The frames are of good quality. The screw holes seem to be exact as there were no difficulties slotting the (mounted) drives into the built-in SATA sockets. All the screws you need are provided - no hassle to get everything assembled. The fans are noisy (seem to be noisier than the CPU fan itself).
Date published: 2013-09-03
