ICY DOCK 2 Bay M.2 NVMe SSD to PCIe 4.0 x8 Mobile Rack Enclosure
ICY DOCK MB842MP-B Enclosure, Fits 2x M.2 PCIe NVMe SSD, PCIe 3.0/4.0, Eagle-Hook Lock System, EMI Grounding
Email me when the availability or price changes
ToughArmor MB842MP-B 2 Bay M.2 NVMe SSD to PCIe 4.0 Enclosure
The ToughArmor MB842MP-B turns a PCIe 8x or 16x expansion slot into a dual removable M.2 NVMe drive bays, allowing you to swap the M.2 NVMe SSDs without needing to open the computer case.
Innovative Removable M.2 NVMe SSD Enclosure
A typical M.2 drive is installed on a motherboard or a riser card and is secured by a small screw. Additionally, the physical installation process is very troublesome and time-consuming. The ToughArmor MB842MP-B's removable drive tray design utilizes the PCI express slot to make the M.2 SSD installation and removal process completely hassle-free.
State of the Art Tool-less M.2 Drive Installation
The tool-less M.2 NVMe SSD installation design takes less than five seconds to complete, saving you the hassle of dealing with tiny easy-to-lose screws.
The patent-pending adjustable M.2 locker secures the M.2 NVMe SSD (2230, 2243, 2260, 2280, 22110) onto the drive tray by sliding the M.2 locker towards the SSD to lock the M.2 SSD in place.
Optimal Cooling Efficiency

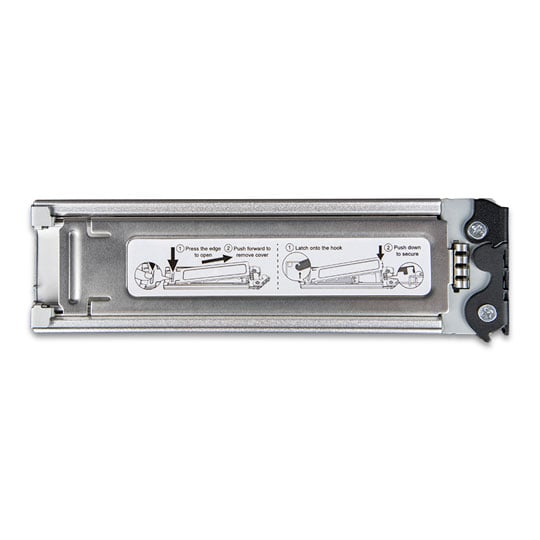

The specialized slim M.2 drive tray is made of thick aluminium and acts as a heatsink to dissipate heat generated by the M.2 NVMe SSD.
The included thermal pad fills the gap between the contact surface and transfers heat away from M.2 NVMe SSD to the larger aluminium surface, allowing airflow to move the heat away quickly.
EMI Grounding Technology
Grounding your M.2 NVMe SSD is critical, especially during frequent drive swaps due to static shocks. Our adjustable M.2 locker will clip into the SSD screw hole and ground the drive throughout the tray and the enclosure.
Maximum Compatibility
The ToughArmor MB842MP-B is designed for the PCIe slot and is compatible with PCIe 3.0/4.0 x8 and x16 slots.
Superior PCIe 4.0 Performance
The advantage of utilizing the PCIe 3.0/4.0 interface is that it provides power and data through a single PCIe slot, reducing the system's cable clutter. In addition, the blazing-fast 64Gbps transfer speed is 10x faster than SATA III, making it an ideal solution for data-intensive applications such as machine learning, cloud computing, data mining, or even image processing.
Rugged Protection for the Harshest Environments
The ToughArmor MB842MP-B is equipped with solid plastic, metal housing, and full metal drive trays to ensure a long product life and comes with a 5-year warranty.
Packed with Features
The ToughArmor MB842MP-B is built with drive activity LED indicators on each drive tray to show the drive power and activities. The LED will automatically power off when no drive is detected to save energy.
• Fits 2x M.2 PCIe NVMe SSD from 30-110mm (2230, 2243, 2260, 2280, 22110).
• Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives).
• Installs to a single-width full-height PCIe express slot.
• Removable drive tray with tool-less drive installation for easy drive maintenance.
• Eagle-hook lock system keeps the drive secured in the enclosure.
• EMI- Grounding - protects the hard drive from electrical damage.
• Active-Power Technology (APT) - saves power by shutting the device when no drive is installed.
• PCIe interface provides power and data transfer to reduce cable clutter.
• The included thermal pad conducts heat from the drive to the metal drive tray.
• Optional HDD activity signal output lets you transfer the drive activity signal to the computer case.
• Industry-leading 5-year limited warranty against all defects.
