Scan code: LN109759 Manufacturer code: MB839SP-B

ICY DOCK 2.5” SATA to Hot Swap PCIe Mobile Rack

ICY DOCK MB839SP-B 2.5” SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slots

Thumbnail 1 : ICY DOCK 2.5” SATA to Hot Swap PCIe Mobile Rack Thumbnail 2 : ICY DOCK 2.5” SATA to Hot Swap PCIe Mobile Rack Thumbnail 3 : ICY DOCK 2.5” SATA to Hot Swap PCIe Mobile Rack Thumbnail 4 : ICY DOCK 2.5” SATA to Hot Swap PCIe Mobile Rack
Scan code: LN109759 Manufacturer code: MB839SP-B
£73.49
Order now and receive it by Monday, 21st September
Delivery Options
  • By DPD On 21st Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

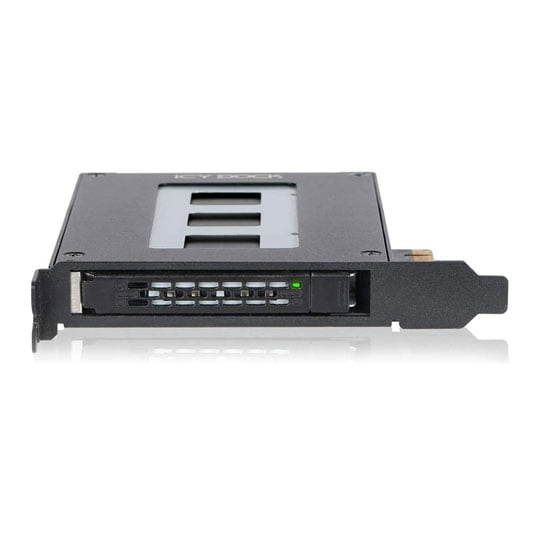

ToughArmor MB839SP-B 2.5” SATA to PCIe 2.0 Hot-Swap Mobile Rack

Introducing the ToughArmor MB839SP-B rugged removable drive bay for 2.5” SATA hard drives and SSDs (9.5mm height). Utilizing the standard PCIe 2.0 interface and taking only a single PCIe expansion slot, the MB839SP-B gives you an additional hot-swappable drive bay for hard disk drives (HDDs) and solid state drives (SSDs) even when your computer does not have an open SATA port or empty drive bay. Because the single PCIe port handles both power and data, there’s no additional clutter from SATA data and power cables. Fully supports hot-swapping drives with its removable drive tray.


Convenient Hot Swap Support

MB839SP-B adds full hot-swap support over the PCIe 2.0/3.0 interface, allowing you to add or remove drives in seconds without having to shut down the computer or open the case. Hot-swap supports prevents downtime when upgrading storage or replacing a failed drive, and allows a technician to work more efficiently. Hot-Swap ready connector rated for 10,000 insertion / removal cycles allows drives to be installed, removed, and replaced without shutting down the system.


Efficient Storage Solution

Add an additional HDD or SSD to your desktop computer by utilizing your unused PCIe expansion slots. Using the PCIe interface lets you exceed your computers usual drive limitations by giving you an extra removable SSD/HDD drive bay. ToughArmor MB839SP-B is designed for the PCIe 2.0 and 3.0 single-channel (x1) interface, and for maximum compatibility, it’s also compatible with PCIe x4, x8, and x16 full-length PCIe slots.


The Protection You Need

Ruggedized full-metal chassis, tray, and mounting bracket help to ensure a long product life, and further aid in heat dissipation. An anti-vibration mechanism built into the chassis reduces noise and protects against environmental damage.


Packed with Features

Utilizing the PCIe 2.0 interface allows for a huge speed improvement over older PCs and Mac Pro 2008-2012 models which only natively support SATA II speeds, allowing you to take advantage on the huge speed improvements of modern SSDs.
Utilizing the PCIe 2.0 interface provides power and data transfer at the same location which ultimately reduce cable clutter in a PC case.


Features

• Compatible with Mac Pro 2008-2012 models with no driver required
• Fits 1x SATA hard drive or SSD from 7mm to 9.5mm in height
• Uses PCIe 2.0 x1 interface, also supports installation into PCIe 2.0 and PCIe 3.0 x1, x4, x8, and x16 slots
• Installs into single-width PCIe expansion slot
• PCIe interface provides both power and data transfer which ultimately reduce cable clutter
• Narrow design allows for multiple bays to be installed side-by-side in a modular design
• Includes full-height PCIe faceplate to protect against buildup of dust
• Strong hot-swap connector rated for a minimum of 10,000 insertion/removal cycles
• Eagle-hook lock system keeps the drive secure in the enclosure
• EMI Grounding – protects hard drives from electrical damage
• Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
• Active Power Technology (APT) saves power by shutting the device down when no drive is installed.
• Complimentary support from professionally trained US-based technical support agents
