Scan code: LN97655 Manufacturer code: MB703M2P-B

EZConvert MB703M2P-B M.2 To 2.5 inch converter

ICY DOCK MB703M2P-B M.2 SATA SSD to 2.5" SATA SSD Converter Adapter

Thumbnail 1 : EZConvert MB703M2P-B M.2 To 2.5 inch converter Thumbnail 2 : EZConvert MB703M2P-B M.2 To 2.5 inch converter Thumbnail 3 : EZConvert MB703M2P-B M.2 To 2.5 inch converter Thumbnail 4 : EZConvert MB703M2P-B M.2 To 2.5 inch converter
Scan code: LN97655 Manufacturer code: MB703M2P-B
£13.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 11th Dec To 13th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

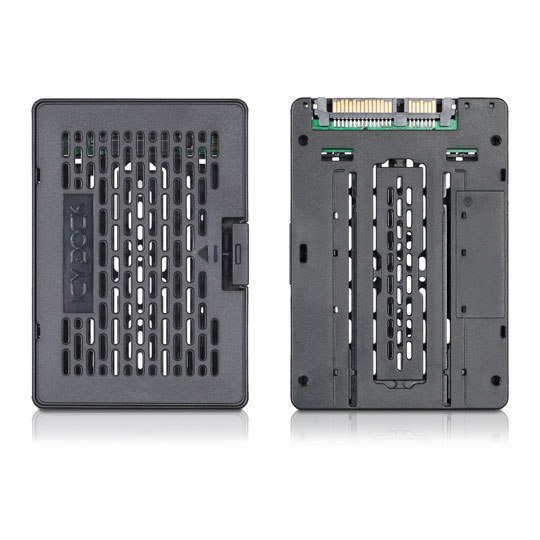

Product Overview ICY DOCK's EZConvert MB703M2P-B is a complete solution to convert any M.2 SATA SSD into the exact dimensions and port locations as a standard 2.5" hard drive or SSD (9.5mm height). Designed for compatibility, it accepts all M.2 sizes from 30mm to 80mm in length, mounting them without screws or tools, and allows these drives to be installed anywhere that accepts a bare 2.5" drive, such as a hot-swap bay, 2.5" mounting bracket, or in any of ICY DOCK's 2.5" drive enclosures. MB703M2P-B protects the delicate circuit board of your M.2 SSDs from bumps and drops.

Because M.2 SSDs are not designed to be hot-swapped, their connectors are very delicate, typically rated for only 250 insertion/removal cycles. When used with the EZConvert MB703M2P-B, M.2 SATA SSDs can be hot-swapped without putting any wear on the internal connector, instead using ICY DOCK's strong hot-swap connector rated for 10,000 insertion/removal cycles. Hot-swap makes it easy to add, remove, and replace drives without the need to restart the system.

EZConvert MB703M2P-B accepts any 30mm-80mm M.2 SATA SSD and gives it the exact same dimensions, port locations, and screw-hole locations as a standard 9.5mm 2.5" SSD.

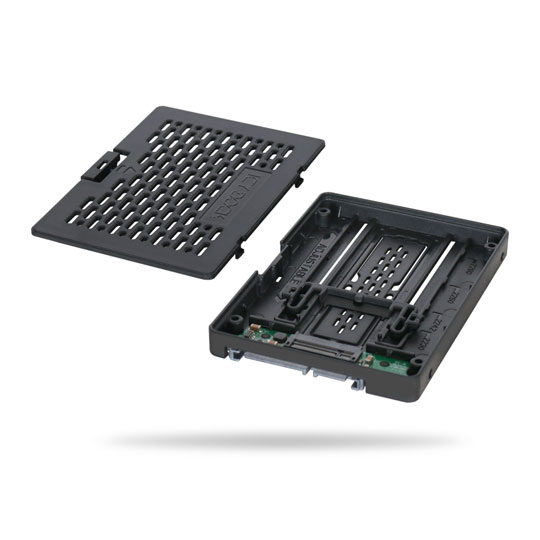

The 1-piece lid has a sturdy EZ-press latch, to stand up to frequent drive swaps. Simply press the latch in to open the lid, revealing the drive bay for easy installation, removal, or drive replacement.

The adjustable M.2 locker slides to accommodate all standard M.2 SATA SSD lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), and 2280 (80mm). The locker clips into the SSDs screw hole to secure the drive without the need for screws or tools.

Because the MB703M2P-B uses the standardized 2.5" form factor, it can be installed into any 2.5" backplane or hot-swap bay, such as our flexiDOCK, ExpressCage, or ToughArmor models. This lets you expand the capabilities of your existing 2.5" devices by adding M.2 SATA SSD support to them.

ICY DOCK's EZConvert MB703M2P-B not only allows you to convert M.2 SATA drives into a 2.5" drive form factor, but also, when used in combination with an aftermarket SATA to USB 3.1 adapter cable (not included), you can easily convert the MB703M2P-B into an external M.2 SATA drive to take your data on the go.

MB703M2P-B's body and lid each use a 1-peice design, constructed from a single piece of strong ABS plastic, to strengthen the enclosure and give your drive a physical layer of protection against drops and bumps. One-piece construction is preferred over multiple pieces, as the connection between two pieces creates a weak point that is prone to failure.

The lid and body have ventilation holes amply placed throughout the enclosure, working with your computer's cooling system to cool the drive and protect it from overheating damage, which can lead to data loss.

ICY DOCK's EZConvert MB703M2P-B was specifically designed to provide maximum cooling efficiency to prevent speed throttling on SATA M.2 drives. Air vent holes sit right underneath the SATA M.2 drive, giving the drive enough air flow while doing intensive reads and writes. Moreover, to allow more air circulation, these air venting holes can be removed physically to reveal a cutout, allowing users to install M.2 drive heatsinks or simply leave it open for an increased cooling effect.

The MB703M2P-B supports the full SATA III bandwidth specifications of up to 6Gbps, letting you take full advantage of the fastest M.2 SATA SSDs available.

EZConvert supports SATA data and power cables with locking latch designs, so you'll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they'll lock into place and stay that way.
Features • Convert your M.2 SATA SSD to a 2.5" SSD/HDD form factor, 9.5mm in height
• Exact same dimensions, port locations, and screw locations as a 2.5" HDD or SSD (9.5mm height)
• Accepts any M.2 SATA SSD from 30mm to 80mm in length (2230 / 2242 / 2260 / 2280)
• Enables hot-swap functionality for any M.2 SATA SSD
• Supports full SATA III bandwidth specification of 6Gbps
• 100% tool-less and screw-less M.2 drive installation
• Can be installed into any 2.5" backplane, hot-swap bay, or USB drive adapter.
• Sturdy ABS plastic construction
• Body and lid each use strong one-piece construction.
• Supports SATA data and power cables with locking latch designs
• Industry leading 3 year warranty with exceptional customer support
• Complimentary technical support from trained US-based ICY DOCK support technicians
