ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure
New
ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure
Scan code: LN160642 Manufacturer code: MB601V4KW-B
£161.99
Get it Tomorrow, 13 JulIn stock
  • Thumbnail 1 : ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure
  • Thumbnail 2 : ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure
  • Thumbnail 3 : ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure
  • Thumbnail 4 : ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure
New

ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure

ICY DOCK MB601V4KW-B, Rugged 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure

Scan code: LN160642 Manufacturer code: MB601V4KW-B
£161.99
£5.48 Next day delivery
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Get it Tomorrow, 13 JulIn stock
Pay in 3 interest-free payments of £54.00

Email me when the availability or price changes

  • By DPD On 14th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview

ToughArmor EX MB601V4KW-B Ruggedized 1 Bay 2.5" U.2/U.3 NVMe SSD Mobile Rack Enclosure

The ICY DOCK ToughArmor EX MB601V4KW-B features a Tough-Cover IPX6-rated water-resistant front panel, providing superior protection against dust, splashes, and harsh environmental elements. Designed for military, field, and edge applications, this rugged enclosure supports one 2.5” U.2/U.3 NVMe SSD (up to 15mm height) and fits into a standard external 3.5" drive bay - ideal for deployments where durability, mobility, and reliability are essential.

Engineered with full-metal construction and fan-less design, the MB601V4KW-B delivers PCIe Gen 4.0 transfer speeds up to 64Gbps via a direct U.2 (SFF-8639) interface, making it well-suited for high-speed workflows such as AI model training, data logging, and industrial system caching. Drive-level security and protection are reinforced through a 2-segment keylock and EMI grounding, ensuring safe and stable operation in sensitive environments.

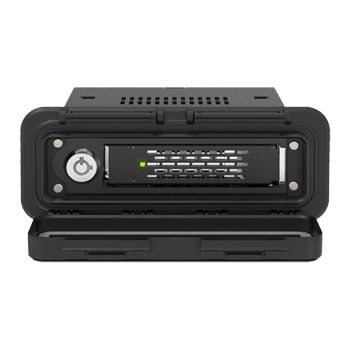

Protection Against Dust and Water Splashes

Designed with a rugged IPX6-rated water-resistant front cover, the MB601V4KW-B protects the internal drive from dust, moisture, and foreign objects, ensuring reliable operation in harsh industrial or field environments.

This makes it particularly suited for extreme deployment scenarios such as military drones, underwater robotics or compact submarines, and autonomous vehicle platforms, where the combination of environmental sealing and high-speed NVMe storage is critical for mission success.


Secure Locking Mechanism for Data Protection

The MB601V4KW-B features an Eagle-hook locking mechanism to prevent accidental SSD ejection and ensure secure drive retention during operation. For added security, it incorporates a 2-segment security keylock, which restricts access to authorized users and protects against physical drive theft or tampering.

These features make the MB601V4KW-B an excellent choice for data-sensitive environments such as government systems, cybersecurity infrastructure, and financial institutions - where physical access control is as critical as digital encryption.

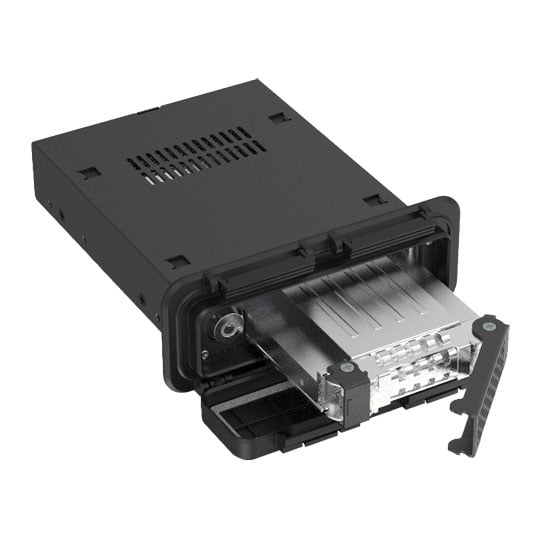

Quick SSD Swaps, Cleaner System

The full-metal removable drive tray of the MB601V4KW-B supports effortless *hot-swapping of U.2/U.3 NVMe SSDs, allowing for rapid replacement in time-sensitive environments such as field data collection, defense systems, and edge computing. It supports SSDs up to 15mm in height, offering flexibility across various enterprise-grade NVMe drives. Additionally, a spring-loaded anti-dust flap covers the drive slot when the tray is removed, keeping dust, debris, and foreign objects from entering the system. This helps maintain long-term reliability and internal cleanliness, even in rugged or outdoor deployments.

Note: Hot-swap support is dependent on the host system.


Built for Harsh Environments

The MB601V4KW-B is constructed entirely of metal, including the chassis, drive tray, and mounting hardware, making it compliant with flammability requirements and robust enough to withstand vibration, shock, and industrial usage.

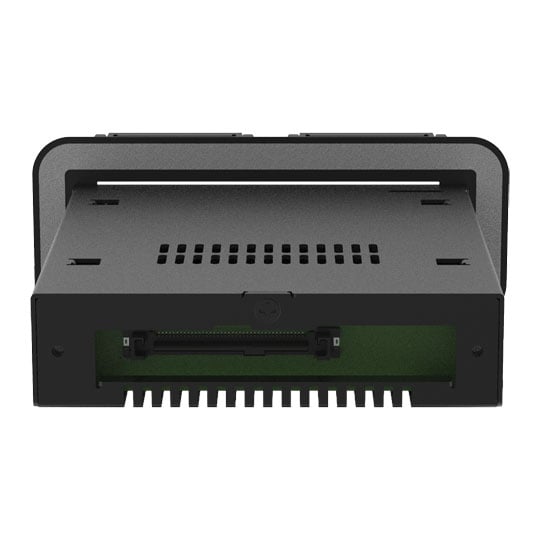

Unlock the Power of PCIe 4.0 with U.2 SFF-8639

The MB601V4KW-B is engineered with the U.2 (SFF-8639) interface with support for PCIe 4.0, it delivers blazing-fast transfer speeds of up to 64Gbps, enabling ultra-low latency and exceptional throughput for real-time data capture, large-scale simulation, and fast storage caching. Compared to SATA-based solutions, PCIe 4.0 offers over 10x the bandwidth, making it ideal for modern, high-demand systems.


Clear Status Monitoring

An LED indicator on the front panel shows power and drive activity status. The built-in Active Power Technology (APT) ensures that the LED is only active when a drive is installed, conserving energy when the bay is empty.


Features

• Fits 1 x 2.5" U.2/U.3 NVMe SSD (up to 15mm height) into a standard 3.5" external drive bay
• Supports PCIe Gen 4.0 U.2 interface via SFF-8639 connector (up to 64Gbps transfer rate)
• Water-resistant front cover protects against dust and splashes
• 2-segment security keylock prevents unauthorized access and accidental drive ejection
• Removable drive tray for easy maintenance and hot-swap (NVMe host must support hot-swap)
• Full-metal construction ensures superior durability and heat dissipation
• Strategic ventilation design enhances passive cooling
• Active Power Technology (APT) conserves energy when no drive is installed
• EMI grounding protects the SSD from static electrical damage
• Rugged design ideal for industrial, military, medical, and in-vehicle applications
• 5-year limited warranty with free technical support

Specifications

Model Number: MB601V4KW-B
Colo: Black
Support Drive Size: 1 x 2.5" U.2/U.3 NVMe SSD
Compatible Drive Type: NVMe
Number of Drives: 1
Max Drive Height:>/b> 15mm
Drive Bay: 1 x external 3.5" drive bay
Host Interface: 1 x U.2 SFF-8639, pin-out defined by SFF-9402 Rev 1.1
(Tri-mode HBA/RAID card compatible)
Power Input: Via U.2 (SFF-8639)
Transfer Rate: PCIe 3.0 up to 32Gbps / PCIe 4.0 up to 64Gbps
Support HDD Capacity: No limitation
Drive Cooling: Metal heat dispersion with passive cooling
Structure / Material: Full metal
Support Hot-Swap: Yes
Drive Security: 2 segment key lock
Product Dimension (D x W x H): 123.2 x 148.2 x 48.7mm
Product Net Weight: 419.1g
Package Gross Weight: 483.4g
Drive Activity LED Indication: Drive power: solid green; HDD access: flashing green
Package Contents: 1 - device, 1 - user manual, 10 - screw, 2 - key
U.2 Connector Insertion Rate: 10,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -35°C to 70°C (-31°F to 158°F)
Compliance: CE, RoHS, REACH
