Icon 32Ci USB Audio Interface with Harrison Mic Preamps
Icon - 32Ci USB Audio Interface with Two 32C Console Grade Analogue Mic Preamps and Console Grade 32C Filters
- SCANPROTECT Protect against installation damage for 28 days. More info
USB Audio Interface with Harrison Mic Preamps
Icon - 32Ci
Your Gateway to Legendary SoundThe Icon 32Ci allows you to follow the footsteps of music legends and experience the unparalleled quality of Harrison 32C preamps – the exact ones that have left an indelible mark on some of the most iconic albums ever made. From Michael Jackson’s award-winning ‘Thriller’ & ‘Bad’ albums to Paul Simon’s groundbreaking ‘Graceland,’ these preamps have graced recordings by AC/DC, Genesis, Janet Jackson, ELO, Led Zeppelin, and more.
You now have the opportunity to take your music to the next level with the Harrison/iCON 32Ci – a 12 In / 12 Out USB Interface that encapsulates the essence of the original 32C console. Crafted with world-class precision and inspired by the legendary console, the 32Ci comes packed with an array of features that ensure studio-grade performance.
Join the ranks of musical legends and make your mark with the 32Ci and let your talent shine like never before!
Amazing features
• Two 32C console grade analogue mic preamps and console grade 32C filters
• 32C Mic/Instrument preamps complimented by individual gain control & phantom power
• High end studio grade AD/DA providing a super high dynamic range of 129 dB
• ‘Bump’ control for retaining presence, while cutting low frequencies
• 4×4 analogue I/O full duplex simultaneous recording and playback
• Supports Mac/PC connectivity simultaneously with Smart Devices
32Ci Preamp
stunning accuracyRenowned for their warm and transparent sound, the Harrison 32C preamps are a true gem in the recording world. With exceptional clarity they provide a clean and detailed signal with minimal noise – perfect for a wide range of recording applications. Equipped with high-quality transformers, these preamps give your recordings rich and musical character whilst adding depth and warmth to every track. The 32C preamps boast a broad frequency response, capturing subtle details and dynamic ranges with incredible precision.
32Ci Filter
highly effectiveThe 32 Series consoles revolutionized the industry with their innovative high-pass and low-pass filters, designed to remove unwanted rumble and hiss in your sources. With ‘dual log’ potentiometers, these unique filters offer an exceptionally wide sweep range, allowing you to overlap them effectively and eliminate the passband altogether. Mixing engineers, including the acclaimed Bruce Swedien, used this capability to optimize their mixes, seamlessly blending multiple instruments without interference.
The “Bump” button was meticulously recreated to emulate the original filter’s slight resonance. Experience an added punch in the low-end, just above the filter’s cutoff frequency. Use this feature strategically to retain vocal presence while expertly filtering out any unwanted rumble captured by the microphone.
70dB Preamp Gain
free from distortionWith 70dB of gain, these preamps can handle high input levels without any distortion, making them the perfect choice for recording powerful sources like drums and electric guitars.
129 dB AD/DA
ultimate precisionExperience the true power of pristine audio conversion. 129 dB of dynamic range makes sure every last detail is captured with ultimate precision.
Two Discrete Headphone Outputs
focus on the musicTake collaboration up a level with individualized headphone mixes for each collaborator, depending on your DAW software capabilities.
Two convenient headphone outputs give you the freedom to focus on your creative process while ensuring everyone’s monitoring needs are covered.
ADAT
8 more channelsAn additional 8 channels of uncompressed digital audio can be added between your interface and a peripheral device using a single Toslink cable for a total of 12-ins and outs.
iCON I/O Pro
seamless workflowThis Virtual Mixer and Plugin Host for iCON Pro Audio interfaces is the ultimate audio control hub for your computer. Seamlessly transport audio across your system, harness the power of plugins both within and outside a DAW, and conveniently store your preferred plugin chains as presets.
If you’re recording, mixing, podcasting, streaming, or engaging with audio in any way on your computer, this feature-rich tool allows you to achieve professional-grade results with ease.
ICON Pro Audio’s Innovative Live Streaming Solution
UNIThe 32Ci features “UNI,” iCON Pro Audio’s proprietary protocol designed for seamless live streaming device connection via the equipped USB port (OTG).
With “UNI,” you can enjoy unparalleled stability, ensuring a super-smooth and reliable streaming experience like never before.
Vintage Analogue aesthetic

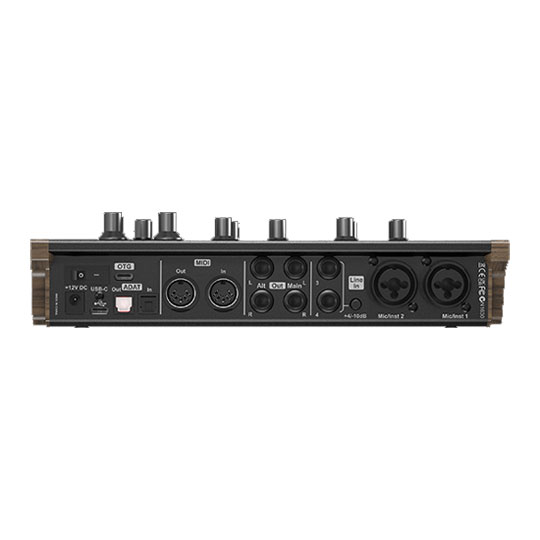

Aluminium chassisExperience a world of vintage charm and seamless functionality reminiscent of classic audio gear from yesteryears. Icon have considered every aspect to enhance your experience. Rear connections keep cables neatly tucked away, providing a nice and tidy workspace.

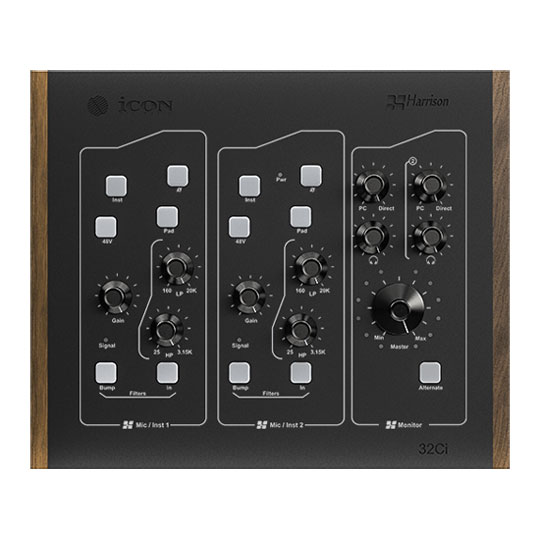

The top panel layout, ingeniously ergonomic and visually stunning, pairs flawlessly with the pleasing-to-touch switchgear, creating an intuitive and logical interface.
Plugin Bundle Included
bitwig 8-track studio
dotec audio plugins
harrison ava live
32c vocal intensity processor
kilohearts toolbox
tracktion daw essentials
Harrison iCON 32Ci Analogue Mic Preamps with Audio Interface - Overview
The Tech Spec
| Features | Specification | ADC |
|---|---|
| Dynamic Range | 125dB, A-weighted |
| Signal-to-Noise Ratio | -125dB, A-weighted |
| THD+N Ratio | -117dB, -1dBFS |
| DAC | |
| Dynamic Range | 129dB, A-weighted |
| Signal-to-Noise Ratio | -129dB, A-weighted |
| THD+N Ratio | -120dB, 0dBFS |
| Mic1/2 Inputs (XLR, Balanced) |
|
| Frequency Response | 20Hz to 20kHz (+/-0.1dB) Minimum voltage gain 0dB (fader @ unity, -20dB pad) Maximum voltage gain 70dB (fader @ unity, no pad) Nominal input level -16dBu through -66dBu (fader @ unity, no pad, @ +4dBu output) Maximum input level +18dBu (fader @ unity, -20dB pad) Expected source impedance 150 to 200 Ohms Actual load impedance 1200 Ohms |
| Instrument 1/2 Inputs (6.35mm TS, Unbalanced) |
|
| Frequency Response | 20Hz to 20kHz (+/-0.1dB) |
| Input Impedance | 1M Ohms, typical Maximum input level +18dBu (fader @ unity, -20dB pad) |
| Line Inputs 3/4 (6.35mm TRS, Balanced) |
|
| Frequency Response | 20Hz to 20kHz (+/-0.1dB) Maximum level +24dBu Nominal input level +4dBu Expected source impedance 1000 Ohms or less Actual load impedance 10 kOhms |
| Line Outputs 1/2 (6.35mm TRS, Balanced) |
|
| Frequency Response | 20Hz to 20kHz (+/-0.1dB); Maximum level +24dBu Nominal input level +4dBu Minimum load impedance 600 Ohms |
| Headphone Outputs (Stereo, Unbalanced) |
|
| Frequency Response | 20Hz to 20kHz (+/-1dB) |
| Load Impedance | 16 to 600 Ohms |
| Maximum Output Level | +21dBu, no load; +21dBu, 600Ohms (11.4Vrms) +20dBu, 100 Ohms (10Vrms) +14.6dBu, 32 Ohms (5.4Vrms) +8.6dBu, 16 Ohms (2.7Vrms) |
