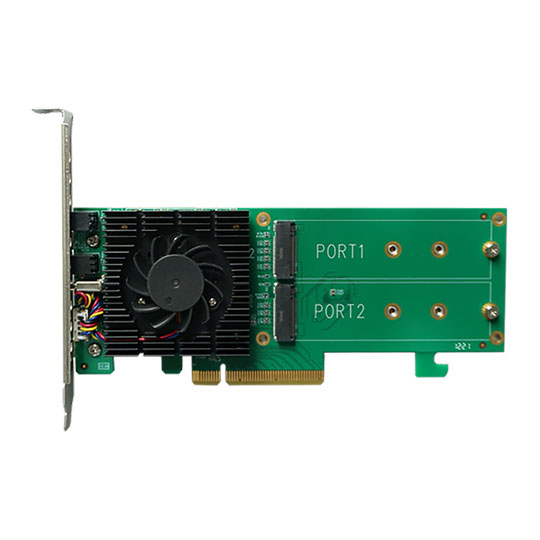

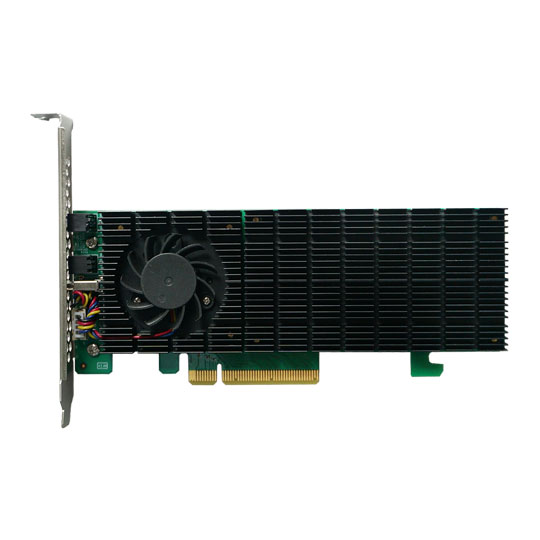

HighPoint SSD6202A PCIe 3.0 x8 2-Port M.2 NVMe Raid Controller

HighPoint SSD6202A 2x M.2 NVMe Raid Controller, 2242/2260/2280, PCIe 3.0 x8, JBOD/RAID 0/1, Win/Linux

Thumbnail 1 : HighPoint SSD6202A PCIe 3.0 x8 2-Port M.2 NVMe Raid Controller Thumbnail 2 : HighPoint SSD6202A PCIe 3.0 x8 2-Port M.2 NVMe Raid Controller Thumbnail 3 : HighPoint SSD6202A PCIe 3.0 x8 2-Port M.2 NVMe Raid Controller Thumbnail 4 : HighPoint SSD6202A PCIe 3.0 x8 2-Port M.2 NVMe Raid Controller
Scan code: LN127497 Manufacturer code: SSD6202A
Order now and receive it by Monday, 20th May
£309.98
Get it Monday, 20 MayIn stock
From £15.14 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £28.09
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £336.99
Monthly Payment: £15.14
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £309.98
Total inc. interest: £363.25
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.24 / month (APR 19.9%)
Delivery Options
  • By DPD On 20th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Accelerate System & Boot Performance

HighPoint SSD6200 Series NVMe RAID Controllers are ideal for professional applications that require a bootable storage solution with host-level redundant RAID capability and native in-box driver support.

SSD6200 Series controllers were designed to maximize uptime of the host platform and ease the of integration and maintenance of NVMe RAID Storage. In addition, a wide range of solution packages are available for the professional VAR; customers can opt for either 2 and 4 dedicated M.2 device ports, integrated Host RAID 1, 0 & JBOD support, optional OOB management when outside of the OS platform, LED RAID status & I/O indication, UEFI/BIOS/CLI/GUI management interfaces, and Half-Height or Full-Height form factors.


Wide Spectrum of Supported Operating Systems

HighPoint SSD6200 series controllers enable professional solutions providers to seamlessly configure bootable, redundant RAID storage for a wide range of customer applications. Native In-Box Driver support is available all major Virtualization platforms, such as VMware, Microsoft Hyper-V and Promox, and all current versions and distributions of Windows, Linux and FreeBSD operating systems. Customers are free to update the Kernel, apply patches, or download and install scheduled updates as needed, without fear of data loss or the need for complicated procedures.


Integrated Host RAID Technology

HighPoint Industrial and Virtualization solutions feature integrated host, hardware-level RAID 0, 1 and JBOD capability. RAID arrays hosted by SSD6200 series controllers are fully transparent and will be automatically recognized by all current VM and OS platforms as available single-drives. No drivers, special procedures or software application is required.


Maximum Uptime

Though simple, RAID 1 mirroring technology remains one of the most effective way to secure a bootable storage configuration against the threat of device failure. RAID 1 creates a hidden, automated backup of the target drive; in this case, a bootable NVMe SSD. If the original should fail, the mirrored backup will immediately, and seamlessly, take the reins. This enables the host system to remain online, and continue to operate, unabated.


Simplicity Redefined

Configure arrays with the flip of a switch!
No IT background? No problem! SSD6200 controllers are ideal for users of any skill level. Customers don't need to master a complicated RAID application to configure NVMe storage.

Optimises Production Workflows
One-Click RAID Creation enables Solution Providers and VAR’s to optimize production workflows. The onboard RAID switch completely flattens the learning curve by eliminating the need for an interface or application. You don’t even need an OS or input devices! Simply install the SSD’s, plug in the card, power on the system and toggle the switch!

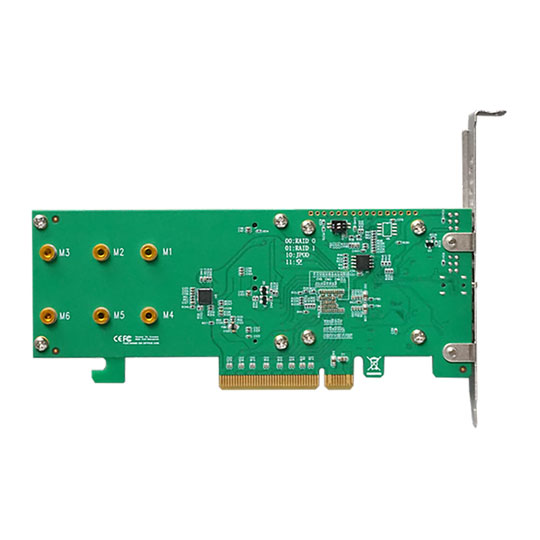

RAID Switch Settings
Each controller features two hardware switches which can be used to configure one of 3 arrays modes (Mirroring, Striping and JBOD).


OOB (Out-of-Band) RAID Management

SSD6202A & SSD6204A controllers provide an out-of-band management port and integrated console management interface.

OOB is ideal for field maintenance and on-site services as it allows the RAID storage to be administered in a pre OS environment. OOB is well suited to secure Data Center and Hosting applications, as it only grants access to the NVMe RAID console and configuration; it cannot interact with user data in any way.


LED Indication

The SSD6202A & SSD6204A provide LED indicators which enable administrators to quickly determine the status of the NVMe SSDs, RAID array, and PCIe host connection.

Green: Normal/Optimal
Red: Critical / Suboptimal


Blisteringly Fast

A single SSD6200 controller can deliver over 7000MB/s of transfer performance using off-the-shelf M.2 NVMe SSD of any capacity. The massive transfer bandwidth and versatility enable solution providers to deliver custom-tailored NVMe storage for a wide range of customer applications.

Features

• 2x M.2 Ports.
• Driverless NVMe RAID Solution.
• UEFI, CLI & WebGUI RAID Configuration & Management.
• Wide Spectrum of Boot OS Support.
• Rebranding MP-Tool WebGUI (Available for System Integrators).

Specifications
Ports Total 2 Port
Ports Internal 2 Int Ports
Ports External 0 Ext Ports
Connectors 2 x M.2 PCIe
Interface PCIe 3.0 x8
JBOD Yes
RAID Support
  • JBOD
  • RAID 0
  • RAID 1
Low Profile Compatible Yes
Cables Inc.
Cache Memory
Notes
Additional Information
Scan Code LN127497
Model Number SSD6202A
GTIN 643653620234
