Product Overview

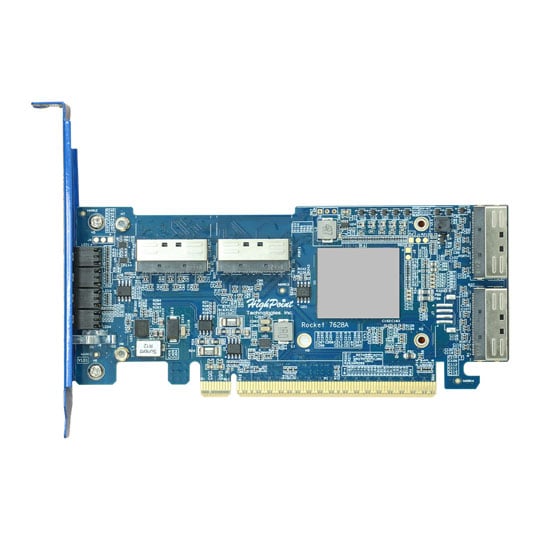

Rocket 7628A – PCIe Gen5 x16 to 4-MCIOx8 NVMe RAID Adapter

The Rocket 7628A 8-Channel NVMe RAID Adapter was designed for professional server and workstation applications that require uncompromised PCIe Gen5 NVMe Storage Performance with the flexibility of proven RAID technology and true NVMe Hot-Plug & Hot-Swap capability. Rocket 7628A Adapters can directly support up to eight U.2/U.3 or E3.S NVMe SSDs via four MCIO connectors and cable-to-backplane connectivity. Hosted media can be configured into as many as 4 separate RAID 0, 1 or 10 arrays, including bootable volumes or mixed configurations of single SSDs and arrays.


Features • 8-Dedicated PCIe 5.0 device channels.
• Directly Supports up to 8x U.2/U.3 or E3.S NVMe SSDs via 4x MCIO Ports & industry standard backplane connectivity.
• High-Performance PCIe Gen5 Switching Architecture: x16 lanes of dedicated upstream & x4 lanes of downstream bandwidth for each device channel.
• Delivers 64GB/s of Bandwidth & Real-world Sustained transfer speeds up to 56,000MB/s.
• Integrated NVMe Hot-Plug & Hot-Swap Capability.
• Intelligent Gen5 Cooling Solution.
• Comprehensive Storage Health Monitoring, Management & Analysis Suite.
• Industry-proven NVMe RAID Technology supports up to four RAID 0, 1 or 10 configurations.
• Optional Boot-RAID Capability for Linux & Windows.
• SafeStorage (OPAL SED).
• Hardware Secure Boot.
Specifications
Ports Total 8 Port
Ports Internal 0 Int Ports
Ports External 0 Ext Ports
Connectors 4 x MCIO
Interface PCIe 5.0 x16
JBOD No
RAID Support N/A
Low Profile Compatible No
Cables Inc.
Cache Memory
Notes
Additional Information
Scan Code LN148894
Model Number R7628A
GTIN 643653762804
