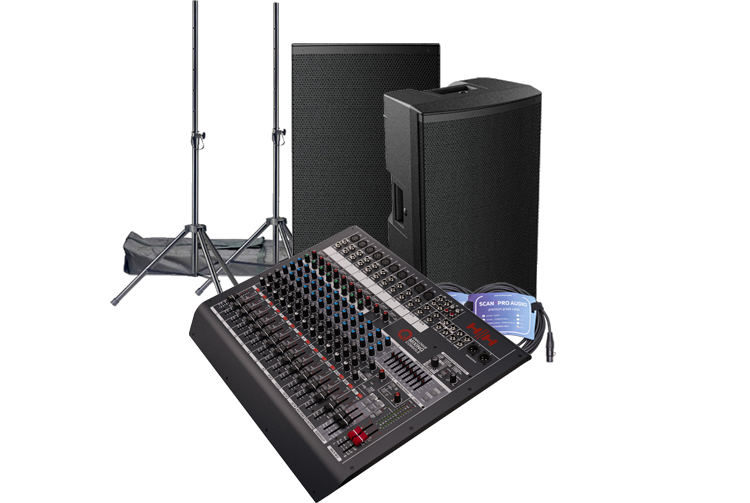

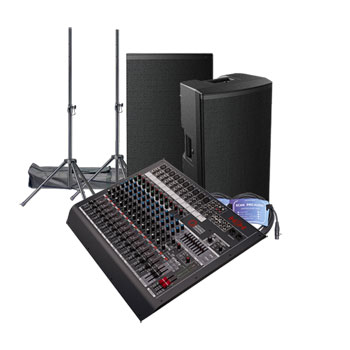

HH - Q16FX Mixing Desk, TRE-1201 12" Active Loudspeaker (x2)
Stands & Leads Bundle
scan pro audio exclusive bundleThe PA & Live Sound team at Scan Pro Audio are proud to offer this exclusive offer comprised of HH’s Q16FX Analogue Mixing Desk, a pair of the seriously powerful TRE-1201 12” Loudspeakers, Stagg SPSQ10 Speaker Stands and a pair our very own Scan Pro Audio XLR F to XLR M cables.
what's included?
• HH - Q16FX Analogue Mixing Desk (x1)
• HH - TRE-1201 12" Active Loudspeaker (x2)
• Stagg - SPSQ10 Speaker Stands + Carry Bag (Pair)
• Scan - Pro Audio XLR F to XLR M cable (x2)
Analogue Mixing Console

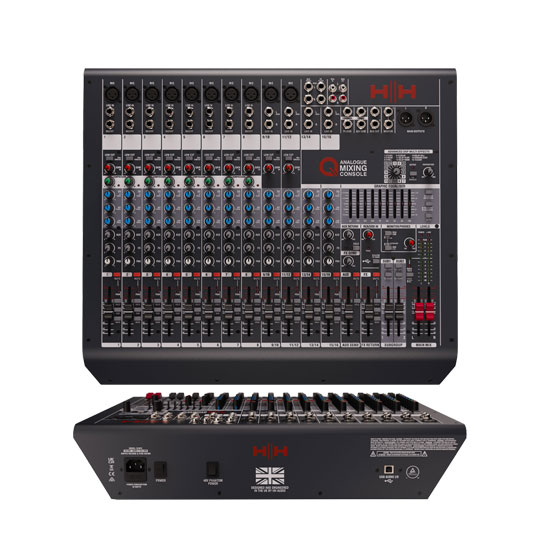

HH - Q16FX
ultimate mixing controlThe HH Q16FX is a 16-channel analogue mixing console designed and engineered in the UK. The Q16FX features 16 input channels: 10 mono channels with microphone inputs using low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.
Channels 1 to 8 feature an intuitive single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.
16-high-quality DSP effects provide even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.
The Q16FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q16FX the perfect tool for recording performances, podcasts, and music production.
All of this, together with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q16FX a complete portable powerhouse for traveling musicians and engineers alike.
10 x XLRMic Inputs
16Channels
3-BandEQ
At A Glance
• 16-channel analogue mixing console
• 16 input channels: 10 mono channels with microphone inputs
• Line-in option on each channel alongside 4 stereo line input channels
• Channels 1 to 8 feature a single-knob compressor
• Low cut at 75 Hz plus a 3-band EQ on each channel
• 16-high-quality DSP effects
• Designed and engineered in the UK
The Q Series
Analogue Mixing ConsolesThe HH Q Series brings decades of British design and engineering to your audio productions. The series consists of 4 analogue mixing consoles which cover an array of live sound applications (6 channels, 8 channels, 12 channels, and 16 channels). 2in/2out USB expands the functionality of all Q Series mixers even further making these mixers a great tool for music production and recording live performances or podcasts. The Q Series’ comprehensive channel strip allows you to take complete control over the tonal shape, dynamics, and depth of your mixes with low-noise mic-preamps, 3-band EQ, single knob compression, and high-quality DSP effects.
HH Audio Q Series Analogue Mixers
12" Active Loudspeaker

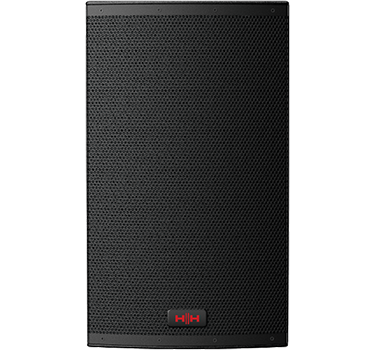

HH Electronics - TRE-1201
High-Powered Active LoudspeakerThe HH Tensor TRE-1201 has been designed to deliver incredibly audio performance that meets all your requirements. Featuring a high-grade class D bi-amplifier, this loudspeaker provides output without restrictions and the intelligent on-board dsp keeps your system safe from failure.
With it’s 4 audio modes, the TRE-1201 can be customized to suit your needs, if for that’s for a DJ, a live band, monitoring or announcements, the TRE-1201 has you covered at the press of a button. The integrated 2 channel mixer makes sure that your devices are connected without limits. All these powerful features come in an ultra lightweight, multi-angle enclosure with 3 molded carry handles and 4 M8 suspension points. The HH tensor TRE-1201 delivers outstanding performance you can rely on.
12"LF Driver
90°H x 60°VCoverage
1400WPeak Power
at a glance
• DSP: Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation
• User selectable performance presets for Music, Live, Monitor, Vocal
• Controls: 2 x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode
• Frequency Response 45 - 18kHz
• Max SPL 130dB
HH Electronics - Tensor TRE-1201 12" Active Loudspeaker Overview
HH - Q16FX
The Tech Spec
| Features | Specification | Mic Inputs | 10 x XLR CH1-12 |
|---|---|
| Line Inputs (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH9-12 |
| EQ | 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel |
| Compressor | 2:1 ratio 9dB makeup gain, -8dBu input threshold (max compression, Ch1-8) |
| Monitors | Stereo ¼” 6.3mm TRS Sockets |
| FX Send | Mono 1/3” 6.3mm TRS |
| Phones | Mono ¼” 6.3mm TRS |
| Effects | 16 Reverb and Delay effects with enable switch and parameter control |
| USB Audio | Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz |
| Line Inputs (Mono) | 8 x ¼” 6.3mm TRS CH1-8 |
| Line Inputs (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH13-16 |
| Low Cut | 75Hz cut off @ 18dB/Octave (CH1-12) |
| Main Outputs | Balanced Stereo XLR |
| Sub Outputs | 2 x ¼” 6.3mm TRS Sockets |
| FX Send | Mono ¼” 6.3mm TRS |
| RCA | Stereo Phono Sockets |
| Graphic EQ | Master 9 Band Graphic EQ with feedback detect, on/off toggle |
| AC Power | Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included) |
HH TRE-1201 12" Active Loudspeaker
The Tech Spec
| Features | Specification | Power | 1400W Peak |
|---|---|
| Frequency Response | 45 - 18kHz |
| Max SPL (1M) (Peak) | 130dB |
| LF Driver | 12 Inch HH designed professional low mid driver featuring imported glass reinforced cone |
| HF Driver | 1.33" Compression driver |
| Coverage | 90°H x 60°V |
| Crossover Frequency | 2.5kHz |
| Inputs | 2 x Balanced Combi XLR/1/4" Jack connectors |
| Outputs | 1 x Balanced XLR Mix Output |
| Indicators | Power, clip indicator, EQ mode, front illuminating logo |
| Eq | User selectable performance presets for Music, Live, Monitor, Vocal |
| DSP | Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation |
| Protection | Comprehensive protection and clip free limiting + clip indicator |
| Controls | 2 x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode |
| Cabinet | Robust polypropylene cabinet with three handles and 45° monitor angle |
| Finish | Black |
| Grille | Heavy Gauge powder-coated steel, Black with acoustic foam backing |
| Pole Mount | 35mm Distance Pole Socket |
| Mounting Points | 4 x M8 Mounting Points |
| Unit Dimensions (Hwd) | 610 x 357 x 356mm, 24" x 14.1" x 14" |
| Unit Weight | 14.4Kg, 31.7 lbs |
| Carton Dimensions (Hwd) | 685 x 440 x 440 mm, 27" x 17.3" x 17.3" |
| Packed Weight | 16.8Kg, 37 lbs |
