HH 12" Loudspeakers, Q12FX Mixing Desk, Stands and Leads
BUNDLE
HH 12" Loudspeakers, Q12FX Mixing Desk, Stands and Leads
Scan code: LN159977 Manufacturer code: TRE1201
£899.00
Get it Tomorrow, 09 JulIn stock
  • Thumbnail 1 : HH 12" Loudspeakers, Q12FX Mixing Desk, Stands and Leads
  • Thumbnail 2 : HH 12" Loudspeakers, Q12FX Mixing Desk, Stands and Leads
  • Thumbnail 3 : HH 12" Loudspeakers, Q12FX Mixing Desk, Stands and Leads
  • Thumbnail 4 : HH 12" Loudspeakers, Q12FX Mixing Desk, Stands and Leads
BUNDLE

HH 12" Loudspeakers, Q12FX Mixing Desk, Stands and Leads

HH - Tensor TRE-1201 12" Active Loudspeakers, HH Q12FX Mixer, Stands and Leads

Scan code: LN159977 Manufacturer code: TRE1201
£899.00
Order in the next 2 hrs 22 mins and get it tomorrow
Get it Tomorrow, 09 JulIn stock
Pay in 3 interest-free payments of £299.67

Email me when the availability or price changes

  • By DPD On 9th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free

Finance this product

  • From £31.48 / month (APR 16.9%) or 0% for 4 months
  • With a 10% deposit from just £23.89 / month (APR 19.9%)
  • SCANPROTECT Protect against installation damage for 28 days.

HH - Q12FX Mixing Desk, TRE-1201 12" Active Loudspeaker (x2)
Stands & Leads Bundle

HH Q12FX

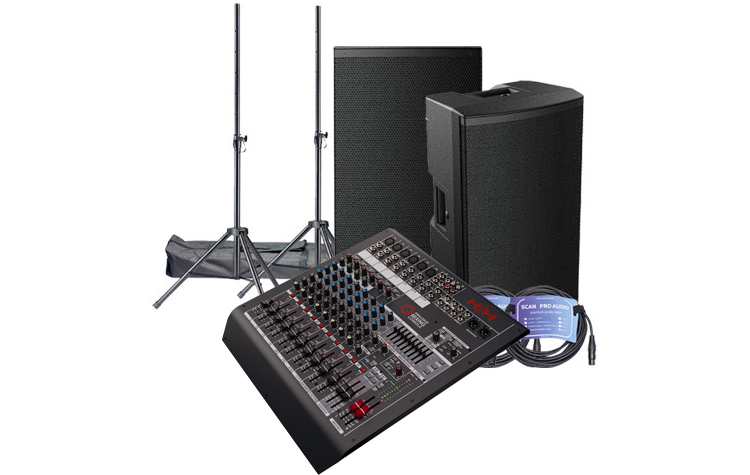

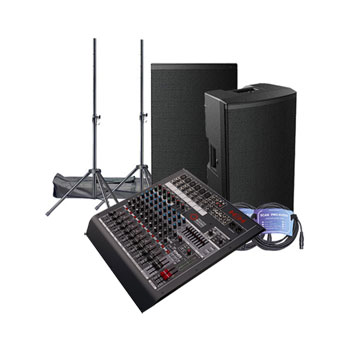

scan pro audio exclusive bundleThe PA & Live Sound team at Scan Pro Audio are proud to offer this exclusive offer comprised of HH’s Q12FX Analogue Mixing Desk, a pair of the seriously powerful TRE-1201 12” Loudspeakers, Stagg SPSQ10 Speaker Stands and a pair our very own Scan Pro Audio XLR F to XLR M cables.

what's included? • HH - Q12FX Analogue Mixing Desk (x1)
• HH - TRE-1201 12" Active Loudspeaker (x2)
• Stagg - SPSQ10 Speaker Stands + Carry Bag (Pair)
• Scan - Pro Audio XLR F to XLR M cable (x2)

Analogue Mixing Console
HH - Q12FX

HH Q12FX

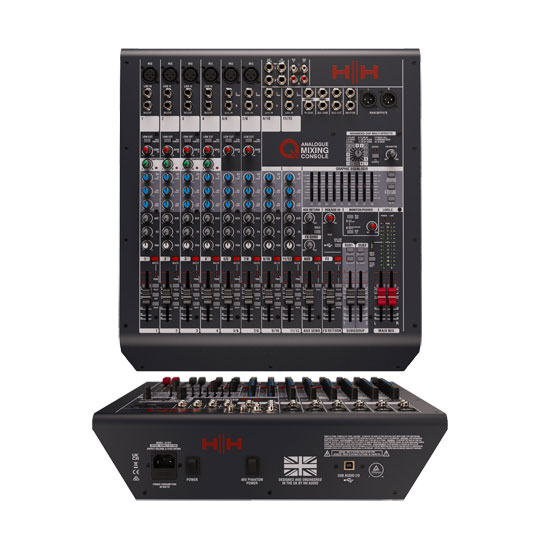

ultimate mixing controlThe HH Q12FX is a 12-channel analogue mixing console designed and engineered in the UK. The Q12FX features 12 input channels: 6 mono channels with microphone inputs with low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.

Channels 1 to 4 feature an intuitive single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.

16-high-quality DSP effects give you even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.

The Q12FX also offers 2 Subgroups to give you further control, allowing you to easily adjust the level of the channels routed to each group. 2in/2out USB functionality also makes the Q12FX the perfect tool for recording performances, podcasts, and music production.

All of this, together with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q12FX a complete portable powerhouse for traveling musicians and engineers alike. 

6 x XLRMic Inputs

12Channels

3-BandEQ

At A Glance • 12-channel analogue mixing console
• 12 input channels: 6 mono channels with microphone inputs
• Line-in option on each channel alongside 4 stereo line input channels
• Channels 1 to 4 feature a single-knob compressor
• Low cut at 75 Hz plus a 3-band EQ on each channel
• 16-high-quality DSP effects
• Designed and engineered in the UK

The Q Series

HH Q8FX

Analogue Mixing ConsolesThe HH Q Series brings decades of British design and engineering to your audio productions. The series consists of 4 analogue mixing consoles which cover an array of live sound applications (6 channels, 8 channels, 12 channels, and 16 channels). 2in/2out USB expands the functionality of all Q Series mixers even further making these mixers a great tool for music production and recording live performances or podcasts. The Q Series’ comprehensive channel strip allows you to take complete control over the tonal shape, dynamics, and depth of your mixes with low-noise mic-preamps, 3-band EQ, single knob compression, and high-quality DSP effects.

HH Audio Q Series Analogue Mixers

12" Active Loudspeaker
HH Electronics - TRE-1201

HH TRE1201

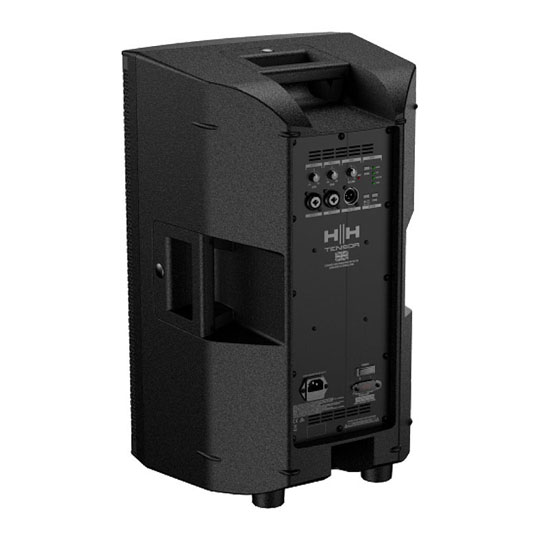

High-Powered Active LoudspeakerThe HH Tensor TRE-1201 has been designed to deliver incredibly audio performance that meets all your requirements. Featuring a high-grade class D bi-amplifier, this loudspeaker provides output without restrictions and the intelligent on-board dsp keeps your system safe from failure.

With it’s 4 audio modes, the TRE-1201 can be customized to suit your needs, if for that’s for a DJ, a live band, monitoring or announcements, the TRE-1201 has you covered at the press of a button. The integrated 2 channel mixer makes sure that your devices are connected without limits. All these powerful features come in an ultra lightweight, multi-angle enclosure with 3 molded carry handles and 4 M8 suspension points. The HH tensor TRE-1201 delivers outstanding performance you can rely on.

12"LF Driver

90°H x 60°VCoverage

1400WPeak Power

at a glance • DSP: Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation
• User selectable performance presets for Music, Live, Monitor, Vocal
• Controls: 2 x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode
• Frequency Response 45 - 18kHz
• Max SPL 130dB

HH Electronics - Tensor TRE-1201 12" Active Loudspeaker Overview

HH - Q12FX Analogue Mixing Console
The Tech Spec

Features Specification
Mic Inputs 6x XLR CH1-8
Line Inputs (Stereo) 2 x Stereo ¼” 6.3mm TRS CH5-8
EQ 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
Compressor 2:1 Ratio, 9dB Makeup Gain, -8dBu input threshold (max compression, CH1-4)
Monitors Stereo ¼” 6.3mm TRS Sockets
FX Send Mono 1/3” 6.3mm TRS
Phones Mono ¼” 6.3mm TRS
Effects 16 Reverb and Delay effects with enable switch and parameter control
USB Audio Inputs/Outputs: 2-in, 2-out, 16-bit, 24-bit, Sample Rate: 48kHz
Line Inputs (Mono) 4 x ¼” 6.3mm TRS CH1-4
Line Inputs (Stereo) 2 x Stereo ¼” 6.3mm TRS CH9-12
Low Cut 75Hz cut off @ 18dB/Octave (CH1-8)
Main Outputs Balanced Stereo XLR
Sub Outputs 2 x ¼” 6.3mm TRS Sockets
FX Send Mono ¼” 6.3mm TRS
RCA Stereo Phono Sockets
Graphic EQ Master 9 Band Graphic EQ with feedback detect, on/off toggle
AC Power Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included)

HH TRE-1201 12" Active Loudspeaker
The Tech Spec

Features Specification
Power 1400W Peak
Frequency Response 45 - 18kHz
Max SPL (1M) (Peak) 130dB
LF Driver 12 Inch HH designed professional low mid driver featuring imported glass reinforced cone
HF Driver 1.33" Compression driver
Coverage 90°H x 60°V
Crossover Frequency 2.5kHz
Inputs 2 x Balanced Combi XLR/1/4" Jack connectors
Outputs 1 x Balanced XLR Mix Output
Indicators Power, clip indicator, EQ mode, front illuminating logo
Eq User selectable performance presets for Music, Live, Monitor, Vocal
DSP Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation
Protection Comprehensive protection and clip free limiting + clip indicator
Controls 2 x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode
Cabinet Robust polypropylene cabinet with three handles and 45° monitor angle
Finish Black
Grille Heavy Gauge powder-coated steel, Black with acoustic foam backing
Pole Mount 35mm Distance Pole Socket
Mounting Points 4 x M8 Mounting Points
Unit Dimensions (Hwd) 610 x 357 x 356mm, 24" x 14.1" x 14"
Unit Weight 14.4Kg, 31.7 lbs
Carton Dimensions (Hwd) 685 x 440 x 440 mm, 27" x 17.3" x 17.3"
Packed Weight 16.8Kg, 37 lbs
Specifications
Number of Input Channels N/A
Frequency Response -3dB N/A
Frequency Response -10dB N/A
Max SPL N/A
Power rating (Peak) N/A
Power rating RMS N/A
Speaker size N/A
Enclosure Type N/A
Dimensions
Net weight
Shipping weight N/A
Connectivity N/A
Connectivity (Output)
Colour
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points No
Pole Mountable No
Integrated Bracket No
Sub Woofer No
Built in DSP No
Front of House No
Floor Monitor No
Additional Information
Scan Code LN159977
Model Number TRE1201
GTIN 5055948958499
