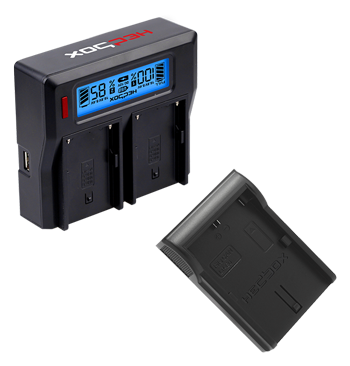

Hedbox - 'RP-DC50 Dual Battery Charger And DLPE6 Battery Charger Plate'
Dual Battery Charger with Battery Charger PlateThe Hedbox RP-DC50 Dual Battery Charger that features space for two interchangeable battery charging plates that can be used to charge virtually any type of battery. Featuring a large backlit LCD screen for charging readouts. With an intelligent control MCU automatically identify the voltage and number of batteries fitted to the charger and prevent overcharging regardless of the operating mode selected.
This Bundle also includes the Hedbox DLPE6 Battery Charger Plate, designed to be used with standard Canon LP-E6 battery mount type.
Backlit LCD Display
Implemented Back-lightWith an implemented back-light in the large LCD screen, the readout function is enabled in the dark, giving you the possibility to use the charger at any place and at any time.
Large LCD Display ScreenA large LCD screen provides clear, accurate, and precise display of the charging status. The USB output and DC 12V input display charge mode provides a clear insight into the way in which the charging mode is used to charge your professional battery. With an implemented backlight, the readout function is enabled in the dark.
Dual Charging Bays
Dual Bay Charging OptionThe charger has possibility to charge One or Two batteries simultaneously. Intelligent control MCU can automatically identify the number of Batteries put on the charger and the voltage, preventing overcharge, depending on your choice of a charging mode (boost or standard).
Intelligent Charging Systems
Charging TechnologyIntelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precise control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage is used. The charging cycle is initiated with a low current. If there is no corresponding rise in the battery voltage, it indicates that there is possibly a short circuit in the battery (zero volt activation). Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries. When a lithium battery is nearly empty, we take constant current to charge it. Charger CPU automatically adjusts charging current to be lower than the max charging current that the battery can accept. With constant charging, the voltage of the battery rises slowly until it reaches a maximum voltage at which point the charger switches the charging method to “constant voltage” and reduces the charging current. When the battery is fully charged, this state is stopped.
High Charging Mode
Charging timeIntelligent Control MCU can automatically identify the voltage and number of batteries that are on the charger, and prevent overcharge depending of the charging mode that is selected. In HIGH charging mode, one professional battery like the HED-BP75D with 74.88 Wh will be charged in approximately 3.5 hours. Two HED-BP75D will be charged in approximately 6.5 hours. In LOW mode, the charging time for a single battery is 5.2 hours or 10.2 hours for two batteries.
Boost Charging modeBoost Charging Push button provides HIGH speed Charging Mode. In High speed charging Mode, charger provides 1.5A current Power per one battery Slot or 0.8A per two Battery Slots. In standard Charging Mode the current power is 1A per one slot and 0.5A per two slots. When Boost Charging mode is active it will be displayed (with boost charging icon) on the Chargers LCD Display, in this charging mode, you can faster charge your battery pack, that will save you time, when you need it, on the field.
Compatible with Car Charger
In-Car UseWith a 12V-24V DC power source (a DC 12V Car charger needs to be ordered separately) you can use the charger and charge your batteries in the Car, Airplane, Bus, or any other place where 12V-24V DC power is supplied.
NOTE: When using Battery Charger Plate RP-DBPU ( For charging HED-BP75D or HED-BP95D) or RP-BPA60 ( For charging HED-A60) or any other 14.4V battery you need to power RP-DC50 with 24V DC Power Supply
Interchangeable Battery Plates
one charger, wide compatibilityWith easily Interchangeable Battery Plates, Intelligent Charger can be used for all World Brand Battery Models.
This Economic Option allows you to Charge many different Batteries, all with one Charger, with compatible plate model. Charger automatically sets Charging Voltage and the Charging Current for the designed Battery Pack. That leaves no space for charging error!
