Hedbox - 'RP-DC200V V-Lock Battery Charger'

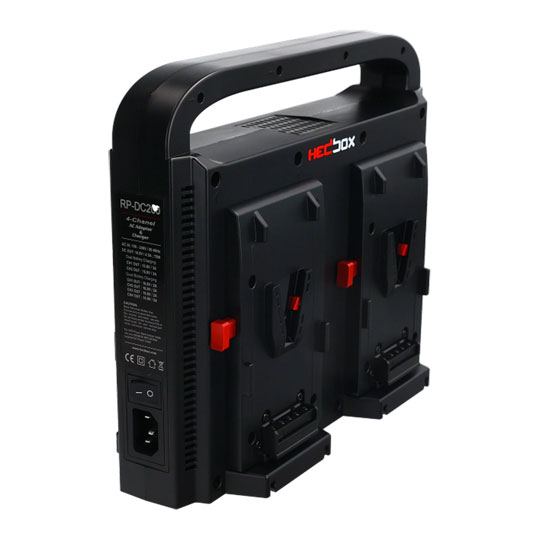

Digital Simultaneous Battery Charger with Power Bank FunctionThe Hedbox RP-DC200V is a digital, quad, V-mount battery charger used to conveniently charge four professional batteries simultaneously. Utilising the latest battery charging technologies, with zero-volt charging activation, allows you to charge batteries at the same time saving you time and money.
The RP-DC200V offers intelligent charging modes including a pre-charging stage for high capacity batteries, Constant Current/Constant Voltage mode and also a 4-channel sequential power mode. The charger can also be utilised as a power bank with the included 4-pin XLR cable connected to the DC output so you can keep your gear powered on set.
Built-in LED Indicators

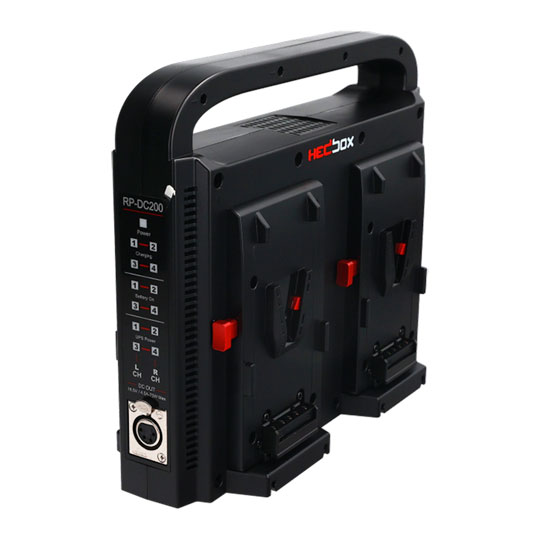

Full LED DisplayLED display provides a clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode of all 4 Channels. The displayed charging mode (Adapter UPS LED Light ON) provides a clear insight into which channel (CH1, CH2, CH3, or CH4) of the power bank mode is active. With a bright and intense light, the readout function is enabled in the dark.
Built-in DC Output
DC Out 16.5V / 4.5AWith a 4-pin XLR female connector on the front panel, the RP-Dc200V charger provides extra DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights, and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4pin XLR female to male (included in the box), the charger can be used as an AC-DC adaptor of DC 14.5V/4.5A, 75W output.
4-Channel Sequential Mode
4-ch Sequential Power ModeHedbox RP-DC200V offers a 4-channel sequential power mode. It allows you to work with 1, 2, 3, or even 4 batteries in the system. When using a 2-channel battery for power, the system will use the battery in channel 1 first, and then the battery in channel 2 when it is first discharged. If using full power bank mode in all 4-channel batteries, the system uses all 4 batteries in the system, discharging the batteries in sequences 1 / 2 / 3, and finally the last 4th battery. This method provides an uninterrupted power supply without delay.
Intelligent Charging Modes
Charging TechnologyIntelligent Charging Systems of RP-DC200V integrate the control systems within the charger and the electronics within the battery to allow precision control over the charging process. As a safety precaution with high-capacity batteries, a pre-charging stage (trickle charge) is used. Constant current/constant voltage (CC/CV) charging mode is an effective way to charge lithium batteries.
It is used to charge the battery from 0% to 80% (RED light ON). When the battery is charged to 80%, impulse voltage charging (GREEN Light ON) takes over until the battery reaches 100%. The charger CPU automatically adjusts the charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.
High-Quality Locking Mechanism
High-Quality Aluminium V-lock releaseAdopting technology that allowed Hedbox to use a high-quality aluminum alloy V-lock release, the lock and unlock provide up to 10,000 cycles for a V-mount battery on the plate.
