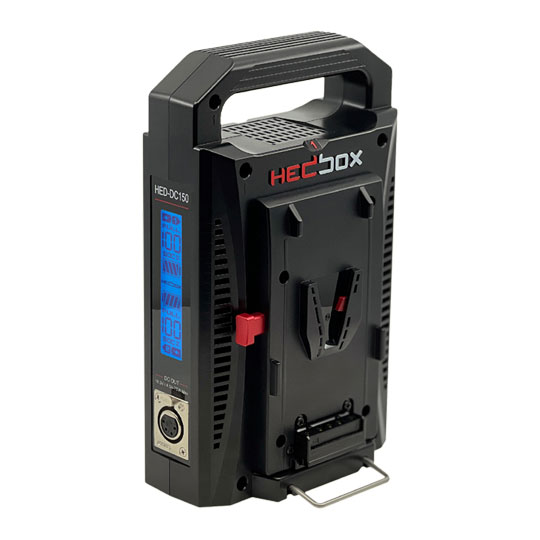

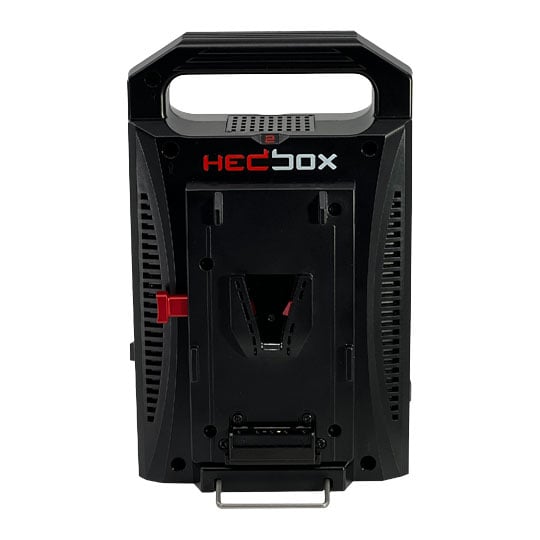

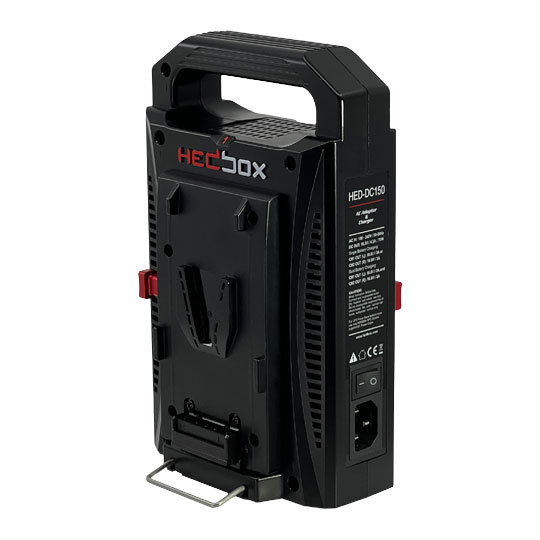

Hedbox - 'HED-DC150V Dual Digital V-Mount Battery Charger'
Dual Digital V-Mount Battery Charger with Power Bank FunctionIntroducing the Hedbox HED-DC150V Dual Digital V-Mount Battery Charger, with its dual-bay design, this charger ensures a constant flow of fully charged V-mount batteries, keeping your equipment powered throughout the day. Not just limited to charging, this versatile device doubles up as a power station with its innovative power bank function, offering connectivity to external units such as camcorders, video monitors, and LED lights via the included 4-pin XLR cable. Featuring an LED display providing comprehensive information on power and charging status, this charger ensures precision control over the charging process. Plus, with its fold-out locking support stand, convenience meets functionality for all your power needs on set.
LCD Display Screen With Back-light
LCD DisplayLCD Display provides a clear, accurate, and precise display of power status, charging status, battery channel status, and power bank mode. The displayed charging mode provides a clear insight into the way in which the charging mode is used to charge your professional battery. With a bright and intense blue colour light, the readout function is enabled in the dark, giving you the possibility to use the charger at any place and at any time.
Power Station Mode
powerful power bankThe HED-DC150V can easily become a very powerful power bank if used with a specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4-pin XLR female to male (included in the box). The power output is DC16.5V, 4.5A / 75W and the capacity depends on the batteries used.
High-Quality Aluminium V-Lock Release
V-lock releaseAdopting technology that allowed us to use a high-quality aluminium alloy V-lock release, the lock and unlock provide up to 10,000 cycles for a V-mount battery on the plate.
Charging Methods
Charging TechnologyIntelligent charging systems integrate the control systems within the charger and the electronics within the battery to allow precise control over the charging process. A pre-charging stage (trickle charge) is used as a safety precaution with high-capacity batteries. The mix of Constant Current and Impulse Voltage (CC/IV) charging mode is the most effective way that HEDBOX technology uses to charge Lithium-Ion Batteries to their full efficiency.
Constant Current And Impulse VoltageThe Constant Current charging method is used to charge the battery from 0% to 80% of their SOC (State of Charge Capacity). When the battery is charged to 80%, the Impulse Voltage charging takes over until the battery reaches 100% of SOC. The charger CPU automatically adjusts the charging current to be lower than the max charging current that the battery can accept. When the battery is fully charged, this state is stopped.
Integrated Locking Support Stand
extra support standsThe HED-DC150V is equipped with extra support stands making it easy to operate. The support stands to provide extra stability while charging only one battery.
DC Out
16.5V 4.5A/75WWith a 4-pin XLR female connector on the front panel, the HED-DC150V provides extra DC output for supplying constant power to external units like professional camcorders, video monitors, LED lights, and other professional broadcast products. Connected with specially designed Hedbox professional high flexibility power cable RPC-DC4X4-4pin XLR female to male (included in the box), the charger can be used as an AC-DC adaptor of DC 16.5V, 4.5A / 75W output.
