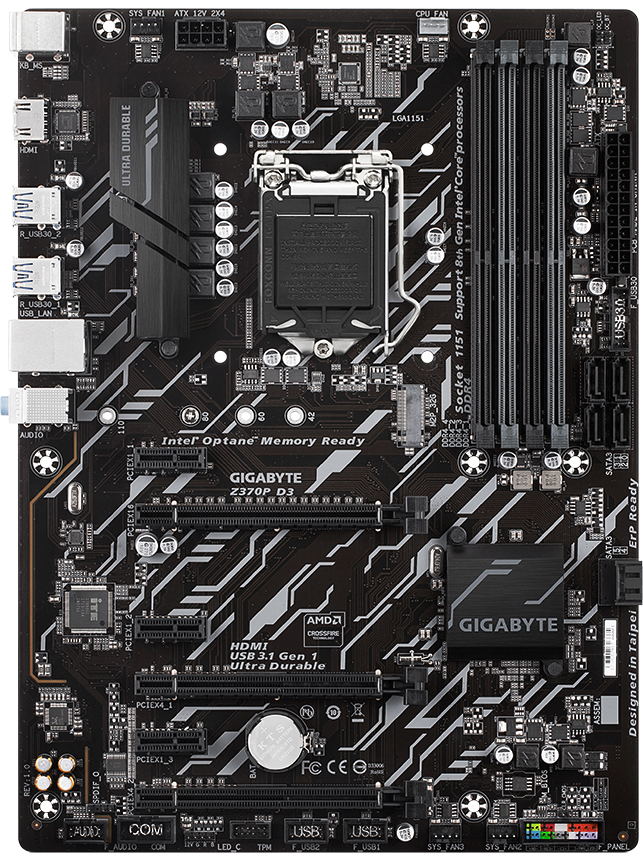

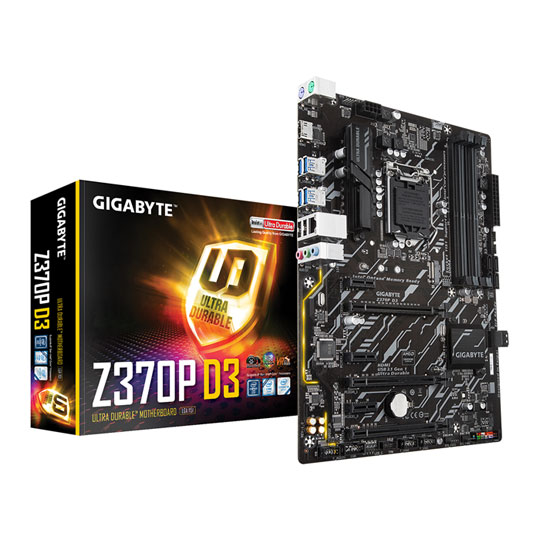

Gigabyte Intel Z370P D3 Coffee Lake ATX Motherboard

Gigabyte Z370P D3, Intel Z370, S 1151, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen1 A, ATX

Thumbnail 1 : Gigabyte Intel Z370P D3 Coffee Lake ATX Motherboard Thumbnail 2 : Gigabyte Intel Z370P D3 Coffee Lake ATX Motherboard Thumbnail 3 : Gigabyte Intel Z370P D3 Coffee Lake ATX Motherboard Thumbnail 4 : Gigabyte Intel Z370P D3 Coffee Lake ATX Motherboard
Scan code: LN85572 Manufacturer code: Z370P D3
£102.12Item currently awaiting an ETA
Pre order
From £9.17 / month (APR 14.9%)
Monthly Payment: £17.72
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £102.12
Total inc. interest: £106.32
Monthly Payment: £9.17
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £102.12
Total inc. interest: £110.01
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Gigabyte Gaming Motherboard - Z370 Gaming D3 - Intel 8th Gen

Gigabyte D3

ATX Gaming Motherboard - 300 Series

The GIGABYTE Gaming D3 is an entry level gaming motherboard that has many functions that higher end models have. The D3 is filled with countless technologies to help enhance gaming, audio, style and more this Z370 is equipped to handle the performance requirements of the majority of components. Plus, its durable and reinforced components from PCIe lanes to capacitors, this motherboard is sure to advance your PC in many different ways.

Please note: Z370 Motherboards are ONLY compatible with Intel 8th Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen Intel CPUs.

Intel Z370
Chipset

1151
CPU Socket

ATX
Form Factor

Gigabyte Cooling

Smart Fan 5 & Fan Stop

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

PCIe Gen3 & NVMe M.2 Support

Extreme Performance with Gen3 x4 NVMe PCIe SSDs

GIGABYTE Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Z370 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

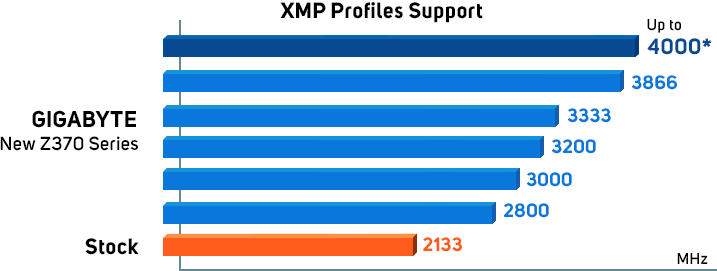

DDR4 XMP Support

DDR4 Support for up to 4000MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 4000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard. DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.

Intel® Optane™ Memory

Advanced performance with the Optane Cache Memory

The GIGABYTE Z370 Platform is the first enthusiast platform that supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.

Realtek GbE LAN with cFosSpeed

Internet Accelerator

Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Back Panel Connectors

1 x PS/2 keyboard/mouse port | 1 x OCSW button | 1 x HDMI port | 1 x USB Type-C™ port, with USB 3.1 Gen 2 support | 1 x USB 3.1 Gen 2 Type-A port (red) | 4 x USB 3.1 Gen 1 ports | 2 x USB 2.0/1.1 ports | 1 x RJ-45 port | 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

AORUS Ultra Durable

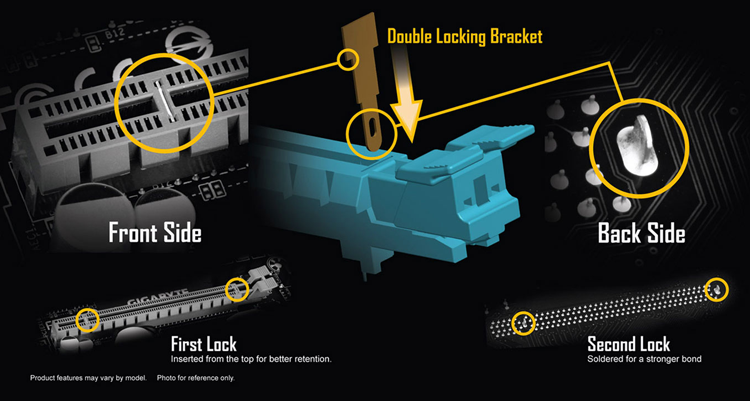

Durable GIGABYTE PCI-e Slots

Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.

Anti-sulfur Resistor

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. The alloy protective layer that is shown it the image above, shows that the resistor is protected.

GIGABYTE APP Center

Easy Motherboard Modifying Software

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

Features:
EasyTune | System Information Viewer | @BIOS | 3D OSD

TriDef SmartCam

Custom Software for Game Streaming

To facilitate being the full streaming solution each AORUS motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

*Free 1 month TriDef SmartCam License.

Specifications
Core Specifications
Edition
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x S/PDIF-Out Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek (Gigabit LAN)
Rear I/O Connectors
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x RJ-45
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
GIGABYTE
Telephone:
08442449999
Loading Please Wait

Please wait . . .

Reviews
Gigabyte Z370P D3, Intel Z370, S 1151, DDR4, SATA3, M.2, 2-Way CrossFire, Realtek GbE, USB 3.1 Gen1 A, ATX is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from Good, cheap no nonsense board Why pay more? Has all the functionality 99% of people need, why pay twice the price? Sink your money in to a better CPU or graphics card which will really deliver the performance.
Date published: 2018-09-24
  • y_2018, m_10, d_21, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_85572, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Does this board support KabyLake processors?

I know it says in the listed name: "CoffeeLake". However, it is a LGA 1151 socket.
Asked by: BlakeSteele15
https://www.gigabyte.com/Ajax/SupportFunction/Getcpulist?Type=Product&Value=6462 No. The pin assignment and power delivery is different as the Coffee Lake CPUs have more cores. For example their i3 are equivalent to Kaby Lake i5 as both are quad core products. Their i5 have 6 cores vs 4 and their i7 have 6 cores with hyperthreading vs Kaby Lake i7 which only have 4 cores with hyperthreading. Hence a very significant 50% difference in cores. If you already have a Kaby Lake CPU get the 100 or 200 series motherboard or sell it and buy Coffee Lake CPU and motherboard.
Answered by: Aust1n
Date published: 2018-09-24
