Gigabyte Intel Z370 HD3 Coffee Lake ATX Motherboard

Gigabyte Z370 HD3, Intel Z370, S 1151, DDR4, SATA3, M.2, 2-Way CrossFire, Intel GbE, USB 3.1 Gen1 A, ATX

Gigabyte
Scan code: LN84636 Manufacturer code: Z370 HD3 Request call
£118.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 22nd Nov 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Intel Z370 Ultra Durable motherboard with CrossFire support, Intel GbE LAN with 25KV protection, M.2, RGB Fusion, Smart Fan 5, Anti-Sulfur Resistors. Features • Supports 8th Gen Intel® Core™ Processors.
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
• Intel® Optane™ Memory Ready.
• 2-Way CrossFire™ Multi-Graphics.
• Intel® Gigabit LAN with cFosSpeed Internet Accelerator Software.
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection.
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting.
• Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface.
• RGB Fusion supports RGB LED strips in 7 colours.
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.
• Anti-Sulfur Resistors Design.
• APP Centre Including EasyTune™ and Cloud Station™ Utilities.

Please Note: Intel Z370 Motherboards are ONLY compatible with Intel 8th. Gen 'Coffee Lake' CPUs. Although these Intel Z370 Motherboards share the same socket as Intel's 200 & 100 Series Motherboards, they are electrically incompatible & will not work with 7th & 6th Gen. Intel CPUs.
Specifications
Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Realtek ALC892 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors
  • DVI-D
  • HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x4 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • Intel Optane Memory Ready
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • RAID 0 (SATA 0~5 ONLY)
  • RAID 1 (SATA 0~5 ONLY)
  • RAID 10 (SATA 0~5 ONLY)
  • RAID 5 (SATA 0~5 ONLY)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Parallel Port (LPT) Header
  • 1 x RGB LED connector
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)

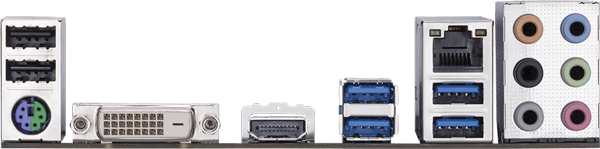

Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DVI-D
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions
