Gigabyte AMD X870E AORUS ELITE WiFi7 ICE ATX Motherboard
Gigabyte AMD X870E AORUS ELITE WiFi7 ICE ATX Motherboard
Scan code: LN161150 Manufacturer code: X870E AORUS ELITE WIFI7 ICE
£279.98
Add To Basket
Get it Tomorrow, 08 JulIn stock
  • Thumbnail 1 : Gigabyte AMD X870E AORUS ELITE WiFi7 ICE ATX Motherboard
  • Thumbnail 2 : Gigabyte AMD X870E AORUS ELITE WiFi7 ICE ATX Motherboard
  • Thumbnail 3 : Gigabyte AMD X870E AORUS ELITE WiFi7 ICE ATX Motherboard
  • Thumbnail 4 : Gigabyte AMD X870E AORUS ELITE WiFi7 ICE ATX Motherboard

Gigabyte AMD X870E AORUS ELITE WiFi7 ICE ATX Motherboard

Gigabyte X870E AORUS ELITE WiFi7 ICE, AMD X870E, S AM5, DDR5, PCIe 5.0, 4x M.2, 2.5GbE, WiFi7, USB 4.0, AMD EXPO, ATX
MORE INFO
MORE INFO

Scan code: LN161150 Manufacturer code: X870E AORUS ELITE WIFI7 ICE
£279.98
£5.48 Next day delivery
Order in the next 19 mins and get it tomorrow
Add To Basket
Get it Tomorrow, 08 JulIn stock
Pay in 3 interest-free payments of £93.33

Email me when the availability or price changes

  • By DPD On 8th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £13.67 / month (APR 16.9%) for 24 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Frequently Bought Together

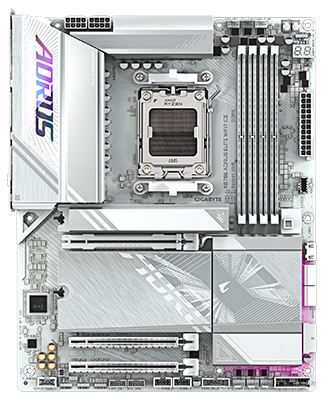

X870E AORUS ELITE WIFI7 ICE Ryzen™ AM5 ATX Motherboard from Gigabyte

X870E AORUS ELITE WIFI7 Motherboard

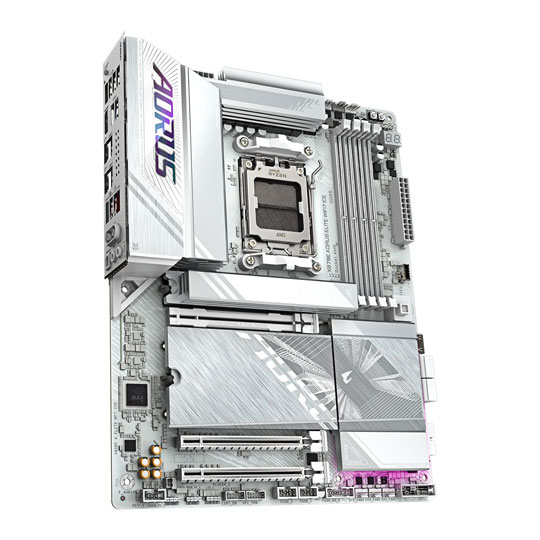

AI Performance. Infinite Power. The Gigabyte X870E AORUS ELITE WIFI7 ICE is an ATX motherboard featuring a striking white design, AMD X870E chipset, and support for AMD Socket AM5 CPUs. It offers four DDR5 DIMM slots (up to 256GB, 8,200MHz), three PCIe 5.0 M.2 slots with heatsinks, PCIe 5.0 GPU support, Wi-Fi 7, 2.5GbE LAN, and dual USB4 Type-C ports. Advanced thermal solutions and robust VRM ensure high performance and reliability.

X870EAMD Chipset

AM5CPU Socket

Ryzen™ 9000/8000/7000Series Processors

ATXForm Factor

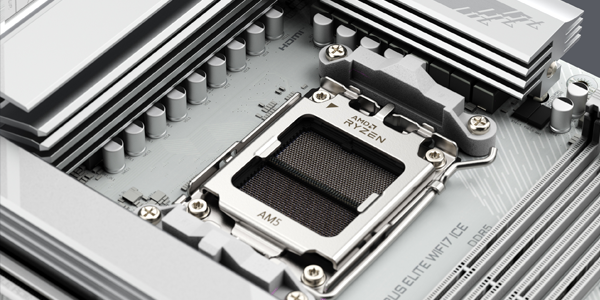

Power Design

Power Design

Steady Power
Sturdy VRM Design
The Digital Twin VRM Design provides reliable, high-performance power to boost your overclocking capabilities even further.

16VCORE Phases

2SOC Phases

2MISC Phases

Zenith of the Memory

DDR5 Performance

Up to 8200 MT/s
DDR5 Overclocking
AORUS gaming motherboards enhance DDR5 memory speeds and ensure excellent compatibility through multiple advanced technologies.

AMD EXPO™ SettingsOptimise memory with AMD's user-friendly profiles.

Boost PerformanceGet the most out of your system's memory.

Comprehensive Cooling

Thermal efficiency

Thermal EfficiencyAORUS motherboards feature a robust full-metal thermal design and sturdy heatsinks to maintain optimal cooling and system efficiency.

Thermal efficiency

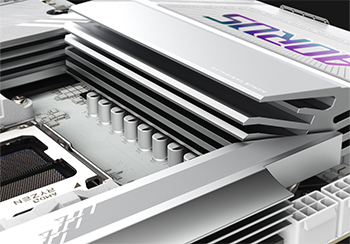

VRM Thermal ArmourThese solid heatsinks are forged to keep your system cool.

Thermal efficiency

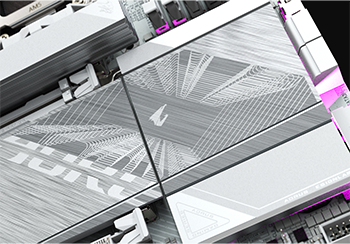

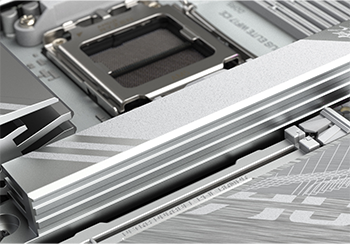

M.2 Thermal Guard LWith M.2 Thermal Guard Backplate

Thermal efficiency

M.2 Thermal Guard ExtWith M.2 Thermal Guard Backplate

All-Round Connectivity

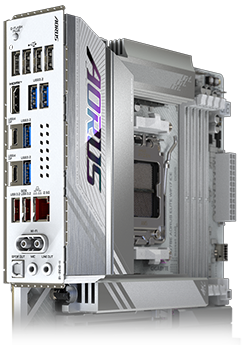

WiFi 7

WiFi 7Enjoy cutting-edge connectivity with advanced network, storage, and Wi-Fi options, providing ultra-fast data transfer speeds.

The Ultimate VR ExperienceWi-Fi 7 revolutionises VR with outstanding bandwidth and ultra-low latency, offering a smooth and unmatched immersive experience.

Dual 40Gbps USB4 with DP-Alt Dual USB4 Type-C ports deliver up to 40 Gbps speeds, broad compatibility, fast charging, and ultra-HD display—ideal for demanding tasks.

Connectivity Options

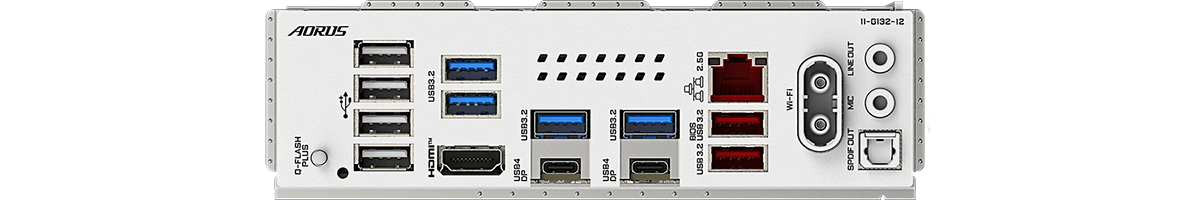

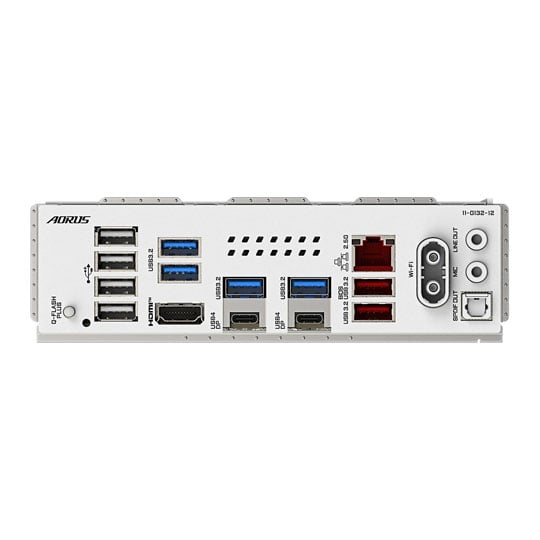

Rear I/O panel of the motherboard

1x Q-Flash Plus button

4x USB 2.0/1.1 ports

1x HDMI port

4x USB 3.2 Gen 1 ports

2x USB4® USB Type-C® ports

2x USB 3.2 Gen 2 Type-A ports

2.5Gb Ethernet

2x WiFi connectors

2x Audio jacks

1x optical S/PDIF Out connector

1x Q-Flash Plus button
4x USB 2.0/1.1 ports
1x HDMI port
4x USB 3.2 Gen 1 ports
2x USB4® USB Type-C® ports
2x USB 3.2 Gen 2 Type-A ports
2.5Gb Ethernet
2x WiFi connectors
2x Audio jacks
1x optical S/PDIF Out connector
Specifications
Core Specifications
Edition X870E AORUS ELITE WIFI7 iCE
Form Factor ATX
CPU Socket AM5
Chipset AMD X870E
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4400
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5600(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
  • DDR5 - 6600(OC)
  • DDR5 - 6800(OC)
  • DDR5 - 7000(OC)
  • DDR5 - 7200(OC)
  • DDR5 - 7600(OC)
  • DDR5 - 7800(OC)
  • DDR5 - 8000(OC)
  • DDR5 - 8200(OC)
Max. Memory Capacity 256GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics
On-Board Graphics Connectors
  • HDMI
  • USB 4.0
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80/110, PCIe Gen4x4
  • 3 x M.2, 22-80/110, PCIe Gen5x4
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support N/A
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable Gen 2 Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 4 x M.2 Connector
  • 1 x Power button
  • 1 x Reset Button
  • 1 x RGB (RGBW) LED Strip Header
  • 4 x SATA III - 6Gb/s
  • 3 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11be WiFi 7
  • 1 x Realtek (2.5GbE LAN)
Rear I/O Connectors
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x USB 4.0 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN161150
Model Number X870E AORUS ELITE WIFI7 ICE
GTIN 4719331871529
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
