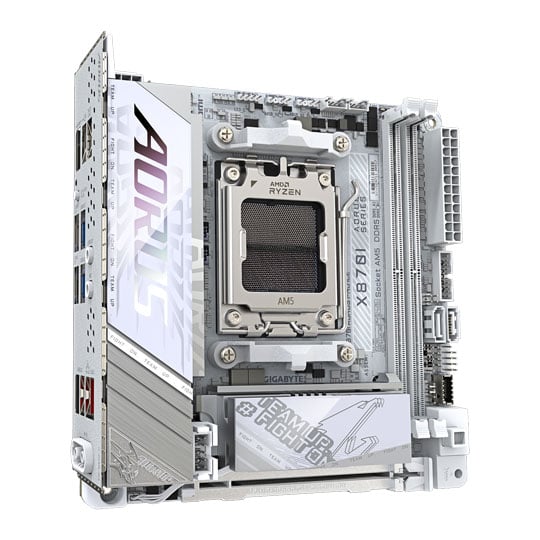

Gigabyte X870I AORUS PRO ICE AMD AM5 Mini-ITX Motherboard

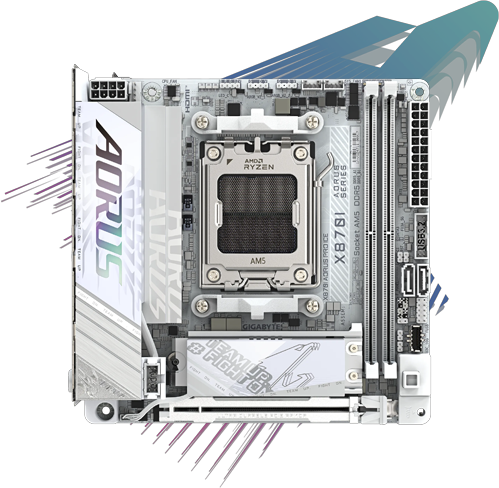

X870 AORUS PRO

AI Performance, Infinite PowerThe Gigabyte X870I AORUS PRO ICE is a cutting-edge Mini-ITX motherboard built on the AMD X870 chipset, supporting Ryzen™ 7000, 8000, and 9000 Series processors for unmatched performance in a compact form. Designed for high-end builds, it offers dual-channel DDR5 support up to 128 GB at 8000 MT/s, PCIe 5.0 x16 for graphics, and two M.2 slots including PCIe 5.0 x4 for lightning-fast storage. With integrated Wi-Fi 7 and 2.5GbE LAN, the board ensures seamless connectivity, while USB4 Type-C with DisplayPort expands its versatility. Gigabyte’s AORUS AI Snatch optimises system performance effortlessly, while user-friendly features like EZ-Latch Plus and Smart Fan 6 simplify building and cooling management. Durable and feature-packed, it’s an ideal choice for compact systems demanding power and refinement.

AM5AMD Socket

X870Chipset

AMD Ryzen™ 7000/9000Processors

Mini-ITXForm Factor

Fully-Featured Motherboard

AORUS PRO ICE SPECIFICATIONS AND FEATURES

18+2+1 Twin Digital VRM•80A Smart Power Stage
• 6-Layer PCB
•Mid-Loss PCB
•2X Copper PCB
•Premium Chokes and Capacitors

2AMD AM5 Socket•Supports 7000 Series Processors
•Supports 9000 Series Processors

3Ultra Durable Power Connectors•24-pin ATX Power Connector
•8+8-pin CPU Power with Solid pin

4DDR5 Memory•Overclocking support up to 8000 MT/s
•2 x Dual Channel DIMMs

5PCIe 5.0/4.0 M.2 Slots•1 x Ultra Durable PCIe 5.0 M.2 Slot
•1 x PCIE 4.0 M.2 Slot

6Full-length PCIe Slots•1 x Ultra Durable PCIe 5.0 x16

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Unleash Ultimate Performance

AORUS AI Snatch Optimisation

AI Performance. Infinite PowerPowered by an AI engine, memory and overall system performance can be boosted with improved multi-tasking and system responsiveness. Users can overclock like an expert in an instant, through a simple interface that brings you smart, safe overclocking that won't put your components at risk. Your PC's AI processing is also accelerated for increased performance with better power efficiency.

A Boost to Your System

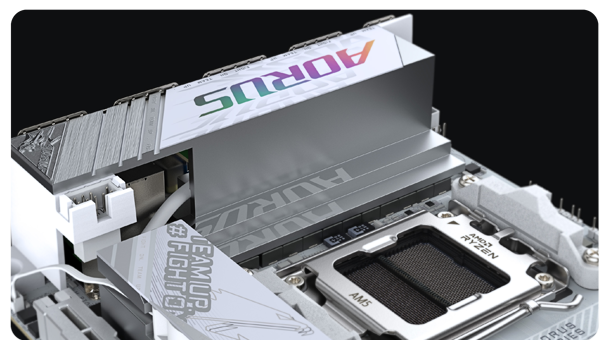

12+2 Phases Digital Twin Power VRM Design

Digital Twin VRM DesignThe X870 AORUS PRO ICE uses an 8+2+1 Digital Twin Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With 80A SPS modules, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from AMD Ryzen™ processors.

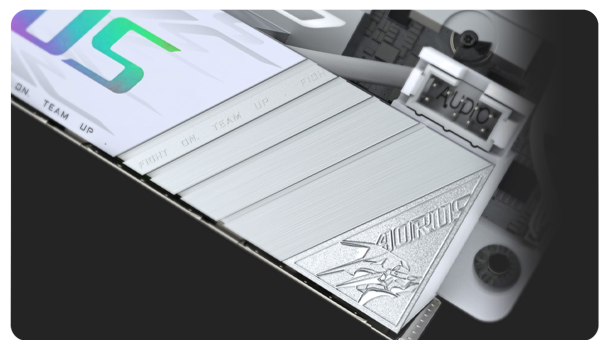

GIGABYTE THERMAL ARMOR COOLING FIN ARRAY

Thermal Armor Fin ArrayGigabyte have designed their VRM cooling solution to provide up to four times more surface area than traditional coolers, with a full-metal, one-piece moulded heatsink design. With more grooves and fins, there are an increased number of channels for air to flow over the heatsink and draw heat away from capacitors and chokes. A dedicated heatpipe assists with efficient heat transfer and a 7W/mK themal pad is also included for extra thermal conductivity.

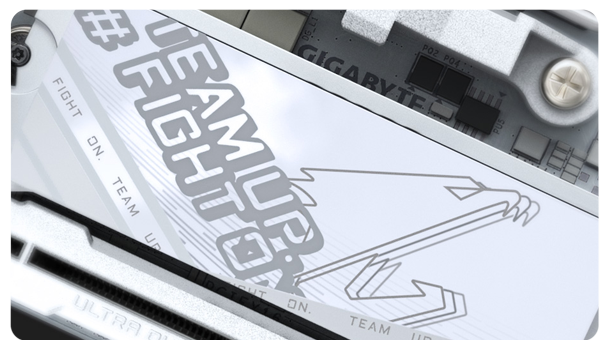

M.2 AND PCIE THERMAL GUARD HEATSINKS

M.2 Thermal GuardsA dedicated heatsink with a small array of fins is provided for the main, PCIe 5.0 M.2 slot, whilst the other M.2 slots are covered by a wider, one-piece heatsink. These help to prevent bottlenecking during intense workloads and large transfers, where your NVMe storage can throttle due to high temperatures from sustained, full-load usage.

DDR5 OPTIMISATION

The Zenith of MemoryAORUS gaming motherboards can boost DDR5 memory performance up to 8000MT/s, whilst also offering top-notch compatibility. Advanced BIOS functionality provides optimisation of memory performance with AMD EXPO, custom SPD profiles and other management features, making it easier to get the most out of your memory. AORUS motherboards bring unmatched hardware excellence by using shielded, daisy-chain memory routing in a six-layer PCB made with server-grade materials.

All-Round Connectivity

AORUS PRO ICE CONNECTIVITY AND NETWORKING OPTIONS

Experience ultimate connectivity with the AORUS PRO ICE and the included Directional Ultra-high Gain Antenna. Designed to provide unparalleled versatility and future-proofing for both gaming and professional setups, this motherboard has it all - from next-generation networking and wireless solutions, to rapid storage and ultra-fast data output options.

Extensive USB ConnectionsThe X870I AORUS PRO ICE Mini-ITX motherboard provides a comprehensive array of USB connections to accommodate various devices. The rear panel features one USB4 Type-C port, two USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 1 Type-A ports, and two USB 2.0/1.1 ports. Additionally, internal headers support two USB 3.2 Gen 1 ports and two USB 2.0/1.1 ports, facilitating seamless connectivity for both modern and legacy peripherals.

2.5 GbE LANThe 2.5G LAN port provides up to 2.5 Gigabit Ethernet, opening the door to a whole new world of ultra-fast, lag-free gaming. This port is for gamers seeking the ultimate online gaming experience, who need the very best network support on top of premium components.

Wi-Fi 7The AORUS PRO ICE offers faster speeds, lower latency, and improved efficiency over Wi-Fi 6 with its built-in networking. It supports Multi-Link Operation (MLO) and 4K-QAM, which combine multiple frequency bands into a single connection, and pack more data into each transmission. When combined, these features reduce congestion and boost bandwidth, for smoother gaming, faster downloads, and more stable streaming, all whilst maintaining strong connection in dense, crowded environments.

Take Control of your Motherboard

GIGABYTE BIOS & Control CENTERGood software goes hand in hand with perfect hardware. The X870 AORUS PRO ICE has several useful and intuitive functions to help users to control every feature of the motherboard.

GIGABYTE BIOS USER INTERFACE

Friendly User InterfaceGigabyte's EASY MODE shows important hardware information all on one page.

FavoritesAdd regularly used features into the favorite menu for quick access.

Quick Access FunctionShows nine key options from Advanced Mode whilst using Easy Mode, enabling swift adjustments without extensive navigation.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

AIO Fan ControlEnable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

app

Control CENTERGIGABYTE Control Centre (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential functions.

Illuminate your PC with RGB Fusion

RGB FUSION 2.0

RGB FUSIONWith more customisation than ever before, RGB Fusion allows you to adapt interior lighting to match the theme of your PC. With full RGB support and a redesigned application, you can have complete control over the overall look of your PC by controlling each LED surrounding your motherboard.

RGB FUSION SOFTWARE

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.

RGB FUSION 2.0 USER INTERFACE

GIGABYTE RGB Fusion APPDon't just make your PC shine - make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colours and change speeds for different modes on the fly.

Specifications
Core Specifications
Edition X870I AORUS PRO ICE
Form Factor Mini-ITX
CPU Socket AM5
Chipset AMD X870
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) N/A
Memory Speed (Mhz) DDR5 - 8400(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
  • 1 x PCIe 5.0 x16
  • 2 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Gen 2 Header
  • 1 x Chassis Intruder
  • 1 x Clear CMOS jumper
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 2 x M.2 Connector
  • 1 x Noise Detection Header
  • 1 x Power button
  • 1 x Reset Button
  • 1 x RGB (RGBW) LED Strip Header
  • 2 x SATA III - 6Gb/s
  • 1 x System Fan header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7 LAN
  • Wired 2.5 Gigabit LAN
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11be WiFi 7 + BT5.3

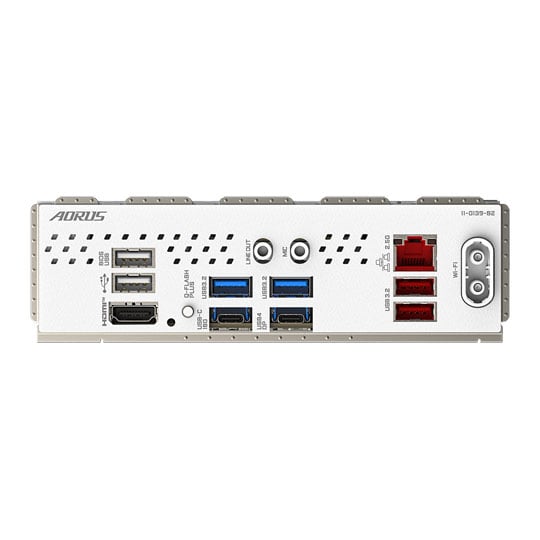

Rear I/O Connectors
  • 1 x HDMI
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x RJ-45
  • 1 x S/PDIF-Out
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 4.0 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN152090
Model Number X870I AORUS PRO ICE
GTIN 4719331866112
