Scan code: LN99512 Manufacturer code: X570 Aorus Xtreme

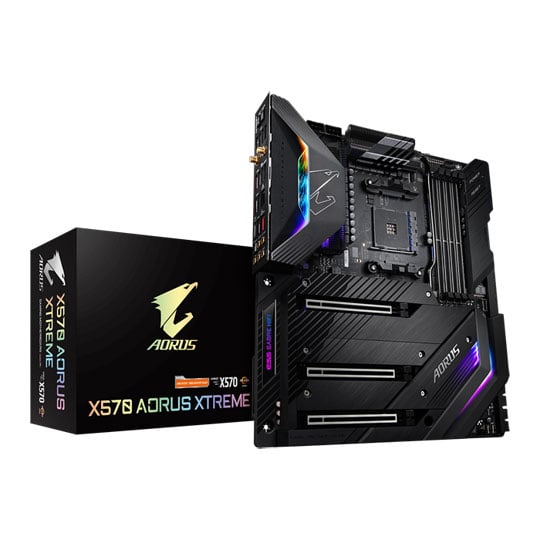

Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard

Gigabyte X570 AORUS XTREME, AMD X570, AM4, DDR4, PCIe 4.0, Triple M.2, 2-Way SLi/CrossFire, 10G/GbE/WiFi, USB 3.2, E-ATX

Thumbnail 1 : Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard : video thumbnail 1 Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard : video thumbnail 2 Gigabyte AMD Ryzen X570 AORUS XTREME AM4 PCIe 4.0 E-ATX Motherboard : video thumbnail 3
Scan code: LN99512 Manufacturer code: X570 Aorus Xtreme
£779.99
From £37.44 / month (APR 14.9%)
Monthly Payment: £135.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £779.99
Total inc. interest: £812.08
Monthly Payment: £70.03
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £779.99
Total inc. interest: £840.26
Monthly Payment: £48.29
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £779.99
Total inc. interest: £869.05
Monthly Payment: £37.44
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £779.99
Total inc. interest: £898.52
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £19.48 / month (APR 15.9%)
Delivery Options
  • By DPD On 18th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

GIGABYTE X570 AORUS XTREME AMD Ryzen Motherboard

Aorus xtreme motherboard

Take your Ryzen CPU To the next levelTo unleash the full potential of the new 3rd Gen Ryzen CPUs, the X570 AORUS XTREME motherboard is a whole new chipset that utilises the best CPU power design with the best quality components alongside GIGABYTE R&D design capability, this is truly a motherboard to be pairing with the new ultra-fast Ryzen processors. High Durability and high quality manufactured components allow the X570 AORUS XTREME to be a time-enduring centre piece of any magnificent build you decide to create. Take things up a notch with brand new incorporated PCIe 4.0 which increases the speed of your most valued components. Style your rig the way you want with integrated RGB lighting and effects and get your whole system synced with the AORUS RGB Fan Commander device. The GIGABYTE X570 motherboard range offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WiFi design, to fulfill users' performance, audio, and data transfer needs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

E-ATXForm Factor

The X570 AORUS XTREME's Power Efficiency

Aorus xtreme motherboard

Extreme Power Design To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS XTREME is a true beast among motherboards specifically designed for the new Ryzen series CPUs.

Aorus xtreme motherboard

16 Direct Digital Power Design X570 AORUS XTREME motherboard uses latest new generation Infineon multiphase PWM controller, and a total 16 phase for vCore and SOC, all with Infineon TDA21472 Power Stage MOSFET which is capable of providing at least 70A of power from each phase, for a total of an amazing 1120A. Power design is no longer a bottleneck for this motherboard.

Aorus xtreme motherboard

2X Copper PCB GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking./p>

Style your Rig with AORUS RGB Fusion 2.0

Aorus xtreme motherboard

Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. Included with the X570 AORUS XTREME board is the bundled AORUS RGB Fan Commander Accessory that has slots for: 8 Hybrid Fan Headers, 8 RGB LED Headers, 8 Addressable LED Headers, 2 external temperature sensors. 2 USB 2.0 header for additional USB RGB devices, All Hybrid Fan Headers and RGB/Addressable LED Headers have independently controlled speed and lighting patterns and after all that it's still easy to install inside the most computer chassis with its compact size and magnetic base.

Thermal Design to Ensure Maximum Performance

Aorus xtreme motherboard

Protect your components from overheating X570 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming.

Aorus xtreme motherboard

NanoCarbon Coated Baseplate Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity. A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to enhance thermal radiation capability. Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can dissipate heat passively. Effectively lowers backside PWM component temperature by 10%.

Aorus xtreme motherboard

AORUS Noise Detection CABLE With the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesn’t include any sound recording function, it simply detects sound pressure while protecting your privacy.

Aorus xtreme motherboard

Smart Fan 5 Header Setup With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

AORUS Triple PCIe 4.0 x4 M.2 Motherboard

m.2 pcie 4.0

Faster Speeds over previous PCIe 3.0 AORUS X570 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s, making AORUS the obvious choice for the ultimate PC.

Motherboard Specifically Built for New PCIe 4.0

back

Get a boost in performance with new components X570 AORUS XTREME equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Slots, re-drivers, switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance.

Next Generation Connectivity with Intel WiFi

Aorus xtreme motherboard

Faster Connection and wireless performance with Fewer Drops Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections and speeds of up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Audiophile Grade Quality to Deliver Crystal Clear Sound

Aorus xtreme motherboard

HI-FI AUDIO WITH TOP QUALITY COMPONENTS For Hi-Fi Audio Solution, can be grouped into 2 parts. Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB Signal-To-Noise Ratio, 112dB Total Harmonic Distortion + Noise. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. The TXC Oscillator provides precise time triggers to Digital-Analog Converters and WIMA Capacitors to deliver crystal clear and balanced sound.

AORUS Ultra-Durable Components

Aorus xtreme motherboard

More metal quantity to sustain higher power and generated heat AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. Having a Solid Pin means there is a larger contact are for electricity whilst still being ultra durable for a longer lifespan.

memory armour

Ultra Durable Memory Armour AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

pcie armour

Super Strong PCIe Armour The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS and Applications

New User Interface GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™ GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition X570 AORUS XTREME
Form Factor E-ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Discrete GPU Required for Graphics Output
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 4 x 4-pin System Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 2 x BIOS switches
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Noise Detection Header
  • 1 x OC PEG Power Connector
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
  • 1 x Voltage Measurement Points
External Connectivity
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 10G LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5
  • 1 x Aquantia GbE LAN (10Gb/5Gb/2.5Gb/1000Mb/100Mb)
  • 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 4 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-A (BIOS Flash)
  • 5 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 270 mm
Note
Additional Information
Scan Code LN99512
Model Number X570 Aorus Xtreme
GTIN 4719331806613
