Scan code: LN99509 Manufacturer code: X570 Aorus Pro

Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard

Gigabyte X570 AORUS PRO, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way SLi/CrossFire, Intel GbE, USB 3.2 Gen2 A+C, ATX

Thumbnail 1 : Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard Thumbnail 2 : Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard Thumbnail 3 : Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard Thumbnail 4 : Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard : video thumbnail 1 Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard : video thumbnail 2
Scan code: LN99509 Manufacturer code: X570 Aorus Pro
£263.99
From £12.68 / month (APR 14.9%)
Monthly Payment: £45.81
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £263.99
Total inc. interest: £274.85
Monthly Payment: £23.70
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £263.99
Total inc. interest: £284.37
Monthly Payment: £16.35
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £263.99
Total inc. interest: £294.11
Monthly Payment: £12.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £263.99
Total inc. interest: £304.05
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.59 / month (APR 15.9%)
Delivery Options
  • By DPD On 19th Sep 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

GIGABYTE X570 AORUS Pro Motherboard Built for Ryzen

Aorus Pro motherboard

Go Pro with your Ryzen 2nd & 3rd Gen CPUsTo unleash the full potential of the new 3rd Gen Ryzen CPUs, the X570 AORUS Pro motherboard is a whole new chipset that utilises the best CPU power design with the best quality components alongside GIGABYTE R&D design capability, a motherboard designed to be paired with the new ultra-fast Ryzen processors. High Durability and high quality manufactured components allow the X570 AORUS Pro to be a time-enduring centre piece of any magnificent build you decide to create. Take things up a notch with brand new incorporated PCIe 4.0 which increases the speed of your most valued components. Style your rig the way you want with integrated RGB lighting and effects. The GIGABYTE X570 motherboard range offer a rich list of features such as support for PCIe 4.0 and USB Type-C interfaces on select boards, refined audio, high speed of Ethernet to fulfill users' performance, audio, and data transfer needs.

AMD X570Chipset

AM4CPU Socket

AMD 2nd/3rd Gen RyzenCompatible CPU

ATXForm Factor

Greater Power Load with the X570 AORUS Pro

Aorus Pro motherboard

Quality Power Design To unleash the full potential of the 3rd Generation of AMD Ryzen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, X570 AORUS Pro is a true beast among motherboards specifically designed for the new Ryzen series CPUs.

Aorus Pro motherboard

12 + 2 Direct Digital Power Design X570 AORUS Pro motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A.

Aorus Pro motherboard

2X Copper PCB GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking./p>

Style your Rig with AORUS RGB Fusion 2.0

Aorus Pro motherboard

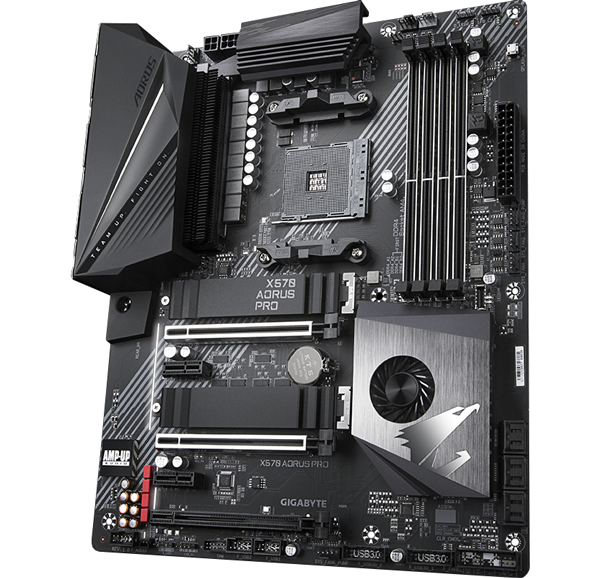

Multi-Zone Light Show Design Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application that provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles.

Thermal Design to Ensure Maximum Performance

Aorus Pro motherboard

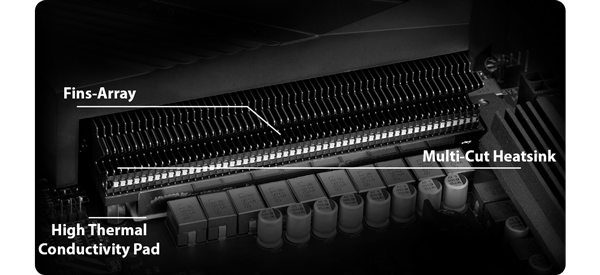

Protect your components from overheating X570 AORUS Pro uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.

Aorus Pro motherboard

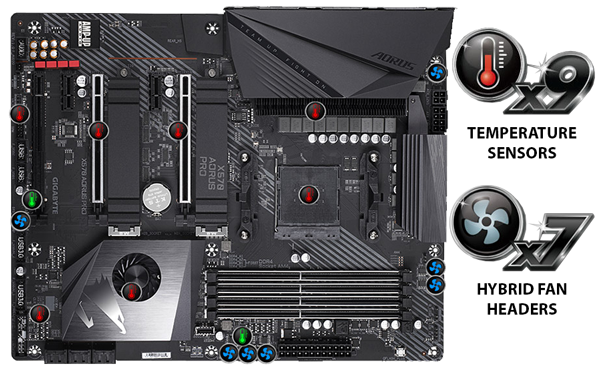

Smart Fan 5 Header Setup With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

AORUS PCIe 4.0 x4 M.2 Motherboard

m.2 pcie 4.0

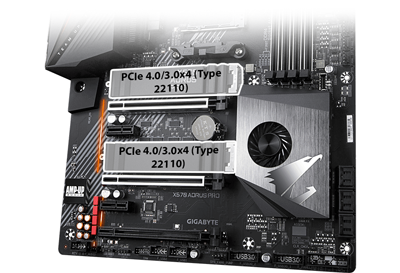

Faster Speeds over previous PCIe 3.0 AORUS X570 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 9840 MB/s, making AORUS the obvious choice for the ultimate PC.

Next Generation Connectivity with Intel GbE LAN

Aorus Pro motherboard

Faster Connection and traffic management with Fewer Drops Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Audiophile Grade Quality to Deliver Crystal Clear Sound

Aorus Pro motherboard

HI-FI AUDIO WITH TOP QUALITY COMPONENTS For Hi-Fi Audio Solution, can be grouped into 2 parts. Audio Signal Process, not distorted digital signal go through ESS 9218 Sabre DAC for Digital/Analog converter with 130dB Signal-To-Noise Ratio and 112dB Total Harmonic Distortion + Noise. Further, audiophile grade capacitor and gold plated audio jack ensures the non-compensated audio performance. The TXC Oscillator provides precise time triggers to Digital-Analog Converters and WIMA Capacitors to deliver crystal clear and balanced sound.

AORUS Pro-Durable Components

Aorus Pro motherboard

More metal quantity to sustain higher power and generated heat AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. A Solid Pin means there is a larger contact are for electricity whilst still being Pro durable for a longer lifespan.

memory armour

Ultra Durable Memory Armour AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

pcie armour

Super Strong PCIe Armour The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE BIOS and Applications

New User Interface GIGABYTE has specially designed the BIOS to provide users the most premium experience while constructing their new system, with a new GUI and easier to use functionalities. The BIOS is crucial for users during initial setup to allow for the most optimal settings.

GIGABYTE APP Center The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™ GIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications
Core Specifications
Edition X570 AORUS PRO
Form Factor ATX
CPU Socket AM4
Chipset AMD X570
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4300(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 128GB (4x32GB)
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors HDMI 2.0
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/60/80/110, PCIe Gen4x4/SATA
  • 2 x PCIe 4.0 x1
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 4.0 x16 (x8 Bandwidth)
SATA Support SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 4.0 Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 3 x 4-pin System Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x AMD Fan LED Header
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Q-Flash Plus Button
  • 2 x RGB Header
  • 6 x SATA III - 6Gb/s
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2 Type-C Front Panel Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 2.0
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 4 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-A (BIOS Flash)
  • 2 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling PCH Fan & Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN99509
Model Number X570 Aorus Pro
GTIN 4719331805999
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Loading Please Wait

Please wait . . .

Reviews
Gigabyte X570 AORUS PRO, AMD X570, AM4, DDR4, PCIe 4.0, Dual M.2, 2-Way SLi/CrossFire, Intel GbE, USB 3.2 Gen2 A+C, ATX is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Perfect motherboard for Ryzen 3rd gen Perfect from factor and easy to access ports! Plenty of fan slots which support all types of fans! Plenty of data ports for expansion and two m.2 data ports.
Date published: 2019-08-17
Rated 5 out of 5 by from Good quality, high-end motherboard that delivers good features at a competitive price All x570 motherboards are expensive when compared to boards with older chipsets, so I needed some convincing to pay over £250 for what is effectively in the mid-range of Gigabyte's x570 motherboards. This is my first Gigabyte motherboard so I considered it a little bit of a gamble since I didn't have any history with them. Having used it for 3 weeks I can now give feedback: * Very slick packaging, clear manuals & information, drivers included on disc, although I used Gigabyte's website. * Easy to install, no issues installing my 3700X , RAM or M.2 drive. Fan headers, connectors, switches clearly marked on board and also in the manual. * I don't use the RGB stuff at all so can't give any feedback on that. * BIOS is quite easy to use, although you can change the same settings from multiple places in the menus which could confuse you. Flash process was extremely easy. I had a few issues getting XMP working with my RAM (which was on the QA verified list for this board) but got it working at 3600 after about 1 hour of tinkering. There may have been BIOS bugs but Gigabyte (to date) have provided 4 BIOS updates which has been great. From reading Reddit, other manufacturers have not been so responsive. * After a BIOS update, I was able to set the chipset fan on silent to reduce noise and prolong life. Chipset runs quite cool on silent - currently at 65C from chipset sensor and 51C from ITE IT8688E sensor. Fan is silent/quiet. * Good features such as Intel gigabit ethernet, ALC1220 audio with digital SPDIF out, etc.. no cheap problematic components. It feels like Gigabyte haven't cut any corners here. * Loads of USB ports and USB headers - more than you should need. * Haven't tried much overclocking yet, apart from RAM and it was quite easy and configurable. * All in all, it's a good quality product, but a little expensive. Although it is competitive looking at the price of other X570 boards with similar features. Such power delivery may not be necessary for my 3700X, but bearing in mind that Ryzen 3rd gen is probably the last in the line of AM4 socket, I can see myself upgrading to a 3950X in the future. This board should be able to take it no problem. The features on the Auros Pro were enough for me. There are more expensive boards with a lot more features and better power delivery but my advice would be to work out what you need and buy the appropriate board for your needs. Don't go "overboard". In summary, I've very satisfied with the motherboard. Inevitably, there were going to be issues with Ryzen 3 on release but Gigabyte (so far) have been very responsive with BIOS updates. I think it's been a good purchase since I've had virtually no issues.
Date published: 2019-08-15
Rated 5 out of 5 by from Solid mid/high end choice for a reasonable cost Bought the X570 Pro to pair with the 3900X as an upgrade from my existing Gigabyte X370/2700x pairing. Not been able to test a huge amount but so far everything is working as it should and benchmarks are returning within margin of error of those posted online (using higher end boards). RGB fluff is thankfully quite subdued with only a small amount on the left hand side of the board. I/O is excellent with plenty of expand-ability both internally and externally. Overall a solid choice for the mid to high end segment. Certainly worth a look if it matches the aesthetic you are going for.
Date published: 2019-07-12
  • y_2019, m_9, d_16, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_GB, sid_99509, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Would this work with Ryzen 7 3800X Or would i need to update the BIOS ?

Asked by: CallamStaf
Good Afternoon, This motherboard should not require a BIOS update to work with the Ryzen 7 3800X. It should work straight away for you. Kind Regards,
Answered by: LukeW
Date published: 2019-09-02
  • y_2019, m_9, d_16, h_14CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_en_GB, sid_99509, prod, sort_[SortEntry(order=LOCALE, direction=DESCENDING), SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_scan
Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard
Gigabyte AMD Ryzen X570 AORUS PRO AM4 PCIe 4.0 ATX Motherboard
