Gigabyte AMD Radeon RX5700 XT AORUS 8GB V2 GDDR6 RDNA PCIe 4.0 Graphics Card
Gigabyte Radeon RX5700 XT AORUS 8GB V2 GDDR6 PCIe 4.0 Graphics Card, 7nm RDNA, 2560 Streams, 1770MHz GPU, 2010MHz Boost
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.

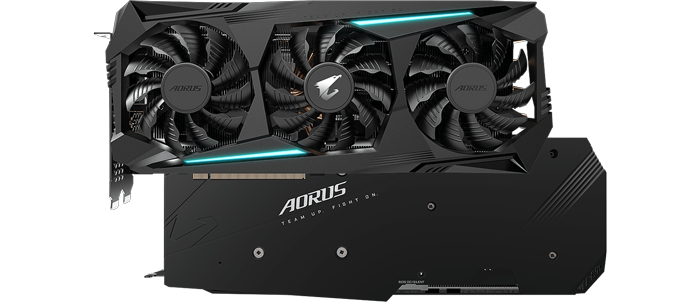

Aorus Radeon RX 5700 XT Graphics Card by Gigabyte
Let your framerate soarIntroducing the Aorus Radeon RX 5700 XT, the GPU from Gigabyte that doesn't just provide you with a powerful card but also a complete cooling solution. Windforce 3x is an innovative cooling solution that doesn't just take care of your GPU but also your VRAM and MOSFET ensuring stable overclocks and a long life, BUT wait there's more! This beauty is powered by the all advanced 7nm RDNA Architecture taking 1080p gaming to all new heights giving you, ultra-responsive, high fidelity triple A gaming with up to 60 Frames/sec and eSports gaming with up to 90 Frames/sec and with all new compute units you can expect even higher levels of performance and optimised visual effects such as volumetric lighting, blur effects and multi-level cache hierarchy for reduced latency and faster response times, sounds great right? This is accelerated gaming customised for you.
2560Stream Processors
8GBGDDR6 Memory
1770 MHz Core Clock
2010 MHz Boost Clock

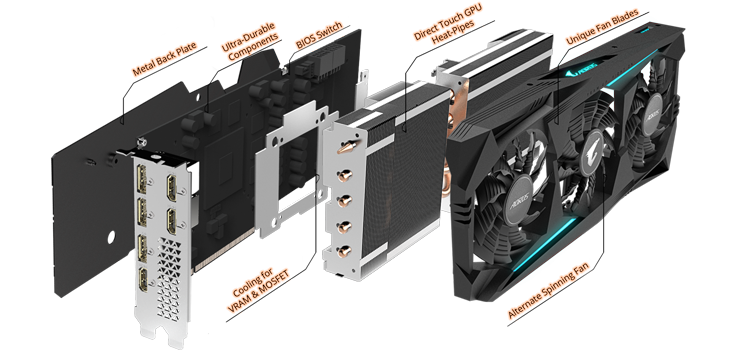

Take a Look Inside
Alternate Spinning Fans
No Turbulence just High Performance The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

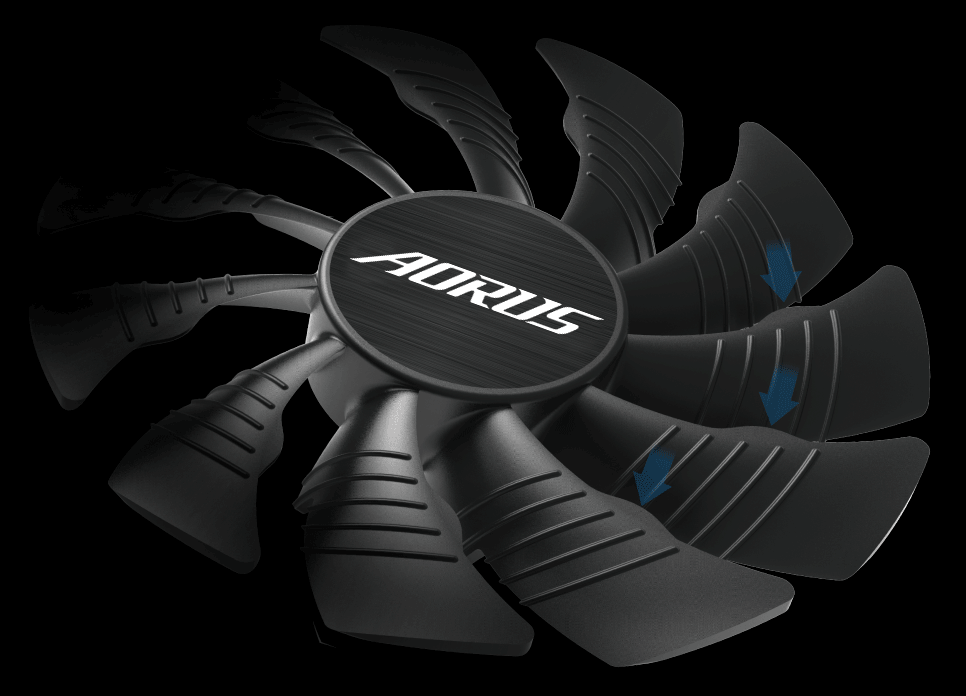

Unique Fan Blades
Smooth as Silk With creative innovation, Gigabyte have designed some highly unique fans for their WindForce cooling system. On each of the blades a small triangular edge has been incorporated to physically split the airflow guiding air smoothly down though the 3D striped curve on the fans surface enhancing the airflow. Gigabyte have also incorporated 3D active fan support which provides semi-passive cooling, shutting off the fans when the GPU is under low-load, allowing users to run silently until the load increases and the fans ramp back up again.

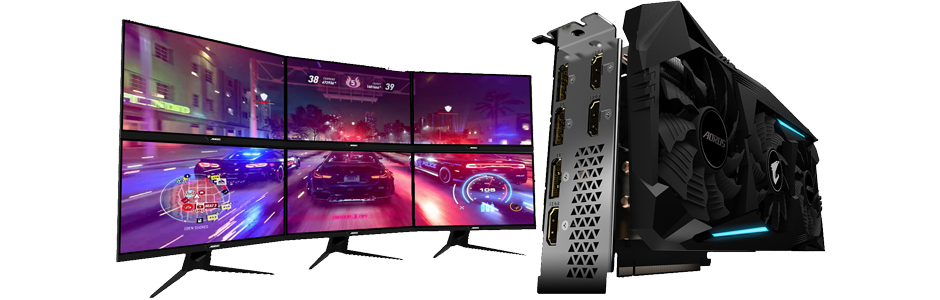

See More. Do More.
Seeing is Believing Keeping up with demand can be difficult, Aorus however have included a staggering 3x DisplayPort and 3x HDMI outputs so you can combine six diplays into a single large desktop or customise up to six displays any way you like.

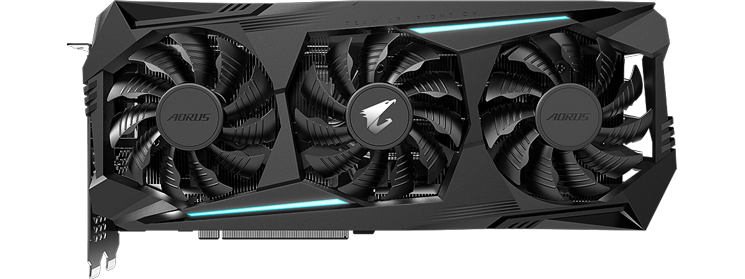

RGB Fusion 2.0
Dominant in The Dark With over 16.7 million customisable colour options and numerous lighting effects you can truly make this card your own, pick and choose your favourite colour scheme or simply one that fits your set-up you can also sync with other AORUS products to keep your RGB setup consistent.

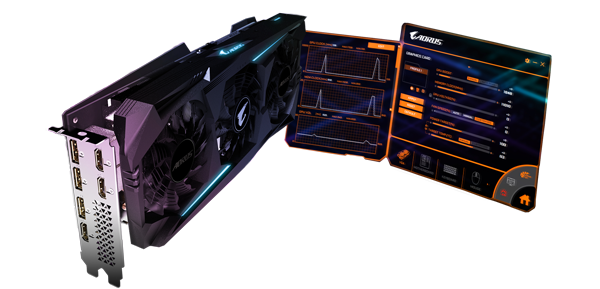

Intuitive Utility with AORUS Engine
Start your EnginesVoltage, Clock Speeds, Fan Performance and much more can monitored and tuned in real-time according to suit your needs through this intuitive interface.
Brand New RDNA Architecture with 7nm Process
Reduces latency and provides higher bandwidthPowered by the groundbreaking 7nm RDNA architecture with Radeon™ Image Sharpening and Radeon™ Anti-Lag technology, Radeon RX 5700 XT GPU delivers extremely efficient, ultra-responsive, high-fidelity gaming for immersive explosions, physics, and lighting effects, bringing realism to life. Take your gaming experience to the next level. You can experience stutter-free, tear-free gaming, reduced input latency and day-0 drivers optimized for new game releases.
Featuring GDDR6 Memory and Compatiblity with PCIe 4.0
Super-fast performance for todays demanding titlesEquipped with 6GB of advanced GDDR6 memory to provide high bandwidth of up to 224 GB/s, enabling 1080p performance for today’s most demanding games. Radeon RX 5700 XT features PCI® Express 4.0 support, which enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
High Fidelity Graphics When you Need it Most
Fidelity FXThe AMD Radeon™ RX 5700 XT graphics card powers high fidelity gaming for immersive explosions, physics, and lighting effects,bringing realism to life. High-performance RDNA architecture was engineered to greatly enhance features like FidelityFX, Radeon™ Image Sharpening,and Integer Display Scaling for maximum performance and beautiful gaming experiences.
High performance, High Resolution
Ultra HD Support The RX 5700 XT GPU is built for high-performance and high resolution gameplay. Experience smooth gameplay performance at 1080p.With support for 8k you are ready for Next-Gen displays. See everything in mind blowing detail without sacrificing performance.
Intuitive Gaming Features
Adrenalin 2020AMD Radeon™ Software Adrenalin 2020 Edition gives you more control over your gaming experiences. The software's intuitive interface enables players to stream, share and tweak graphics settings in real-time without missing a second of the action or compromising in-game performance.
AMD VR Ready Premium Experience the new generation of compelling Virtual Reality content with the Radeon™ graphics card paired with the leading VR headsets. The Radeon™ card coupled with AMD LiquidVR™ technology delivers a virtually stutter-free, low latency experience, essential for remarkable Virtual Reality environments. Industry leading innovation and powerful performance enables the Radeon™ to deliver premium experiences on high-end VR games, entertainment, and applications.
AMD Eyefinity TechnologyExpand your territory and customize your field of vision. Connect up to six displays on a single GPU for dynamic, panoramic multi-screen gaming. You’ll get an expansive experience that’s truly out of sight. (additional displays may require the use of MST hub).
AMD Graphics Card Specifications
| AMD Radeon RX Card Specifications | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | RX 5700 XT | RX 5700 | RX 5600 XT | RX 5500 XT | RX 590 | RX 580 | RX 570 | RX 560 | RX 550 | |||||||||
| Architecture | RDNA | RDNA | RDNA | RDNA | GCN 4th | GCN 4th | GCN 4th | GCN 4th | GCN 4th | |||||||||
| GPU | Navi 10 | Navi 10 | Navi 10 | Navi 14 | Polaris | Polaris XTX | Polaris 20 Pro | Baffin | Baffin | |||||||||
| Stream Processors | 2,560 | 2,304 | 2,304 | 1,408 | 2,304 | 2,304 | 2,048 | 896/1024 | 512/640 | |||||||||
| Reference Base Clock | 1,605 MHz | 1,465 MHz | 1,420 MHz | 1,607 MHz | 1,469 MHz | 1,257 MHz | 1,168 MHz | 1,175 MHz | 1,287 MHz | |||||||||
| Reference Boost Clock | 1,905 MHz | 1,725 MHz | 1,620 MHz | 1,845 MHz | 1,545 MHz | 1,340 MHz | 1,244 MHz | 1,275 MHz | 1,287 MHz | |||||||||
| Memory | 8GB GDDR6 | 8GB GDDR6 | 6GB GDDR6 | 4GB/8GB GDDR6 | 8GB GDDR5 | 4GB/8GB GDDR5 | 4GB/8GB GDDR5 | 4GB GDDR5 | 4GB GDDR5 | |||||||||
| Memory Controller | 256-bit | 256-bit | 192-bit | 128-bit | 256-bit | 256-bit | 224-bit | 128-bit | 64/128-bit | |||||||||
| TDP | 225W | 225W | 160W | 130W | 225W | 185W | 150W | 60-80W | 50W | |||||||||
