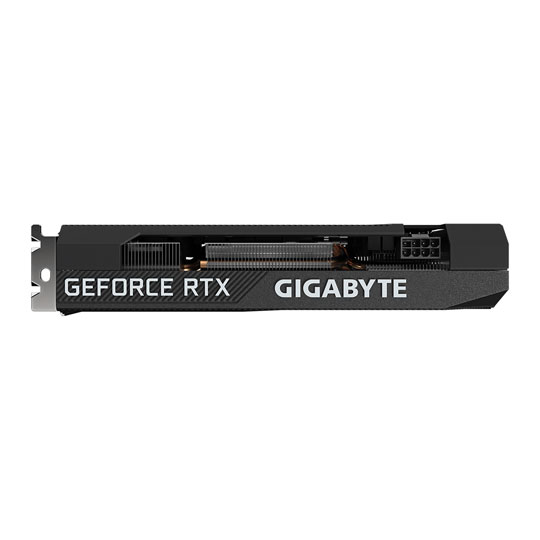

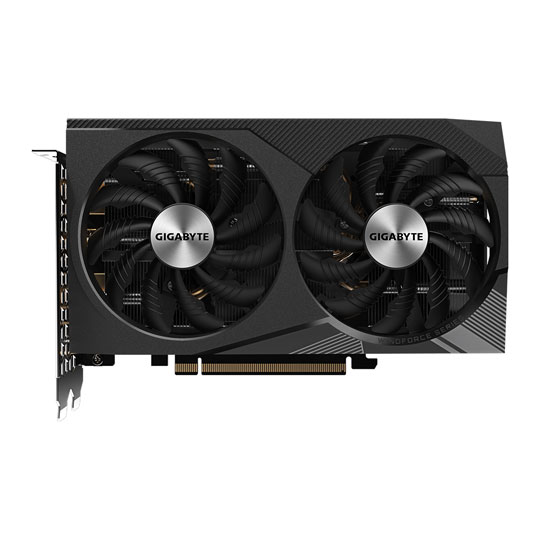

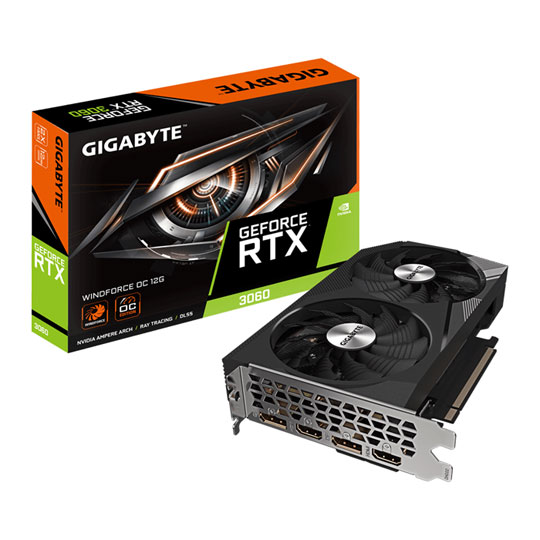

Gigabyte NVIDIA GeForce RTX 3060 12GB WINDFORCE OC V2 Ampere Graphics Card
Gigabyte NVIDIA GeForce RTX 3060 WINDFORCE OC V2 12GB GDDR6 Ray-Tracing Graphics Card, 3584 Core, 1792MHz Boost
Frequently Bought Together
GeForce RTX 3060 WINDFORCE OC V2 12G Ampere Graphics Card from Gigabyte
United in Power and Performance
Prepare yourself for an unforgettable gaming experience with the GeForce RTX™ 3060 WINDFORCE OC V2 graphics card, powered by the incredible NVIDIA GeForce Ampere architecture boasting 2nd Generation RT cores and 3rd Generation Tensor Cores to bring you the biggest graphical performance leap of the modern era. RTX™ 3060 WINDFORCE OC features an incredible 12GB of GDDR6 memory and the renowned WindForce 2X cooling system to keep all that power in check with its 2x 90mm alternate spinning unique bladed fans to give you whisper quiet unprecedented high efficiency heat dissipation. A protective backplate not only enhances the aesthetics of the card but also enhances the structure to provide full protective coverage.
It's official NVIDIA have introduced an improved hash rate limiter to newly manufactured graphics cards; reducing their effectiveness for mining cryptocurrency and bringing more graphics cards back into the hands of gamers, GeForce RTX GPUs have introduced a range of cutting-edge technologies — RTX real-time ray tracing, AI-powered DLSS frame rate booster, NVIDIA Reflex super-fast response rendering for best system latency, and many more — created to meet the needs of gamers and those who create digital experiences. Identified by a "Lite Hash Rate or LHR Label" NVIDIA believe this additional step will get more GeForce cards at better prices into the hands of gamers everywhere.
3584Cuda Cores
1792 MHzCore Clock
12GBGDDR6 Memory
Expert Cooling like No Other
WINDFORCE 2X COOLING SYSTEMThe WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
Made to Last for Years to Come

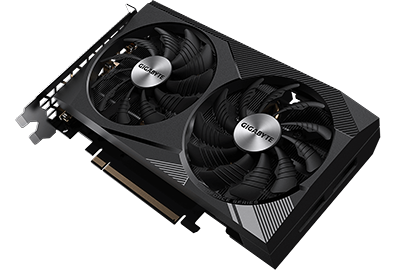

UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximises the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
Expert Protection for Superior Longevity

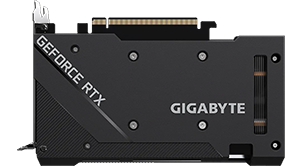

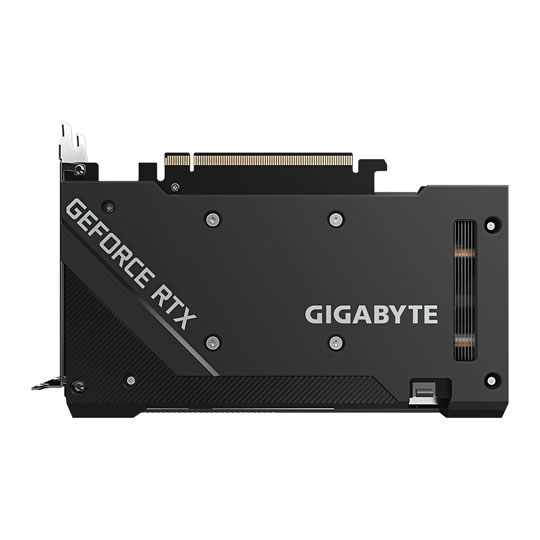

PROTECTIVE BACK PLATEThe back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKINGThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Fine-Tune Every Setting with Ease
AORUS ENGINEThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >NVIDIA Ampere Architecture
2nd Gen RT Cores2X THROUGHPUT
3rd Gen Tensor CoresUP TO 2X THROUGHPUT
NEW SM2X FP32 THROUGHPUT
DLSS AI Acceleration
Max FPS. Max Quality. Powered by AI. NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has arrived to gaming.
Ultimate Ray Tracing And AI
RTX. It’s On.Only NVIDIA’s RTX platform includes dedicated RT Cores for ray tracing and Tensor Cores for AI that enable groundbreaking technologies at breakthrough speed. Experience today’s biggest blockbusters like never before. RTX. It’s On.
NVIDIA Reflex Dynamically Reduces System Latency
Victory Measured in MillisecondsNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX™ 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies built to optimise and measure system latency for competitive games.
Create as Fast as your Imagination
Up Your Creative GameTake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.
Transform any Room Into your Home Studio
Stream Like a Boss Live streamers can now level up their game even further with the new NVIDIA Broadcast app. It upgrades any room into a home broadcast studio by transforming standard webcams and microphones into smart devices through the power of AI. The Broadcast app offers three AI-powered features which are: Noise Removal, Virtual Background and Auto frame so the focus always remains on you.
DirectX Raytracing Allows Incredibly Realistic Graphic Effects
DirectX 12 Ultimate offers features like ray tracing and variable rate shading
DirectX Raytracing allows games to simulate how light works in real life, providing incredibly realistic and beautiful graphics effects like global illumination, reflections, and shadows.
NVIDIA has partnered closely with Microsoft to enable full DXR support on GeForce GPUs. GeForce RTX GPUs were designed from the start for the extreme demands of ray-tracing workloads. Specialised RT cores, found only on GeForce RTX graphics cards, provide billions of rays per second of performance, and up to 3X the frame rates with DXR games and applications. This makes ray tracing at real-time frame rates possible for the first time.
GeForce RTX 30 Series Features
8K HDR GamingStep up to the ultimate 4K gaming experience with the GeForce RTX and enjoy today’s biggest games in amazing detail.
GeForce ExperienceThe essential companion to your GeForce graphics card. Capture and share videos, screenshots, and livestreams. Keep your drivers up to date and optimize your games.
Game Ready DriversGet the highest levels of performance, and the smoothest experience possible, from the moment you start playing.
Virtual RealityTake your VR experiences to a whole new level with the powerful new GeForce® RTX GPUs. You can count on the lowest latency and highest performance with VR.
NVIDIA G-SyncGet smooth, tear-free gameplay at refresh rates up to 360 Hz, plus HDR and more. NVIDIA G-SYNC gaming monitors are the ultimate go-to equipment for enthusiast gamers.
NVIDIA AnselTurn your screenshots into art with this powerful in-game photo mode that captures 360, HDR, and super-resolution photos.
NVIDIA GeForce Graphics Card Specifications
| GeForce RTX 40-Series, 30-Series, 20-Series, GTX 16-Series & 10-Series Card Specifications | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | RTX 4090 | RTX 3090 Ti | RTX 3090 | RTX 3080 Ti | RTX 3080 | RTX 3070 Ti | RTX 3070 | RTX 3060 Ti | RTX 3060 | RTX 3050 | TITAN RTX | RTX 2080 Ti | RTX 2080 Super | RTX 2080 | RTX 2070 Super | RTX 2070 | RTX 2060 Super | RTX 2060 | GTX 1080 Ti | GTX 1080 | GTX 1070 Ti | GTX 1070 | GTX 1660 Ti | GTX 1660 Super | GTX 1660 | GTX 1650 Super | GTX 1650 | GTX 1060 6GB | GTX 1060 3GB | GTX 1050 Ti | GTX 1050 |
| Architecture | Ada Lovelace | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Ampere | Turing | Turing | Turing | Turing | Turing | Turing | Turing | Turing | Pascal | Pascal | Pascal | Pascal | Turing | Turing | Turing | Turing | Turing | Pascal | Pascal | Pascal | Pascal |
| GPU | AD102 | GA102 | GA102 | GA102 | GA102 | GA104 | GA104 | GA104 | GA106 | GA106 | TU102 | TU102 | TU104 | TU104 | TU104 | TU106 | TU106 | TU106 | GP102 | GP104 | GP104 | GP104 | TU116 | TU116 | TU116 | TU117 | TU117 | GP106 | GP106 | GP107 | GP107 |
| CUDA Cores | 16,384 | 10,752 | 10,496 | 10,240 | 8,704 | 6,144 | 5,888 | 4,864 | 3,584 | 2,560 | 4,608 | 4,352 | 3,072 | 2,944 | 2,560 | 2,304 | 2,176 | 1,920 | 3,584 | 2,560 | 2,432 | 1,920 | 1,536 | 1,408 | 1,408 | 1,280 | 896 | 1,280 | 1,152 | 768 | 640 |
| Tensor Cores | 512 | 336 | 328 | 320 | 272 | 192 | 184 | 152 | 112 | 80 | 576 | 544 | 384 | 368 | 320 | 288 | 272 | 240 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| RT Cores | 128 | 84 | 82 | 80 | 68 | 48 | 46 | 38 | 28 | 20 | 72 | 68 | 48 | 46 | 40 | 36 | 34 | 30 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Reference Base Clock | 2.23GHz | 1,560MHz | 1,400MHz | 1,370MHz | 1,440MHz | 1,580MHz | 1,500MHz | 1,410MHz | 1,320MHz | 1,552MHz | 1,350 MHz | 1,350 MHz | 1,650 MHz | 1,515 MHz | 1,605 MHz | 1,410 MHz | 1,470 MHz | 1,365 MHz | 1,480 MHz | 1,607 MHz | 1,607 MHz | 1,506 MHz | 1,500 MHz | 1,530 MHz | 1,530 MHz | 1,530 MHz | 1,485 MHz | 1,506 MHz | 1,506 MHz | 1,290 MHz | 1,354 MHz |
| Reference Boost Clock | 2.52GHz | 1,860MHz | 1,700 MHz | 1,670MHz | 1,710 MHz | 1,770MHz | 1,730 MHz | 1,665MHz | 1,780MHz | 1,777MHz | 1,770 MHz | 1,545 MHz | 1,815 MHz | 1,710 MHz | 1,770 MHz | 1,710 MHz | 1,650 MHz | 1,680 MHz | 1,582 MHz | 1,733 MHz | 1,683 MHz | 1,683 MHz | 1,770 MHz | 1,785 MHz | 1,785 MHz | 1,725 MHz | 1,665 MHz | 1,708 MHz | 1,708 MHz | 1,392 MHz | 1,455 MHz |
| Memory | 24GB GDDR6X | 24GB GDDR6X | 24GB GDDR6X | 12GB GDDR6X | 10GB GDDR6X | 8GB GDDR6X | 8GB GDDR6 | 8GB GDDR6 | 12GB GDDR6< | 8GB GDDR6 | 24GB GDDR6 | 11GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 8GB GDDR6 | 6GB GDDR6 | 11GB GDDR5X | 8GB GDDR5X | 8GB GDDR5 | 8GB GDDR5 | 6GB GDDR6 | 6GB GDDR6 | 6GB GDDR5 | 4GB GDDR6 | 4GB GDDR5 | 6GB GDDR5 | 3GB GDDR5 | 4GB GDDR5 | 2GB GDDR5 |
| Memory Controller | 384-bit | 384-bit | 384-bit | 384-bit | 320-bit | 256-bit | 256-bit | 256-bit | 192-bit | 128-bit | 384-bit | 352-bit | 352-bit | 256-bit | 256-bit | 256-bit | 256-bit | 192-bit | 352-bit | 256-bit | 256-bit | 256-bit | 192-bit | 192-bit | 192-bit | 128-bit | 128-bit | 192-bit | 192-bit | 128-bit | 128-bit |
| TDP | 450W | 350W | 350W | 350W | 320W | 290W | 220W | 200W | 170W | 130W | 280W | 260W | 250W | 225W | 215W | 175W | 175W | 160W | 250W | 180W | 180W | 150W | 120W | 125W | 120W | 110W | 75W | 120W | 120W | 75W | 75W |
