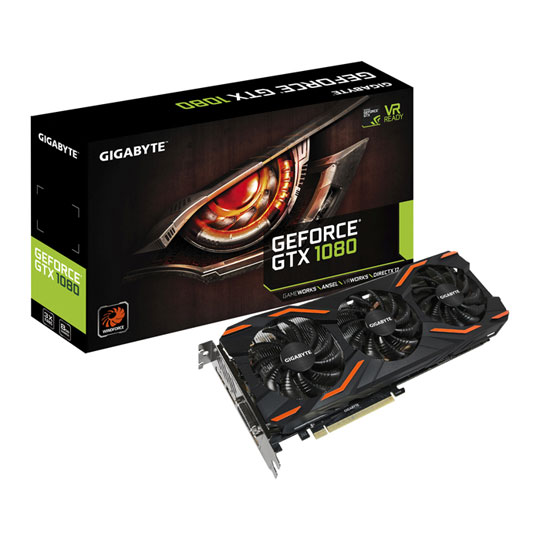

Gigabyte NVIDIA GeForce GTX 1080 8GB D5X WindForce3 Graphics Card
Gigabyte GeForce GTX 1080 D5X WindForce3
GIGABYTE D5X WINDFORCE 3 GTX 1080
The GIGABYTE D5X 1080 is a truly impressive GPU. Targeted towards gamers and Virtual Reality this card is capable of running the most testing of games with ease. It utilizes three fans to make sure the cooling system can keep up with the power output, DirectX12 and Pascal architecture. Experience next-generation technology and picture quality with this GTX 1080.
NVIDIA’s new flagship GeForce GTX 1080 graphics card is the most advanced gaming graphics card ever created. Discover unprecedented performance, power efficiency, and gaming experiences—driven by the new NVIDIA Pascal™ architecture. This is the ultimate gaming platform. #GameReady.
Base Clock (OC Mode)
Boost Clock (OC Mode)

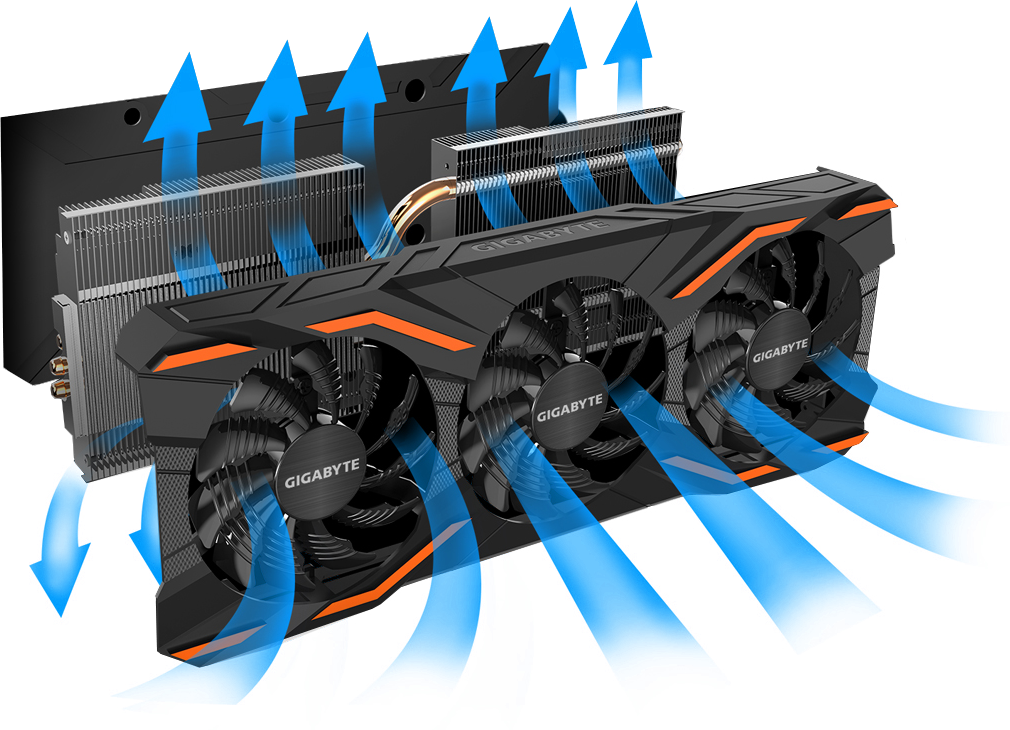

D5X WindForce Cooling System
GIGABYTE have embedded a very impressive cooling system around the GTX 1080. It features 3 pure copper composite heat-pipes, special fin architecture, unique blade fan design, which together deliver an effective heat dissipation capacity for higher performance at lower temperatures.
ADVANCED GIGABYTE FANS

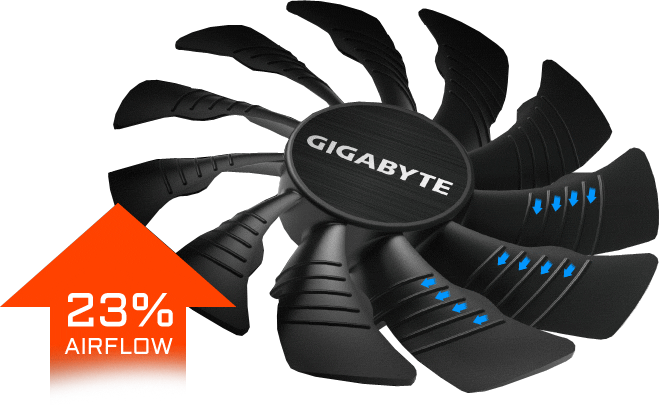

Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming.
GIGABYTE COPPER PIPES
Composite Heat-Pipes Within your 1080
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
D5X HEAT PIPE DIRECT TOUCH
GIGABYTE D5X GPU Direct Touch
The pure copper heat-pipes are specifically shaped to ensure maximum direct contact to the 1080 GPU.

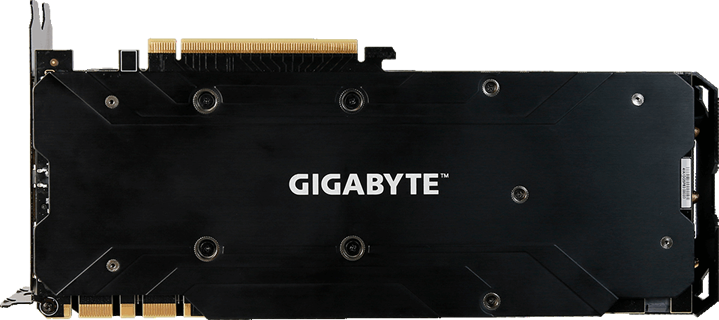

D5X BACKPLATE DESIGN
Stylish Metal Back Plate
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.
OVERCLOCKING YOUR GTX 1080 D5X
One-Click 1080 GPU Overclocking
Overclocking: The D5X from GIGABYTE 1080 guarantees higher voerclocking capabilities in terms of excellent power switching, this ensures the highest performance without compromising the systems reliability. Through the use of XTREME Engine you can change your overclocking settings with a single click. This system allows buyers to overclock with zero overclocking knowledge & saves the hassle of manual adjustment.
GIGABYTE XTREME Engine
XTREME Engine: Utilizing GIGABYTEs engine will give you complete control over your GTX 1080. Adjust clock speeds, voltage, fan performance, RGB lighting effect, power target, OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.
GTX 1080 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
Immersive VR requires seven times the graphics processing power of traditional 3D apps and games. NVIDIA's unique set of features - such as multi-res shading - mean you get the right level of performance, image quality, and latency to ensure your VR experience is nothing short of amazing.
|Chipset||GeForce GTX 1080|
|Manufacturing process||16 nm|
|Core Clock||1607 (1632 in OC Mode) MHz|
|Boost Clock||1733 (1771 in OC Mode) MHz|
|Memory Clock||10010 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE 3X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||1 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature||94 °C|
|Dimensions||114 x 41 x 280 mm|
