Gigabyte GC-Titan Ridge Thunderbolt 3 PCIe Add In Card
End Of Life
Gigabyte GC-Titan Ridge Thunderbolt 3 PCIe Add In Card
Scan code: LN95936 Manufacturer code: GC-TITAN RIDGE (rev. 1.0)
End Of Life

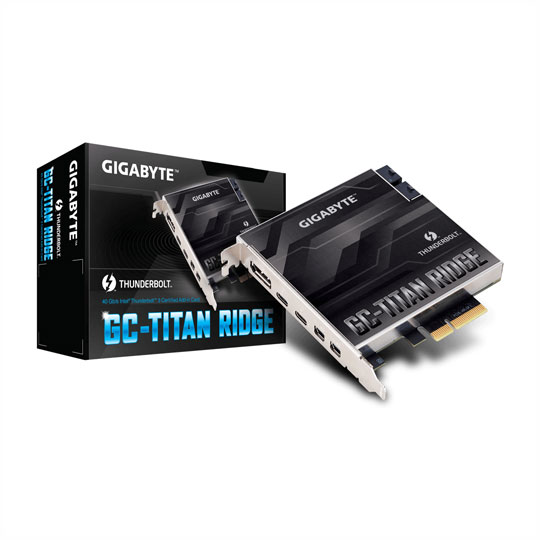

  • Thumbnail 1 : Gigabyte GC-Titan Ridge Thunderbolt 3 PCIe Add In Card
  • Thumbnail 2 : Gigabyte GC-Titan Ridge Thunderbolt 3 PCIe Add In Card
  • Thumbnail 3 : Gigabyte GC-Titan Ridge Thunderbolt 3 PCIe Add In Card
End Of Life

Gigabyte GC-Titan Ridge Thunderbolt 3 PCIe Add In Card

Gigabyte GC-Titan Ridge Thunderbolt3 PCIe Add In Card For Z390/H370/B360 Motherboards, mDP,DP, TB3/USB 3.1 Type-C
MORE INFO
MORE INFO

Scan code: LN95936 Manufacturer code: GC-TITAN RIDGE (rev. 1.0)
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
Product Overview 40 Gb/s Intel® Thunderbolt™ 3 Certified Add-in Card
The GC-TITAN RIDGE offers an easy way to upgrade GIGABYTE Thunderbolt™ ready motherboards with the new and faster Thunderbolt™ 3 connectivity without having to upgrade to a whole new system.

Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection
Delivers speeds of up to 40Gb/s-- that's 2 times faster than Thunderbolt™ 2 and 8 times faster than USB3. Thunderbolt™ 3 provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 6 Thunderbolt devices without an additional hub or switch.

Daisy-chain Multiple Devices
Support for DisplayPort 1.4 makes Thunderbolt™ 3 a must have for any enthusiast. GIGABYTE GC-TITAN RIDGE support two displays in 8K* resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 3.0, and the ability to daisy-chain up to 12 devices thanks to the dual USB Type-C™ ports.

Motherboards with GC-TITAN RIDGE support
The GC-TITAN RIDGE is compatible with GIGABYTE motherboards of that include a Thunderbolt™ header on below:
Intel platform: Z390/H370/B360-series

• Z390 series (Support by PCH PCIe x4 slot only)
Z390 AORUS MASTER / Z390 AORUS ULTRA / Z390 AORUS PRO WIFI / Z390 AORUS PRO / Z390 AORUS ELITE / Z390 GAMING X / Z390 UD / Z390 M GAMING

• Z390 series (Recommend to install on CPU PCIe x16 slot
Z390 GAMING SLI

• H370 series (Support by BIOS F10 or after, PCH PCIe x4 slot only)
H370 AORUS GAMING 3 WIFI / H370 AORUS GAMING 3 / H370 HD3

• B360 series (Support by BIOS F10 or after, PCH PCIe x4 slot only)
B360 AORUS GAMING 3 WIFI / B360 AORUS GAMING 3 / B360 HD3P / B360 HD3 / B360M D3P

• Z370 series (Support by BIOS F11 or after, PCH PCIe x4 slot only)
Z370 AORUS GAMING 7 / Z370 AORUS GAMING 7-OP / Z370 AORUS GAMING 5 / Z370 AORUS ULTRA GAMING WIFI 2.0 / Z370 AORUS ULTRA GAMING WIFI / Z370 AORUS ULTRA GAMING WIFI-OP / Z370 AORUS ULTRA GAMING 2.0-OP / Z370 AORUS ULTRA GAMING 2.0 / Z370 AORUS ULTRA GAMING / Z370 AORUS GAMING 3 / Z370 AORUS GAMING K3 / Z370 AORUS GAMING WIFI / Z370 UD3H / Z370XP SLI

• C246 Workstation/Server series (Support by PCH PCIe x4 slot only)
C246-WU4
Features • Intel® Thunderbolt™ 3 Certified add-in card
• Intel® DSL7540 Thunderbolt™ 3 controller
• Dual Thunderbolt™ 3 Ports (USB Type-C™)
• Max Bandwidth 40 Gb/s
• DisplayPort 1.4 Capable with 8K Video Throughout
• Daisy-chain up to 12 Devices (6 devices per port)
• Support PD3.0 standard (up to 100W)
• Compatible with Intel platform: Z390/H370/B360-series , AMD platform: X570-series
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
Buying Guide
Need help choosing the right board? Read our AMD Motherboard Buying Guide
Gigabyte GC-Titan Ridge Thunderbolt3 PCIe Add In Card For Z390/H370/B360 Motherboards, mDP,DP, TB3/USB 3.1 Type-C is rated 4.6 out of 5 by 7.
Rated 4 out of 5 by from Does what it's meant to All works as it's meant to, comes with a bunch of cables which is nice. Bit complicated to install (no idea why it needs a USB2 header), but it's all good.
Date published: 2020-08-09
Rated 5 out of 5 by from Simple, straightforward way for Thunderbolt 3 A very straightforward and simple add-in card that, with a compatible motherboard, gives everyone the power of Thunderbolt 3. Easy install, just be mindful that the card is only active when a peripheral is connected, else the drivers won't install.
Date published: 2020-07-30
Rated 5 out of 5 by from Titan Ridge This PCIe card was needed to update my monitor to the next generation, recommended
Date published: 2020-07-22
Rated 3 out of 5 by from Careful what motherboard you have Gigabyte have a fairly short list of motherboards that this is guaranteed to work with. It may work with others or it may not, so you are gambling if yours is not on the list. It definitely doesn't work with my Asus X99 Deluxe II so I will be ebaying my Titan Ridge. Also be aware that unlike earlier gens of Thunderbolt 3 cards, this doesn't just plug into a slot and then need a TB header cable attached, it also requires two (!) power cables. It's also very fussy about which slot it uses, which MUST be a PCIEX4.
Date published: 2020-07-11
Rated 5 out of 5 by from Good performance Works well with my Gigabyte motherboard, using for universal audio apollo x6, everything is fine...
Date published: 2020-02-29
Rated 5 out of 5 by from Works fine I have a gigabyte board. After updating the driver it installed fine and works well.
Date published: 2019-12-30
Rated 5 out of 5 by from Works with my ASRock Z390 Taichi Motherboard Although manufactured by Gigabyte to run with their own Motherboards, I've installed this in my ASRock Z390 Taichi Motherboard and it seems to be working fine. Currently using it with an Akitio Thunder3 Quad X enclosure and no issues so far. Good news as the ASRock Thunderbolt 3 card seems to be rarer than hens teeth.
Date published: 2019-05-16
  • y_2020, m_9, d_10, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_GB, sid_95936, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan

Does this card work with a B360M DS3H motherboard?

Does this work with all B360M motherboards? i have the DS3H version. Need to know if this is the right card for me.
Asked by: SteeveB
We would advise checking with the manufacturers website for up to date compatibility with your motherboard.
Answered by: DavidScan
Date published: 2020-08-19

Can it be used with GIGABYTE X570 Gaming X?

GIGABYTE X570 Gaming X is not listed among the compatible motherborads (both on your page and on the producers page).
Asked by: triquetra
At present this board has not been listed as tested with the X570 Gaming X Motherboard. We would advise contacting Gigabyte to confirm compatibility in this case.
Answered by: DavidScan
Date published: 2020-03-18

When will this product be available?

It currently says pre-order however it gives no indication of when it will be available.
Asked by: modii
For specific stock queries, we would suggest checking with our Customer services team, as stock levels can change quickly.
Answered by: DavidScan
Date published: 2020-03-06

Can this be used on other makes of motherboards ie asus

Asked by: Geldartm
Hi, unfortunately, this card is only compatible with Gigabyte motherboards. Kind regards,
Answered by: LukeW
Date published: 2019-04-04

Does this product include the Thunderbolt header cable

Does this product include the motherboard header cable required by Gigabyte Z390 UD motherboard?
Asked by: nickbriers
