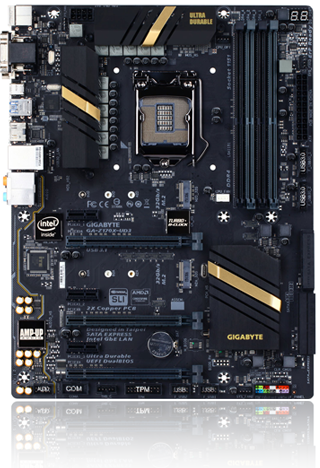

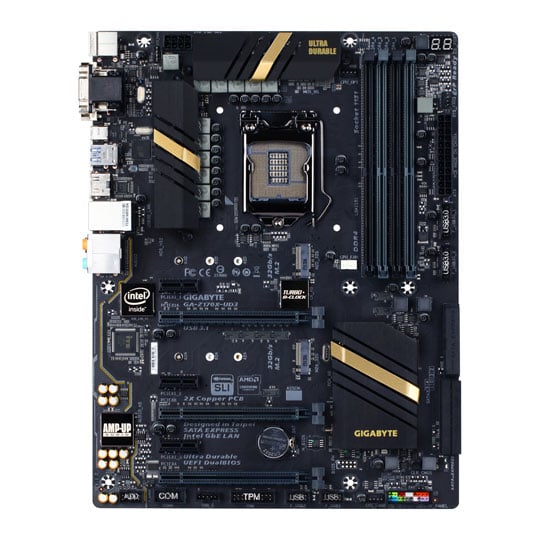

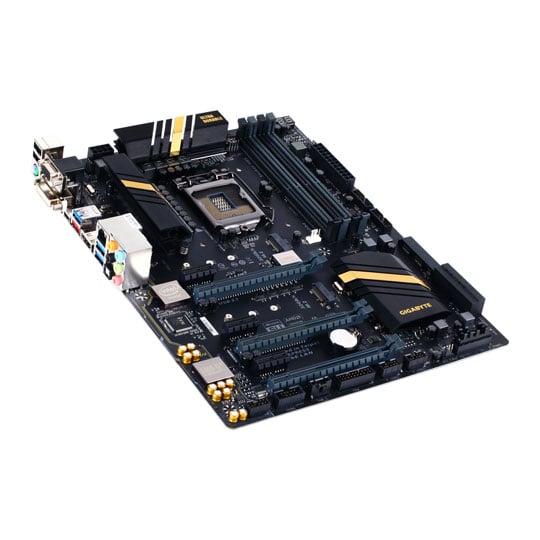

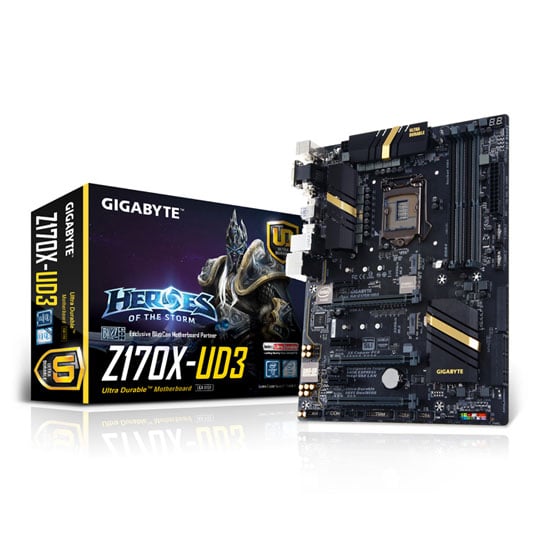

Gigabyte Z170X-UD3 USB 3.1 ATX Motherboard

Gigabyte GA-Z170X-UD3, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way SLi/3-Way CrossFire, GbE, USB3.1 A+C, ATX

Scan code: LN66199 Manufacturer code: GA-Z170X-UD3 Request call
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 3rd May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

GIGABYTE X-UD3 Motherboard - Z170 Skylake

Gigabyte Z170 Chipset Motherboard

The Ultra Durable series motherboards from GIGABYTE are some of the best in their league. Enhanced performance, power efficiency and cutting edge technology capabilities give this motherboard a truly impressive overview. Along with the UD tech are features such as a DualBIOS, Turbo B-Clock for IC tuning, an App Center for complete control and even more. These all come together to forge a powerful motherboard worthy of professional application use and capable of doing its part in next-gen gaming.

Intel Z170

CPU Socket

Form Factor

USB 3.1 Capabilities

Top Motherboard Connection Speeds

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

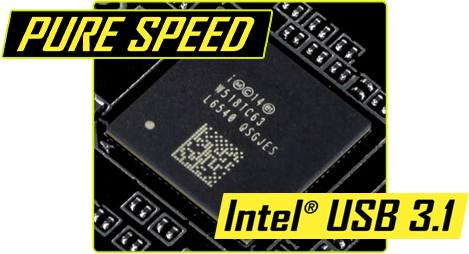

USB 3.1 Controller

Exclusively on Gigabyte Powered Motherboards

The Intel USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.


Take Control of GIGABYTE Motherboards

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

*Image for reference only. App version varies dependant on motherboard.

Easy Tune

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station

GIGABYTE Cloud Station is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

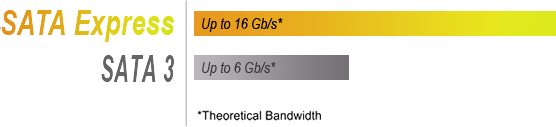

SATA Express Speeds

Next Generation SATA Express

SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

Dual onboard M.2 Slots

Rapid Speed Storage

With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

*Number of M.2 slots depends on motherboard

2-Way CrossFire

SLI and CrossFire Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

CPU Socket Design

15μ Gold Plated CPU Socket

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

DualBIOS Design


GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

Internet Accelerator Software

Realtek Green Motherboard Speed

Realtek Green GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek Green GbE consumes significant less power when it’s in idle state in comparison.

Motherboard Audio Capacitors

High End Audio Capacitors

The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

Ambient LED Design

Stylish Motherboard LED

GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

Turbo B-Clock Performance

Built-in Advanced Performance Tuning IC

Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

*Turbo B-Clock overclocking range may vary according to CPU capabilities

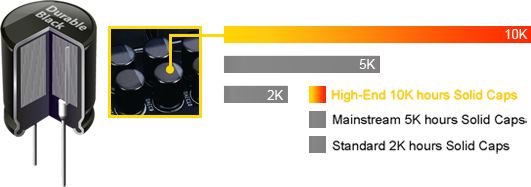

Solid State Capacitors

Long Lifespan Durable Black Solid Caps

GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.

*Testing result for reference only. Results may differ according to system configuration

Top Motherboard CPU Cooling

2x Copper PCB Design (2 oz Copper PCB)

GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


Core Specifications
Form Factor ATX
CPU Socket 1151
Chipset Intel Z170
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400(OC)
  • DDR4 - 2666(OC)
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio Realtek ALC1150 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 3-Way CrossFire
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 32Gb/s, PCIe/SATA
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATAe / SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU OPT Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x SATA Express (Compatible with 2x SATA III)
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 3 x System Fan header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Intel (Gigabit LAN)

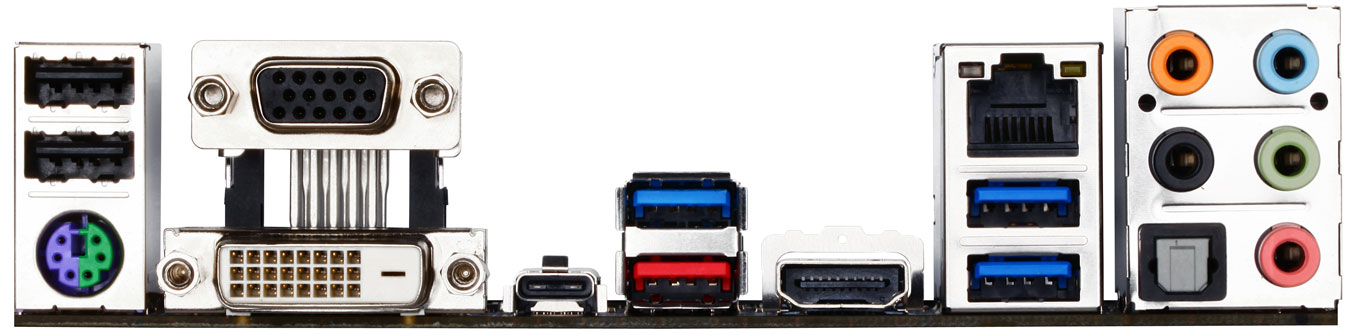

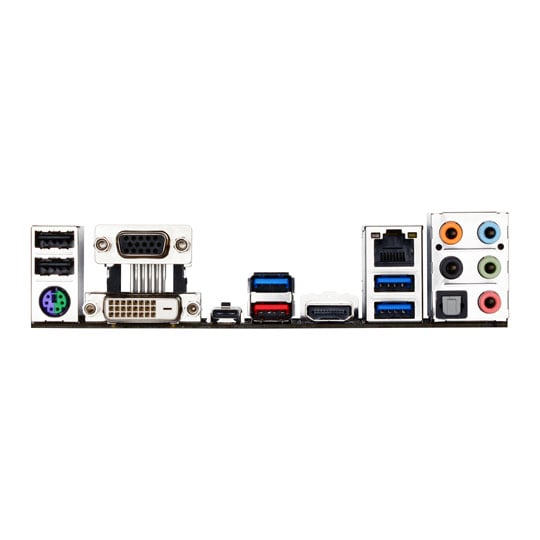

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x D-Sub (VGA) Out
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 2 x USB 2.0
  • 3 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
Gigabyte GA-Z170X-UD3, Intel Z170, S 1151, DDR4, SATAe, M.2 (PCIe/SATA), 2-Way SLi/3-Way CrossFire, GbE, USB3.1 A+C, ATX is rated 4.7 out of 5 by 6.
Rated 5 out of 5 by from Very Flexible Board Very happy with the GA-Z170X-UD3 - have put it in a Corsair Carbide Air 540 with a I5 6600, Corsair H100i and Corsair CMU16GX4M2A2666C16R Vengeance 16 GB (2 x 8 GB) DDR4 2666 MHz C16 XMP 2.0, and 2xCrucial MX300 1TB SSDs. Anyone would think I work for Corsair! :) The MB was originally chosen for an Operating Environment other than Windows or Linux for which it performs admirably. Can't fault the board or documentation.
Date published: 2017-04-18
Rated 5 out of 5 by from Great value for money, stable board. Let me get the negatives out of the way first, the board has awful UEFI fan control options, other OEMs have much better offerings in their Z170 UEFIs. However, Gigabyte at least provides a desktop software with much better options available from their website for use with this board. Secondly, the UEFI is not the most intuitively laid out piece of software, competitors offer more competence in this regard. (ASUS has in my opinion been no1 far and away since the P67 chipset) This and the afore mentioned are something regular Gigabyte users are most likely familiar with. Now onto the positives, The board is only £140, the UEFI has 100% functionality needed to use all of the board's features, the board is black and gold without any (for me) undesirable "gaming" branding on it. It has a decent audio solution which doesn't have electrical noise audible on mine when using headphones. I have experienced no coil whine or other electrical noise when using the board. The board has not 1 but 2 full speed m.2 PCIE 4x NVME slots, one of them is wired straight into the chipset (the bottom one) and the other will disable some SATA ports if you populate it. The board has an Intel NIC. I have a 6700K overclocked to 4.8Ghz on this board, 16GB (2 DIMMs) of G.Skill 3200Mhz CL14 RAM, a Samsung SM961 m.2 NVME SSD, a GTX 1080 (KFA2 HOF) @ 2165Mhz on the board too. The board ran the memory on its XMP profile with no fussing needed to get it to run at full speed, the CPU is perfectly stable and for benchmarks will run at 5Ghz at just under 1.5V, I get full performance from my m.2 NVME SSD and have room for another NVME drive should I wish to install one in the future. To conclude, you do not need a high end ROG board or expensive "gaming" branded board to run high end hardware at high end clock speeds, I purchased this product and I am 100% happy with it as a gamer and an enthusiast, I am getting the most from my other components and I only paid £140 for my motherboard. Good job Gigabyte.
Date published: 2017-02-10
Rated 5 out of 5 by from Bought for running VMware ESXi 6.0 I chose this board to replace/upgrade my old VMware ESXi 6.0 virtualisation server, which was running on an older Gigabyte board. This particular one was chosen for the Z170 chipset so I could put an Intel Core i7 6700K into it, and also the fact it has 2x high speed M.2 SSD slots, for future expansion. Very few have done ESXi on this arrangement. I am pleased to say that using ESXi 6.0 Update 2 it installed flawlessly, and everything was detected and is working perfectly. I have built many computers, nearly always using Gigabyte motherboards, as I find them the most reliable overall out of all I have tried. This board is excellent quality, Gigabyte supply you with a little plastic header to drop all your front panel power/reset/hard disk cables into, so that you can push them all onto the motherboard in one go! making this horrible task much easier. Also another feature I really liked was the ability to snapshot screengrab BIOS screens directly to a USB key, excellent feature!! I would thoroughly recommend this board to anybody looking for a solid and reliable board to build a new computer, or upgrade their old one.
Date published: 2016-08-08
Rated 4 out of 5 by from Works well, very pleased with it A nice motherboard with good features for my needs. Works well and I had no problems setting it up. Boot times are slightly slower with Windows 10 than my other Z77 system but not enough to bother me. It boots with a bios error code of '04' which is not documented in the manual. Looking on the web, this error code is either a failure of the northbridge/southbridge chip (requiring the motherboard to be binned!) or a simple information message on the boot state of Windows 10. Anyway, I have not experienced any problems with the motherboard in use.
Date published: 2016-02-27
Rated 4 out of 5 by from Good It is a very good mother board. Be aware of the lake of PCI port inside (only PCIe ports). If you use PCI sound card or network card you won't be able to plug it.
Date published: 2016-02-11
Rated 5 out of 5 by from Excellent Mobo Bought this Mobo for my new build, it is quite simply amazing, it has been a while since I bought any computer upgrades and soo not disappointed with the purchase, 2 x m.2 slots for dual SM951's in raid.. black magic reports 4420mb's read 2500 write :)
Date published: 2015-09-17
