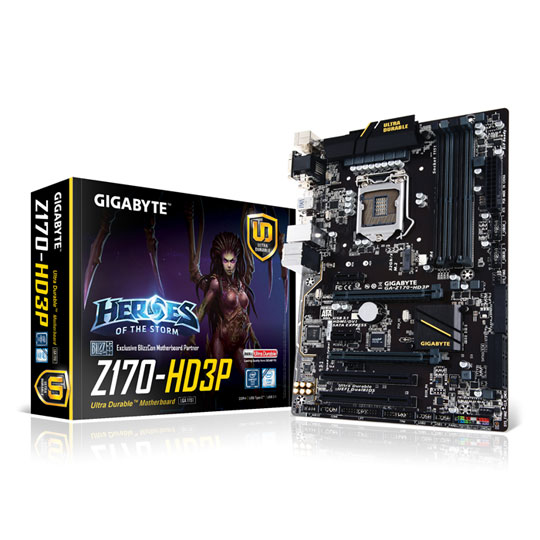

Gigabyte Z170-HD3P Skylake ATX Motherboard

Gigabyte GA-Z170-HD3P, Intel Z170, S 1151, DDR4, SATAe/SATA3 6Gb/s, PCIe 3.0, DVI/HDMI, ATX Motherboard

Gigabyte
Scan code: LN66201 Manufacturer code: GA-Z170-HD3P Request call
£112.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £11.50 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

GIGABYTE HD3P Motherboard - Z170 Skylake

Gigabyte Z170 Chipset Motherboard

GIGABYTE’s HD3P series of motherboards boast some truly impressive features and due to being part of GIGABYTE’s UD (Ultra Durable) series, a very refined design. This motherboard could be a great base to build a rapid responding system from due to its impressive speed technologies. This speed can be seen in various aspects like cFosSpeed the internet accelerator software, the M.2 onboard storage or even by utilising the USB 3.1 with Type-C – among other great boasting points.

Intel Z170
Chipset

1151
CPU Socket

ATX
Form Factor

USB 3.1 Capabilities

Top Motherboard Connection Speeds

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

GIGABYTE App Center

Take Control of GIGABYTE Motherboards

The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

*Image for reference only. App version varies dependant on motherboard.

Easy Tune

Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

Cloud Station

GIGABYTE Cloud Station is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

SATA Express Speeds

Next Generation SATA Express

SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

Dual onboard M.2 Slots

Rapid Speed Storage

With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

*Number of M.2 slots depends on motherboard

CrossFire Gaming Potential

CrossFire Multi-Graphics

Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

CPU Socket Design

15μ Gold Plated CPU Socket

GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

DualBIOS Design

GIGABYTE Patented DualBIOS (UEFI)

GIGABYTE Ultra Durable motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

Internet Accelerator Software

Realtek Green Motherboard Speed

Realtek Green GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek Green GbE consumes significant less power when it’s in idle state in comparison with others.

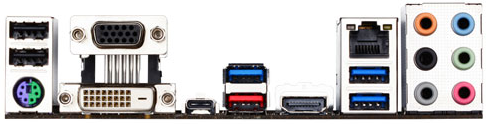

GIGABYTE HD3P Ports

Specifications
Specifications
Form Factor ATX
CPU Socket 1151
QPI Speed N/A
Chipset Intel Z170
Memory Type DDR4
Memory Channel Dual
Memory Type (ECC) Non-ECC
Memory Type (R/U) Unbuffered
Memory Speed (Mhz) DDR4 - 2133
Maximum Memory Capacity 64GB (4x16GB)
Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Graphics Interface PCIe 3.0 (x16)
SLI Support Not Supported
Crossfire Support 2 Way CrossFireX
Audio
Network Interface Type
Network Interface Chip/Modules
SATA SATA Express/SATA3 6Gb/s
RAID Support via SATA
Storage Mode Support
Water Cooled No
Expansion Slots
  • 1 x M.2, S3, 32 Gb/s, PCIe/SATA
  • 2 x PCI
  • 2 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
Internal I/O
  • 1 x 24pin (V)
  • 1 x 8pin (V)
  • 1 x Clear CMOS jumper
  • 1 x CPU fan header
  • 1 x FP Audio Header
  • 1 x Front panel header
  • 1 x Parallel Port (LPT) Header
  • 3 x SATA Express (Compatible with 2x SATA 6.0 Gbps)
  • 1 x Serial (COM) Header
  • 1 x SPDIF-Out Header
  • 3 x System Fan header
  • 1 x Thunderbolt AIC Connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.0 Header
Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x D-Sub
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x Side Speaker Out
  • 2 x USB 2.0
  • 3 x USB 3.0
  • 1 x USB 3.1 Type-A
  • 1 x USB 3.1 Type-C
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Reviews
Rated 4 out of 5 by 1 reviewer.
Rated 4 out of 5 by Good value motherboard Nice motherboard but select your RAM carefully. Works with the RAM I bought 16GB (2x8GB) Corsair DDR4 Vengeance LPX Black, PC4-19200 (2400) but can only get it working in single channel mode and at 2133Mhz. Any other configuration and the motherboard fails to start. Have downloaded the latest BIOS update but it made no difference. 24 October 2015
