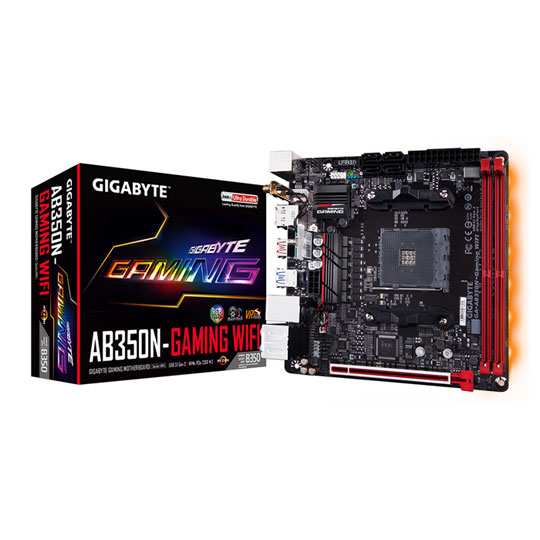

Gigabyte AMD Ryzen AM4 AB350N Gaming AC WIFI Mini ITX Motherboard
Gigabyte AB350N-Gaming WIFI, AMD B350, S AM4, DDR4, SATA3, M.2 (PCIe/SATA), Realtek GbE, ac WiFi, USB 3.1 G2 A, Mini-ITX
There are 7 people viewing this productDelivery options £5.48 By DPD On 18th Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
To ensure the best performance and compatibility, GIGABYTE has allotted additional spacing between the CPU Socket and the DIMM Slots. This gives ample room for airflow while preventing any bending, as well as making room for larger heatsinks on DRAM Modules when paired with large air coolers.
RGB FUSION: Set the Colour that Matches Your Style
GIGABYTE's motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you’ll have a blast making your GIGABYTE your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC’s temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.
Multi-Zone Light Show Design
• 16.8M RGB Colours.
• 2 Light Zones.
• 7 Different Lighting Effects.
• 2 RGB & RGBW Light Strip Pin Headers.
• Accent LED with Interchangeable Overlay.
• Advanced Mode for Extreme Customizability.
*Lighting zone, programmable sections, wave mode may vary by model.
• Colour Cycle.
GIGABYTE RGB Fusion App
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be done away from the keyboard and monitor of their PC.
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.
Supports RGBW & UV Light Strips: Two On-Board Pin Headers for LED Strips
GIGABYTE Motherboards support external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its colour from the RGB Fusion software. By implementing RGBW or RGB/UV LED strips users can have brighter whites and vibrant colours or generate a fluorescent glow, respectively.
No need to worry when choosing light strips as GIGABYTE motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.
RGB Fusion (Advanced Mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colours. You can even set the LEDs to synchronize with your favourite music or have them change colours to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and colour transitions, along with specific duration and transition times. Once done, it’s simple to save and share your lighting profile with others.
• Independent Control: Customise different colours for different sections of board.
• Fully Customisable: Adjust lighting animation with colour stops, colour duration, transition period, and colour effects.
• Lighting Profile: Save, export and import profiles to quickly change effects based on your preferences and to share with others.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
• 2 Fan Connectors.
• 5 Temperature Sensors.
• All Fan Pin Headers Upgraded to Hybrid Fan Headers.
• Supports High Current Fans up to 24W (2Ax12V) with Over-Current Protection.
• Intuitive UI for Fan Control.
All Hybrid Fan Pin Headers
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
Hybrid Fan Headers Support:
• Closed Loop Watercooling.
• CPU Fans.
• System Fans.
• Watercooling Pumps.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
• Interoperable Sensors and Fans: Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
• Fan Curve: Customize fan curves based on specific temperatures with the intuitive graphical UI.
Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.
Server-Class Digital Power Design
GIGABYTE motherboards use an all-digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new AMD Ryzen™ CPU.
IR Digital PWM & IR PowIRstage® ICs
This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage® ICs, preventing the overheating of each individual PowIRstage®, resulting in longer lifespan and better reliability.
Server Level Chokes
GIGABYTE motherboards feature Server Level Chokes.
• Server level reliability
• High current capacity
• New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.
ALC 1220 120dB SNR HD Audio with Smart Headphone Amp
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
• 120dB SNR High Definition Audio.
• High-End Audio Components.
Smart Headphone Amp
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.
High-End Audio Capacitors
GIGABYTE Gaming motherboards use high-end Chemicon audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Realtek® GbE LAN with cFosSpeed Internet Accelerator Networking
Realtek® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Fast On-Board Storage with NVMe PCIe Gen3 x4 2280 M.2 (Up to 32 Gb/s)
GIGABYTE’s M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.
Faster and Better Coverage with Intel Dual Band 802.11ac WIFI+BT 4.2 Module
The on-board 802.11ac WIFI module from Intel® supports up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.
Fast USB 3.1 Gen 2 Solution
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.
Immersive VR Gaming Experience
• VR requires more performance than Full HD graphics for a steady 90FPS or greater.
• Only Gaming PCs can provide the best VR experience.
GIGABYTE Patented Double Locking Bracket
• First Lock: Inserted from the top for better retention.
• Second Lock: Soldered for a stronger bond.
Industry Leading Ultra Durable PCIe Armour
The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
• Exclusive One Piece Stainless Shield.
• Extra Anchor Points.
Anti-Sulfur Resistor Design
Sulfur compounds in the air can penetrate tiny on-board resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Refreshed BIOS: Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
Overclocking to Boost Your Frame Rates
Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behaviour; these are the possibilities of the System Information Viewer.
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.
*4K display support is dependent on CPU.
HDMI™: The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
*HDMI support is dependent on CPU.
XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 14 days XSplit Gamecaster + Broadcaster Premium License.
TriDef® SmartCam: Custom Stream Modding
To facilitate being the full streaming solution each GIGABYTE motherboard includes TriDef® SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.
*Free 1 month TriDef® SmartCam License. Features • Supports AMD Ryzen™ & 7th Generation A-series / Athlon™ Processors.
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.
• Fast 2 USB 3.1 Gen 2 with USB Type-A.
• Feature Intel® 802.11ac Dual Band WIFI and Bluetooth 4.2 card.
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support.
• ALC1220 120dB SNR HD Audio with Smart Headphone Amp.
• Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software.
• RGB Fusion with Multi-Zone LED Light Show design.
• Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers.
• GIGABYTE™ UEFI BIOS™.
• APP Center Including EasyTune™ and Cloud Station™ Utilities.
|RAM Memory Support|
|Memory Channel||Dual (2)|
|Memory Type (ECC)||ECC/Non-ECC|
|Memory Type (R/U)||UDIMM (Unbuffered)|
|Memory Speed (Mhz)||
|Max. Memory Capacity||32GB (2x16GB)|
|Audio||Realtek ALC1220 7.1 HD Audio|
|Primary GPU Interface||PCIe 3.0 (x16)|
|SLI Support||Not Supported|
|Crossfire Support||Not Supported|
|On-Board Graphics Connectors||
|SATA Support||SATA3 / M.2|
|RAID Support via||SATA|
|Storage Mode Support||
|Network Interface Type||
|Rear I/O Connectors||
|Other Motherboard Specifications|
