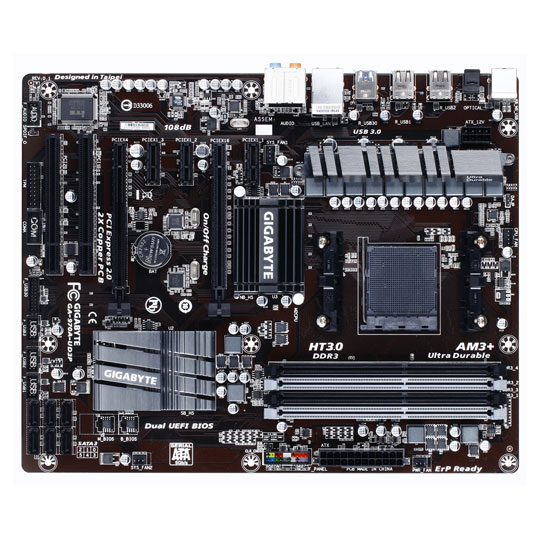

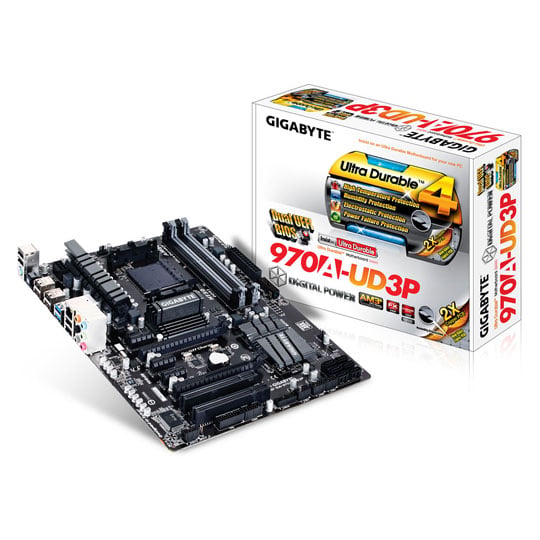

Gigabyte 970A-UD3P ATX Motherboard

Gigabyte GA-970A-UD3P, AMD 970, SAM3/AM3+, DDR3, PCIe 2.0 (x16), 2 Way CrossFireX, ATX

Gigabyte
Scan code: LN54196 Manufacturer code: GA-970A-UD3P Request call
£79.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 25th Jul 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

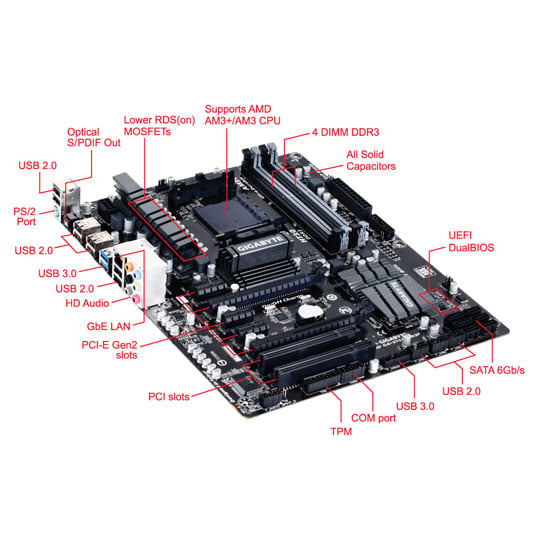

Product Overview The 970A-UD3P motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the USB3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA Revision 3.0 solution via AMD SB950 chipset, GIGABYTE AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.

• Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors
• GIGABYTE Ultra Durable™ 4 Technology
• GIGABYTE Digital Power Engine
• 8+2 phase CPU VRM power design for AMD high-TDP CPU support
• GIGABYTE UEFI DualBIOS™
• 2-way CrossFire™ Support
• VIA 2021 with High Quality 108dB SNR HD audio
• GIGABYTE On/Off Charge™ for USB devices
• 4 USB 3.0 ports with GIGABYTE 3x USB power
• 6 SATA3 ports with RAID support
• GbE LAN with high ESD Protection
Features GIGABYTE Digital Power Engine
GIGABYTE Ultra Durable motherboards take advantage of an exclusive Digital PWM controller array, to deliver maximum and stable power to latest processors. Using digital controllers means that more precise power delivery to the motherboard's most power hungry and energy sensitive components is possible. This Digital Power system, with Precise Auto Voltage Compensation to make real-time adjustments and deliver a steady flow of power to the system, no matter the loading. This all new, digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE motherboard.

GIGABYTE Ultra Durable™ 4 – Insist on an Ultra Durable Motherboard
GIGABYTE Ultra Durable™ 4 motherboards embrace a range of exclusive technologies that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats.

UEFI DualBIOS™ Technology
With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

Multi-display support with AMD CrossFire
Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFire™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

108dB Signal-to-Noise ratio playback
GIGABYTE motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.
Specifications
Core Specifications
Form Factor ATX
CPU Socket AM3/AM3+
Chipset AMD 970
RAM Memory Support
Memory Type DDR3
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR3 - 1066
  • DDR3 - 1333
  • DDR3 - 1600
  • DDR3 - 1866
  • DDR3 - 2000(OC)
Max. Memory Capacity 32GB
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 2.0 (x16)
SLI Support N/A
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 2 x PCI (32 bit)
  • 1 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 1 x Front Panel Audio Header
  • 6 x SATA III - 6Gb/s
  • 1 x Serial (COM) Header
  • 1 x TPM Header
  • 3 x USB 2.0 Header
  • 1 x USB 3.0 Header
External Connectivity
Network Interface Type
Network Chip/Modules

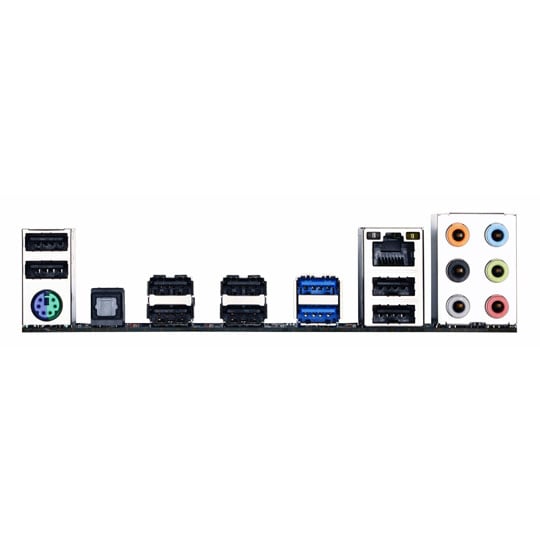

Rear I/O Connectors
  • 1 x 10/100/1000 (LAN)
  • 1 x Line In
  • 4 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x SPDIF Out (Optical)
  • 8 x USB 2.0
  • 2 x USB 3.0
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
GIGABYTE
Telephone:
08442449999
Customers also bought
Reviews
Gigabyte GA-970A-UD3P, AMD 970, SAM3/AM3+, DDR3, PCIe 2.0 (x16), 2 Way CrossFireX, ATX is rated 5.0 out of 5 by 4.
Rated 5 out of 5 by from Wicked Board! For the price you can't go wrong, people complain about not being able to overclock right with the board and how the bios is "outdated" on arrival and frankly I don't see it, It's a great little board and worked flawlessly straight out of the box!
Date published: 2015-06-18
Rated 5 out of 5 by from A fantastic board. I am very happy with this board with one small exception. The microphone volume is very low, even when boosted. Aside from that, this board is the best I have ever bought.
Date published: 2014-04-19
Rated 5 out of 5 by from Excellent board Excellent value board with an 8+2 power phase design. I would avoid running an 8core cpu on the cheaper 4+1 design boards as from my own experience the vrms cannot handle these cpus. This board is running my fx 8320 at 4.6ghz. I'm sure the board could do higher but I'm limited by temps on my evo 212. The board has plenty of features and the bios has lots of useful options and is easy to use. Recommended.
Date published: 2014-03-31
Rated 5 out of 5 by from Great product with easy O/Clock facility I am delighted with this board as I purchased an AMD 6300 FX and Corsair Extreme Edition memory (4gb) to go with this set up. I was able to OC to 4.2ghz with no effort or problems with stock fan and heatsink. I am using a 650watt PSU and 2 x 1tb sata HDD. My graphics is a little on the budget side at present as i have an AMD XFX 7750 1gb. This works well and I dont see any frame drops.
Date published: 2014-01-16
  • y_2017, m_7, d_20, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_54196, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Will this require a BIOS update to work with the AMD FX6350?

Asked by: Aesis
It should not, although I cannot be sure. If I remember correctly it said I would need an update to use my 6300 and I did not. I fact at the time there were no updates available and even now, a year later from original release there is only a BETA (test version) bios update. So I doubt you will have any problems with it. I love this board.
Answered by: techwg
Date published: 2015-07-17

does it support crossfire

the specs say it doesn't but your description says it does
Asked by: sploshteck
Yes it does support crossfire.
Answered by: techwg
Date published: 2015-07-17

Is this the revision 1.0 or revison 2.0?

There are two revisions of this motherboard and I am unsure whether this is the first or second model.
Asked by: Louie
Mine was revision 1 when I bought mid/late 2014. However you might want to contact Scan to see if they can find out for you which revision they are currently stocking.
Answered by: techwg
Date published: 2015-09-12

Is this board actually PCIe 3.0?

The specs on Gigabyte site says its PCIe 2.0
Asked by: Beast1812
I think you are getting USB and PCIe mixed up. This is a USB 3.0 board and it has PCIe 2.0 I have this board and it is very good indeed. So new that there is only 1 BETA bios available on the official site.
Answered by: techwg
Date published: 2015-07-17

Will this motherboard need a BIOS update to work with a AMD FX 8350 Black Edition?

Asked by: Gian
I cannot say for sure, but the site said I would need an update to use my 6300 if I recall and I did not at all... In fact there is only 1 BIOS update and it is not even a final release (it is BETA version) so I doubt you will have any problems. But as I say, I cannot be 100% sure.
Answered by: techwg
Date published: 2015-07-17
