Gigabyte CRA3338 2-Port Mini SAS HD PCIe RAID Card
Scan code: LN90735
Manufacturer code: CRA3338
End Of Life
Gigabyte CRA3338 2-Port Mini SAS HD PCIe RAID Card
Gigabyte CRA3338 12Gb/s SAS RAID Card, PCIe 3.0 x8, with 2x Mini-SAS HD SFF8643 for upto 8x SAS 12Gb/s Ports
Scan code:
LN90735
Manufacturer code:
CRA3338
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview
Gigabyte 2-Port Mini SAS HD PCIe 3.0 x8 Expansion Card, supporting up to 8x SAS 12Gb/s ports & Firmware RAID.
Features
• 2x Mini-SAS HD SFF8643 connectors up to 8x SAS 12Gb/s ports.
• Up to 14 x physical devices supported via SAS expander.
• LSI® SAS3008 controller.
• Software RAID 0/1/1E/10.
• PCIe x8 (Gen3 x8 bus).
• 167.6 x 64.4 mm.
Specifications
• Ports:
- 2x internal Mini-SAS HD SFF8643 connectors for up to 8x SAS 12Gb/s ports.
- Supports SAS / Enterprise SATA hard drives.
• Controller: LSI® SAS3008
• RAID:
- Software RAID 0/1/1E/10
- Integrated RAID (IR)
- 14 spread across 2 volumes
- RAID 0 10 per volume
- RAID 1 2 per volume
- RAID 1E 10 per volume
- RAID 10 10 per volume
- RAID key in option to enable software RAID5
• Interface: PCIe x8 (3.0 x8 bus)
• Dimension: 167.6 x 64.4 mm
• Format:
- Half-length card.
- Available with full-height or low-profile brackets.
• Part No: 9CRA3338NR-00
• Includes:
- 1x Full-height bracket.
- 1x Low-profile bracket.
• Up to 14 x physical devices supported via SAS expander.
• LSI® SAS3008 controller.
• Software RAID 0/1/1E/10.
• PCIe x8 (Gen3 x8 bus).
• 167.6 x 64.4 mm.
Specifications
• Ports:
- 2x internal Mini-SAS HD SFF8643 connectors for up to 8x SAS 12Gb/s ports.
- Supports SAS / Enterprise SATA hard drives.
• Controller: LSI® SAS3008
• RAID:
- Software RAID 0/1/1E/10
- Integrated RAID (IR)
- 14 spread across 2 volumes
- RAID 0 10 per volume
- RAID 1 2 per volume
- RAID 1E 10 per volume
- RAID 10 10 per volume
- RAID key in option to enable software RAID5
• Interface: PCIe x8 (3.0 x8 bus)
• Dimension: 167.6 x 64.4 mm
• Format:
- Half-length card.
- Available with full-height or low-profile brackets.
• Part No: 9CRA3338NR-00
• Includes:
- 1x Full-height bracket.
- 1x Low-profile bracket.

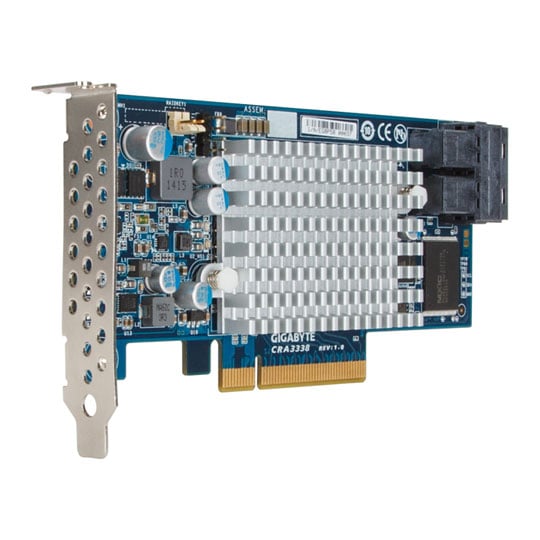

Gigabyte CRA3338 2-Port Mini SAS HD PCIe RAID Card
![Gigabyte CRA3338 2-Port Mini SAS HD PCIe RAID Card]()
