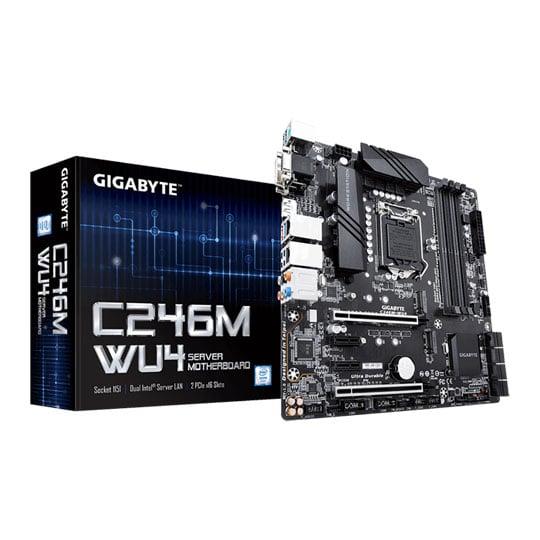

Gigabyte Intel XEON Micro-ATX Server Motherboard
Gigabyte C246M-WU4 Intel XEON Micro-ATX Server Motherboard, supports DDR4 ECC, PCIe (x16), Dual Intel Server GbE LAN
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Intel® Xeon® E processor and ECC memory
Intel® Xeon® E processor provides enhanced performance and capability. Support for Error-Correcting Code (ECC) memory, it can eliminate small data discrepancies and prevent data corruption to ensure reliability for critical applications while helping to reduce system crashes.
Broad DDR4 Compatibility and Support
GIGABYTE partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with GIGABYTE Motherboards. GIGABYTE has verified over 1000+ different modules to ensure performance in a GIGABYTE built system.
NVIDIA® QUADRO® Professional Graphics Support
NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers. NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.
2 PCIe x16 Slots for Multi-Cards
Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution.
Large Storage Capacity
There are 8 SATA 6GB/s ports for mass storage requirements.
Dual M.2 for SSD
C246M-WU4 with dual M.2 connectors provides better upgradability for SSD devices. Delivering up to 32Gb/s transfer speed, the dual M.2 connectors provide an ideal storage solution with RAID modes.
Performance Fueled by Optane
The GIGABYTE C246 platform supports Intel’s latest Optane technology. Optane fuels storage performance by acting as a cache drive giving users a significant boost compared to traditional mechanical drives.
Supports up to Three Monitor Displays
C246M-WU4 can connect up to three displays at the same time with onboard DVI-D, DisplayPort, and VGA connectivity. DisplayPort supports up to 4K UHD@60Hz
Carefully Selected Components
GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
• Supports DDR4 ECC & Non-ECC Un-buffered memory.
• 2 PCIe x16 Slots & 2 PCIe x1 Slots.
• Dual Intel® Server GbE LAN support Intel® vPro Technology.
• Large storage capacity: 8 SATA3 Ports.
• Dual M.2 support Intel® Optane™ Memory.
• Next-gen transfer speeds: USB 3.1 Type-A connection.
• Supports up to Three Monitor Displays.
• Monitor HDDs status by SGPIO.
