Scan code: LN68113 Manufacturer code: GB-BXBT-1900

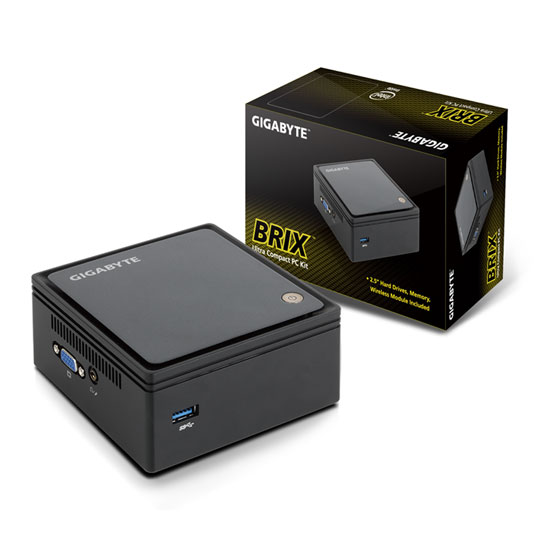

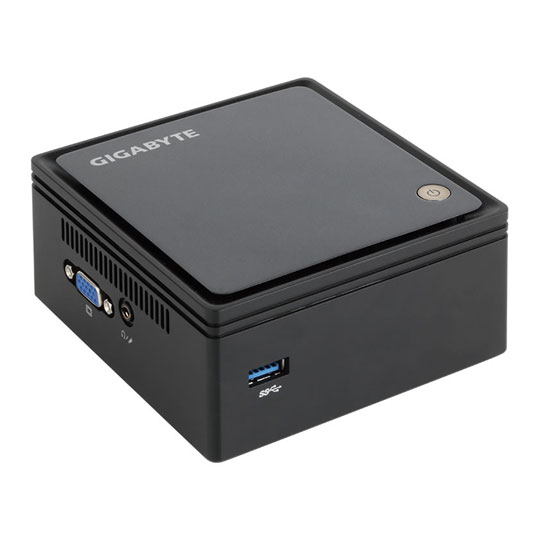

Gigabyte Brix Compact Quad Core J1900 Barebones PC Kit BXBT-1900

Gigabyte Brix BXBT-1900 Barebone Mini PC Kit, Intel Celeron Quad Core, DDR3L, HDMI/VGA, WiFi/BT, 2.5" SATA II, VESA

FREE Bullguard Internet Security 2018 3 User/1 year Worth 19.99
Thumbnail 1 : Gigabyte Brix Compact Quad Core J1900 Barebones PC Kit BXBT-1900 Thumbnail 2 : Gigabyte Brix Compact Quad Core J1900 Barebones PC Kit BXBT-1900 Thumbnail 3 : Gigabyte Brix Compact Quad Core J1900 Barebones PC Kit BXBT-1900 Thumbnail 4 : Gigabyte Brix Compact Quad Core J1900 Barebones PC Kit BXBT-1900
Scan code: LN68113 Manufacturer code: GB-BXBT-1900
FREE Bullguard Internet Security 2018 3 User/1 year Worth 19.99
Was: £107.48
£104.99
From £8.75 / month (APR 0%)
Monthly Payment: £17.50
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £104.99
Monthly Payment: £8.75
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £104.99
Total inc. interest: £104.99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 25th Sep 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview tHIS KIT REQUIRES 2.5" HDD OR SSD and SO-DIMM DDR3L Memory to be purchased Separately

Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based high polish surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.

Intel® Celeron J1900
Based on the Silvermot micro-architecture, utilizing the 22nm process technology. The SoCs feature significant improvements in computational power, energy efficiency, enhanced graphical and media performance making the BRIX ideal for thin clients, retail transactional clients, and digital signage.

Advanced Features For Power Users
The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, it’s designed to deliver the most intuitive and integrated operating systems in the world.

Trouble-Free Setup
The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

Just add your choice of Low Voltage DDR3L RAM, 2.5" SATA Solid State/Hard Drive & Windows Operating System, then you'll be ready to connect your completed Gigabyte BRIX to any compatible Keyboard, Mouse, Monitor/TV to work, play or relax with your new PC.


Note: This is a Barebone BRIX Kit. RAM Memory, SSD/HDD Storage & Operating System (Windows) are not included. Features • Features 22nm Intel® Celeron J1900 to deliver to the most intuitive and integrated operating systems in the world.
• Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 3Gbps).
• Ultra compact PC design – 0.69L(56.1x 107.6 x 114.4mm).
• 1x SO-DIMM DDR3L 1.35V Slots (1333 MHz).
• Preinstalled IEEE 802.11 b/g/n Wi-Fi / Bluetooth 4.0 Mini-PCIe card.
• Supports dual displays via a VGA and a HDMI port.
• Gigabit LAN.
• Audio jack (Headphone/MIC).
• VESA mounting bracket (75 x 75mm + 100 x 100mm).

Note: Barebone BRIX accept Low Voltage 1.35v DDR3L SO-DIMM Modules ONLY.
Specifications
Edition
Form Factor mini PC
CPU Included Yes
CPU Type Intel Celeron
CPU Model J1900
Architecture
Manufacturing Process
Unlocked CPU No
Core Quad Core
No. of Threads 4
Clock Speed 2.0 GHz
Burst Frequency 2.42 GHz
CPU Cache
CPU Cooler
Max. TDP
CPU Socket Integrated CPU
Chipset System-on-Chip
Motherboard Form Factor
Motherboard Model
Memory Type DDR3L SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Channels
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR3L - 1333
Max. Memory Capacity 8GB (1x8GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed 688 MHz
Max. GPU Speed 854 MHz
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution 2048x1152
Graphics Interface On-board
Expansion Slots 1 x Half-size Mini PCIe for WiFi/BT
SATA SATA2
Storage Drive Included No
Storage Drive Type
Storage Drive Capacity N/A
Optical Drive None
Drive Bays 1 x 2.5" Internal (up to 9.5mm thickness)
Backplane I/O
RAID Support N/A
Internal I/O 1 x SATA II - 3Gb/s
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Power Button
  • 1 x USB 3.0

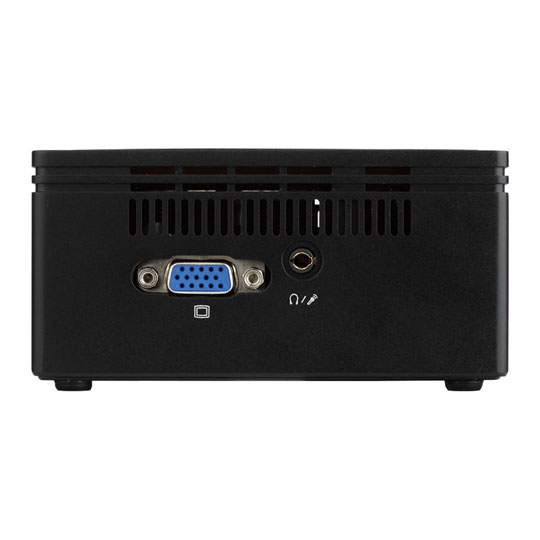

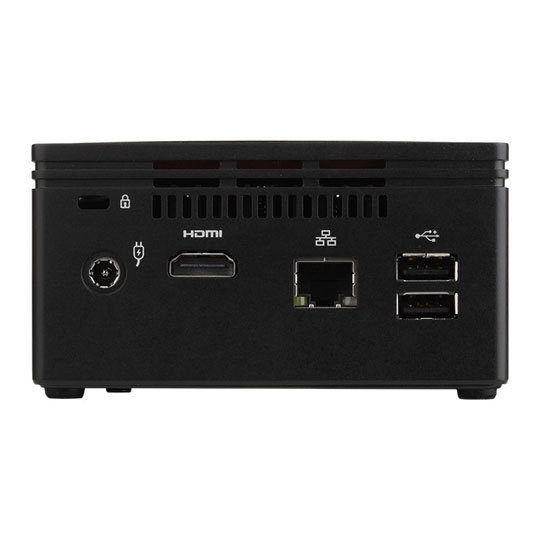

Back Panel
  • 1 x 10/100/1000 (LAN)
  • 1 x 2-in-1 Audio Jack
  • 1 x D-Sub (VGA) Out
  • 1 x DC-In Jack
  • 1 x HDMI 1.4a
  • 1 x Kensington Lock Slot
  • 2 x USB 2.0
  • 1 x WiFi 802.11bgn/BT4.0 Module
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System O/S Not Included - Please Buy Separately
Colour Black
Dimensions 107.6 x 56.1 x 114.4 mm (mm WxHxD)
Weight
Includes
Notes
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
Loading Please Wait

Please wait . . .

Reviews
Questions & Answers

can cpu be upgraded with an i3 processor of my own

Asked by: markh2910
No. The CPU is soldered to the board.
Answered by: BroughtlandBrambleworth
Date published: 2017-05-22
