Scan code: LN117980 Manufacturer code: GB-BSI5-1135G7

Gigabyte BRIX PRO Intel Core i5 Barebone Mini PC

Gigabyte Barebone BRIX PRO Kit GB-BSI5-1135G7, Intel i5-1135G7, DDR4, HDMI 2.0, ax WiFi/GbE/BT, M.2 PCIe, USB/HDMI/TB4

Thumbnail 1 : Gigabyte BRIX PRO Intel Core i5 Barebone Mini PC Thumbnail 2 : Gigabyte BRIX PRO Intel Core i5 Barebone Mini PC Thumbnail 3 : Gigabyte BRIX PRO Intel Core i5 Barebone Mini PC Thumbnail 4 : Gigabyte BRIX PRO Intel Core i5 Barebone Mini PC
Scan code: LN117980 Manufacturer code: GB-BSI5-1135G7
£459.49Item currently awaiting an ETA
Pre order
From £19.15 / month (APR 0%) or 0% for 4 months
Monthly Payment: £38.29
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £459.49
Total inc. interest: £459.49
Monthly Payment: £19.15
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £459.49
Total inc. interest: £459.49
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £11.48 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Gigabyte BRIX PRO Barebone Mini PC with Intel Core i5 CPU

Gigabyte Brix Pro

The Perfect Fit for Any Space The Gigabyte BRIX PRO are following a modern design with metal and plastic parts. They are compact to fit perfectly in any environment from home to a retail store. They can be placed horizontally or vertically according to your needs every time. They feature a VESA mount so they can be attached to the back of the display or almost anywhere! With a broad choice of processors covering the entire performance spectrum, BSi5-1135G7 can serve the most demanding applications with its high processing power and the multiple display support.

There are 4 x HDMI Ports which support a resolution of up to 4K/60P and even a Thunderbolt 4 Port. There is also 2.5G & Gigabit Ethernet along with AX201 Wifi 6 for fast internet connection and for all of your connectivity needs. GIGABYTE BRIX PRO SBC Commercial PC series are focused on delivering the fastest and latest M.2 technology to enthusiasts who want to maximize their systems’ potential.

Intel i5-1135G7Processor

Intel Iris XeGraphics

64 GBMax Memory Support

3200 MHzDDR4 Memory Speed

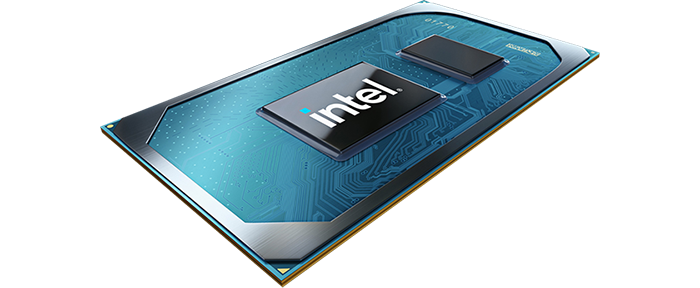

Multi-Task with a Tiger Lake U-Processor

11th Gen CPU

New CPU and Xe Graphics ArchitectureTiger Lake platform delivers industry transforming intelligent compute and innovates experiences that revolutionizes the Modern PC with significant improvements in AI, Graphics, and Media performance and capabilities that are unlocked with intelligent optimization tools. Tiger Lake U-processor series, that are equipped on the GIGABYTE BRIX PRO SBC Commercial PC series, outperform its predecessors. On both single-threaded and multi-threaded tasks Tiger Lake platform is faster up to more than 40%.

Reap the Benefits of Beautiful Graphics

radeon graphics

IMPRESSIVE GRAPHICS PERFORMANCETiger Lake U-processor series introduce a new integrated graphics architecture, the Iris Xe. Iris Xe is stronger than the previous UHD 620 IGP. 4X faster with better performance/watt is capable to offer amazing results on your daily tasks than ever before. Moreover, new Iris Xe supports native 4 independent output capacity.

All your Connectivity Needs!

HDMI PORTS

HDMI OUTPUTS

M2 PORTS

M.2 FOR SSD

USB PORTS

USB PORTS

LAN

GBE LAN PORTS

TPM

ONBOARD TPM

NEVER RUN OUT OF CONNECTIONS GIGABYTE BRIX PRO SBC Commercial PC series offer a plethora of available connections. All models provide multiple ports from USB 4.0 and USB 3.2 connection all the way to Wi-Fi 6 connectivity to 4x HDMI ports, able to cover the needs of a business all the time.

Thunderbolt 4 Gives you More Freedom!

HDMI PORTS

40 Gb/s Data Transfer
8x Faster than USB 3.0

M2 PORTS

Dual 4K or One 5K
Displays

USB PORTS

Charging

LAN

Compatible with
Existing Devices

A truly universal cable connectivity solution for work and playOne universal computer port so you don’t need to remember what different ports do when they all have the same shape. Always 40Gb/s for connecting to compact and powerful Thunderbolt docks, displays, fast storage or any USB accessory. BRIX PRO supports eGPU box for additional 2D/3D performance gains.

Quad-Display Support (4x4K)

design

EASILY PLACED AND READY TO GO GIGABYTE BRIX PRO SBC Commercial PC series support up to 4 independent displays, through its 4x HDMI ports, with 4K resolution giving users the flexibility to configure their working environment without any limitation.

Intel Wi-Fi 6 802.11ax

radeon graphics

4x more capacity for more devices Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps.

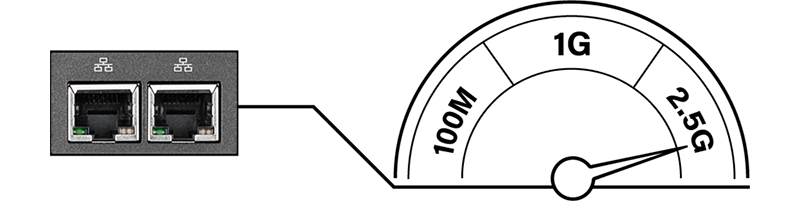

Intel 2.5 GbE LAN

radeon graphics

faster transfer speeds with 2.5g Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet.

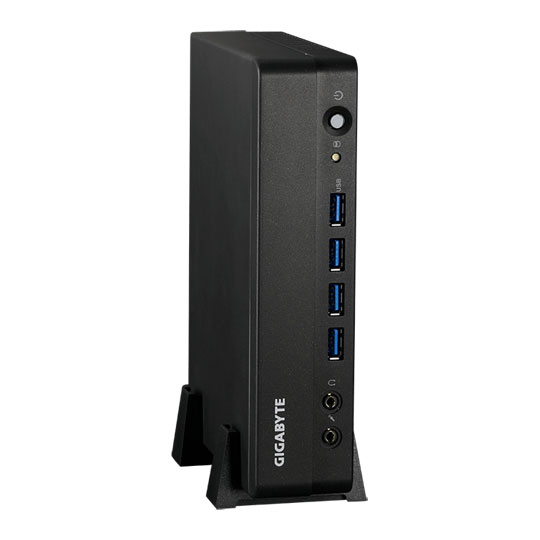

Place your Brix Pro Almost Anywhere

HDMI PORTS

VESA Bracket Included

M2 PORTS

Vertical PlacementStands Included

USB PORTS

Horizontal Placement

Genious design and looks amazing The BRIX PRO models are following a modern design with metal and plastic parts. They are compact to fit perfectly in any environment from home to a retail store. They can be placed horizontally or vertically according to your needs every time. They feature a VESA mount so they can be attached to the back of the display or almost anywhere!

Specifications
Edition GB-BSI5-1135G7
Form Factor UCFF
CPU Included Yes
CPU Type Intel Core i5
CPU Model i5-1135G7
Architecture Tiger Lake
Manufacturing Process 10 nm
Unlocked CPU No
Core Quad Core
No. of Threads 8
Clock Speed 2.40 GHz
Burst Frequency 4.20 GHz
CPU Cache 8MB
CPU Cooler
Max. TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model 3.5" SBC, 146 x 102mm
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz) DDR4 - 3200
Max. Memory Capacity 64GB
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots N/A
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
Optical Drive None
Drive Bays N/A
Backplane I/O
RAID Support
Internal I/O N/A
Network Interface Type
  • 802.11ax WiFi LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.2
  • 1 x Intel® I219V (Gigabit LAN)
  • 1 x Intel® I225V (2.5GbE LAN)

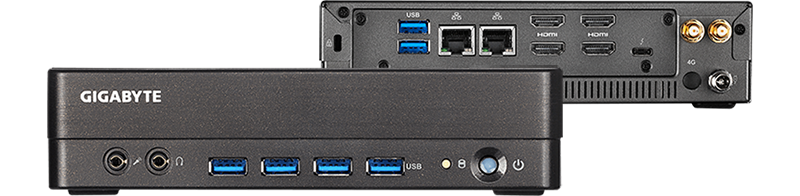

Front Panel
  • 1 x HDD Activity LED
  • 1 x Headphone Out
  • 1 x Mic In
  • 1 x Power Button
  • 4 x USB 3.2 Gen1 Type-A
Back Panel
  • 1 x DC-In Jack
  • 4 x HDMI 2.0a
  • 2 x RJ-45
  • 1 x Thunderbolt 4
  • 2 x USB 3.2 Gen2 Type-A
  • 2 x Wi-Fi antenna connector holes
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable Yes
PSU Wattage
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System Not Included
Colour Black
Dimensions 196.2 x 44.4 x 140 (mm WxHxD)
Weight
Includes
Notes
Storage Drives
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Additional Information
Scan Code LN117980
Model Number GB-BSI5-1135G7
GTIN 889523025253
