Gigabyte B850 AI TOP DDR5 PCIe 5.0 AMD ATX Motherboard
Mastermind of Machine Logic A pulsing core of raw computational force, the GIGABYTE AI TOP B850 is more than a motherboard—it’s a gateway to intelligence forged at your fingertips. Train your own AI on your desk, pushing the limits of 236B LLM local training with the sheer muscle of AMD Ryzen™ 9000, 8000, and 7000 series processors. Data flows through its Dual Channel DDR5 architecture, memory expanding and adapting with AMD EXPO™-ready modules, sculpting precision from chaos. Three M.2 slots, two of them PCIe 5.0 x4, inhale data at breakneck speeds, feeding the system with unrelenting efficiency. The network fabric thrums with Dual 10GbE LAN and Wi-Fi 7, transmissions slicing through interference, propelled by an ultra-high gain directional antenna that locks onto signals like a predator in the digital wild. A storm of silicon and circuits, AI TOP is not just a motherboard—it’s a machine built to think, to evolve, to redefine what personal AI can be.
B850AMD Chipset
AM5CPU Socket
DDR5 DIMMMax. 256GB (Dual Channel)
ATXForm Factor

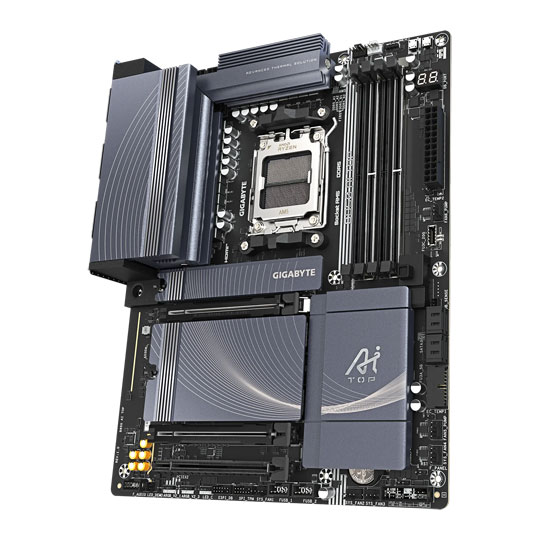

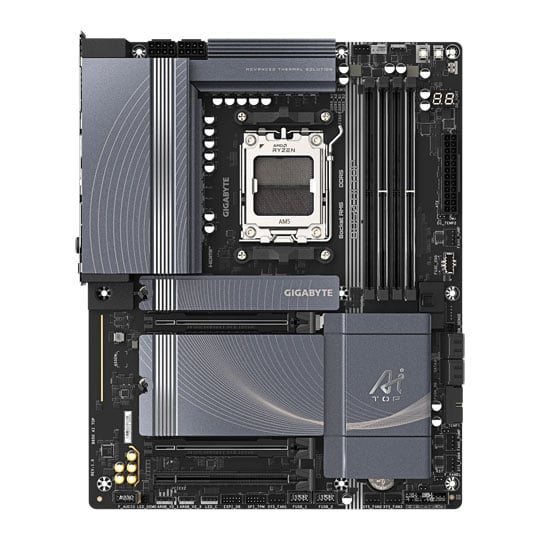

Fully-Featured Motherboard
1
Twin Digital VRM
• Premium Chokes and Capacitors
• 8-Layer Copper PCB
• Mid-Loss PCB
2
AMD AM5 Socket
• Supports 7000 Series Processors
• Supports 8000G Series Processors
• Supports 9000 Series Processors
3
Power Connectors
• 8+8-pin CPU Power with Solid pin
• 24-pin ATX Power Connector
4
DDR5 Memory
• Overclocking support up to 8600 MT/s
• 4 x Dual Channel DIMMs
5
Ultra Durable M.2 Heatsink
• 2 x PCIe 5.0 M.2 Slots
• 1 x PCIe 4.0 M.2 Slots
6
Fan Headers & Cooling
• Smart Fan 6 Support
• 8 x PWM/DC Headers
7
Full-length PCIe Slots
• 1 x Ultra Durable PCIe 5.0 x16
• 1 x Ultra Durable PCIe 5.0 x8 (Full Length)
• 1 x PCIe 4.0 x4 (Full-Length)
8
SATA Support
• 4 x SATA III (6Gb/s)
Is your Windows Genuine?
Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
CLICK HERE TO FIND OUT MORE >Snap Into Action with AORUS AI SNATCH
Smart and Safe Overclocking AI SNATCH simplifies overclocking with a user-friendly interface that automatically calibrates performance settings. Built-in safeguards, such as over-temperature and over-current protections, keep your components secure while you gain extra speed. This approach lets you push your system confidently, enjoying enhanced performance without worry.
Enhanced AI Processing – Up to 8% Improvement At the heart of AI SNATCH is improved AI performance, offering up to an 8% increase. This acceleration sharpens decision-making and speeds up data tasks, from language processing to reinforcement learning. The result is a system that responds more quickly and runs smoother throughout your daily computing tasks.
One-Click AccelerationWith a single click, your CPU and DDR5 memory performance can be boosted by up to 9%. The smart interface quickly adjusts key settings, allowing for faster app launches, improved multitasking, and overall snappier performance that enhances both gaming and work experiences.
Up to 9% Better Performance Per WattImproved power management under AI SNATCH leads to up to a 9% boost in CP/Per Watt performance. This refined control reduces energy consumption while maintaining high processing speeds, resulting in a cooler, more sustainable setup. Experience a system that delivers extra performance alongside reduced power usage for round-the-clock reliability.
A Boost to Your System
Digital Twin VRM DesignThis board uses a Digital Twin Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With 60A DrMOS modules, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from AMD Ryzen™ processors.
16VCORE Phases
2SOC Phases
2VDD_MISC Phases
Quick-Release ClickGigabyte has designed EZ-Latch Plus for the PCIe 5.0 x16 slot, making hardware installation smoother and more convenient. This innovative feature allows you to quickly and easily secure or release your GPU, without needing to shake and struggle with traditional latches.
Note: Image for Reference Only
Cool Under FireGigabyte shields M.2 slots with durable, easy-to-remove heatsinks that keep high-speed storage running cool under pressure. Designed to combat the intense heat of rapid data transfers, these thermal guards prevent throttling and maintain peak performance, ensuring your SSDs stay fast and reliable—even when the system is pushing its limits.
x2Gen5 M.2 22-80/110 Slots
x1Gen4 M.2 22-80/110 Slots
Zenith of DDR5Gigabyte B850 boards deliver DDR5 overclocking speeds while offering excellent compatibility. Their advanced BIOS features AMD EXPO and custom SPD profiles, making memory tuning straightforward. Additionally, shielded daisy-chain memory routing on an intricately layered PCB built with server-grade materials delivers reliable quality.
8,600 MT/sMemory Transfer Rate
AMD EXPOOverclocking Support
AI TOP Software
Model Training ToolsManage datasets effortlessly with RAG technology, intelligently selecting the best data for your model while providing instant performance validation. AI TOP ensures your training process is streamlined, allowing for smarter model refinement without unnecessary complexity.
Memory OffloadingTrain massive 405B-parameter models with ease by offloading excess data to system memory and SSDs. This optimised memory management expands your training capacity, preventing slowdowns and keeping your workflow running smoothly.
Training SchedulerMaximise efficiency by scheduling training sessions to run during off-peak hours, reducing electricity costs while maintaining performance. AI TOP ensures your system works smarter, adapting to your usage patterns.
Reinvented WorkflowThe AI TOP Utility simplifies AI training with an easy-to-use interface, supporting both LLMs for text and LMMs for images. No programming expertise is needed—just set up, train, and refine your models with an intuitive, step-by-step approach.
All-Round Connectivity

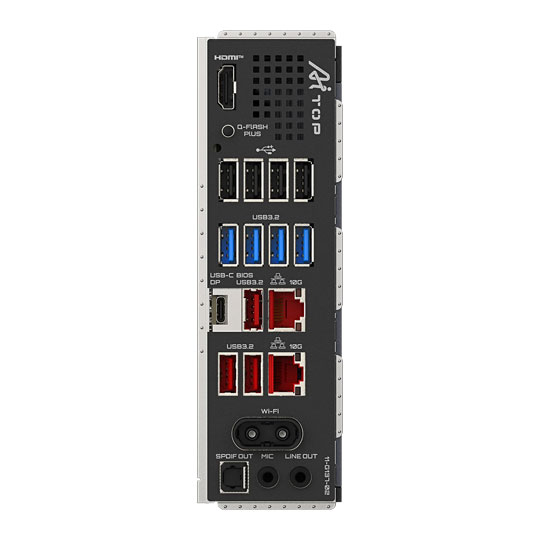

The B850 AI TOP has all the connectivity you need, featuring a Q-Flash Plus Button for effortless BIOS updates, Dual Audio Jacks and S/PDIF-Out (Optical) for crisp, high-fidelity sound, and HDMI 2.1 for stunning high-resolution visuals. Dual Antenna Connectors and Bluetooth 5.4 ensure strong, reliable wireless performance for seamless networking.
Extensive USB ConnectionsThis board offers four USB 2.0 ports for essential peripherals, four USB 3.2 Gen1 Type-A ports for high-speed transfers, and three USB 3.2 Gen2 Type-A ports, alongside a USB Type-C port for enhanced speed and versatility.
Dual 10 GbE LANDominate your network with Dual 10GbE LAN, delivering blazing-fast speeds, ultra-low latency, and unshakable stability for the most demanding workloads. Experience enterprise-level connection for your AI, Streaming and Gaming needs.
Wi-Fi 7 Antenna802.11be expands wireless performance with a third 6GHz band, cutting congestion and interference from older devices. With wider channels and ultra-low latency, Wi-Fi 7 delivers faster, more consistent speeds in high-traffic environments.
Comprehensive Cooling
Massive VRM Heatsink ExpansionMore surface area means better heat dissipation, keeping power delivery cool and stable under extreme loads.
5W/mK Thermal Pads for Rapid Heat TransferHigh-performance thermal pads pull heat away from key components, preventing throttling and maintaining efficiency.
I/O Shield Venting for Passive CoolingStrategic cutouts in the rear panel help dissipate heat, reducing overall system temperatures without extra fans.
Onboard Temperature SensorsAccess real-time monitoring of system thermals in the BIOS, with external sensor support for fine-tuned cooling control.
HyperTune BIOS
Simple & Fast SetupEASY MODE delivers a user-friendly interface that presents essential hardware data all on one page. No more digging through menus—just everything you need for fast setup and smooth navigation, right where you want it.
Rapid CustomisationThe Quick Access function puts nine essential settings at your fingertips, including Q-Flash for BIOS updates, SPD Info for memory details, and Favourites for faster adjustments, making navigation faster and more efficient.
AI POWERED PERFORMANCEHyperTune BIOS leverages AI-driven technology to improve system signals, offering a 95%+ boost in efficiency. This next-gen optimisation elevates memory clock speeds and system performance, pushing your rig beyond expectations.
Smart Fan 6Adjust Fan Curves with 7 Control Points, fine-tuning speeds through dual-mode graphs or manual input. Save Presets to BIOS ROM and keep them locked in, even after updates. A refreshingly simple solution for keeping your fans in check.
Illuminate your PC with RGB Fusion
RGB FUSION 2.0RGB Fusion 2.0 offers more personalisation options than ever, letting you customise your system’s lighting to match your vibe. With a refreshed app and complete RGB support, you can control every LED, adapting your rig's glow to suit any theme. It covers not just your main board but also works with Gigabyte graphics cards, monitors, keyboards, and cooling systems, allowing you to craft a synchronised light show across your devices. The vibrant hues and varied effects make your setup sparkle and shine, adding a burst of colour and flair to your gaming space.
RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals - you can customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you immersive gaming experiences.
Gigabyte RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the Gigabyte RGB Fusion mobile app you can adjust lighting without needing to directly access your PC. This makes it even easier for you to adjust colors and change speeds for different modes on the fly.
