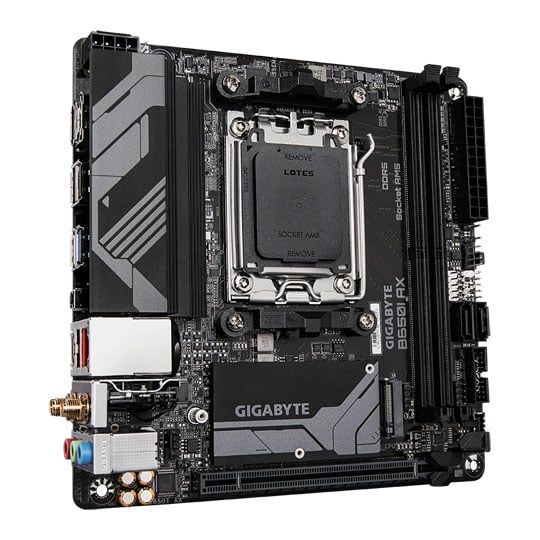

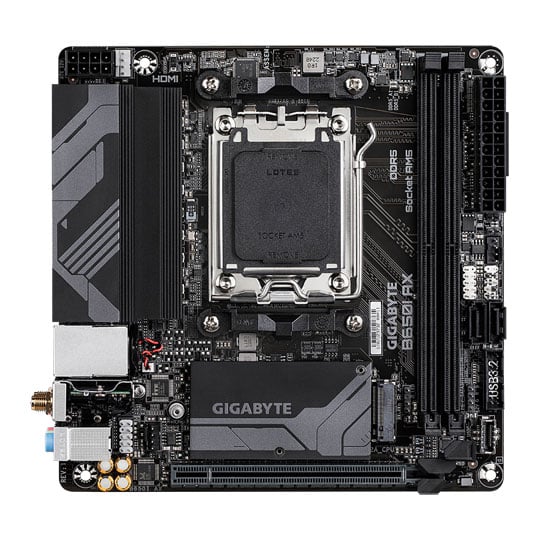

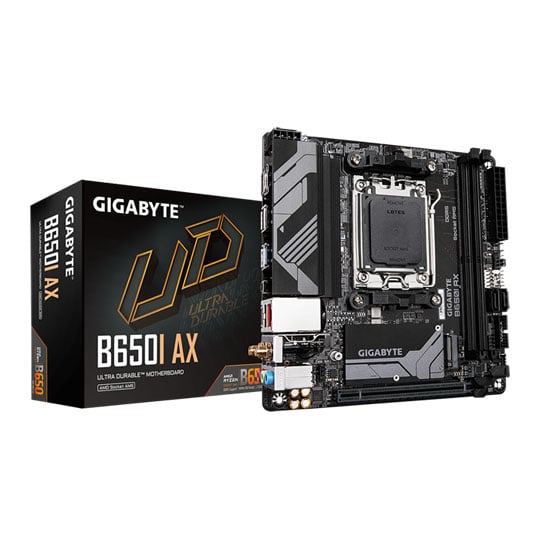

Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
New
Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
Scan code: LN175686 Manufacturer code: B650I AX
£143.99Item overdue since 14 October 2026
Pre order
Popular

5 people viewed this product in the last few hours

  • Thumbnail 1 : Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
  • Thumbnail 2 : Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
  • Thumbnail 3 : Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
  • Thumbnail 4 : Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
New

Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard

Gigabyte B650I AX, AMD B650, AM5, DDR5, PCIe 4.0, 1x M.2, 2.5G/WiFi 6E, USB 3.2 Gen2, AMD EXPO, Mini-ITX
MORE INFO
MORE INFO

Scan code: LN175686 Manufacturer code: B650I AX
£143.99
£5.48 Next day delivery
Item overdue since 14 October 2026
Pre order
Pay in 3 interest-free payments of £48.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £13.05 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Product Overview

Gigabyte B650i AX Mini ITX AM5 Motherboard

The GIGABYTE B650I AX Mini-ITX motherboard provides a compact and versatile foundation for AMD PC builds, supporting AMD Ryzen™ 7000 and Ryzen™ 8000 Series processors via the AM5 socket. Featuring dual-channel DDR5 memory with AMD EXPO™ support, a PCIe 4.0 x16 slot and a PCIe 4.0 x4 M.2 connector, it delivers fast performance and expansion in a space-saving design. Integrated Wi-Fi 6E, Bluetooth 5 and 2.5GbE LAN provide flexible networking, while Smart Fan 6, PCIe EZ-Latch and Q-Flash Plus simplify system cooling, graphics card removal and BIOS updates.


Powerful Performance

The GIGABYTE B650I AX features a 5+2+1-phase digital VRM design with high-performance DrMOS to deliver precise power to supported AMD Ryzen™ processors. Built with a focus on reliability, its DDR5 memory support includes AMD EXPO™ profiles for straightforward memory tuning, while the board's carefully designed PCB helps maintain signal integrity. Together, these features provide a dependable foundation for compact AM5 systems.


Future-Ready Connectivity

Wi-Fi 6E
Enjoy fast, reliable wireless connectivity with integrated Wi-Fi 6E, supporting the 6GHz band for compatible devices and networks. Bluetooth 5 also provides wireless connectivity for compatible peripherals and accessories.

PCIe 4.0 Hardware Design
With a PCIe 4.0 x16 expansion slot and a PCIe 4.0 x4 M.2 connector, the B650I AX supports compatible graphics cards and high-speed NVMe SSDs. PCIe 4.0 offers increased bandwidth over PCIe 3.0, helping maximise performance from supported hardware.

2.5GbE LAN
The integrated 2.5GbE LAN port delivers wired network speeds of up to 2.5Gbps, offering greater bandwidth than standard Gigabit Ethernet when paired with compatible networking equipment. It's ideal for fast file transfers, online gaming and other bandwidth-intensive tasks.

Hi-Fi Audio
High-quality audio capacitors help deliver clear, detailed sound, while GIGABYTE's Audio Noise Guard separates sensitive analogue audio components from potential electrical interference at the PCB level. This helps provide an immersive audio experience for gaming, music and everyday entertainment.


D.I.Y Made Easy

The GIGABYTE B650I AX makes system building and maintenance simpler with a range of convenient hardware and BIOS features. PCIe EZ-Latch allows for easier graphics card removal, while Q-Flash Plus enables BIOS updates without installing the CPU, memory or graphics card. Smart Fan 6 provides customisable fan curves, multiple temperature sensors and Fan Stop functionality for tailored cooling, while GIGABYTE Control Centre brings supported hardware management features together in one intuitive interface.


Gigabyte Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularised control components only for installed hardware
• Auto update function to keep system up to date and support future products

Features

• AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
• Unparalleled Performance:5+2+1 Phases Digital VRM Solution
• Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
• SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
• EZ-Latch:PCIe x16 Slot with Quick Release Design
• Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
• Extended Connectivity:DP, HDMI
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Specifications
Core Specifications
Edition B650I AX
Form Factor Mini-ITX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) RDIMM / RDIMM 3DS
Memory Speed (Mhz) DDR5 - 6400(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x PCIe 4.0 x16
  • 2 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 2 x 4-pin System Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Gen 2 Header
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x M.2 Connector
  • 1 x RGB (RGBW) LED Strip Header
  • 2 x SATA III - 6Gb/s
  • 1 x speaker header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi + BT5.3

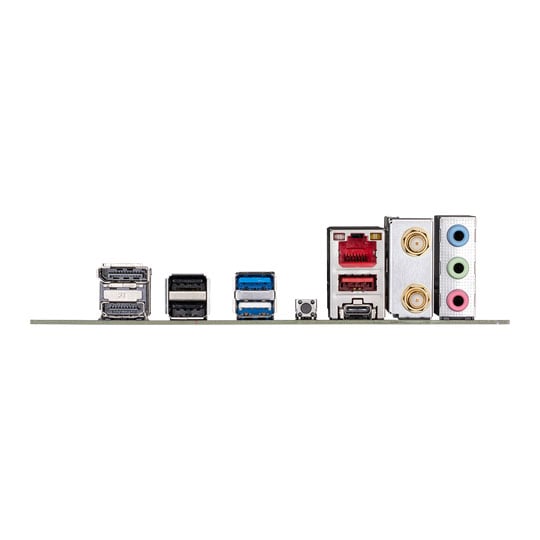

Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 3 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 1 x USB 3.2 Gen2 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 170 x 170 mm
Note
Additional Information
Scan Code LN175686
Model Number B650I AX
GTIN 4719331859190
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
Buying Guide
Need help choosing the right board? Read our AMD Motherboard Buying Guide
Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
Gigabyte B650I AX AM5 DDR5 PCIe 4.0 mITX Motherboard
