Scan code: LN129764 Manufacturer code: B650 GAMING X AX

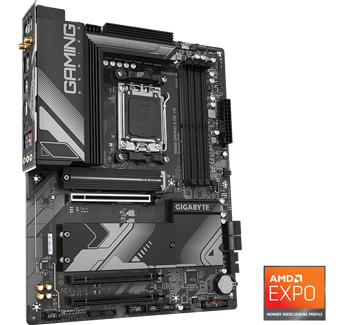

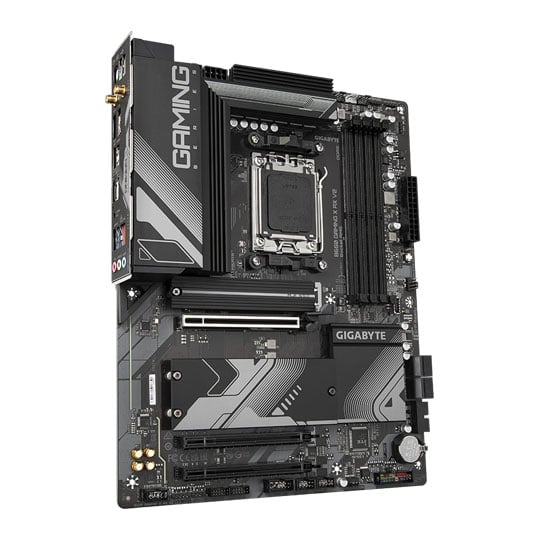

Gigabyte AMD Ryzen B650 GAMING X AX AM5 DDR5 WiFi 6E ATX Motherboard AMD EXPO

Gigabyte B650 GAMING X AX, AMD B650, AM5, DDR5, SATA3, PCIe 4.0, 3x M.2, 2.5GbE/WiFi 6E, AMD EXPO™, ATX

Thumbnail 1 : Gigabyte AMD Ryzen B650 GAMING X AX AM5 DDR5 WiFi 6E ATX Motherboard AMD EXPO Thumbnail 2 : Gigabyte AMD Ryzen B650 GAMING X AX AM5 DDR5 WiFi 6E ATX Motherboard AMD EXPO Thumbnail 3 : Gigabyte AMD Ryzen B650 GAMING X AX AM5 DDR5 WiFi 6E ATX Motherboard AMD EXPO Thumbnail 4 : Gigabyte AMD Ryzen B650 GAMING X AX AM5 DDR5 WiFi 6E ATX Motherboard AMD EXPO
Scan code: LN129764 Manufacturer code: B650 GAMING X AX
Order now and receive it by Monday, 4th March
Was: £184.99
£173.99
Get it Monday, 04 MarIn stock
FREE DELIVERY ON THIS ITEM
From £15.77 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £15.77
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £173.99
Total inc. interest: £189.13
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 4th Mar to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

B650 GAMING X AX AMD AM5 ATX Motherboard from Gigabyte

B650 Motherboard

UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follow the latest trends to provide customers with advanced features and the latest technologies. The B650 GAMING X AX motherboard is equipped with an upgraded power solution, 1x PCIe 4.0 x16 slot, 3x M.2 slots (PCIe 4.0 x4), DDR5 support, Wi-Fi 6E and more outstanding connectivity to enable optimised performance for gaming.

AM5AMD Socket

B650Chipset

AMD Ryzen™ 7000 SeriesProcessors

ATXForm Factor

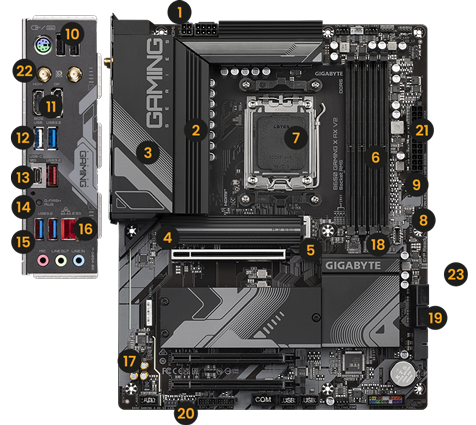

Premium Features

Performance

1 8+4 Solid Pin
CPU Power Connector

2 Direct 8+2+1
Digital VRM Design

3 Advanced
Thermal Design

4 3x M.2 Ultra Storage
Performance Connectors

5M.2 EZ-Latch

6 Dual Channel
SMD DDR5 Memory

7 24 Pin ATX
Power Connector

8 Socket AM5 Supports
AMD Ryzen™ 7000 Series Processors

9 Multi-key

10 Smart Fan 6

11 PCIe EZ-Latch

Windows 11 Logo Is your Windows Genuine?

Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.

CLICK HERE TO FIND OUT MORE >

Boost Your System

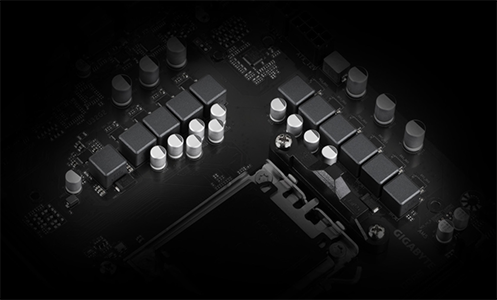

Direct Digital VRM

Direct Digital VRM Design To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE Gaming series motherboard equip the best VRM design ever built with the highest quality components.

8 VCORE Phases60A Power Stage

2 SOC Phases60A Power Stage

1 MISC Phase30A Intelligent POL

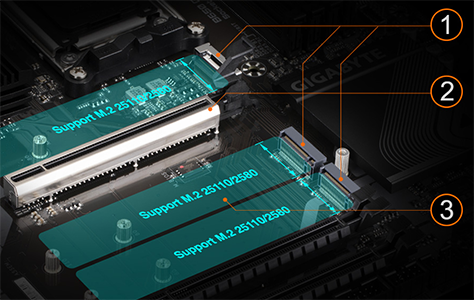

PCIe 4.0

PCIe 4.0 Hardware Design GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

XMP

EXPO & XMP SupportGIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

Outstanding Thermal Design

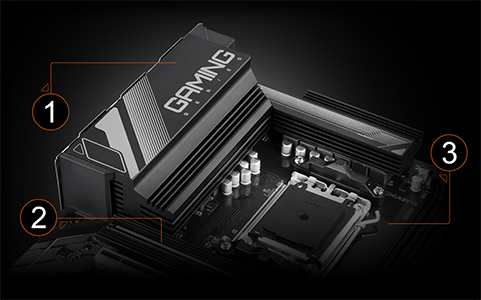

Thermal Design

1.Fully Covered
MOSFET Heatsink
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.

2. M.2
Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

3. 6-Layer &
2X Copper PCB
2X copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.

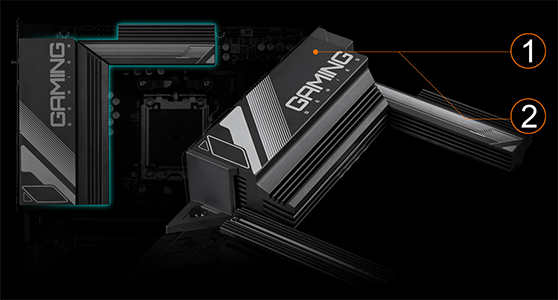

Fully Covered MOSFET Heatsink

1. 3X Large SurfaceIncreased surface area up to 3X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs. 2. Real One-piece BuildTMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.

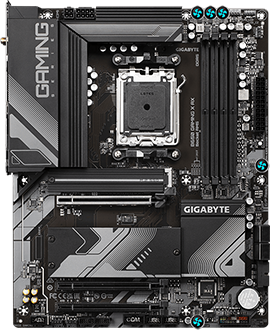

SMART FAN 6

SMART FAN 6Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Future-Proof Connectivity

WiFi6e

802.11ax Wi-Fi 6EThe latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Illuminate your PC with RGB Fusion

rgb

RGB FUSION 2.0With this GIGABYTE motherboard, RGB Fusion 2.0 is even better. Users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.

rgb software

RGB FUSION 2.0 SOFTWAREWith an intuitive interface, the RGB Fusion 2.0 software offers a better solution for customising lighting effects across all of your supported devices. From motherboards, graphics cards and peripherals, customise your gaming rig with your own style and share colour profiles with others. In addition, the new gaming mode makes lighting effects interactive with selected games to bring you the most immersive gaming experience.

app

GIGABYTE RGB Fusion APPDon't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app you can watch as you control the lighting within your gaming PC. This gives you ease of access as you adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of your PC via your smartphone.

Durability for Years to Come

pins

Solid Pin Power ConnectorsB650 GAMING X AX motherboards feature an 8+4 Solid Pin CPU Power Connector to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages • Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

bios flash

Q-Flash PlusWith GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

down

STEP 1Plug the 24pin & 8pin power supply cable into the motherboard.

up

STEP 2Download and unzip the motherboard's compressed BIOS file and rename to "gigabyte.bin", save to a USB flash-drive, and plug it into the Q-Flash USB port.

up

STEP 3Press the Q-Flash button, and the motherboard will start updating the BIOS automatically.

Take Control of your Motherboard

GIGABYTE BIOS & Control CENTERGood software goes hand in hand with perfect hardware. The B650 GAMING X AX has bundled several useful and intuitive softwares to help users to control every feature of the motherboard.

bios

Friendly User InterfaceAll new EASY MODE shows important hardware information all on one page.

My
Favorites
Add constantly used items into the favorite menu for quick access.

Storage InformationShow all kinds of storage information including SATA, PCIE and M.2 interface.

ChangelogList all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line CurveClearly show each loadline calibration setting in an intuitive curve graph.

app

Control CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

Specifications
Core Specifications
Edition B650 Gaming X AX
Form Factor ATX
CPU Socket AM5
Chipset AMD B650
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR5 - 4400(OC)
  • DDR5 - 4800
  • DDR5 - 5200
  • DDR5 - 5600(OC)
  • DDR5 - 6000(OC)
  • DDR5 - 6200(OC)
  • DDR5 - 6400(OC)
Max. Memory Capacity 128GB
Audio
Audio 7.1 Channel HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 3 x M.2, 22-80/110, PCIe Gen4x4
  • 2 x PCIe 3.0 x16 (x1 Bandwidth)
  • 1 x PCIe 4.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 1 x Clear CMOS jumper
  • 1 x CPU Cooler LED/RGB LED Strip Extension Header
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 3 x M.2
  • 1 x Reset Button
  • 2 x RGB LED connector
  • 4 x SATA III - 6Gb/s
  • 2 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen2x2 Connector
  • 1 x Water Cooling fan header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E LAN
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 2.5 Gigabit LAN
  • 1 x 802.11ax WiFi 6E + BT5.2

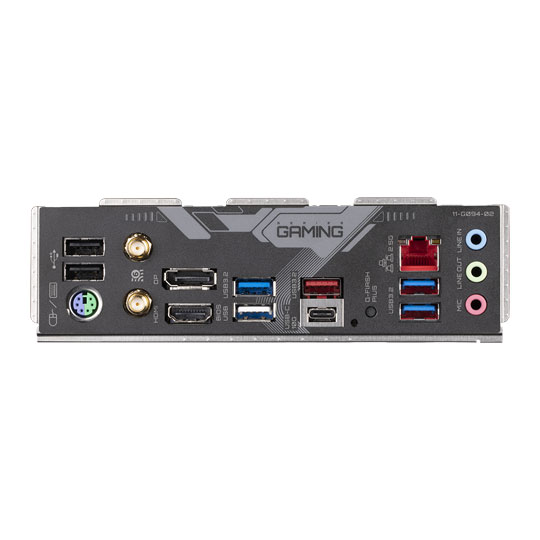

Rear I/O Connectors
  • 1 x 10/100/1000/2500 (LAN)
  • 1 x DisplayPort 1.4
  • 1 x HDMI 2.1
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Q-Flash Plus Button
  • 1 x S/PDIF-Out (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 3 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 305 x 244 mm
Note
Additional Information
Scan Code LN129764
Model Number B650 GAMING X AX
GTIN 4719331849849
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
