Gigabyte B550 EAGLE WIFI6 AM4 DDR4 PCIe 4.0 ATX Motherboard
Gigabyte B550 EAGLE WIFI6, AMD B550, AM4, DDR5, PCIe 4.0, 2x M.2, GbE, Wi-Fi 6, USB 3.2 Gen2, ATX
Email me when the availability or price changes
Finance this product
- From £9.29 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Frequently Bought Together
GIGABYTE B550 EAGLE WIFI6 Motherboard
The GIGABYTE B550 EAGLE is an AMD AM4 motherboard focused on stable power delivery, cooling, and ease-of-use features for gaming and DIY builds.
Power Delivery and CPU Support
This board uses a digital twin 10+3 phase VRM design with a 5+5 parallel power layout, premium chokes and capacitors, and a 4-layer PCB to deliver stable power to multi-core Ryzen CPUs. It supports AMD Socket AM4 Ryzen 5000, 4000, and 3000 series processors, allowing a wide upgrade range within the AM4 platform.
The UD Power Connector design (24-pin ATX with UD pins and 8-pin CPU with UD solid pins) enhances power conductivity and improves thermal dissipation at the connector points for long-term reliability. Together, these features help maintain consistent, high-powered performance, especially when overclocking or running demanding workloads.
Memory and Storage Features
The motherboard offers four DIMM slots for dual-channel DDR4 memory, enabling high capacity and bandwidth for gaming and productivity builds. Gigabyte emphasizes enhanced DDR4 memory performance and compatibility, with support for memory overclocking and XMP/EXPO profiles depending on modules and QVL.
For storage, there are two M.2 slots: one PCIe 4.0 M.2 slot and one PCIe 3.0 M.2 slot, giving you a mix of ultra-fast NVMe storage and flexible expansion. In addition, four SATA 6 Gb/s ports provide connectivity for traditional SSDs and hard drives.
Expansion Slots and PCIe Durability
The full-length PCIe 4.0 x16 slot uses a PCIe UD Slot design with stainless-steel shielding and reinforced structure to support heavy graphics cards and improve heat dissipation. There are also four PCIe 3.0 x1 slots for extra expansion cards such as sound cards, capture cards, or network adapters.
Gigabyte's PCIe EZ-Latch feature allows easy ejection of graphics cards with a single click, simplifying upgrades and maintenance inside tight cases. The reinforced slot and latch system together target both physical durability and user convenience when changing GPUs.
Thermal Design and Cooling Control
VRM Thermal Armor Advanced combines high-coverage metal heatsinks, a large surface area design, and 5 W/mK thermal pads to significantly improve MOSFET cooling performance. More grooves in the heatsinks increase airflow and help keep the power stages cool under heavy loads compared with traditional multi-piece solutions.
Smart Fan 6 provides five PWM/DC fan headers (with support for water-cooling pumps), each rated up to 24 W and protected against over-current. The fan control system offers multiple temperature inputs, customizable fan curves with slope and stair modes, the ability to stop fans at low temperatures for silence, and stores personalized profiles in BIOS ROM.

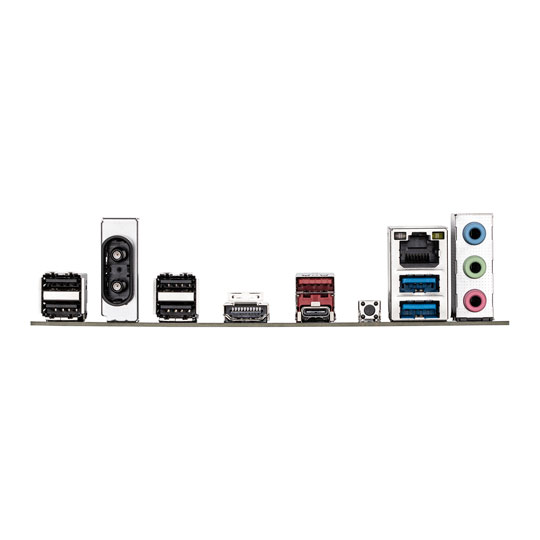

Connectivity and Rear I/O
Wired networking is handled by a Realtek Gigabit LAN controller with bandwidth management software to reduce latency and maintain low ping in congested LAN environments. Wireless 802.11ax Wi-Fi 6 enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps and 5Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. Display output is available via HDMI for use with compatible Ryzen APUs with integrated graphics.
USB connectivity includes one USB 3.2 Gen 2 port, one USB 3.2 Gen 1 Type-C, two additional USB 3.2 Gen 1 ports, and four USB 2.0 ports, covering both high-speed peripherals and legacy devices. This mix aims to give next-generation transfer speeds while retaining broad compatibility for existing accessories.
Audio and RGB Lighting
The audio subsystem uses 8-channel HD audio with high-end audio capacitors to deliver high-resolution, high-fidelity sound for games and media. An audio noise guard isolates sensitive analogue audio circuitry from PCB noise sources to reduce interference.
For lighting, RGB FUSION support includes three RGB LED headers and two ARGB LED headers, with programmable control over individual LEDs on ARGB Gen2 devices via Gigabyte Control Center (GCC). This software platform lets you coordinate illumination effects across supported Gigabyte components and tailor the look of your build to your preferences.
DIY and BIOS Features
The board is designed for a smooth DIY experience, with layout and features that simplify building and upgrading. Gigabyte's commitment to BIOS refinement aims to provide a stable platform and improved performance over time through updates.
Features
• AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors.
• Digital twin 10+3 phases VRM solution.
• Dual Channel DDR4 : 4x DIMMs.
• EZ-Latch : PCIe slots with Quick Release Design.
• Ultra-Fast Storage : 2x M.2 slots, including PCIe 4.0 x1.
• Efficient Thermal : VRM Thermal Armor Advanced.
• Fast Networking : GbE LAN & Wi-Fi 6.
• Extended Connectivity : HDMI.
• PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect.
