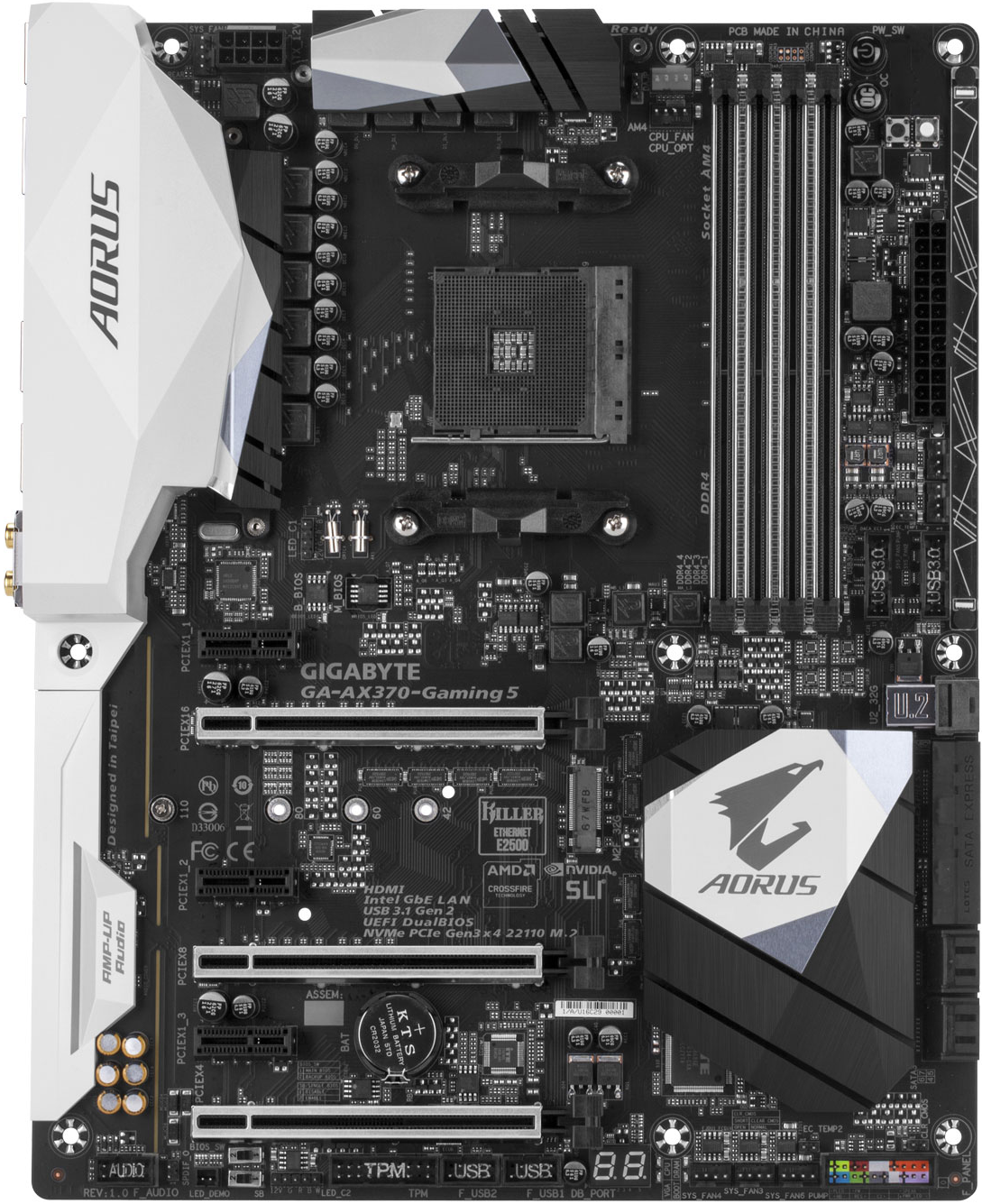

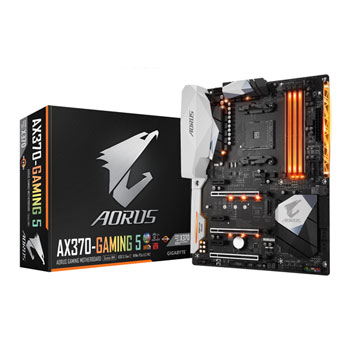

Gigabyte AORUS AMD AM4 Ryzen AX370 GAMING 5 ATX Motherboard

Gigabyte AORUS AX370-GAMING 5, AMD X370, S AM4, DDR4, SATAe, U.2, M.2, 2-Way SLi/CrossFire, Killer/Intel, USB3.1, ATX

Gigabyte
Scan code: LN79127 Manufacturer code: AX370-GAMING 5 Request call
£203.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
review High End
Delivery options £5.48 By DPD On 3rd May 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview RGB Fusion: Set the Colour that Matches Your Style
AORUS' motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you’ll have a blast making your AORUS your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC’s temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.

Multi-Zone Light Show Design
• 16.8M RGB Colors.
• 2 Programmable Sections.
• 7 Different Lighting Effects.
• 2 RGB & RGBW Light Strip Pin Headers.
• Accent LED with Interchangeable Overlay.
• Advanced Mode for Extreme Customizability.
Lighting zone, programmable sections, wave mode may vary by model.

GIGABYTE RGB Fusion APP
Don’t just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be done away from the keyboard and monitor of their PC.

Surround Lighting
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Swappable Overlay for Accent LED
AORUS brings even more colour and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.

Supports RGBW & -UV Light Strips: Independently Programmable On-board Pin Header for LED Strips
AORUS Motherboards support external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its colour from the RGB Fusion software. By implementing RGBW or RGB/UV LED strips users can have brighter whites and vibrant colours or generate a fluorescent glow, respectively.

No need to worry when choosing light strips as AORUS motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

RGB Fusion (Advanced Mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colours. You can even set the LEDs to synchronize with your favourite music or have them change colours to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and colour transitions, along with specific duration and transition times. Once done, it’s simple to save and share your lighting profile with others.

• Independent Control: Customized different colour for different section of board.
• Synchronize with GIGABYTE Graphics Cards: Synchronize colours with select GIGABYTE graphics cards to complete the feel of your system.
• Fully Customizable: Adjust lighting animation with colour stops, colour duration, transition period, and colour effects.
• Lighting Profile: Save, export and import profiles to quickly change effects based on your preference and to share with others.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

• 8 Fan/Water Pump Connectors.
• 7 Temperature Sensors.
• 2 External Temperature Sensors.
• All Fan Pin Headers Upgraded to Hybrid Fan Headers.
• Supports High Current Fans up to 24W(2Ax12V) with Over-Current Protection.
• Intuitive UI for Fan Control.
• Enhanced BIOS Interface.
• Define Your Own Fan Curve.
• Interoperable Sensors and Fans.

All Hybrid Fan Pin Headers
• Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
• Supports Closed Loop Watercooling, CPU Fans, System Fans, & Watercooling Pumps.

Enhanced BIOS Interface
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

Sound Blaster X-Fi MB5 + Dual ALC 1220 120dB SNR HD Audio with Dual Smart Headphone Amps
No longer are you limited to quality audio from only the rear of your Gaming PC, the new AORUS AX370-Gaming 5 offers dual ALC1220 Codecs, a high-performance multi-channel high-definition Audio Codec with 120dB SNR. These Codecs offer crystal clear audio and features such as Smart Headphone AMP, 108dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Dual Smart Headphone Amps
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion. With the AORUS AX370-Gaming 5 incorporates dual Smart Headphone AMPs guaranteeing that users will have a plug-n-play experience whether they connect their headphones to the front or the rear of their system.

Creative X-Fi MB5 Software
The Sound Blaster X-Fi MB5 provides you with everything you need to stretch your audio experience potential. It’s a comprehensive suite of tools, equipped with cutting-edge technology and premium audio quality, effects and features to support your needs. Featuring SBX Pro Studio™ suite of technologies, it gives you the fullest audio experience – like no other.

High End Audio Capacitors
AORUS Gaming motherboards use high-end Japanese Nichicon audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

USB DAC-UP 2
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2. USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.

Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

• Adjustable Voltage USB Port with Dedicated Power Design.
• Voltage Compensation for Better USB Compatibility.
• Accessories that benefit from USB DAC-UP 2:
- VR Headset.
- Mouse.
- Keyboard.
- Gamepads.
- External HDDs/SSDs.
- Audio.

Immersive VR Gaming Experience
• VR requires more performance than Full HD graphics for a steady 60FPS or greater.
• Only Gaming PCs can provide the best VR experience.

Killer™ E2500 Gaming Network + Intel® Gigabit LAN
Killer E2500 is a High-Performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to the standard solution.

Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra-large data packets.

Give Yourself the Competitive Edge: Optimize Your Network Performance with the All-New Killer Control Center
• Automatically detects and prioritizes apps and popular websites.
• Show which network interface your applications and websites are using.
• Use Killer’s network priority levels or customize your own.
• Control bandwidth allocated to each application.

U.2 Onboard (NVMe PCIe Gen3 x4): NVMe Performance for PCIe SSDs
The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port on-board to support the 2.5” Intel 750 Series drive, AORUS ensures that the users can benefit from the best performance.
Please note: SSDs and cables not included.

High-Bandwidth(HB) SLI Bridge
Take your gaming performance to a whole new level with multiple GeForce GTX cards using AORUS’s High-Bandwidth(HB) SLI Bridge.

Fast On-board Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
AORUS' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

Fast Four USB 3.1 Gen 2 Solution
AORUS’ AX370-Gaming 5 Motherboard ensures its users are future-proofed. With a total of four USB3.1 Gen2 ports you’re never caught off guard without the latest in USB standards. The Latest USB 3.1 offers a staggering 10GB/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.

Connecting the Future: USB Type-C™
• The World's Next Universal Connector.
• Reversible USB Type-C™ with USB 3.1.

6+4 Phase Digital Power Delivery Design
AX370-Gaming 5 features a 6+4 phase power delivery design equipped with 4th gen. IR® digital power controllers and 3rd gen. PowIRstage® ICs featuring Isense technology, which provides more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.

Diagnostic LEDs: Hardware Troubleshooting at a Glance
On-board LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DRAM/VGA/BOOT) is malfunctioning so they may take action promptly.

Dual Armour DIMM and PCIe Metal Shielding
Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a fool proof option which can save your PC’s life.

Industry Leading Ultra Durable PCIe Armour
The innovative one-piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

GIGABYTE Patented Double Locking Bracket
• First Lock: Inserted from the top for better retention.
• Second Lock: Soldered for a stronger bond.

Ultra Durable™ Memory Armour
AORUS’ exclusive one-piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.

Anti-Sulfur Resistor Design
Sulfur compounds in the air can penetrate tiny on-board resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design AORUS gives Ultra Durable Motherboards a whole new meaning.

Refreshed BIOS: Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

App Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behaviour; these are the possibilities of the System Information Viewer.

@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

3D OSD
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

XSplit Gamecaster + Broadcaster: Cast your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for realtime chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 1 year XSplit Gamecaster + Broadcaster Premium License.

TriDef® SmartCam | Custom Stream Modding
To facilitate being the full streaming solution each GIGABYTE motherboard includes TriDef® SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.
*Free 1 month TriDef SmartCam License.

GIGABYTE Patented DualBIOS™ (UEFI) Design
AORUS Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects your PC’s most crucial component: the BIOS.

Long Lifespan Durable Black™ Solid Caps
AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

Easy to Install "G-Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G-Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations. Features • Supports New Generation AMD Ryzen™ Processors.
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
• Fast 4 USB 3.1 Gen 2 with USB Type-C™ and Type-A.
• 2-Way Graphics Support with Dual Armor and Ultra Durable™ Design.
• NVMe PCIe Gen3 x4 U.2 Connector.
• Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface.
• Creative® Sound Blaster X-Fi MB5 support.
• Dual ALC 1220 with Front & Rear 120dB SNR HD Audio with Dual Smart Headphone Amps.
• Killer™ E2500 Gaming Network + Intel® Gigabit LAN.
• USB DAC-UP 2 & 4 Front USB 3.0 Ports with Adjustable Voltage.
• RGB FUSION with Multi-Zone LED Light Show design.
• Swappable Overlay for Accent LED.
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers.
• 2 External Thermistors Headers with 2 Included Thermistors.
• GIGABYTE UEFI DualBIOS™.
• APP Center Including EasyTune™ and Cloud Station™ Utilities.

Please Note:
This motherboards graphics outputs are intended for use with future AMD processors with on-board graphics. Ryzen 7 CPUs do not feature on-board graphics, so when using these CPUs, the motherboards graphics ports will be disabled, and as such a discrete graphics card will be required for operation.
Specifications
Core Specifications
Form Factor ATX
CPU Socket AM4
Chipset AMD X370
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933(OC)
  • DDR4 - 3200(OC)
Max. Memory Capacity 64GB (4x16GB)
Audio
Audio Dual Realtek ALC1220 Codec 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
SLI Support 2-Way SLi
Crossfire Support 2-Way CrossFire
On-Board Graphics Connectors HDMI 1.4
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 3 x PCIe 2.0 x1
  • 1 x PCIe 2.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
SATA Support SATAe / SATA3 / M.2
RAID Support via SATA
Storage Mode Support
  • AHCI
  • Hot Plug
  • JBOD
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
  • NVMe Boot (via U.2 Connector)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 2-Digit debug code LED
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin CPU OPT Fan Connector
  • 4 x 4-pin System Fan Connector
  • 2 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 2 x BIOS switches
  • 1 x Clear CMOS Button
  • 1 x Clear CMOS jumper
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x OC button
  • 1 x Power button
  • 1 x Reset Button
  • 1 x RGB (RGBW) LED Strip Header
  • 1 x RGB LED connector
  • 2 x SATA Express (Compatible with 2x SATA III)
  • 4 x SATA III - 6Gb/s
  • 1 x SPDIF-Out Header
  • 2 x Thermal sensor connector
  • 1 x TPM Header
  • 1 x U.2 Connector
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I211AT (Gigabit LAN)
  • 1 x Killer E2500 (Gigabit LAN)
Rear I/O Connectors
  • 2 x 10/100/1000 (LAN)
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI 1.4
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 1 x SPDIF Out (Optical)
  • 6 x USB 3.1 Gen1 Type A
  • 3 x USB 3.1 Gen2 Type A
  • 1 x USB 3.1 Gen2 Type C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
Manufacturer Contact Details
Manufacturer:
Gigabyte Uk
