Scan code: LN94189 Manufacturer code: Z390 Aorus Xtreme

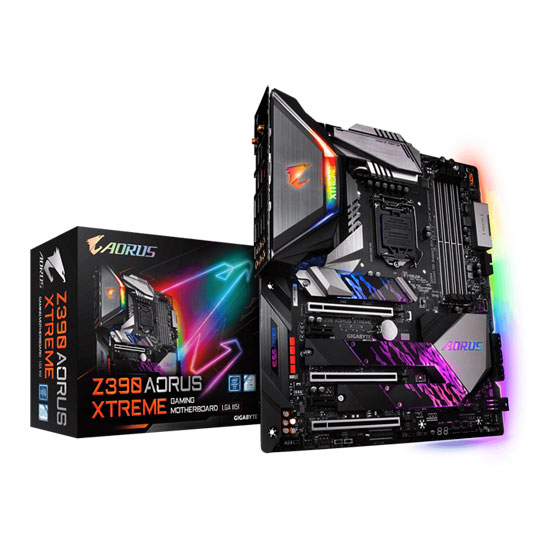

Gigabyte Intel Z390 AORUS XTREME E-ATX Motherboard

Gigabyte AORUS XTREME, Intel Z390, S 1151, DDR4, SATA3, 3x M.2, SLi/CrossFire, 10GbE, USB 3.1 A+C, E-ATX

Thumbnail 1 : Gigabyte Intel Z390 AORUS XTREME E-ATX Motherboard Thumbnail 2 : Gigabyte Intel Z390 AORUS XTREME E-ATX Motherboard Thumbnail 3 : Gigabyte Intel Z390 AORUS XTREME E-ATX Motherboard Thumbnail 4 : Gigabyte Intel Z390 AORUS XTREME E-ATX Motherboard
Scan code: LN94189 Manufacturer code: Z390 Aorus Xtreme
£499.49
From £23.98 / month (APR 14.9%)
Monthly Payment: £86.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £520.03
Monthly Payment: £44.84
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £538.10
Monthly Payment: £30.92
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £556.56
Monthly Payment: £23.98
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £499.49
Total inc. interest: £575.37
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.47 / month (APR 15.9%)
Delivery Options
  • By DPD On 18th Jan 2019 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

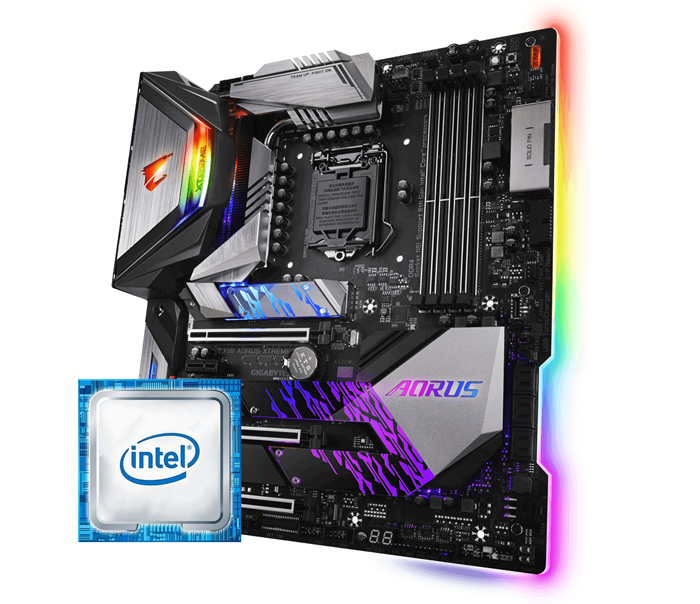

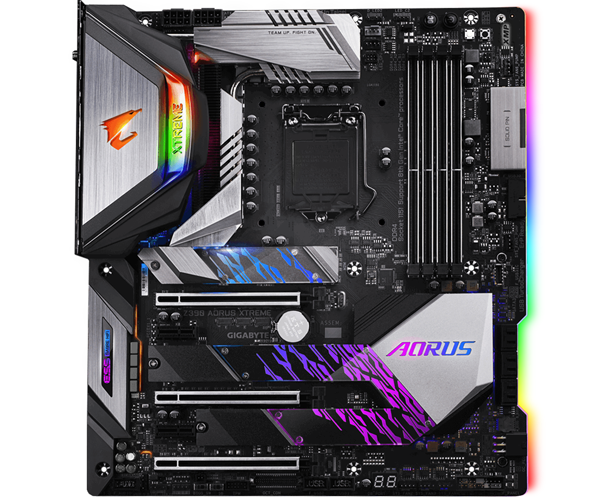

Product Overview Extreme Power Design
To unleash the full potential of the new Intel 8-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z390 AORUS XTREME is a true beast among motherboards.

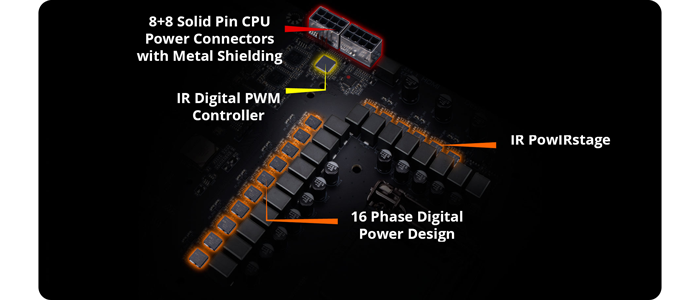

16 Phase Digital Power Design
Z390 AORUS XTREME motherboard uses an all IR digital CPU power design which includes a digital PWM Controller with PowlRstage MOSFET and is capable of providing at least 60A of power from each phase, for a total of 960A. This 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 8-core 9th Gen Intel® Core™ processors.

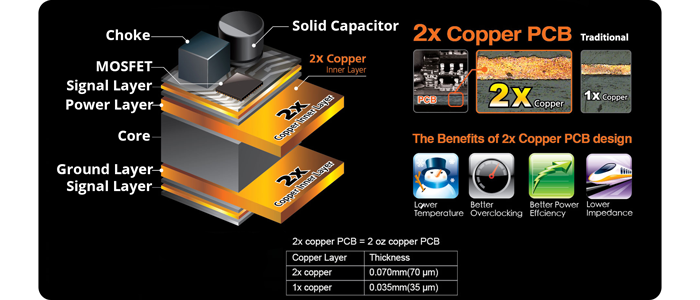

2x Copper PCB
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

Extreme Thermal Design
Z390 AORUS XTREME use some unprecedented and innovative thermal design to ensure stability and low temperature under full loading application and gaming.

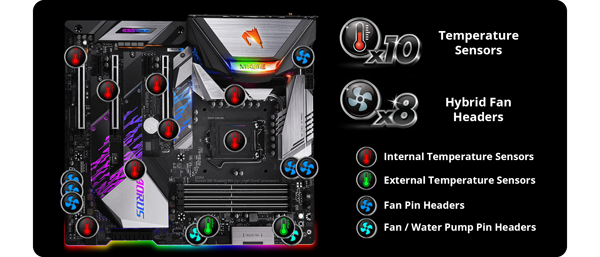

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Unparalleled Performance
Hungry for better performance? Z390 AORUS XTREME bundles exclusive OC Touch Panel, supports high frequency XMP memory, and full SSD thermal guard to make sure you get the maximum full system performance.

OC Touch Panel - Overclocking Made Easy
GIGABYTE OC Touch provides an array of physical buttons and switches to bring access to overclocking features at your fingertips—making overclocking on the fly extremely fast and easy.

Support for DDR4 to 4400MHz and Beyond
AORUS is offering a tested and proven platform that ensures proper compatibility to 4400MHz and beyond.

Triple PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

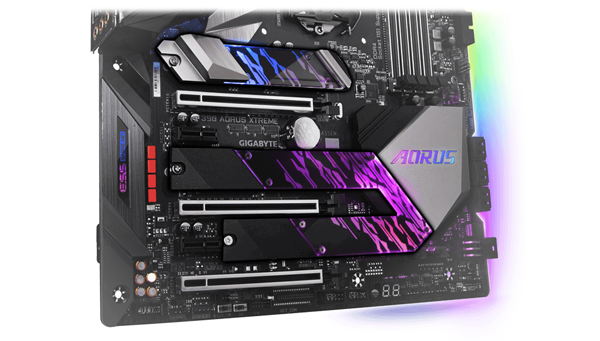

GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Next Generation Connectivity
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. Z390 AORUS XTREME provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

Next Generation Multi-Gig Gaming
The AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centres, workstations and gamers

Next Generation 40Gb/s Thunderbolt 3
Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over two USB Type-C™ connectors on the back I/O of the GIGABYTE Z390 AORUS XTREME, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.

Integrated Intel® 802.11ac Wave2 CNVi WIFI + Bluetooth 5
Intel Next-Gen Wireless solution supports 802.11ac Wave 2 function, enables gigabit wireless performance, and provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 1.73Gbps. Double the speed compared to the previous generation. Moreover, Bluetooth 5 provides 4x range over BT4.2 and with faster transmission.
• All new antenna supported 802.11ac 2.4GHz & 5GHz, 4dBi signal gain.
• 2x signal strength compared to traditional antenna design.
• Two antenna with smart antenna function for the best WIFI signal transmitting.
• Multiple angle tilt and magnetic base for the best signal strength direction and location.

USB TurboCharger
GIGABYTE patent pending USB TurboCharger technology allows users to recharge their mobile devices with stunning speed, up to 50% in less than 30 minutes*. By connecting Front USB 3.0 Type-A cable of chassis to our motherboard, USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with Apple Fast-Charge function.

Definitive Aesthetics
GIGABYTE ID team designs Z390 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.

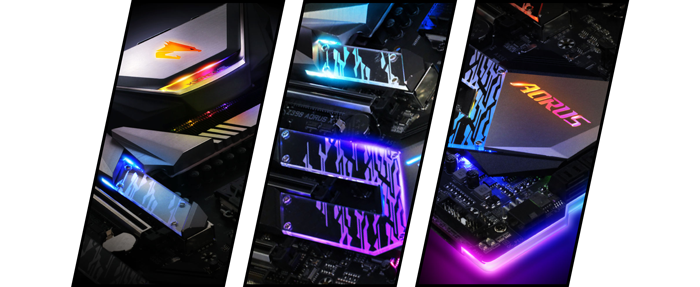

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colours on all supported products. You can even set the LEDs to synchronize with your favourite music or have them change colours to indicate the CPU temperature. For true lighting experts there is a dedicated product setting, which can be fully customized by individual area with its own effects.

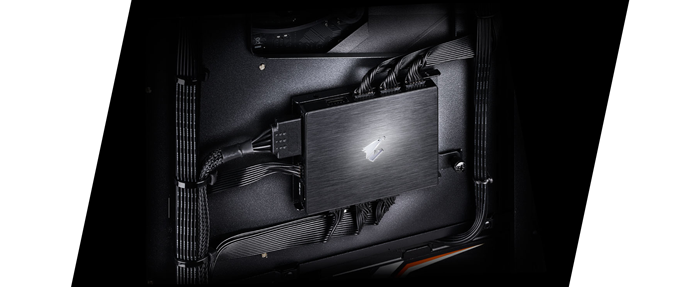

AORUS RGB Fan Controller
• Exclusive bundled accessory for professional case modders.
• 8 Hybrid Fan Headers.
• 8 RGB LED Headers.
• 8 Addressable LED Headers.
• 2 external temperature sensors.
• 2 USB 2.0 Header for Additional USB RGB Devices.
• All Hybrid Fan Headers and RGB/Addressable LED Headers have independently controlled speed and lighting patterns.
• Easy to install inside the chassis with its compact size and magnetic base.

Hi-Fi Audio System
Still think motherboard audio is just "basic sound output"? We put a 100% full Hi-Fi sound card into Z390 AORUS XTREME with all audio-grade components, to ensure the best and crystal sound quality.

Ultra Durable
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the Z390 AORUS XTREME and reinforce every slot to make each of them solid and durable.

Solid Pin Power Connectors
Z390 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to offer a stable power supply during CPU overloading.
• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

Industry Leading Ultra Durable™ PCIe Armour
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Ultra Durable™ Memory Armour
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference

CPU-Free USB BIOS Updates
AORUS Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.
Updating your BIOS on your AORUS motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. A LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

Gigabyte BIOS & App Centre
Good software goes hand in hand with perfect hardware. Z390 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.

BIOS
• New User Interface: All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
• My Favourites: Add constantly used items into the favourite menu for quick access.
• Storage Information: Show all kinds of storage information including SATA, PCIE and M.2 interface.
• Changelog: List all changes before saving and exiting bios. Quickly review overall settings modification.
• Optimized Memory Installation Reminder: Displays correct installation reminder message when user installs two memory modules but runs single channel mode.
• Intuitive Load Line Curve: Clearly show each loadline calibration setting in an intuitive curve graph.

App Centre
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behaviour; these are the possibilities of the System Information Viewer. Features • Supports 9th and 8th Gen Intel® Core™ Processors.
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs.
• Intel® Optane™ Memory Ready.
• 16 Phases IR Digital VRM Solution with PowIRstage.
• Cutting-edge Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate.
• Onboard Intel CNVI 802.11ac 2x2 Wave 2 Wi-Fi with All new AORUS Antenna.
• 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitors.
• AQUANTIA® 10GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed.
• Intel® Thunderbolt™ 3 onboard.
• Exclusive RGB FAN COMMANDER and OC Touch for professional casemodders and overclockers.
• USB TurboCharger for mobile device fast charge support.
• RGB FUSION with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips.
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.
• Front USB 3.1 Gen 2 Type-C™ Header.
• Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Triple Thermal Guards.
Specifications
Core Specifications
Edition AORUS XTREME
Form Factor E-ATX
CPU Socket 1151
Chipset Intel Z390
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2800(OC)
  • DDR4 - 3000(OC)
  • DDR4 - 3200(OC)
  • DDR4 - 3300(OC)
  • DDR4 - 3333(OC)
  • DDR4 - 3400(OC)
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3666(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
Max. Memory Capacity 64GB
Audio
Audio Realtek ALC1220-VB 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 2-Way SLi
AMD CrossFire Support 3-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors
  • HDMI
  • Thunderbolt 3
Internal Connectivity
Expansion Slots
  • 1 x M.2 Socket 1 for Intel CNVi Wireless Module ONLY
  • 1 x M.2, 2242/2260/2280, PCIe/SATA
  • 1 x M.2, 2242/2260/2280/22110, PCIe 3.0/SATA
  • 1 x M.2, 2260/2280/22110, PCIe 3.0/SATA
  • 2 x PCIe 2.0 x1
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x4 Bandwidth)
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via Yes
Storage Mode Support
  • Intel Optane Memory Ready
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 2 x Addressable Digital RGB Header
  • 2 x Addressable Digital RGB Strip Power Select Jumper
  • 2 x BIOS switches
  • 1 x Clear CMOS Button
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 1 x CPU Water Pump/Fan Connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x GC-OC Add-In Card Connector
  • 1 x OC button
  • 1 x OC PEG Power Connector
  • 1 x Power button
  • 1 x Reset Button
  • 2 x RGB (RGBW) LED Strip Header
  • 4 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen2 Type-C
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired 10G LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Aquantia GbE LAN (10Gb/5Gb/2.5Gb/1000Mb/100Mb)
  • 1 x Dual Band Intel CNVi 802.11ac + BT 5.0 Module
  • 1 x Intel GbE phy (10/100/1000Mb)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 2 x SMA antenna connectors (2T2R)
  • 2 x Thunderbolt 3
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen1 Type-A
  • 4 x USB 3.1 Gen2 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 271 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
28 months
