Scan code: LN91942 Manufacturer code: X399 AORUS XTREME

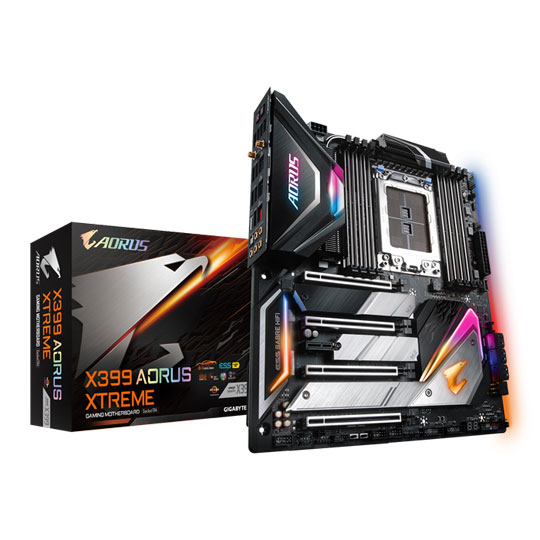

Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard

Gigabyte AORUS X399 XTREME Motherboard, AMD X399, TR4, DDR4, Tri PCIe M.2, 4-Way SLi/CrossFire, Intel GbE/ac WiFi, E-ATX

Thumbnail 1 : Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard Thumbnail 2 : Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard Thumbnail 3 : Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard Thumbnail 4 : Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard : video thumbnail 1
Scan code: LN91942 Manufacturer code: X399 AORUS XTREME
There are 5 people viewing this product
RRP: £442.99
£430.99Item due on 30 September 2018
Pre order
From £20.69 / month (APR 14.9%)
Monthly Payment: £74.79
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £430.99
Total inc. interest: £448.72
Monthly Payment: £38.70
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £430.99
Total inc. interest: £464.29
Monthly Payment: £26.68
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £430.99
Total inc. interest: £480.24
Monthly Payment: £20.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £430.99
Total inc. interest: £496.45
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.76 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

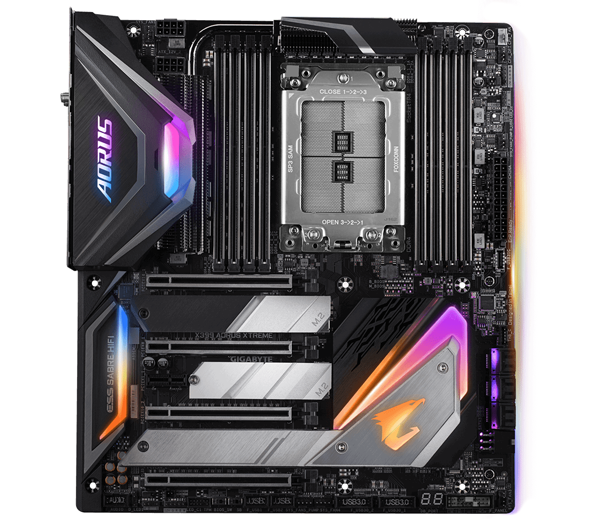

Product Overview X399 AORUS XTREME Design Concept
X399 AORUS XTREME stays faithful to AORUS design principles with the contour of its armour resembling the falcon’s dominant ascension into the skies, capturing the prowess and attitude of the falcon in flight. The LED zone on the I/O armour can be likened to the windshield of futuristic spacecrafts, symbolizing advancement and an eye into the future of technology.

Overwhelming Power, Indisputable Supremacy, Unrestrained Potential

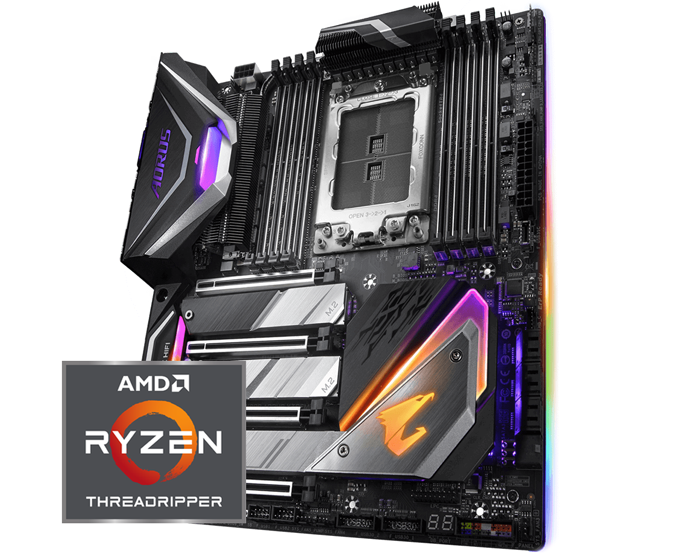

The AORUS X399 enthusiast motherboard with AMD Ryzen™ Threadripper™ Processor. Do everything, do it all at the same time, and do it without sacrificing responsiveness. Render. Stream. Compile. Encode. Work or Play. Real-World Productivity or Virtual Reality Entertainment. The AORUS X399 enthusiast motherboard has the power to overwhelm your most daunting workloads.

Supports 2nd Gen Ryzen™ Threadripper™ CPUs
With up to 32 cores, the 2nd Generation of AMD Ryzen™ Threadripper™ processor can command 64 threads, the most multi-processing power that has ever been unleashed on a consumer desktop. Overwhelm your workloads with 64MB of L3 cache, without sacrificing.

Quad-Channel DDR4 for devastating memory bandwidth, 64 lanes of incredible PCIe Gen3 connectivity, and native USB 3.1 Gen2 10Gb/s support on a chipset. With every processor multiplier-unlocked to be configured as you see fit, GIGABYTE X399 AORUS XTREME is perfectly designed to support the 2nd Generation Ryzen™ Threadripper™ 250W processor to offer you the latest advancements in motherboard technology.

10+3 Digital Power Design
IR Digital PWM Provider for High Performance Power IC Solutions
X399 AORUS XTREME motherboard uses an all IR digital CPU power design which includes both digital PWM Controllers and PowIRstage MOSFET, capable of providing at least 50A of power from each phase, for a total of 650A.
These 100% digital controllers and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 2nd Gen. AMD Ryzen™ Threadripper™ processors.
10+3 Digital Power Design
• 50A IR3578 for each vCore Phase & each SOC phase.
• Enhanced MOSFET top side cooling by exposed pad.
• High current capacity MOSFET.
• Lower temperature.
• Server level reliability.
Server Level Chokes
AORUS X399 series motherboards feature Server Level Chokes.
• Server level reliability.
• High current capacity.
• New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.

All Advanced Thermal Technology
X399 AORUS XTREME uses all advanced thermal technology, including Dual-Fan, Fins-Array Heatsink, Direct Touch Heatpipe, NanoCarbon Base Plate, while providing ultimate MOSFET cooling performance for content creators, enthusiasts, overclockers and professional gamers.

Direct Touch Heatpipe & Fins-Array Heatsink with High Thermal Conductivity Pad
X399 AORUS XTREME uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS to heatsink and fins.
By using a high 5 W/mK thermal conductivity pad, it can transfer 2.7x more heat than traditional thermal pads in the same time period.

Dual-Fan Design
• Built-in dual 3cm fan to actively create airflow on MOSFET heatsink, efficiently cools down MOSFET temperature when using an all-in-one CPU cooler.
• Completely stops or runs with very low RPM in idle mode to extend the lifespan of fans and improve acoustic level.
• Automatically adjusts fan speed based on accurate VRM temperatures reported by a carefully placed thermal sensor.

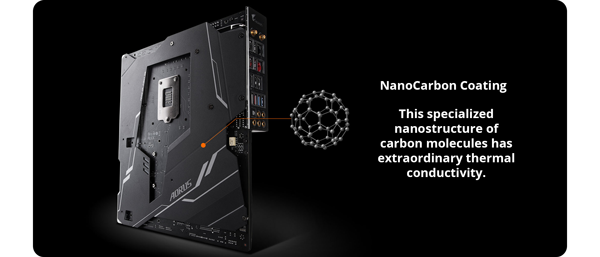

NanoCarbon Base Plate
A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to enhance thermal radiation capability.
By using the back side thermal pad, it can transfer heat from the back side PCB to the base plate, and the NanoCarbon base plate can dissipate heat passively.
Effectively lowers backside PWM component temperature by 10%.

Integrated I/O Shield Armor
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient.
Users don't have to spend time to install the I/O shield, just plug it into the chassis and it's good to go! The excellent design of the integrated I/O shield provides added durability.

4-Way Graphics with Premium 48 PCIe Lanes Bandwidth
AORUS X399 motherboards feature a unique PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-Way or 3-Way graphics configuration providing the full bandwidth available and provide the best graphics bandwidth possible to the user.

Free NVMe RAID Support
NVMe RAID for AMD Ryzen™ Threadripper™ platform is now supported for free. By combining multiple NVMe SSDs together into a RAID 0, 1, or 10 array, it is possible to greatly enhance disk performance or data integrity. With a single GPU in the system, up to 8 NVMe SSDs array can be supported by AORUS X399 motherboards.

Triple PCIe Gen3 x4 M.2 Direct from CPU
AORUS X399 Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

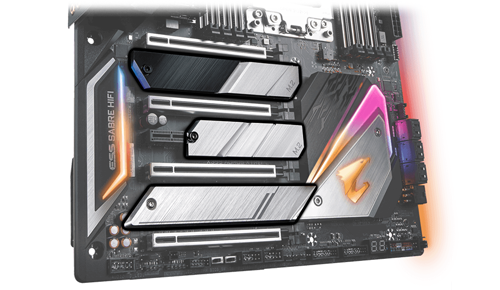

AORUS M.2 Thermal Guard
M.2 Thermal Guards prevent throttling and bottlenecks on M.2 SSDs especially on high-end NVMe PCIe M.2 SSDs. Reduces and dissipates heat from M.2 SSDs to maintain high SSD performance.

Next Generation Multi-Gig Gaming
The AQUANTIA ® AQC107 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T/ 100BASE-TX Ethernet Controller which is able to provide up to 10 GbE network connectivity, with 10 times faster transfer speeds compared to general 1GbE networking and is perfectly designed for media centres, workstations and gamers.

High Speed LAN with cFosSpeed Internet Accelerator
The GIGABYTE X399 AORUS XTREME motherboard come equipped with Dual Intel® i210AT GbE networking.
The Intel® i210AT provides an ideal solution for customers looking for a full-featured Gigabit Ethernet for Desktop, Server, and Embedded Applications. The Intel® i210AT also supports advanced features such as Audio-Video Bridging, IEEE 802.1AS Precision Time Stamping, Error Correcting Code Packet Buffers, and Enhanced Management Interface options.
Featured with cFosSpeed Internet Accelerator, it provides an ideal solution for gamers who are looking for full-featured networking.

Faster and Better Coverage with Intel ® Dual Band 802.11ac WIFI+BT4.2 Module
The onboard 802.11ac WIFI module from Intel ® supports up to 867 Mb/s wireless networks and BLUETOOTH 4.2. The bonded 2.4GHz/5GHz Dual Band and 2T2R antenna expands your coverage.

USB 3.1 Gen2 Type-C Header
Equipped with next generation connectivity onboard AORUS X399 Gaming Motherboards already support the chassis of the future. The onboard USB Type-C header for USB 3.1 Gen2 makes access convenient when connecting a USB 3.1 drive or charging your new mobile device.

Fast USB 3.1 Gen 2 Solution
The latest USB 3.1 Gen 2 offers staggering 10Gb/s transfer speeds. 2x faster than USB 3.1 Gen 1 along with backwards compatibility with existing USB devices.

USB with Precision Digital Fuse
Utilizing a digital fuse, motherboards are able to avert against over-current damage by reacting faster, with greater precision, and avoid unexpected voltage from external devices.

Digital Fuse Design
Activates when the current reaches its trigger point, this design is much more precise than traditional fuses.

All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
New VB series audio controller stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

ES9118 HiFi DAC
AORUS AMP-UP Audio now offers ESS SABRE with a DAC that adopts the concept of a high-end audiophile sound system design into a micro system within the motherboard. The 32-bit HyperStream architecture to deliver up to 125 dB SNR and -112 dB Total Harmonic Distortion plus Noise (THD+N) ensuring audiophile quality sound all the way to the headphones. It also supports the most popular high resolution and lossless audio formats including FLAC, ALAC, AIFF and WAV.

Gold Plated Audio Jacks
AORUS Gaming motherboards pack top quality gold plated audio connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use.

High-End Audio Capacitors
The AORUS X399 motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

RGB Fusion with Digital LED Support
With AORUS Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colours and patterns, RGB Fusion on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

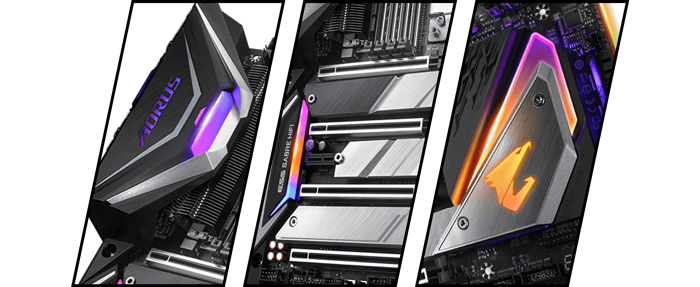

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Supports RGBW & UV Light Strips
Independently Programmable Onboard Pin Header for RGBW/UV LED Strips
Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its colour from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colours.

RGBW Pin Header Support True White and RGB/UV LED Strips
• RGB/UV Colour: RGB/UV light strips can illuminate your PC with a fluorescent glow. With UV reactive cables, paint or liquid your PC can radiate with a luminous glow.
• True White Colour: RGBW light strips can produce a pure white colour instead of mixing R/G/B to produce an inaccurate white.
• Richer Colour: With dedicated white LEDs, light strips can produce a richer and brighter colour on the colour scale.
• RGB Calibration: Different light strips sometimes have different RGB pin definitions, RGB Fusion software can relocate each pin location for the best compatibility.

RGB Fusion (Advanced mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colours. You can even set the LEDs to synchronize with your favourite music or have them change colours to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and colour transitions, along with specific duration and transition times.

GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colours and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Stop
Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage scenario.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

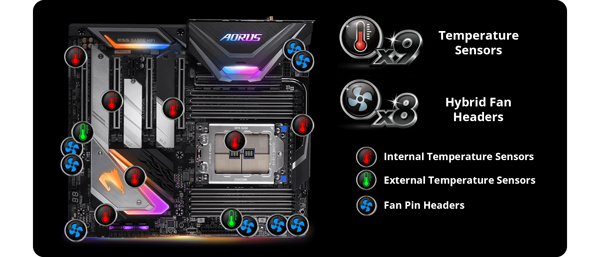

Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Fan Curve
Customize fan curves based on specific temperatures with the intuitive graphical UI.

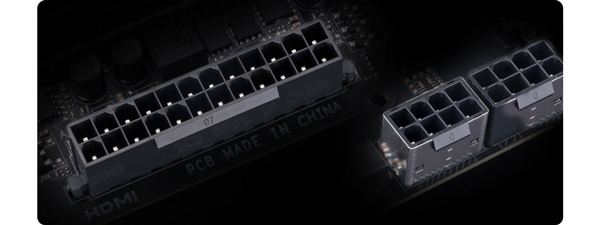

Make Good Connection and Significantly Lower the Wires Capacity
AORUS X399-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages:
• Larger contact area for electricity.
• More metal quantity to sustain higher power and generated heat.
• Ultra durable and longer lifespan.

Ultra Durable™ Memory Armour
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference

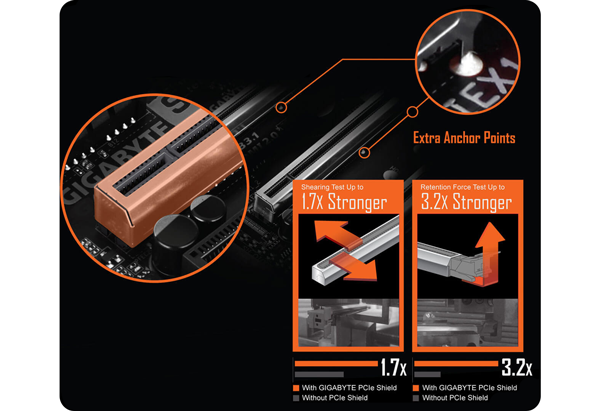

Industry Leading Ultra Durable PCIe Armour
The innovative one piece stainless steel shielding design from AORUS reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Start Sulphurisation Protection
Sulphur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulphur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Long Lifespan Durable Black™ Solid Caps
AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

3D OSD
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens. Features • Supports AMD 2nd Generation Ryzen™ Threadripper™ and 1st Generation Ryzen™ Threadripper™ Processors.
• Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, Up to 3600MHz+ (OC)/ 3466MHz+ (OC).
• Server-Class Digital Power PWM Design & Ultra Durable™ Solid Pin Power Connectors.
• Cutting-edge Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe.
• 4-Way Graphics Support with Dual Armour and Ultra Durable™ Design.
• Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard.
• Dual Intel GbE LAN with cFosSpeed Internet Accelerator + AQUANTIA® 10GbE BASE-T LAN.
• ALC1220-VB Enhance 114dB (Rear)/ 110dB (Front) SNR in Microphone with ESS 9118 SABRE HiFi DAC.
• Intel® Dual Band 802.11ac WIFI + Bluetooth 4.2.
• RGB FUSION with Multi-Zone Digital LED Light Show Design, Supports Addressable LED & RGB LED Strips.
• Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP.
• Precise Digital USB Fuse Design for Stronger Protection.
• Ultra Durable™ NanoCarbon Base Plate & I/O Shield Armour.
• Rear Power/Reset/Clear CMOS Buttons.
• APP Centre Including EasyTune™ and Cloud Station™ Utilities.
Specifications
Core Specifications
Edition AORUS XTREME
Form Factor E-ATX
CPU Socket TR4
Chipset AMD X399
RAM Memory Support
Memory Type DDR4
Memory Channel Quad (4)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2933
  • DDR4 - 3466+(OC)
  • DDR4 - 3600+(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC1220 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support 4-Way SLi
AMD CrossFire Support 4-Way CrossFire
Integrated Graphics
On-Board Graphics Connectors None
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2242/2260/2280, PCIe 3.0/SATA
  • 2 x M.2, 2260/2280/22110, PCIe 3.0/SATA
  • 1 x PCIe 2.0 x1
  • 2 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x16 (x8 Bandwidth)
  • 6 x SATA 6GB/s
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 8-pin (Power)
  • 1 x BIOS Selection Switch
  • 1 x Clear CMOS jumper
  • 1 x CPU Fan Connector
  • 2 x Digital LED strip header
  • 2 x Digital LED Strip Power Select Jumper
  • 1 x DualBIOS switch
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x OC PEG Power Connector
  • 2 x RGB (RGBW) LED Strip Header
  • 1 x S/PDIF-Out Header
  • 3 x System Fan header
  • 2 x System Fan/Water Pump Header
  • 2 x Temperature Sensor Header
  • 1 x TPM 2.0 Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.1 Gen1 Header
  • 1 x USB 3.1 Gen1 Type-C port
  • 1 x Water Cooling Fan Header (CPU_OPT)
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Dual Wired Gigabit LAN (10/100/1000)
  • Wired 10G LAN
Network Chip/Modules
  • 1 x AQUANTIA AQC-107 (10GbE LAN)
  • 1 x Dual Band 802.11ac WiFi MU-MIMO Module (867Mbps)
  • 2 x Intel® I210AT (Gigabit LAN)
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x Clear CMOS Button
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Power/Reset Button
  • 1 x Rear Speaker Out
  • 3 x RJ-45
  • 1 x S/PDIF (Optical)
  • 2 x SMA antenna connectors (2T2R)
  • 8 x USB 3.1 Gen1 Type-A
  • 1 x USB 3.1 Gen2 Type-A
  • 1 x USB Type-C
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 305 x 269 mm
Note
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 0871 472 4747 or 01204 474747.

Loading Please Wait

Please wait . . .

Reviews
Questions & Answers
Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard
Gigabyte AMD AORUS X399 XTREME E-ATX TR4 Motherboard
