Scan code: LN117803 Manufacturer code: GV-R69XTAORUSX WB-16GD

Gigabyte AORUS AMD Radeon RX 6900 16GB XT XTREME WATERFORCE WB Graphics Card

Gigabyte AORUS Radeon RX 6900 XT XTREME WATERFORCE WB 16GB GDDR6 PCIe 4.0 GPU, 7nm RDNA2, 5120 Streams, 2525MHz Boost

Free AMD RX 6900 XT Game download
Thumbnail 1 : Gigabyte AORUS AMD Radeon RX 6900 16GB XT XTREME WATERFORCE WB Graphics Card Thumbnail 2 : Gigabyte AORUS AMD Radeon RX 6900 16GB XT XTREME WATERFORCE WB Graphics Card Thumbnail 3 : Gigabyte AORUS AMD Radeon RX 6900 16GB XT XTREME WATERFORCE WB Graphics Card Thumbnail 4 : Gigabyte AORUS AMD Radeon RX 6900 16GB XT XTREME WATERFORCE WB Graphics Card
Scan code: LN117803 Manufacturer code: GV-R69XTAORUSX WB-16GD
£1,738.99
Order now and get it tomorrow, Mon 18th Oct
From £47.50 / month (APR 14.9%)
Monthly Payment: £156.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,738.99
Total inc. interest: £1,873.36
Monthly Payment: £83.47
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,738.99
Total inc. interest: £2,003.26
Monthly Payment: £59.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,738.99
Total inc. interest: £2,138.71
Monthly Payment: £47.50
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,738.99
Total inc. interest: £2,279.59
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £43.43 / month (APR 15.9%)
Delivery Options
  • By DPD On 18th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

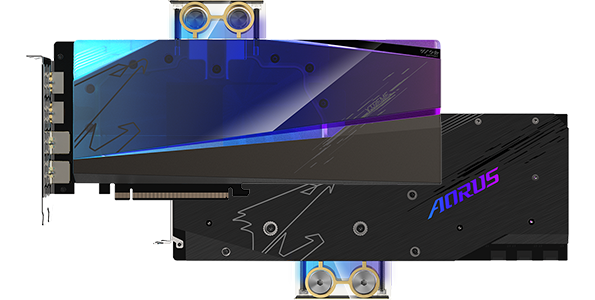

Gigabyte AORUS RX6900 XT Xtreme WaterForce WB RDNA2 Graphics Card

RX6900XT WaterForce

The First Liquid Cooled GPU with Leak Detection Deep within the Aorus Dimension, products aren't created; they're crafted, lighting and patterns are digitally mapped with an efficient and free-flowing style. The Aorus RX 6900XT XTREME WaterForce WB has been designed to bring you the top-shelf performance that you deserve. fusing different materials and surface textures with negative space to form a juxtaposition to create a multi-dimensional design that blurs the boundaries of space and time. Blast through the latest AAA titles with the breakthrough RDNA2 architecture, 16GB of super-fast GDDR6 memory and with the WaterForce cooling system providing a complete liquid cooling solution for DIY PC enthusiasts aiming to create a unique custom loop, you can expect breathtaking performance with minimal noise distractions.

The aesthetics are pristine with bright ARGB LEDS combined with the RGB Fusion 2.0 software to allow you to flex your own style and personality. The AMD Radeon™ RX 6900XT graphics card powers a new generation of competitive and 4K gaming with vivid visuals, and elevated experiences in every game and every frame with 128MB of all new AMD Infinity Cache, DirectX 12/PCIe 4.0 Support and 16GB of dedicated GDDR6 memory. Experience gaming with realistic lighting, shadows, and reflections along with rich detail thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX features, optimised for AMD RDNA™ 2 architecture.

5120Stream Processors

16GBGDDR6 Memory

2375 MHz Core Clock

2525 MHz Boost Clock

Please Note

This GPU has been designed for use in a custom liquid cooling system, including, but not limited to, a pump, radiator, tubing, fittings, reservoir, and appropriate type of liquid for watercooled systems.failure to incorporate a liquid cooling loop will result in graphics card failure.

WaterForce Cooling System

4K Recording

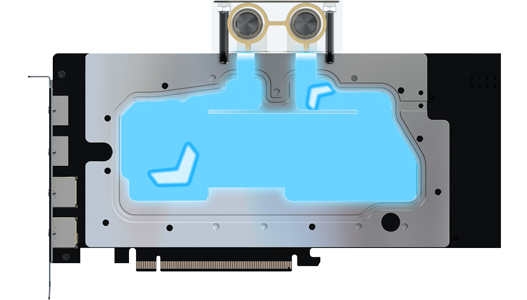

Efficient and Effective WaterFlowDesigned for DIY PC enthusiasts aiming to create unique custom loop builds and achieve the highest possible performance in silence. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.

Keeping You in The Loop

back

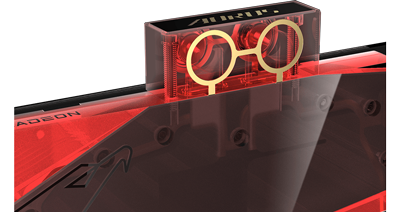

Leak DetectionThe water block is built in with a leak detection circuit covering the entire waterblock, which promptly alerts users by flashing a warning light if there any leaks detected

Made to Fit Your Style

4K Recording

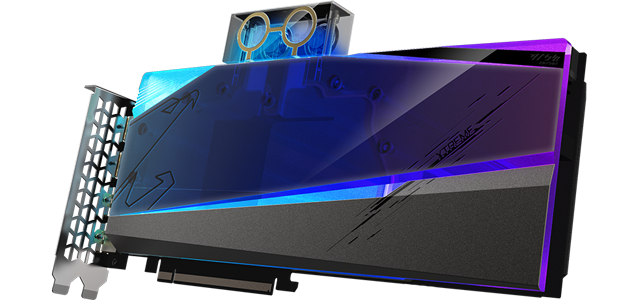

RGB Fusion 2.0Make it personal, make it unique to you with the brilliant Gigabyte RGB Fusion 2.0 software, granting you access to up to 16.7M customisable colour options and numerous lighting effects that can be individually controlled or synchronised across other compatible AORUS devices.

A Breakthrough Gaming Architecture

4K Recording

RDNA2 ArchitectureAMD RDNA™ 2 architecture is the foundation of next-generation gaming PCs and consoles. It is the bedrock of the upcoming revolution in PC gaming graphics and cloud gaming. AMD RDNA™ 2 elevates and unifies visual effects and gameplay across multi- gaming platforms, like no other graphics architecture before.

AMD FidelityFX

down

Contrast Adaptive SharpeningOFF

up

Contrast Adaptive SharpeningON

Bring Out All The DetailContrast Adaptive Sharpening (CAS) helps increase visual quality by enabling stunning visual sharpness with optional upscaling to restore detail lost after Temporal Anti-Aliasing (TAA) is applied. For games that support FidelityFX CAS, turning off Radeon™ Image Sharpening in Radeon™ Software to avoid over-sharpening is recommended.

down

Shading Rate OverlayOFF

up

Shading Rate OverlayON

Get Performance with QualityUsing RDNA2 architecture and variable rate shading allows fidelityFX to analyse luminance and motion of frames to help optimise rending to ensure you also get optimal performance without reducing image quality.

down

Ambient OcclusionOFF

up

Ambient OcclusionON

Realistic Geometry ShadingAMD RDNA™ architecture-optimized Combined Adaptive Compute Ambient Occlusion (CACAO) dynamically and efficiently helps improve the appearance of objects based their exposure to ambient light.

down

Screen Space ReflectionsOFF

up

Screen Space ReflectionsON

High-Quality Realistic ReflectionsAMD’s implementation of Stochastic Screen Space Reflections (SSSR) delivers high-quality reflections with minimal overhead via an optimised compute shader and AMD RDNA™ architecture-optimised denoising.

down

DenoiserOFF

up

DenoiserON

High-Quality Raytracing and EffectsDenoising optimised for AMD RDNA™ architecture to help improve the visual quality of real-time raytracing and other in-game effects.

down

HDR MapperOFF

up

HDR MapperON

High-Quality HDR GamingOptimised for use with AMD FreeSync™ Premium Pro1 displays, AMD's Luminance Preserving Mapper (LPM) delivers superb HDR and wide color gamut content.

AMD Graphics Card Specifications

AMD Radeon RX Card Specifications
Model RX 6900 XT RX 6800 XT RX 6800 RX 6700 XT RX 5700 XT RX 5600 XT RX 5500 XT RX 580 RX 570
Architecture RDNA2 RDNA2 RDNA2 RDNA2 RDNA RDNA RDNA GCN 4th GCN 4th
GPU Big Navi Big Navi Big Navi Big Navi Navi 10 Navi 10 Navi 14 Polaris XTX Polaris 20 Pro
Stream Processors 5,120 4,608 3,840 2,560 2,560 2,304 21,408 2,304 2,048
Ray Processors 80 72 60 40 0 0 0 0 0
Reference Base Clock 2,015 MHz 2,015 MHz 1,815 MHz 2,321 MHz 1,605 MHz 1,420 MHz 1,607 MHz 1,257 MHz 1,168 MHz
Reference Boost Clock 2,250MHz 2,250 MHz 2,105 MHz 2,581 MHz 1,905 MHz 1,620 MHz 1,845 MHz 1,340 MHz 1,244 MHz
Memory 16GB GDDR6 16GB GDDR6 16GB GDDR6 12GB GDDR6 8GB GDDR6 6GB GDDR6 4GB/8GB GDDR6 4GB/8GB GDDR5 4GB/8GB GDDR5
Memory Controller 256-bit 256-bit 256-bit 192-bit 256-bit 192-bit 128-bit 256-bit 224-bit
TDP 300W 300W 250W 230W 225W 160W 130W 185W 150W
Specifications
Key Specifications
Chipset Radeon RX 6900 XT
Edition RX 6900 XT XTREME WATERFORCE WB 16G
Manufacturing Process 7 nm
Microarchitecture RDNA 2
Cores & Clocks
Streams 5120
Core Clock 2375 MHz
Boost Clock 2525 MHz
Video Memory (VRAM)
Memory Size 16GB
Memory Type GDDR6
Memory Clock 16000 MHz
Memory Speed (Effective with DDR)
Memory Bus 256 Bit
Memory Bandwidth 512 GB/s
Memory Data Rate
Cooling
Cooling Solution Custom Water Cooling Waterblock
Cooler Design WATERFORCE
Fitted/Included Backplate Yes
I/O & Connectivity
Interface PCIe 4.0 (x16)
Connectivity
  • 2 x DisplayPort 1.4
  • 2 x HDMI 2.1
Visuals
AMD CrossFire Support
AMD Freesync Support Yes
AMD FreeSync Version
HDR Support No
Microsoft DirectX Support 12 API
Max. Concurrent Displays 4 Displays
Maximum Digital Resolution 7680x4320 (8K UHD)
Maximum Analog (VGA) Resolution
Compute Performance
Peak Half Precision Compute Performance (FP16)
Peak Single Precision Compute Performance (FP32)
Peak Double Precision Compute Performance (FP64)
Power & Thermals
Graphics Card Power Connectors 3 x 8-pin PCIe
Graphics Card TDP/Power
Minimum Recommended PSU 900 W
Maximum GPU Temperature
Physical
Width Dual Slot
Low Profile Support
Dimensions 146 x 28 x 282 mm
Package Type Retail
Additional Information
Scan Code LN117803
Model Number GV-R69XTAORUSX WB-16GD
GTIN 4719331309268
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
Aorus
Telephone:
08442449999
