Gigabyte AORUS NVIDIA GeForce GTX 1080 8GB 11Gbps
Geforce GTX 1080 from Aorus & Gigabyte
Aorus GTX 1080 Gaming Card with high speed memory
AORUS graphics cards are crafted for perfection in pursuit of the ultimate graphics experience for gaming enthusiasts. Based on the revolutionary NVIDIA® Pascal™ GPU architecture, AORUS graphics card brings you incredible gaming experience. Using technologies such as the Windforce Stack Cooling System and VR Link the Aorus 1080 is a force to be reckoned with. It boasts 8GB of GDDR5X that runs at 11 Gbps for unmatched gaming graphics.
Core Clock (OC Mode)
Boost Clock (OC Mode)
Aorus All-Round Cooling Solution
1080 Windforce Cooling System

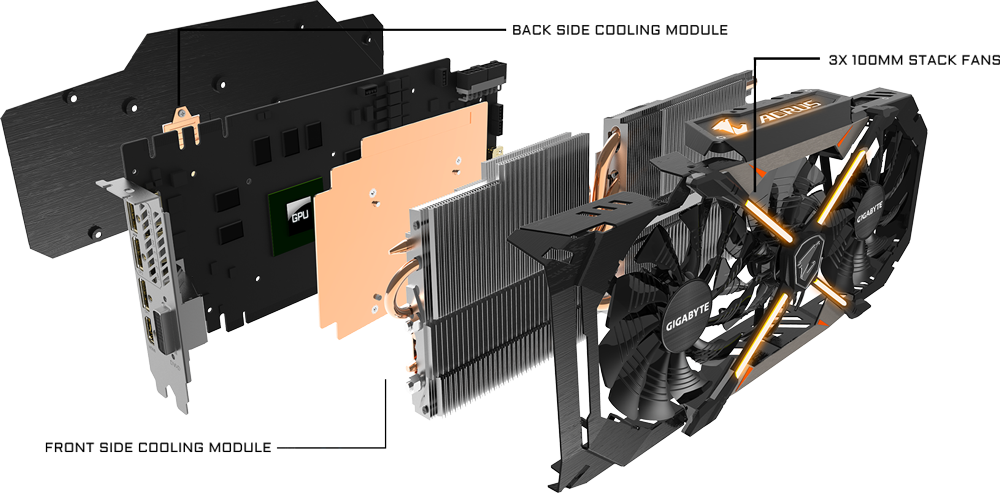

AORUS provides the all-around cooling solution for all key components of the graphics card. We take care not only GPU but also VRAM and MOSFET, to ensure a stable overclock operation and longer life. On the front side, the large copper base plate dissipates the most heat from the GPU and VRAM. On the back side, the copper back plate dissipates the heat from the GPU back side. All other key components are taken care of very well by the WINDFORCE cooling module. AORUS ensures the customer a better cooling solution in many ways.
Advanced Aorus Fan Cooling
1080 Windforce Cooling System

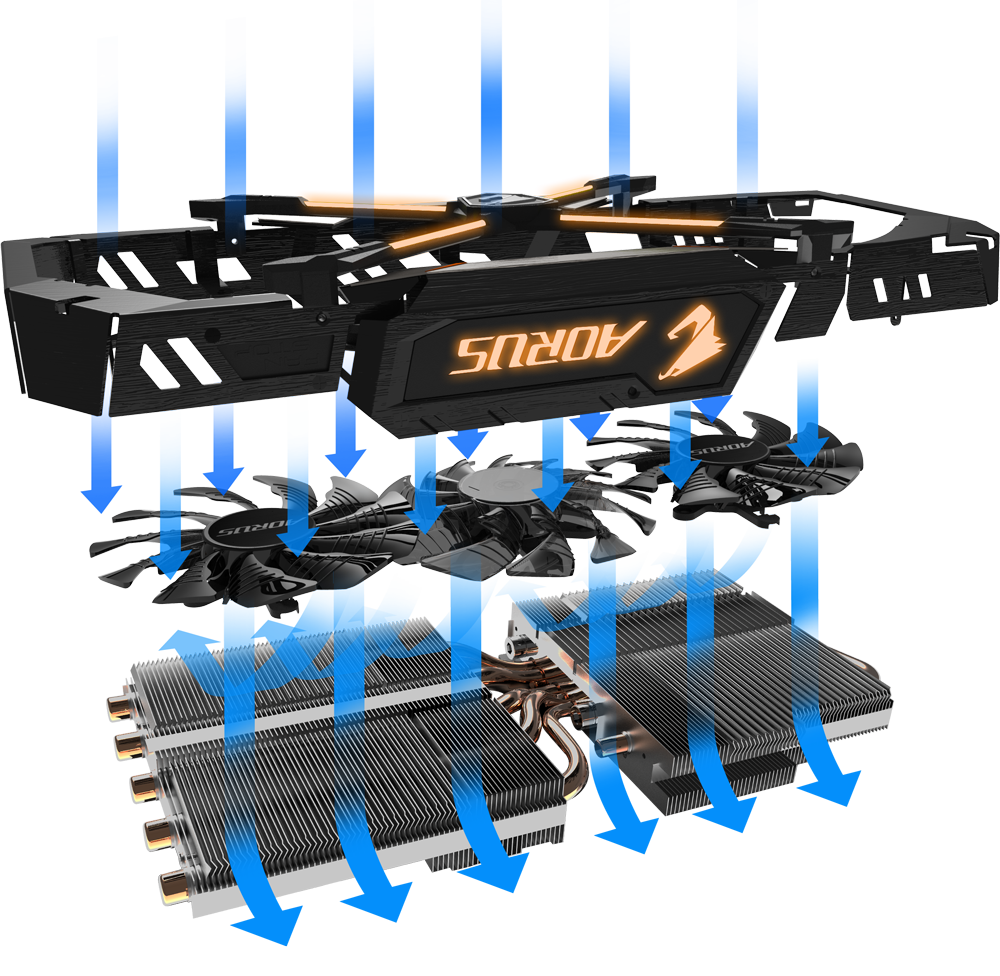

All new WINDFORCE Stack cooling with 3x 100mm fans in an innovative stacking structure for enhanced heat dissipation.The 3x 100mm stack fans provide larger and more smooth airflow. And with more heatsink coverage than 3x 80mm fans, WINDFORCE stack fans will have 10% better cooling performance. Make 3x 100mm stack fans into less than 300mm length area. To concentrate and enlarge the airflow on the whole heatsink for the most efficient heat dissipation.
Double Ball Bearing
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
Unique Blade Fans
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow by 23% over the traditional fans.
The middle fan spins in the reverse direction to optimize the airflow to dissipate the heat more effective for accomplishing higher performance at a lower temperature.
3D Active Fans
The AORUS 1080Ti are equipped with 3D-Active Fan. The fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.

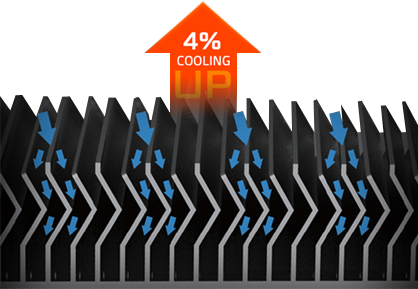

Angled Fin Fan Design
Angular Fin Design Increases 1080 Cooling
The angular and unequal fins height does not only channel the airflow through the fins and enlarge the contact surface, but also results in a lower noise level and better cooling capacity for your 1080.
RGB Lighting Effects

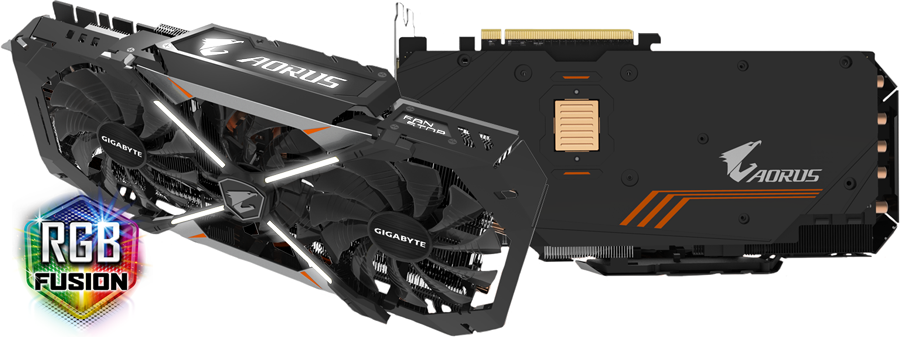

Gigabyte Aorus RGB FUSION
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through AORUS graphics engine.
Aorus Xtreme Gaming VR Link
GTX 1080 Virtual Reality Link
Whether you’re looking for the best solution for VR devices or for using up to 3x 4k monitors, the Xtreme Gaming 1080 GPU from GIGABYTE has you covered. This GTX 1080 brings access to a multitude of ports thanks to GIGABYTES VR Link their added HDMI ports on the inside of the 1080 card. Outputs are automatically detected when restarting PC.

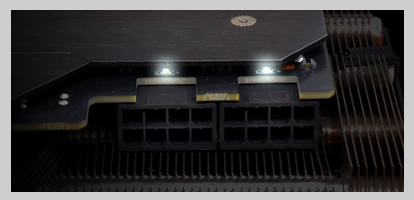

SMART POWER LED
Gigabyte Power LED
Be alert when PCI-E voltage is unstable with the smart power LED indicators. When experiencing any power abnormality, the indicator will alert gamers via a flashing light, a stable light symbolizes a dissconnected or faulty cable and no light means the voltage to your power supply is stable.
Premium Build in Every Aspect

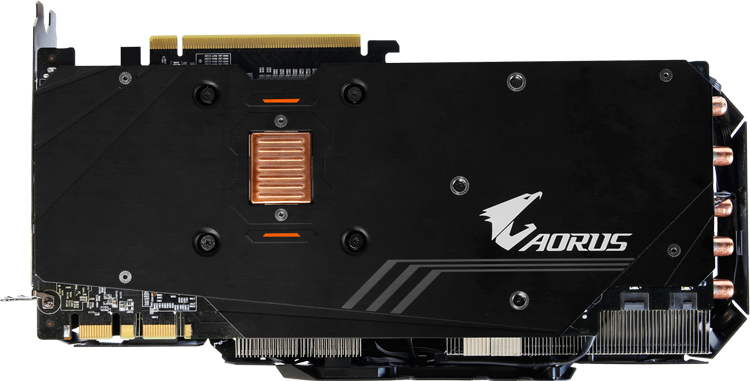

Stylish Metal Back Plate
A Glorious black metal back plate on the Xtreme Gaming 1080 provides solid protection, strengthens the structure and inspires the passion for gaming. It also features a large Aorus logo that lets the RGB lighting shine through.
Overclock Your Aorus 1080 Ti
Aorus Graphics Engine
With the Aorus Graphics Engine you can monitor and fine tune in real-time your Clock Speeds, Voltage, fan performance and power target. You can tune them to your own gaming preference using the intuitive user interface.
GTX 1080 CONNECTIONS
HDMI 2.0b / 3x DisplayPort 1.4 / Dual-Link DVI
GEFORCE GTX VR READY
GeForce® GTX graphics cards provide a powerful next-generation platform for the ultimate immersive virtual reality experience. Rigs and cards marked with "GeForce GTX VR Ready" ensure that your VR games will be optimized with a best-in-class GPU.
To experience and enjoy the impressive world of Virtual Reality, high-performance hardware is required. MSI, world leading brand in high-end gaming and eSports, provides the right advice to make sure your system is VR Ready. Integrating the very best of cutting edge technologies in recommended MSI VR gaming hardware for smooth performance. Together with our VR partners, MSI brings gamers an extremely realistic VR experience where games come alive.
|Chipset||GeForce GTX 1080|
|Manufacturing process||16 nm|
|Core Clock||1708 (1733 in OC Mode) MHz|
|Boost Clock||1847 (1873 in OC Mode) MHz|
|Memory Clock||11010 MHz|
|Memory Bus||256 Bit|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||WINDFORCE 3X|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||4 Displays|
|NVIDIA SLI Support||2-Way SLi with High Bandwidth Bridge Support|
|GeForce GTX VR Ready||Yes|
|Microsoft DirectX Support||12 API with Feature Level 12.1|
|Low Profile Compatible||No|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Minimum Recommended PSU||500 W|
|Maximum GPU Temperature||94 °C|
